fruit cutting pitting machine apricot processing equipment

Product Overview

Description

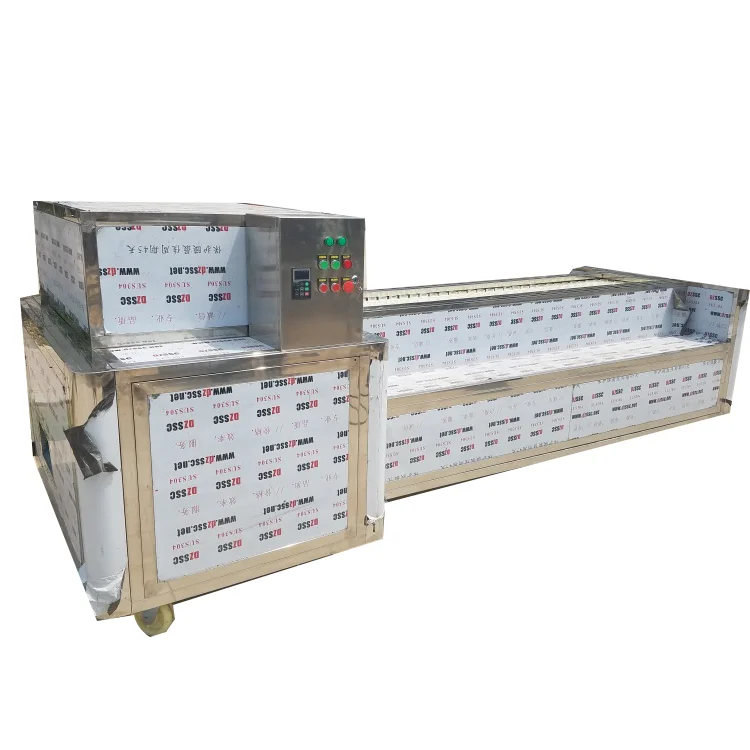

     Semi automatic apricot

core removing pitting machine fruit 96 type





Introduction of fruit pitting machine



The machine is mainly used for peach, apricot and other nuclear fruit to pit at room temperature. The pulp production line of nuclear fruit is one of the important equipments. The core of peach and apricot are removed by rotating toothed roller and cot to obtain massive pulp. The distance between the two rollers depends on the different fruits.







The principle of fruit pitting machine



The fruit is fed into the feed hopper by the front equipment, and the fruit pressing plate is driven by the crank connecting rod mechanism to press the fruit between the two rollers. The two rollers turn to each other, most of the pulp on the fruit is pressed into the gap of the toothed roller, the core is squeezed in the elastic rubber roller, and the comb plate digs out the pulp from the gap of the toothed disc. The core with pulp enters the nucleus washing part to complete the separation of pulp and nucleus.





The features of fruit pitting machine



1. It can effectively separate the core and flesh of fruit.

2. Large capacity, high efficiency and simple operation.

3. According to the size of the fruit and the grinding degree of the rubber, the gap between the rollers can be adjusted conveniently and quickly to obtain the best nucleation effect.

4. The meat scraper and rubber roller can be replaced according to the use condition, and the replacement and installation are convenient.

5. The frame adopts high-quality stainless steel welded frame structure with good overall rigidity.

6. Except for the feed and discharge openings, the whole machine is of totally closed structure with good safety protection.









The application of fruit pitting machine



Cherry,date palm, beach dates,apricot ,bayberry, peach haw, jujube, olives, plums, apple etc.







Technical parameter of fruit pitting machine





Model	SCAM8-2A
Output	300-400Kg/h
Fruit diameter range	10-120(mm)
Weight	300-400KG
Dimensions	(mm)
Operating voltage	220/380V
Power	2.5kw

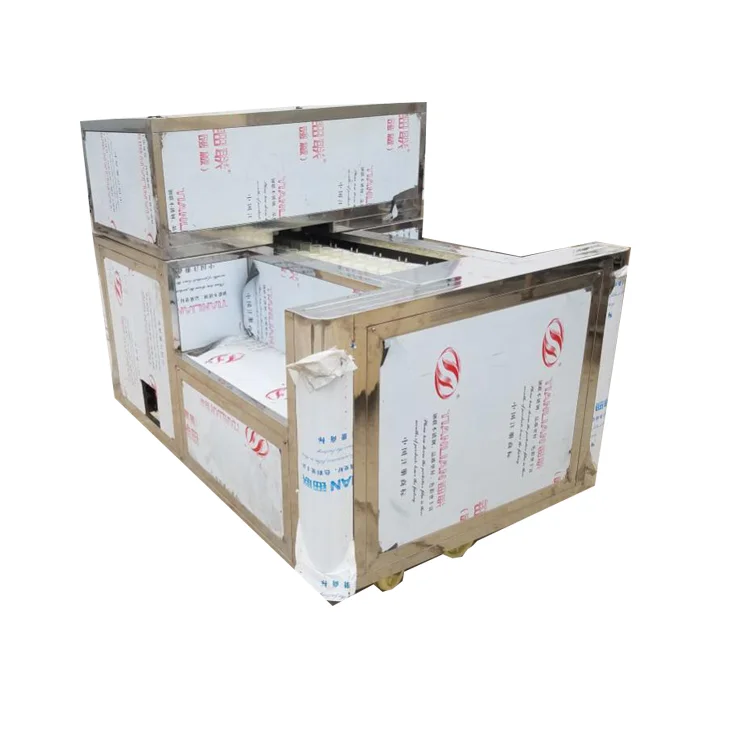

Product display











Our Team







Our Services













Our customers



Certifications







 Packaging & Shipping









FAQ



Q:Where is your factory?

A:We are in Gaoping District,Nanchong City of Sichuan P.R.China.





Q: How can I pay my order?

A: We accept T/T, Western Union paying methods ,L/C ,Etc.



Q: Do you have a CE certificate?

A: For every model of machine, we can do a CE certificate.



Q:How should I do if meet some trouble while using?

A:we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.



Q:How long is the guarantee?

A:we promise guarantee as one year for non-human damage factor.



Q:What's your MOQ?

A:1 set.
