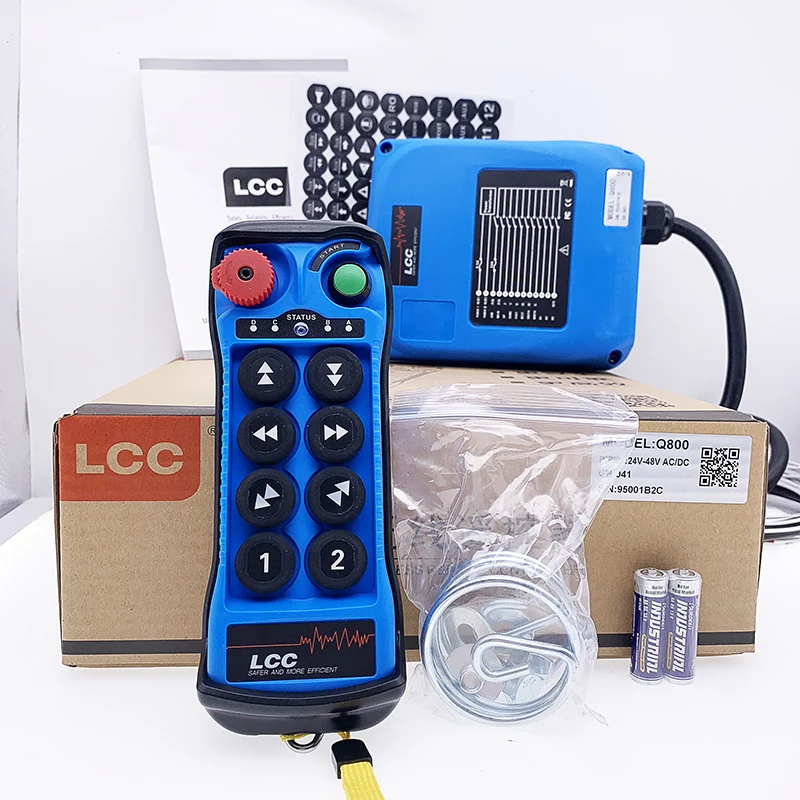

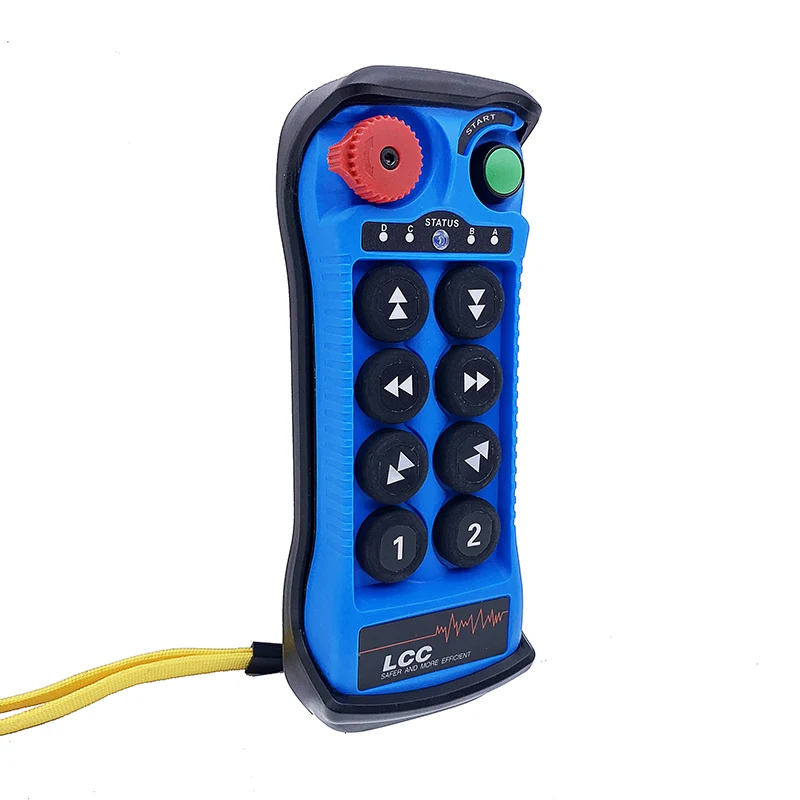

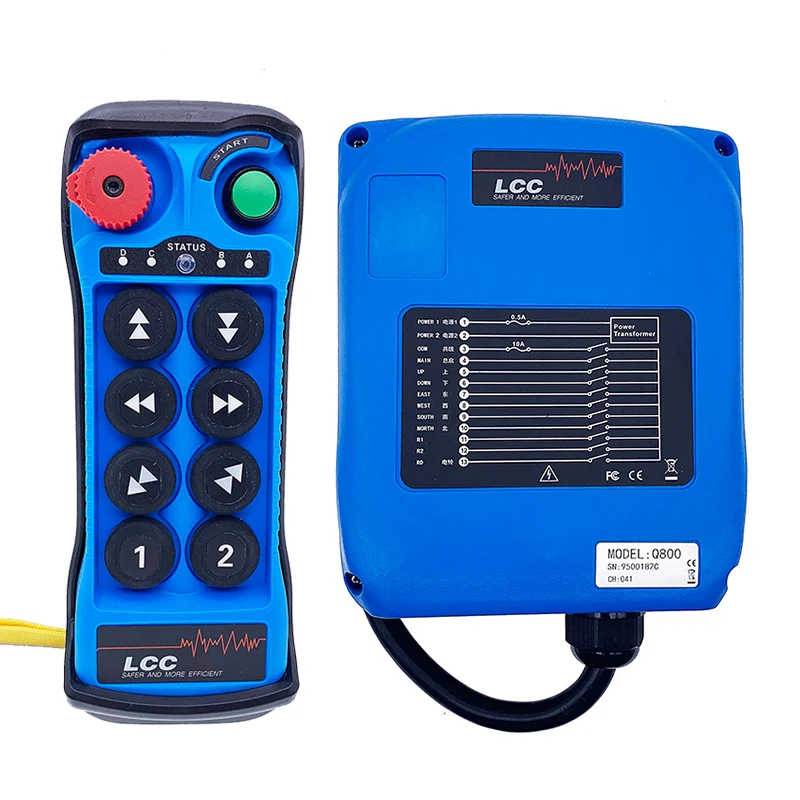

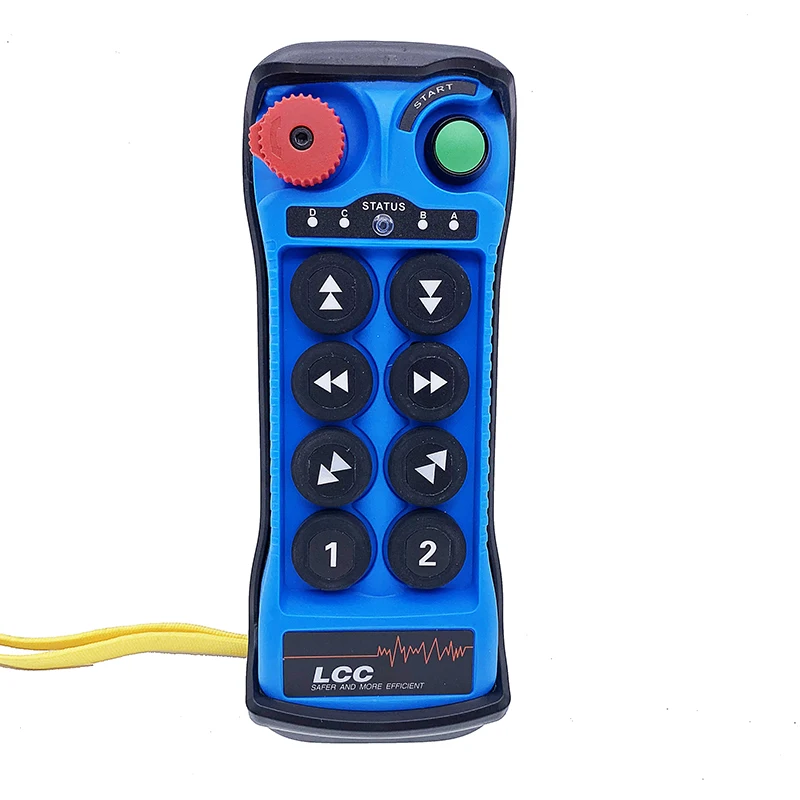

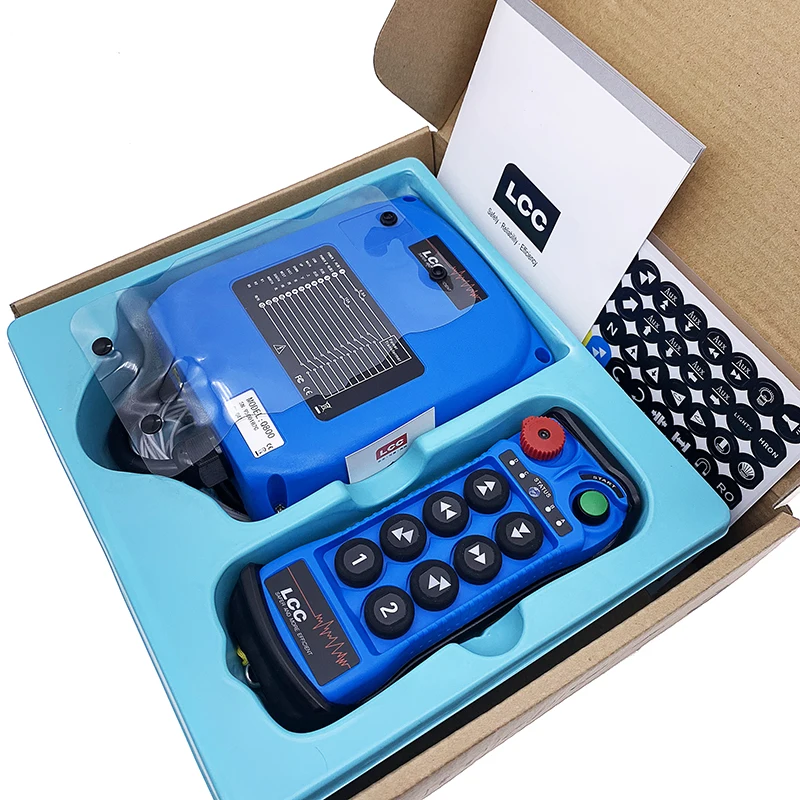

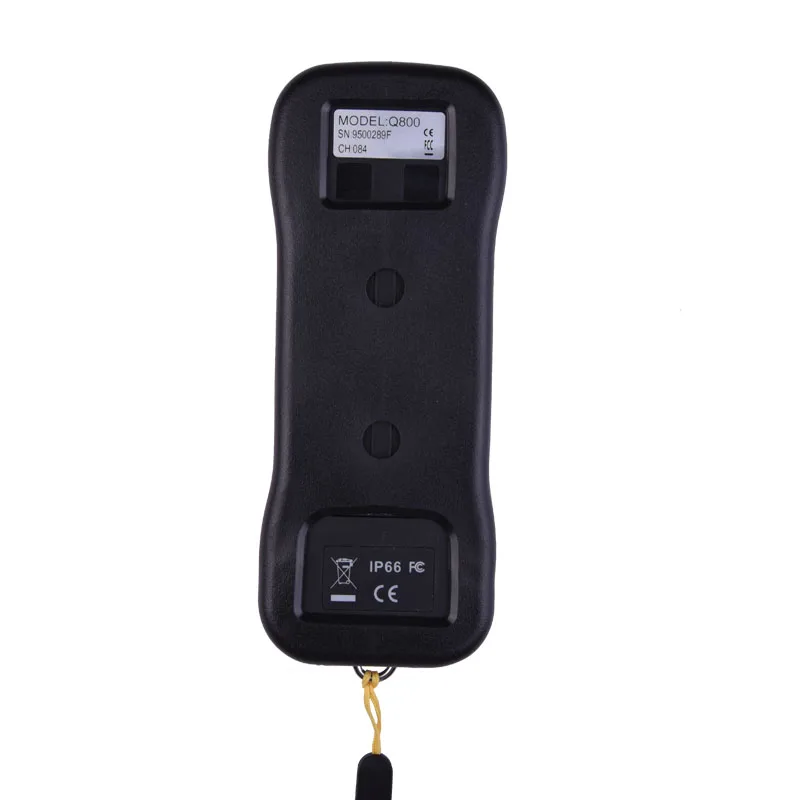

Blue Q800 LCC Crane Radio Remote Control for Hoist Cranes
- Category: Remote Control >>>
- Supplier: Nanjing Xiading Electronic Technology Co. Ltd.
Share on (62556427467):
Product Overview
Description
Product description
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
| Transmitter Function | 2 single -speed buttons | 2 double -speed buttons | 4 single -speed buttons | 4 double -speed buttons | 6 single -speed buttons | 2 double 4 single
| 6 double -speed buttons | 8 single -speed buttons | 8 double -speed buttons | 10 single -speed buttons | 10 double -speed buttons | 12 single -speed buttons | 12 double -speed buttons |
| Transmitter Dimensions | 14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
| Transmitter Weight | 240g | 300g | 360g | ||||||||||
| Transmitter Antenna | Inside | ||||||||||||
| Receiver Antenna | Inside / optional external antenna | ||||||||||||
Start | Press the start button | ||||||||||||

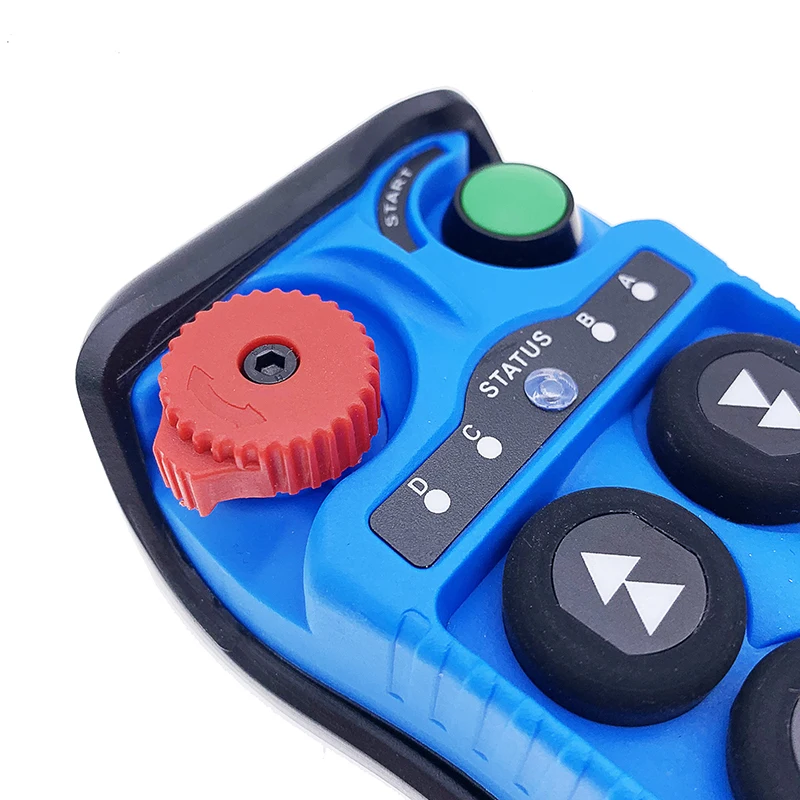

Emergency | Mushroom conforms to EN3849-1 standard | ||||||||||||
Housing | Reinforced nylon plastic | ||||||||||||
IP class | IP65 | ||||||||||||
Distance | ≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
Frequency | 433/480MHZ | ||||||||||||
Temperature | -35°C— +75°C | ||||||||||||
Button life | ≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
| Continuous working time | 400 hours (at room temperature) | ||||||||||||
| Automatic shutdown | no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
Button Text | Arrow/English/Chinese/Others | ||||||||||||
| Receiver Output | Relay 5A@250v | ||||||||||||
| Receiver Voltage | AC/DC 24-48V , AC/DC 110-480V | ||||||||||||
Transmitter parameter:
| Frequency | 433/480(MHZ) |
| Weight | 380g |
| Temperature range | -35℃~75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| Power supply | LR6(AA)1.5V*2DC3V(DC) |
Frequency control | PLL |
| Stop command response time | <100(ms) |
Receiver parameter:
| Frequency | 433/480(MHZ) |
| Weight | 1700g |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | Low pressure24-48V high pressure110-460V |
| Operating temperature | -35℃~+70℃ |
| Receiving sensitivity | -112(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time | 50-100(ms) |
| Protection level | IP65 |
The LCC brand originated from the customer's desire for more reliable industrial wireless remote control. At the beginning of the brand's establishment, the vision was to provide safer, more reliable and more efficient industrial wireless remote control system for Chinese and global customers. Today, this vision has been translated into reality by LCC engineers. Now in every corner of the world, you have the opportunity to see LCC products. LCC products are the first choice for customers in general industries such as iron and steel metallurgy, automobile manufacturing, pulp and paper making, shipbuilding, mining, tunnel construction, port seawork, oil mining and other special industries.
FAQ
FAQ
1. Q: what is your minimum order?
A: thank you for your question. We can accept sample orders for trial orders.
2. Q: is there a warranty? .
A: all our branded products have a 12-month warranty period. we provide 24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us.
3. Q: will you provide after-sales service?
A: of course.
1) all products are subject to strict factory quality inspection before packaging. .
2) all the products are packed in our factory, and the second package is delivered by express delivery before shipment. . .
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
4. Q: what certificates are approved for your product?
A: we have CE,FCC,ISO9001.
5. Q: can you customize it to my needs?
A: you can send me inquiries according to your needs. we can customize them with technical engineers.
6. Q: is your price the lowest?
A: do you mind the quality? The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price to work well?
7. Q: is the product 100% assembled?
A: yes, all the products are 100% assembled.
