2020 new design mini portable oxygen enriched concentrator with battery 1 hour,2hours,3 hours

Product Overview

Description

Specification:

Input voltage

   1.1 AC 100-240V 50 / 60Hz 1.8A

   1.2 DC: DC 12-15V 3A Polarity: positive inside and negative outside

2. Output parameters:

   2.1 Oxygen pressure (relative pressure): ≥8Kpa when oxygen is enriched, or ≥20Kpa when high oxygen or continuous

2.2 Outflow of oxygen: Pulse: about 30mL each Continuous: ≥1200mL

3. Power: 45W

4. Net weight: 1.95Kg





Function introduction:

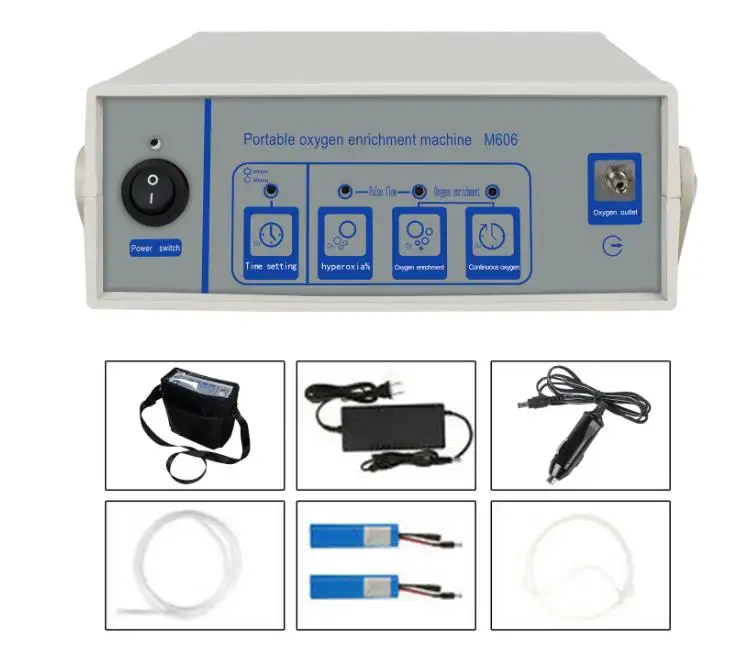

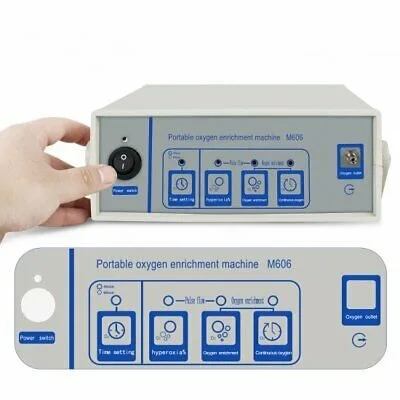

The above is the operation panel with the following functions:

1.Pulse flow, Approximately 18 pulses of oxygen enrichment output per minute.

2.Oxygen enrichment ,concentration is about 28% -50%; the concentration referred to by this machine is ≥38%

3.Continuous Oxygen, Compared with pulse, it is continuously oxygen enrichment; the concentration indicated by this machine is ≥35%

4.Timing setting, can choose 30 minutes and 60 minutes, select the working time according to your own needs; the light on the button means 30 minutes, the light off means 60 minutes;

5.Hyperoxia %,concentration above 51%

6.Power switch, press the switch, the machine will turn on, if the power is already straight, it will start to work;

7.Oxygen outlet: Enriched-Oxygen outlet produced by the machine, connected to an oxygen absorber

8.The machine can use AC110-230V alternating current, suitable for most countries and regions;

The machine has a built-in power adapter and 3.15A fast fuse, so non-professionals should not disassemble the machine.



Accessories included

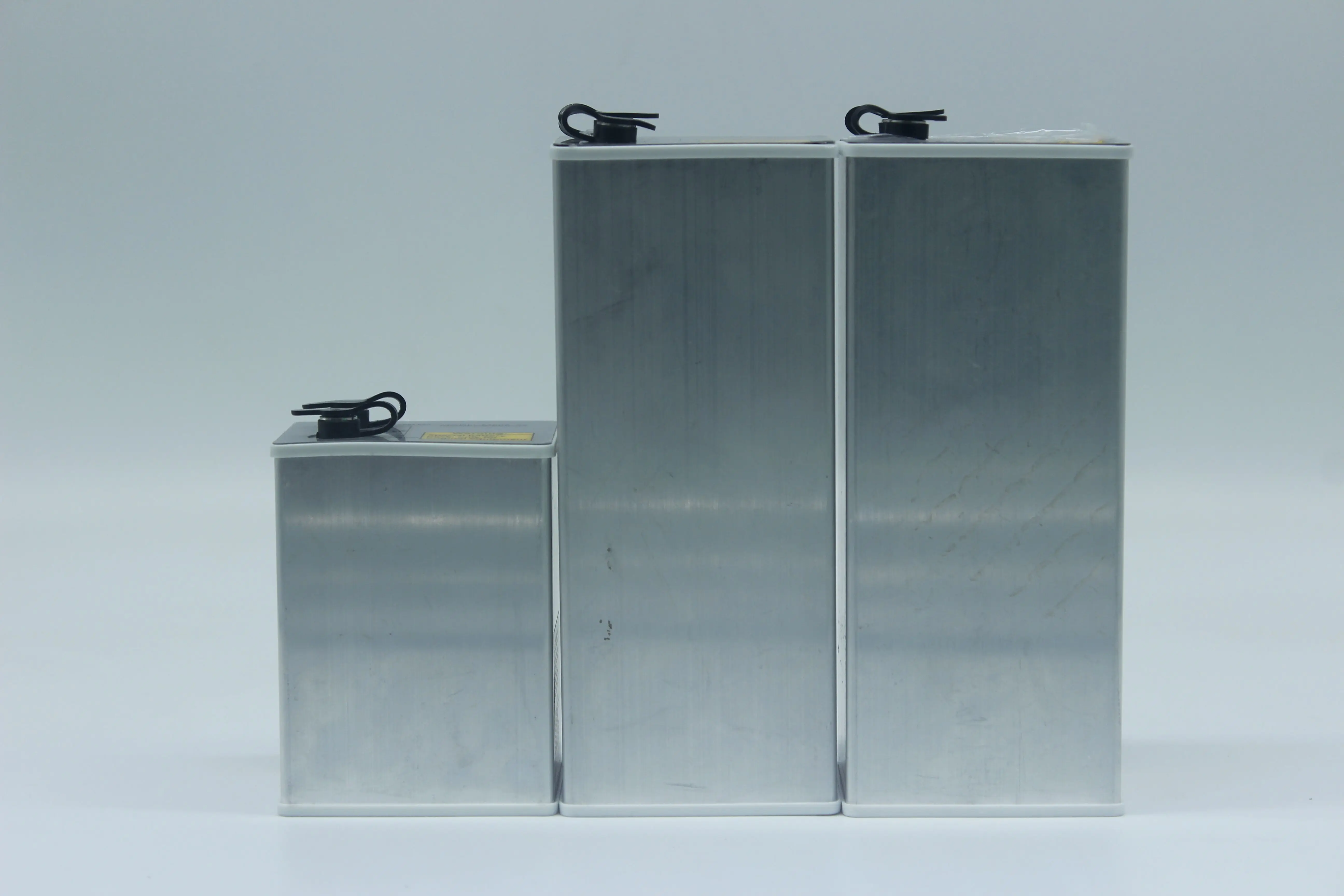

Battery which avaliable for 1hour,2hours and 3 hours:
