Product Overview
Description
Shot blasting machine / Shot blast machine / Shot Blaster / Abrator / Blasting Equipment
The shot blasting machine refers to a device that impinges the steel grit and steel shot on the surface of the material object at a high speed through the shot blasting device, so as to clean or strengthen the surface of the casting.
The shot blasting machine can be used to remove burrs, diaphragms and rust. It can also remove contaminants on a partially coated surface and provide a surface profile that increases the adhesion of the coating to achieve the purpose of strengthening the workpiece.
Shot blasting machine is different from shot blasting machine in that it is used to reduce the fatigue life of parts, increase different surface stresses, and increase the strength of components.
The shot blasting machine can be used to remove burrs, diaphragms and rust. It can also remove contaminants on a partially coated surface and provide a surface profile that increases the adhesion of the coating to achieve the purpose of strengthening the workpiece.
Shot blasting machine is different from shot blasting machine in that it is used to reduce the fatigue life of parts, increase different surface stresses, and increase the strength of components.

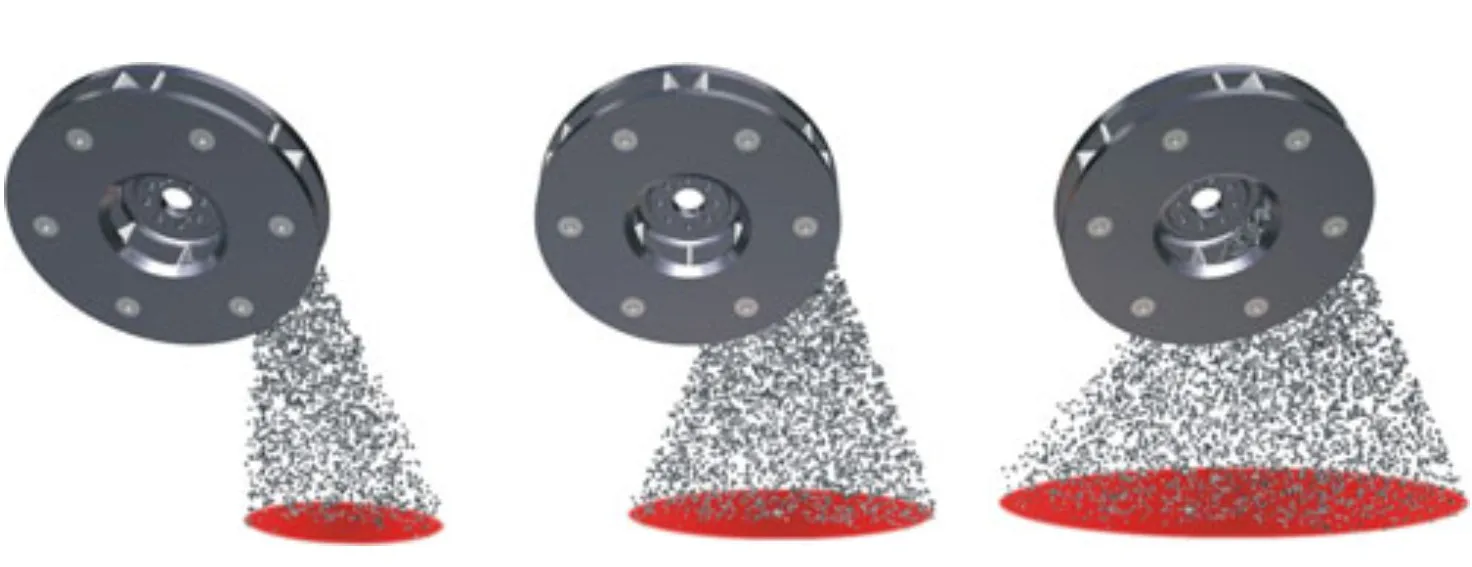

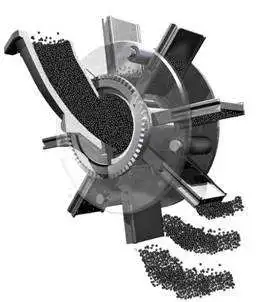

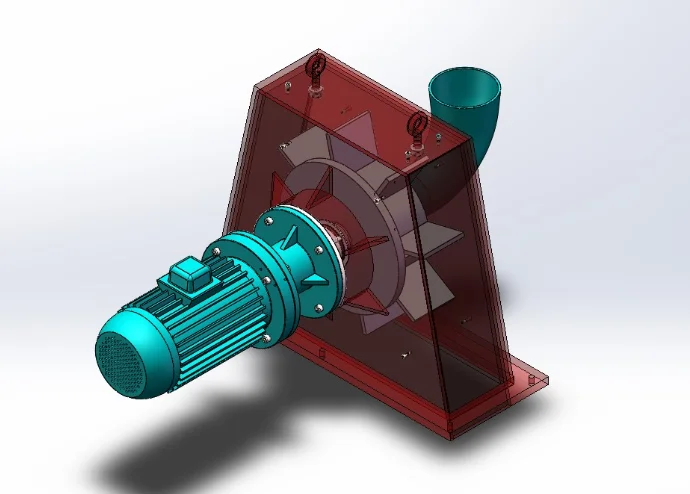

Blasting wheel is the key component of shot blasting machine.made of disc, impeller, control cages and blasting blades.

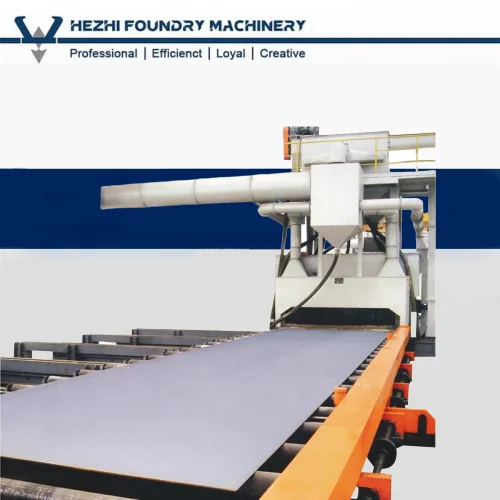

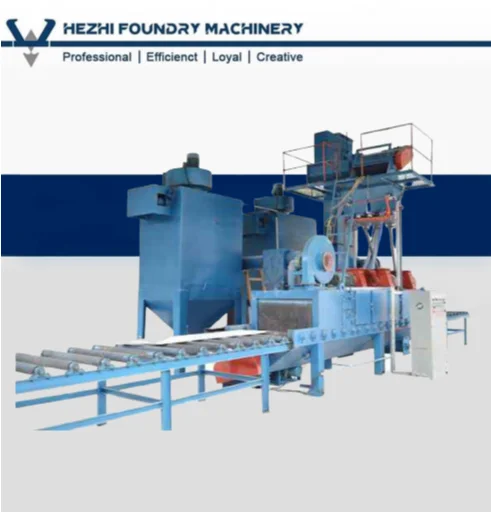

Roller conveyor shot blaster is heavy duty blast cleaning equipment.
Roller conveyors includes feeding rollers, middle rollers &out-feeding rollers.
Feeding rollers deliver workpieces to middle rollers in blasting chamber be blasted.Out-feeding rollers deliver finished workpieces out .
Work pieces include H beans, I beams, steel plate, sheets and strips, square tubes, tubes andpipes, bars and rebars. also can be stone ,marble, granite plate.
Fabricated steel works and structural steel works can be blasted thoroughly to reach SA 2.5 or even SA 3.0 ready for priming and coating.

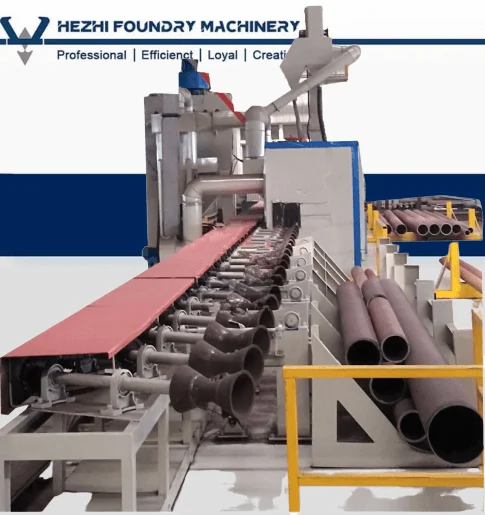

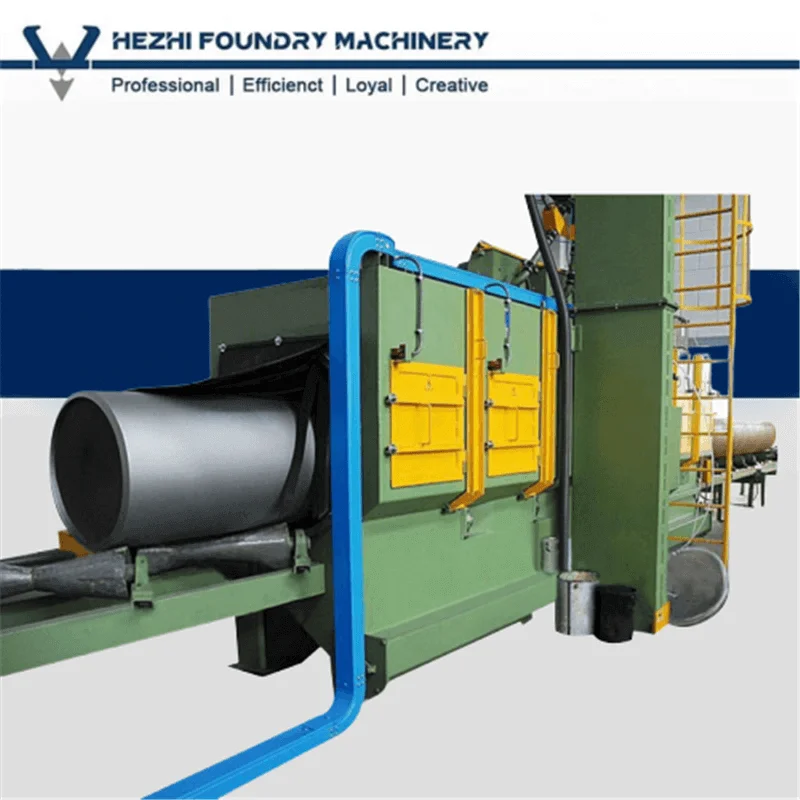

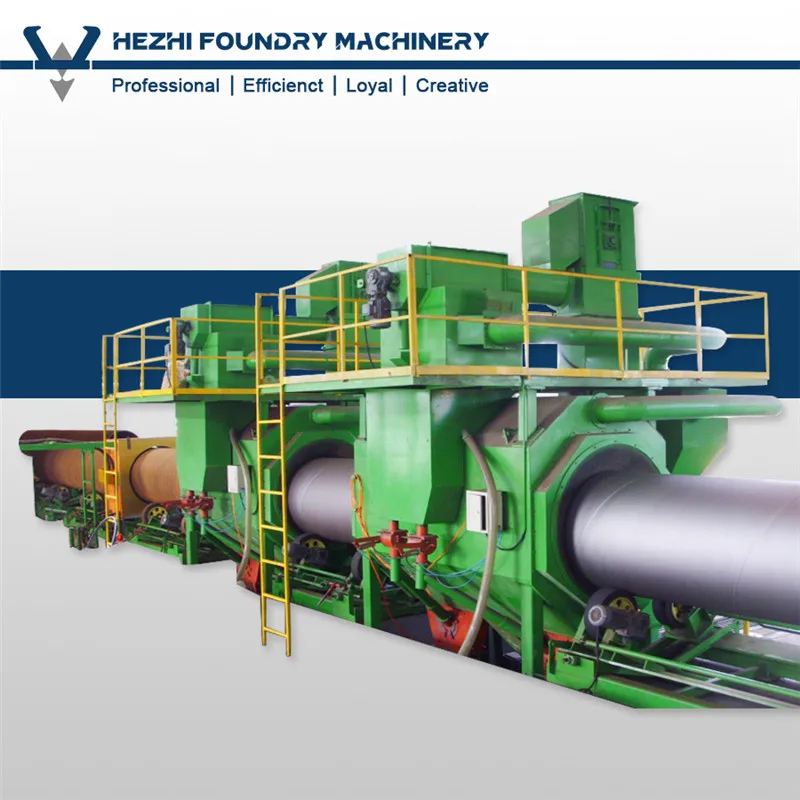

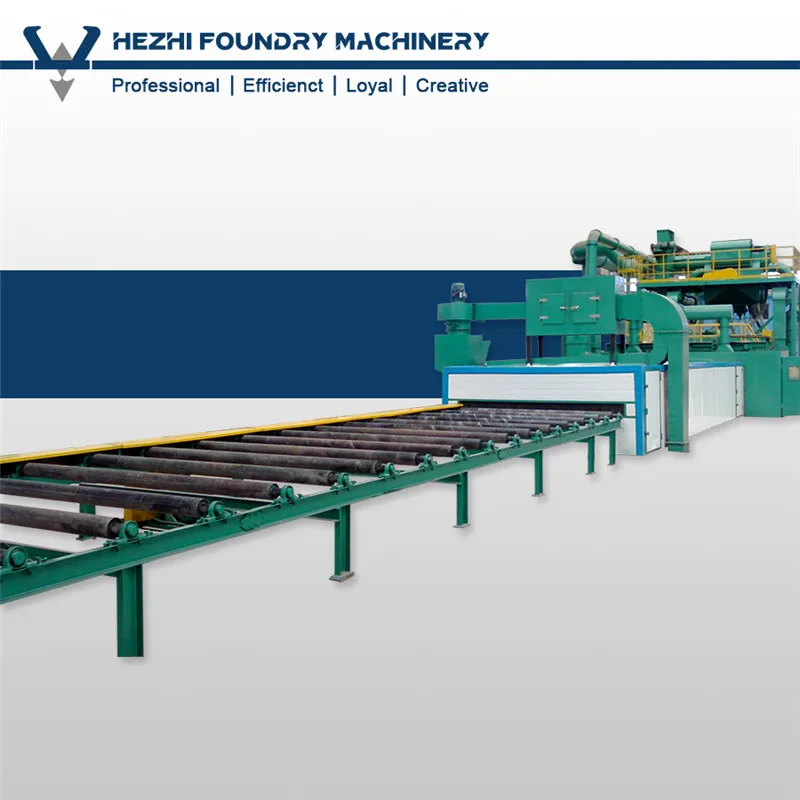

Steel Pipe Roller conveyor shot blasting machine for steel pipes ,steel tubes and steel round bar

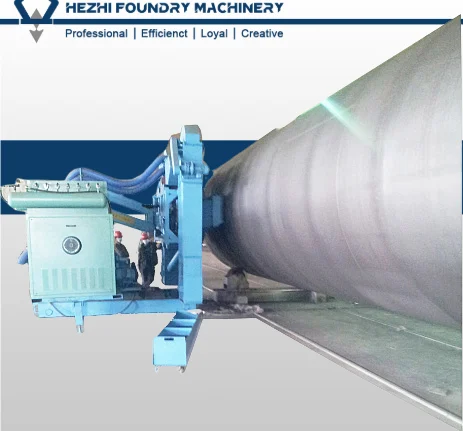

External pipe shot blasting machine is also called external pipe blaster for pipe external surface cleaning. Internal pipe shot blasting machine is also called internal pipe blaster for pipe internal surface cleaning.
Different diameter pipes with different design according to your request.

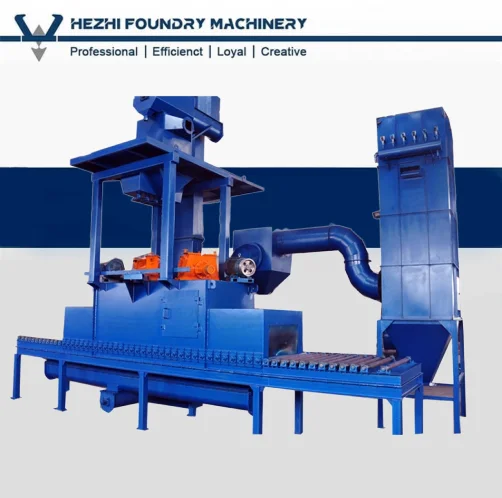

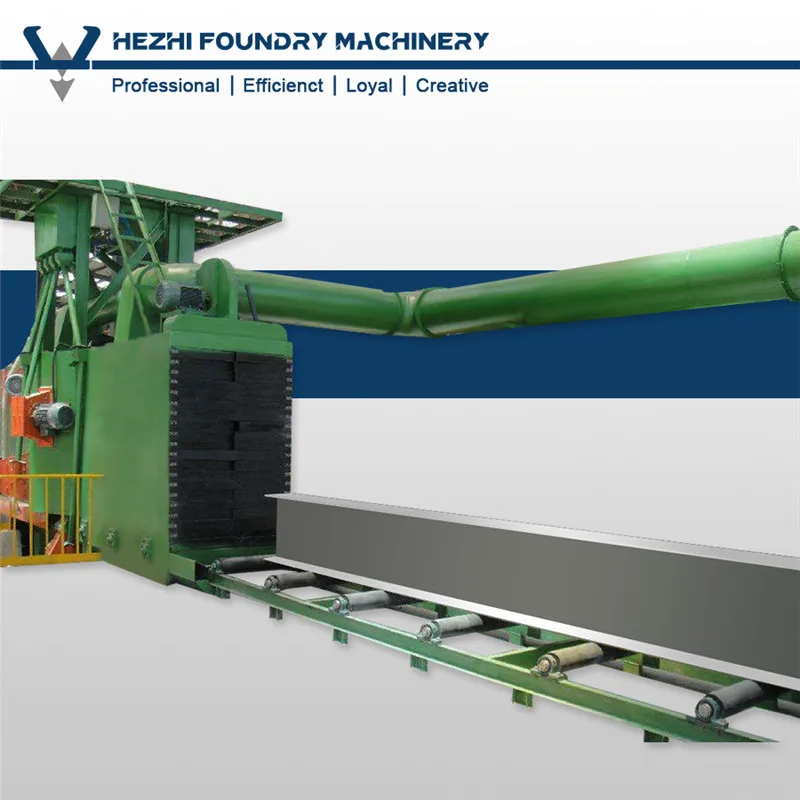

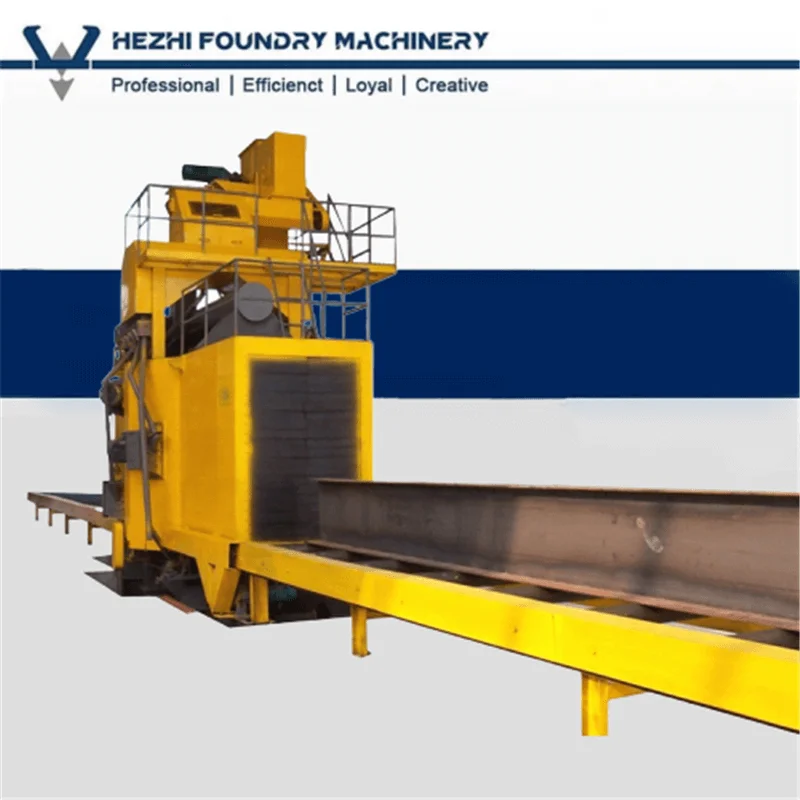

Roller conveyor shot blast machine for I profile, H beam and other steel profile.
Roller length ,width and inlet/ourlet size all can be customized according to different requirements.
Steel beam / profile can be horizontal passed also can vertical passed.
Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finish level.
Equipped with drying preheating unit, painting unit and brushing sweeping unit.
It can be designed horizontal through pass type , also can be designed with vertical through pass type.
4. Stone Granite shot blasting machine
Stone through roller conveyor shot blasting machine is suitable for marble, granite, floor tile and other stone material and surface treatment of the municipal facilities engineering material. marble stone material surface shot blasting machine to be able to in the original state of marble, granite, the surface of the ground brick with powerful shot, on the surface of the marble, floor tile prevent slippery processing and beautification .

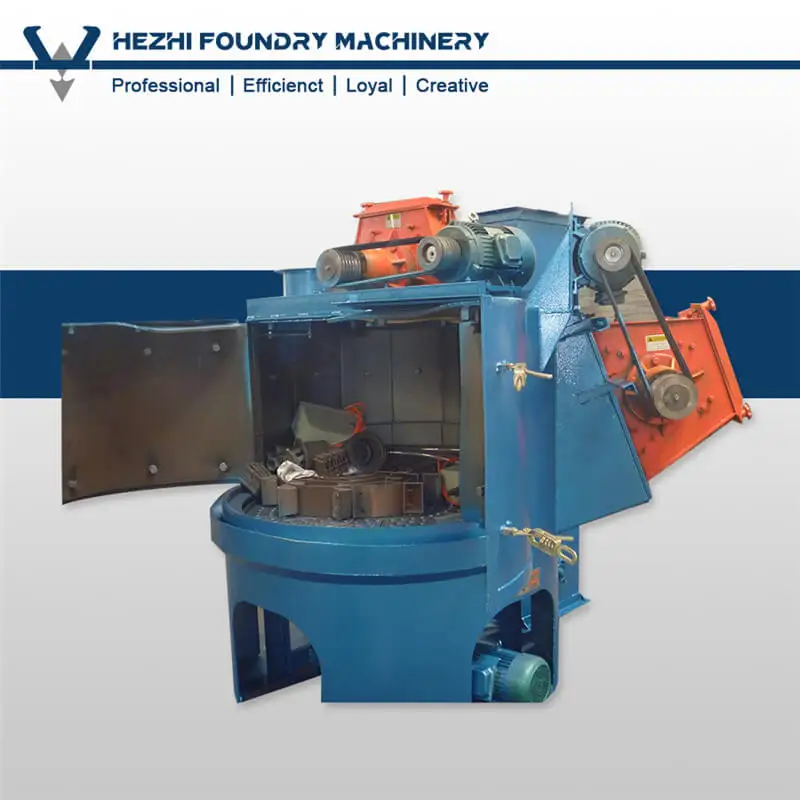

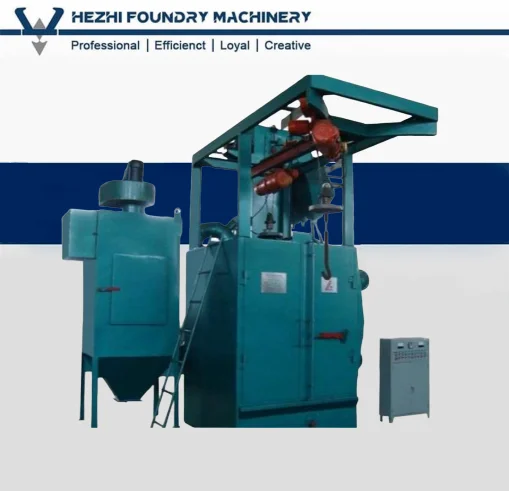

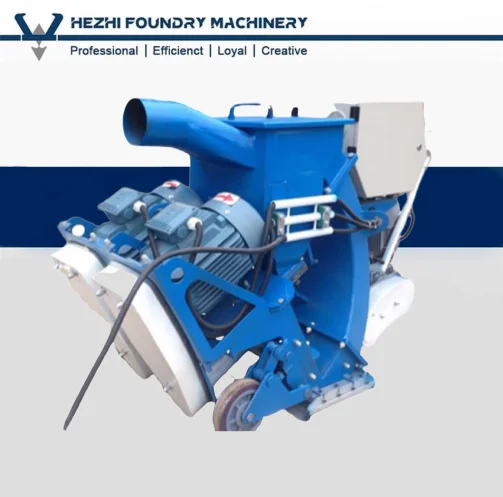

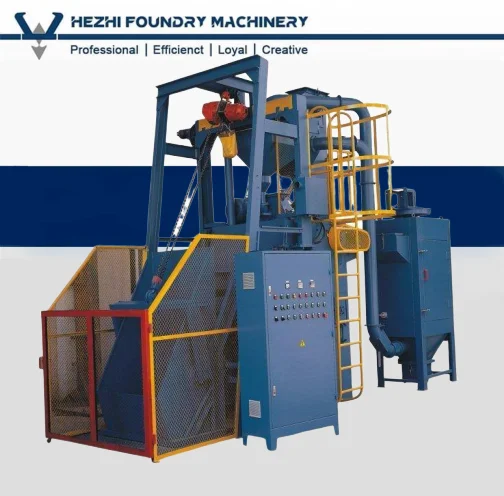

Other type shot blasting machine : Clik picture for your interesting type.
Main technical of shot blasting machine
Model | QGW10 | QGW20 | QGW140 | |||
Diameter | φ30-100 | φ50-200 | φ152-1400 | |||
Blasting capacity | 2x250kg/s | 2x250kg/s | 2x250kg/s | |||
Speed | 0.5-1.5m/min | 0.5-1.5m/min | 0.5-1.5m/min | |||
Power | 50 kw | 50 kw | 293kw | |||
More technical ,click pictures and contact with Anna | ||||||
Model | QH698 | QH6915 | QH6920 | Q6940 | ||||
Height | 800mm | 1500mm | 2000mm | 4000mm | ||||
Max width | 300mm | 500mm | 500mm | 500mm | ||||
Air volume | 17560 m3/min | 19550 m3/min | 27758 m3/min | 38000 m3/min | ||||
Power | 78kw | 156kw | 224kw | 293kw | ||||
More technical ,click pictures and contact with Anna | ||||||||
Model | QXY1600 | QXY3000 | QXY4000 | |||
Max width | 1600mm | 2000mm | 4000mm | |||
Thickness | 3-20mm | 3-60mm | 5-50mm | |||
Length | 2-12m | 2.4-12m | 2.4-16m | |||
Power | 250kw | 320kw | 300kw | |||
More technical ,click pictures and contact with Anna | ||||||
Qingdao Hezhi Machinery Group
Qingdao Hezhi Machinery Group located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating casting machinery, surface shot blasting machine, sand treatment,and automation equipment research, development, production, operation, export and service. We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension.
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
Q:What is basting speed of shot blasting machine ?
A:0.5-1.5 m per minute.
Q:What kind of abrasives to be used for shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.
Q:Is it necessary to dig pit for installation of shot blasting machine ?
A:It depends on the rollers height and work piece size.
Q:How to clean small work pieces shorter than 1 meter ?
A:To make tooling on roller.
Q:How many operators are needed to run shot blasting machine ?
A:1 operator.
More questions please contact Anna :0086 1995325 9235 (phone/whatsapp)
