DT 157 High Accuracy 0~2000um Coating Thickness Gauge Paint Thickness Meter Tester Magnetic Eddy Current Method
- Category: >>>
- Supplier: Shanghai Yiniu Network Technology Limited
Share on (62556734804):
Product Overview
Description

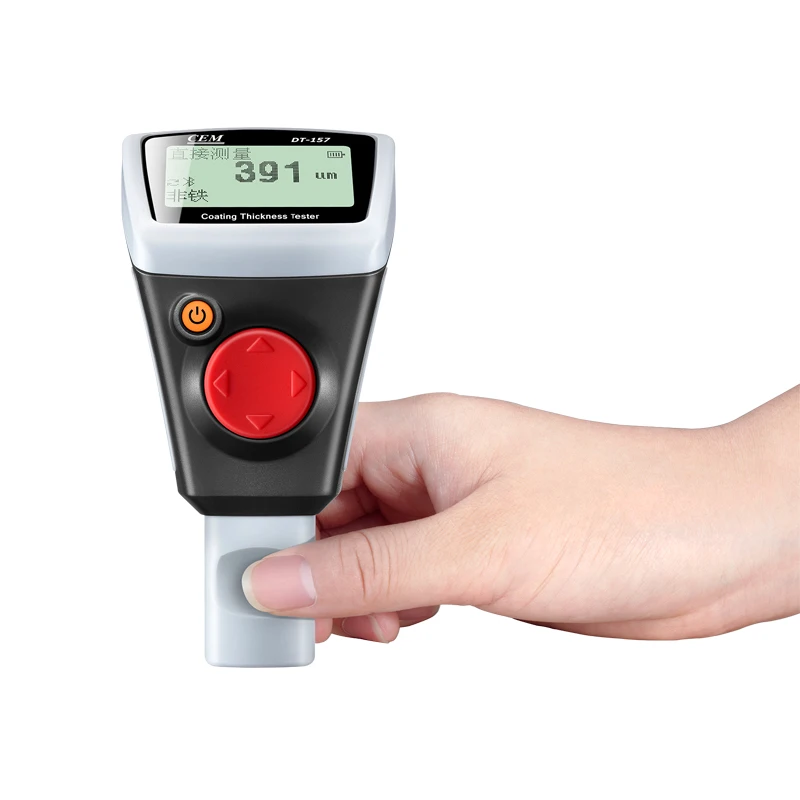

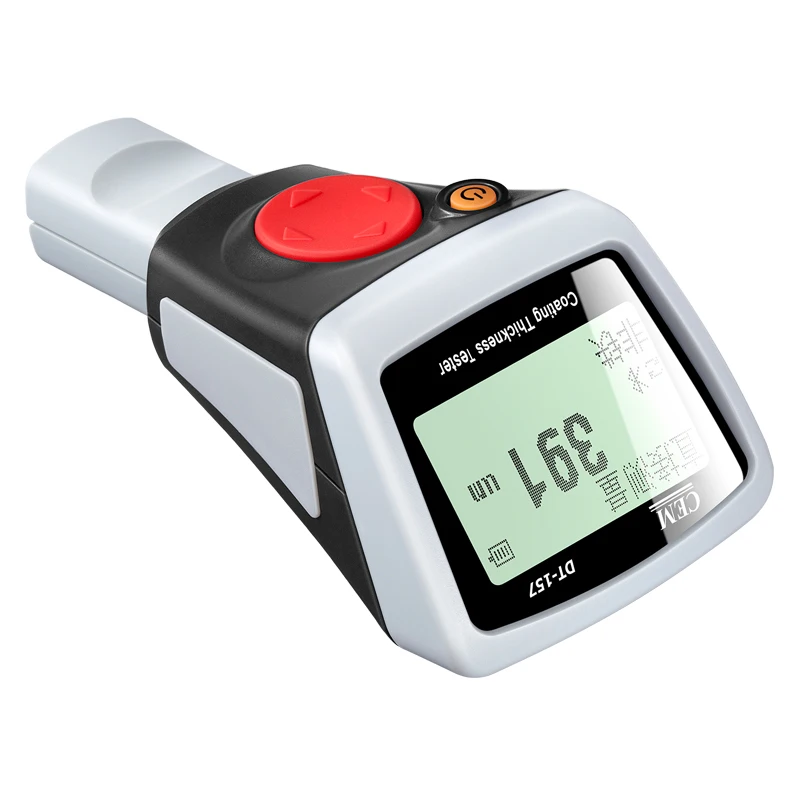

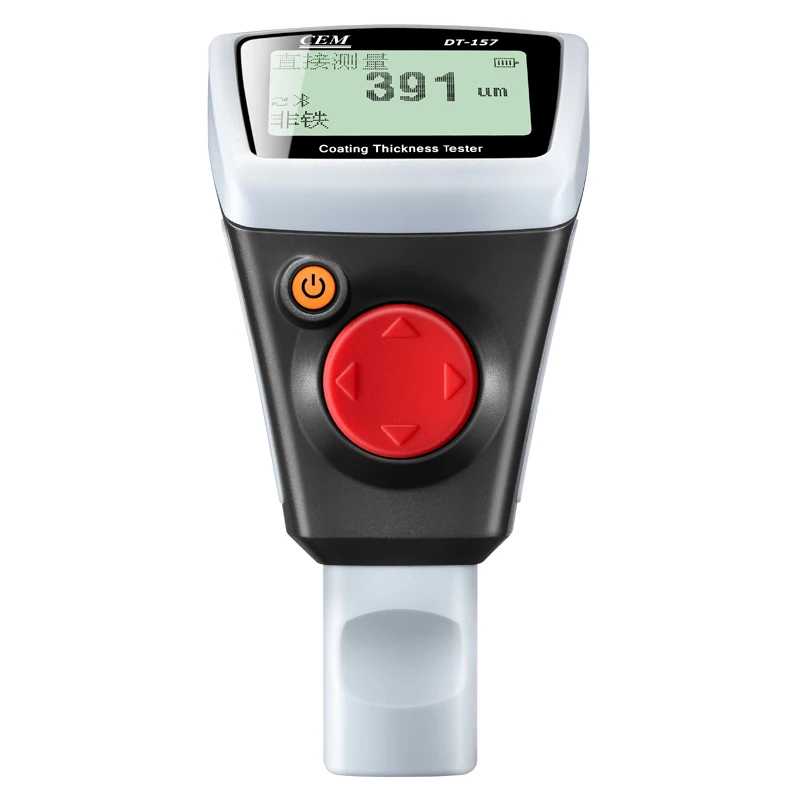

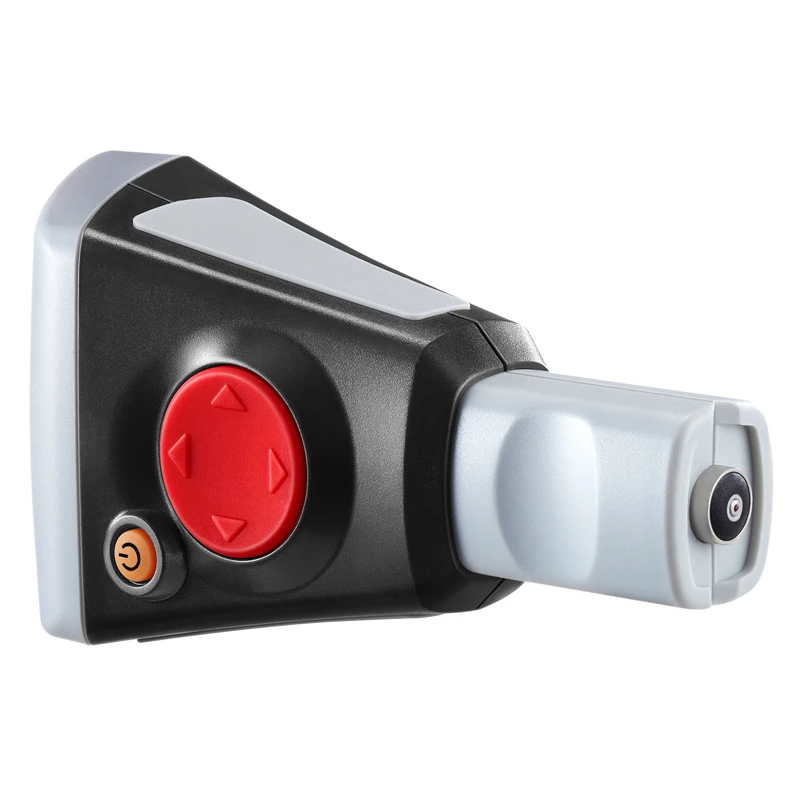

DT-157 Coating Thickness Tester
Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques. The measuring data is easily transferred to PC for edit and storage.
| Features |
| Non-magnetic coatings (e.g. paint, zinc) on steel |
| Insulating coatings (e.g. paint) on no-ferrous metals |
| No-ferrous metals coatings on insulating substrates |
| Menu operation system |
| Two working modes: DIRECT and GROUP mode |
| Statistic Display: AVG, MAX, MIN, NO., S.DEV |
| One point calibration, two points calibration and basic calibration easily |
| Delete single readings and all group readings easily |
| Low battery, error indication |
| Memory for 2500 readings (50 GROUP readings) |
| 4 levels of battery indication |
| Error indication |
| Bluetooth interface |
| Easily adapt to lighting conditions with 8 levels of backlight |
| Specifications: | ||
| Sensor probe | F | N |
| Working principle | magnetic induction | Eddy current principle |
| Measuring range | 0~2000um | 0~2000um |
| Guaranteed tolerance (of reading) | (+/- 2%+2)um | (+/- 2%+2)um |
| Repeatability | (+/- 1%+1)um | (+/- 1%+1)um |
| Low range Precision | 0.1um | 0.1um |
| Minimum curvature radius | 1.5mm | 3mm |
| Diameter of Minimum area | 7mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm |
Size (H x W x D): 120mm x 60mm x 40mm
Weight: 120g
