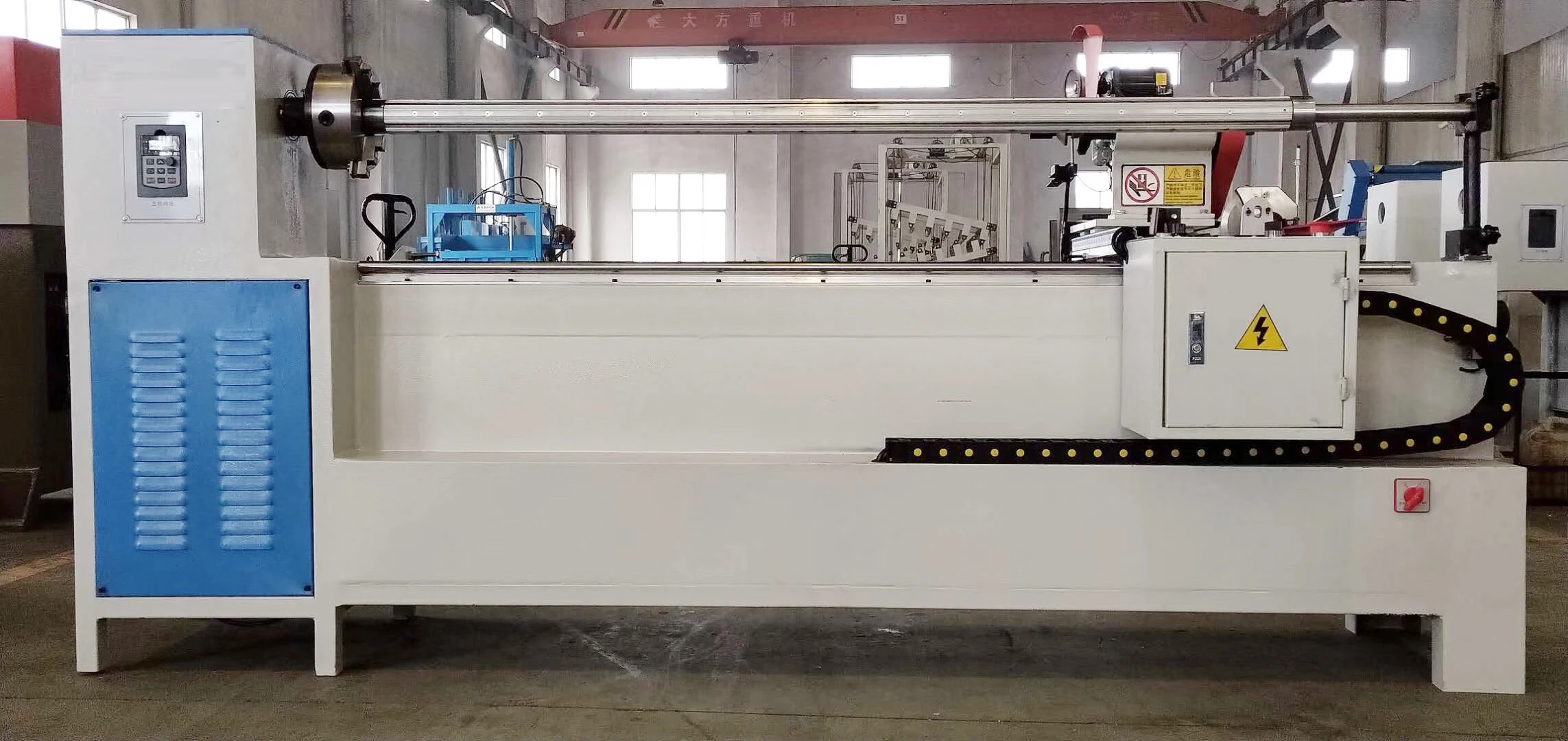

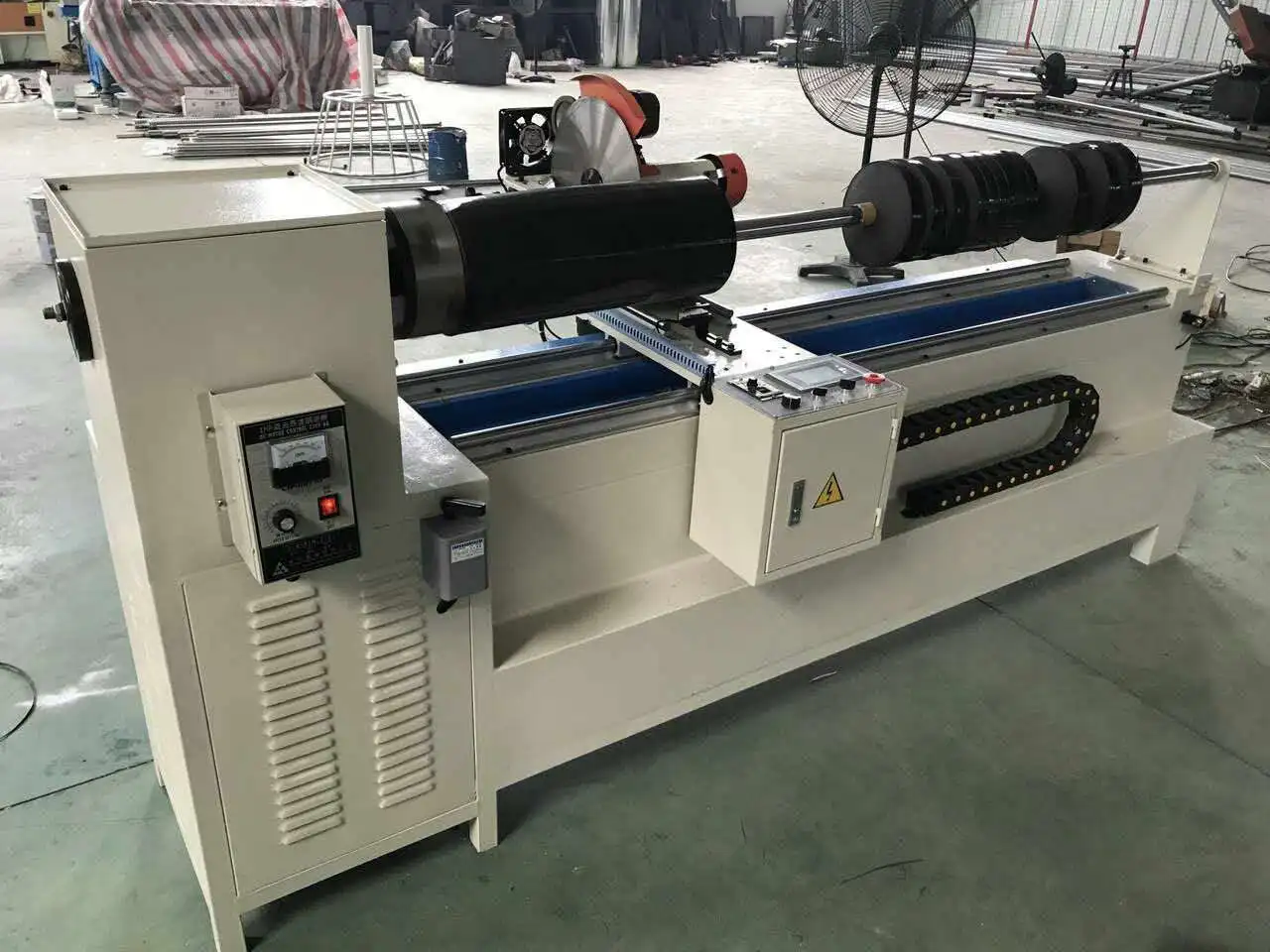

Meltblown Non woven Fabric Slitting Machine
- Category: >>>
- Supplier: Jiangsu Atong Machinery Manufacturing Co. Ltd.
Share on (62556876511):
Product Overview
Description
Product Description
strip cutting machine type fabric roll cnc cutting machine
We can make the machine according to your specifically order, for example the color, the motor information ,the working table, the traveling head size etc.
strip cutting machine type fabric roll cnc cutting machine
1. Technical Parameters (strip cutting machine)
strip cutting machine type fabric roll cnc cutting machine is suitable for cloth rolling and cutting for various straight stripes and 45 ° diagonal stripes such as cloth,
nonwoven cloth, tents, umbrellas, foam, leathers, reflective materials, plastics, papers, double face adhesives,
acetate cloth, reinforcing strips, conductive cloth, copper foils, etc. It is an ideal choice for such industries as
garments, luggage and baggage, shoes and caps.
Cloth width: | 1700-2500mm (customized) |
Cloth rotation speed: | 0-800rpm |
Cloth shaft diameter: | 60mm |
Machine power: | 2.2kw |
Minimum slitting width: | 2mm |
Voltage: | 380v/220v |
Machine size: | 2700×750×1400mm |
2. Technical Parameters(rewinding machine)
rewind your materials rolls suitable for the strip cutting machine
The machine is mainly used for straight stripes and diagonal stripes cutting and winding of garments,
shoemaking, caps, handbags, beddings, etc.
Nominal width: | 170-250cm |
Guide rod angle: | 35°-45° |
Maximum tube shape: | 800mm |
Photoelectric edge aligning precision: | ≤+1.5mm |
Designed running speed: | 5-80m/min |
Fabric maximum meter counting error: | ≤0.5%( can be modified ) |
Rewinding paper core: | 38mm |
Installed capacity: | 2.5kw |
Outline dimensions(cm): | 255×150×120 |

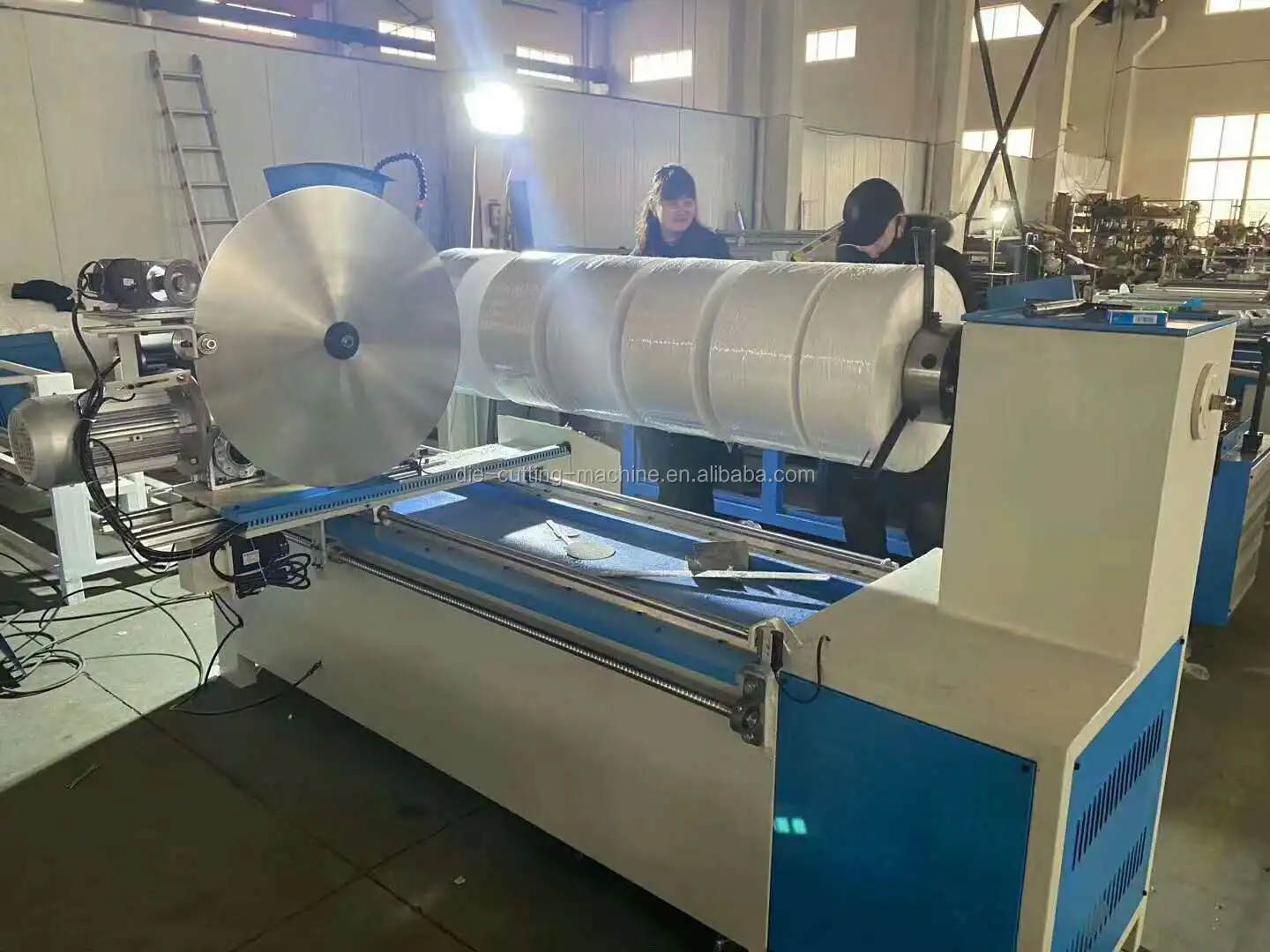

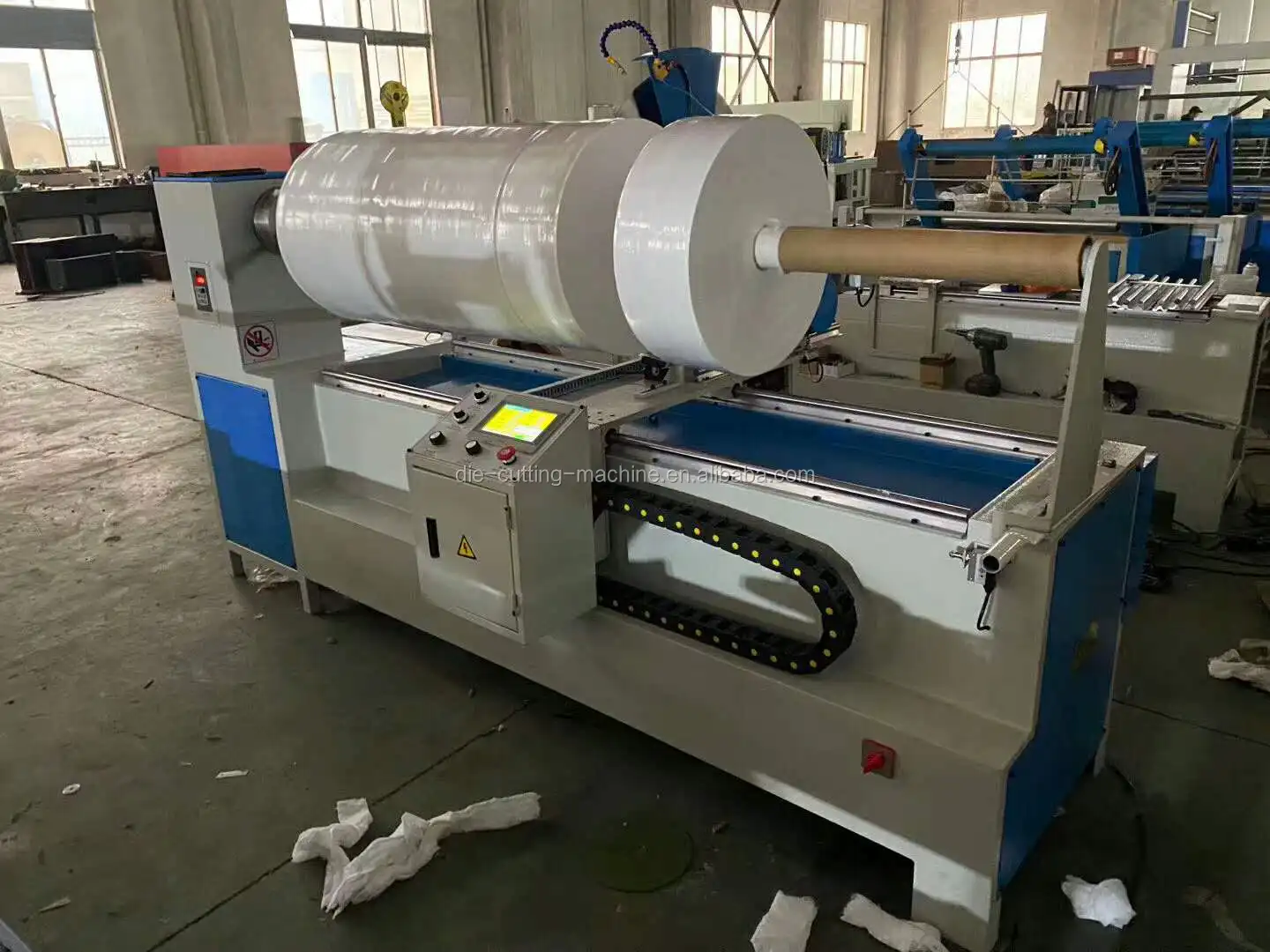

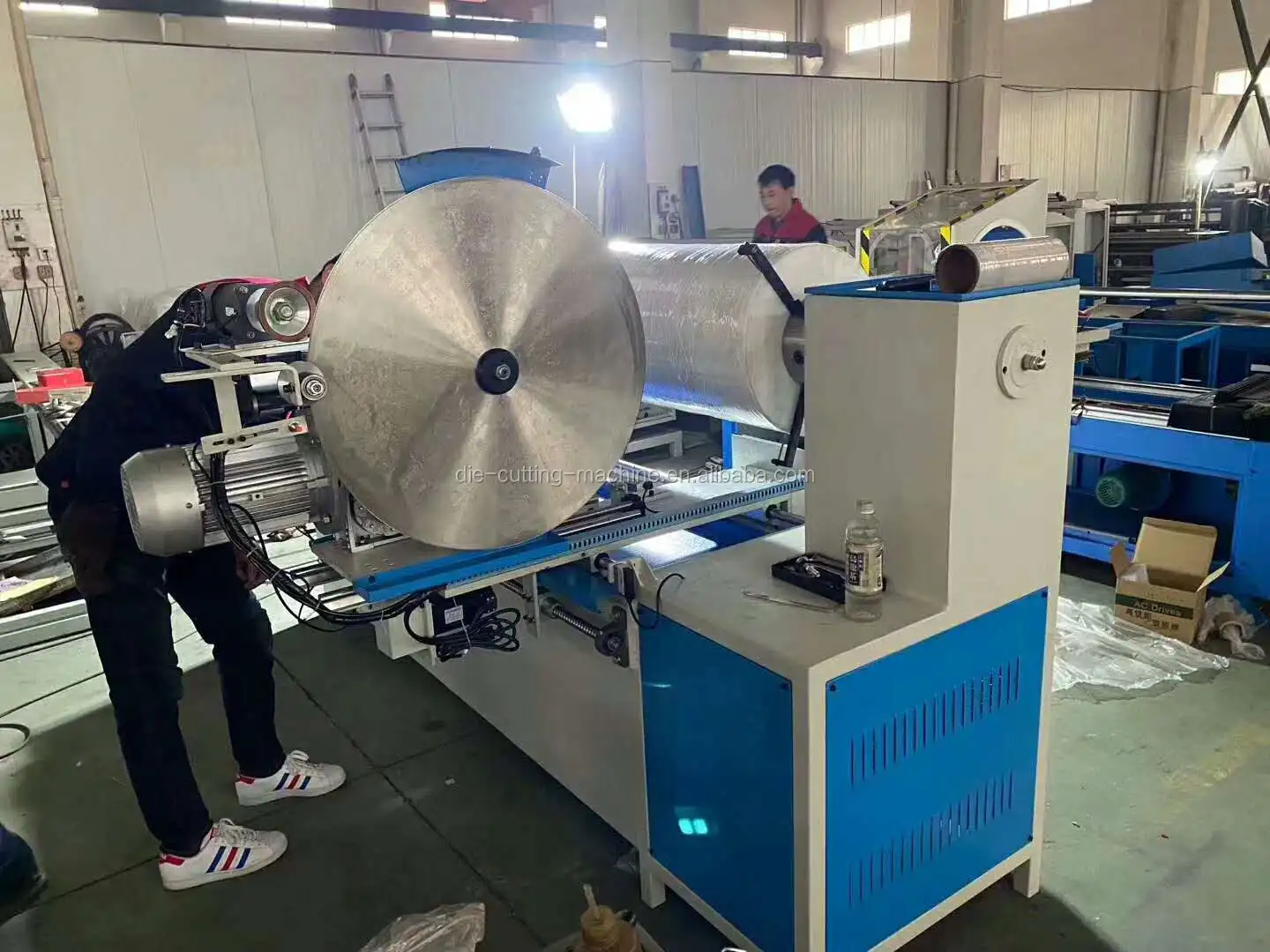

3.Our machine working show
4.What Applications of our cutting machine?
Application Materials:
The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
Company Information
1.We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for 12 months. all parts are for free,except the consumables and artificially damaged.
4.We can supply operation video for installation
5. Our engineers are available to service machinery overseas.
6. Our machines have been sold to over 30 countries.
Packaging & Shipping
Trade term:FOB,CIF,EXW
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15 working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
Material:
Material size: in sheets or rolls
Max. material width:
Max. material thickness:
Max.cutting length:
