GJXFH in the access network with a black Lsoh Low Smoke Zero Halogen(LSZH) out sheath FTTH fiber optic drop cable for indoor
- Category: >>>
- Supplier: Hunan Feibo Guangtong Communication Equipment Co. Ltd.
Share on (62556907876):
Product Overview
Description
Product Description
GJXFH FTTH in the access network with a black Lsoh Low Smoke Zero Halogen(LSZH) out sheath optical cable for indoor
Indoor FTTH optical cable in the access network (GJXFH)
Product Description

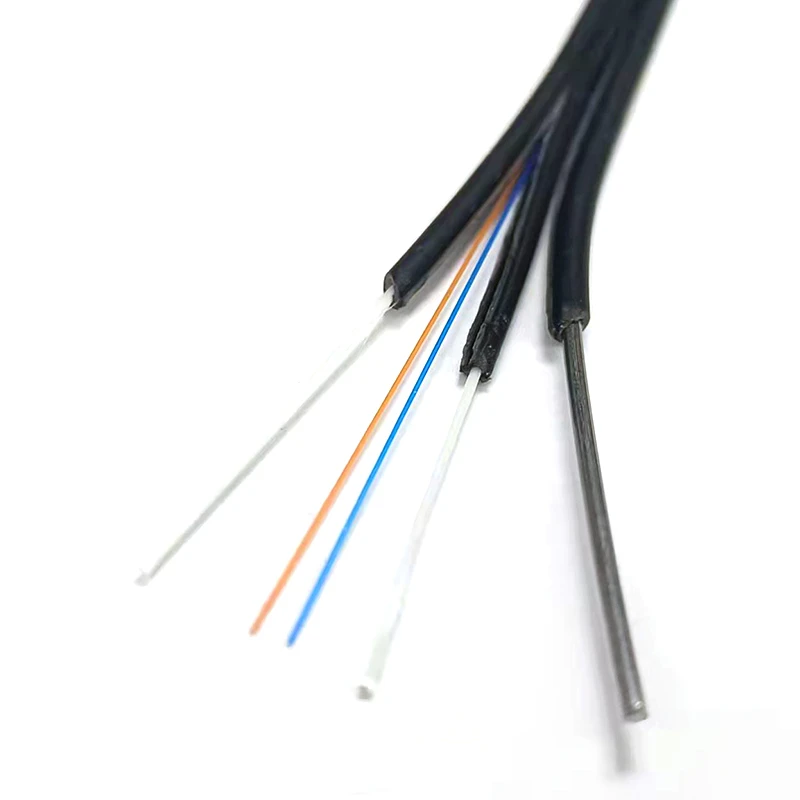

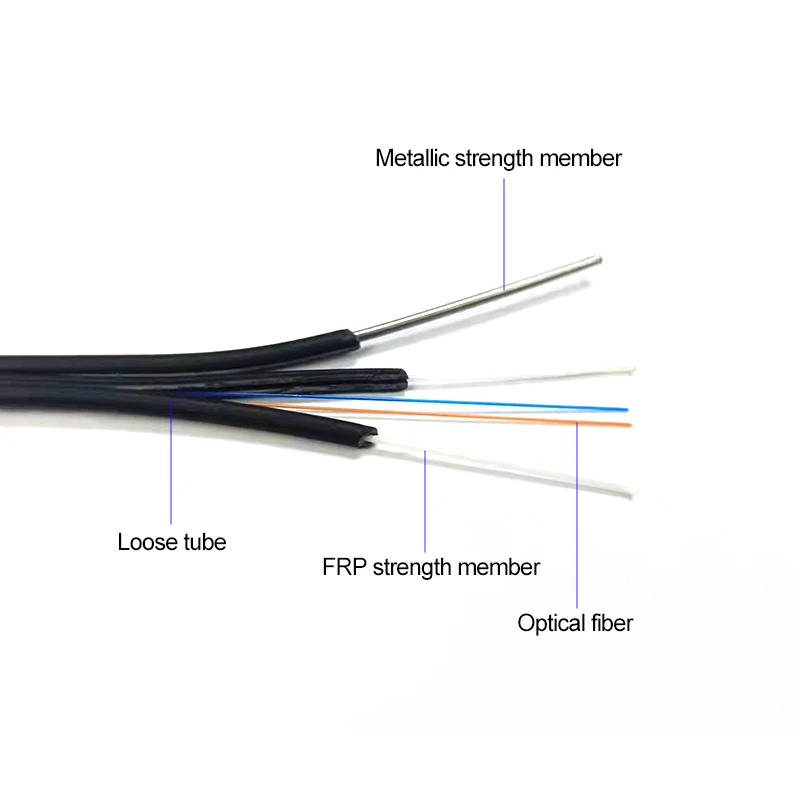

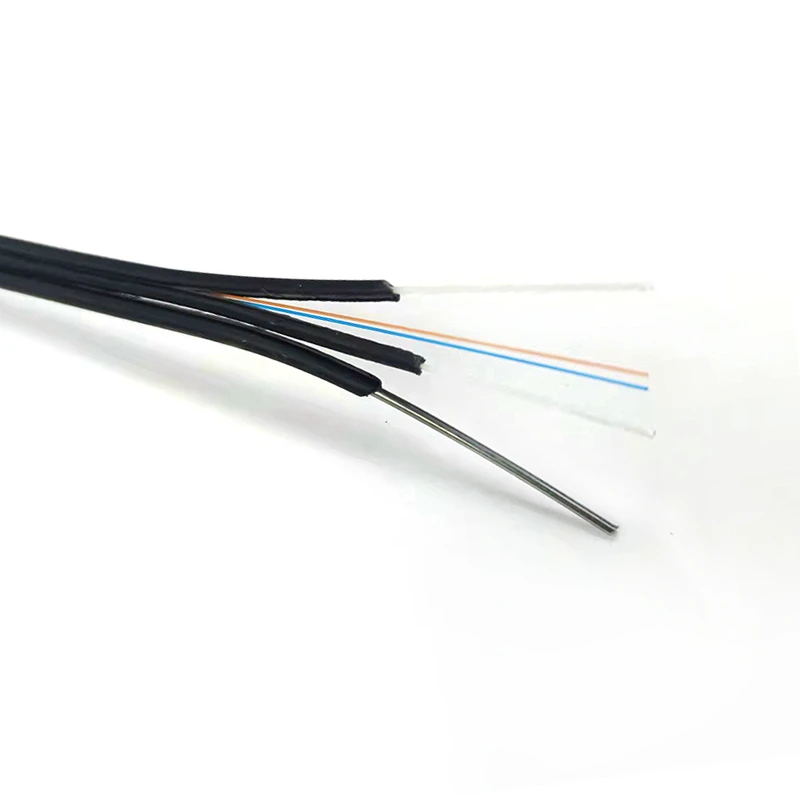

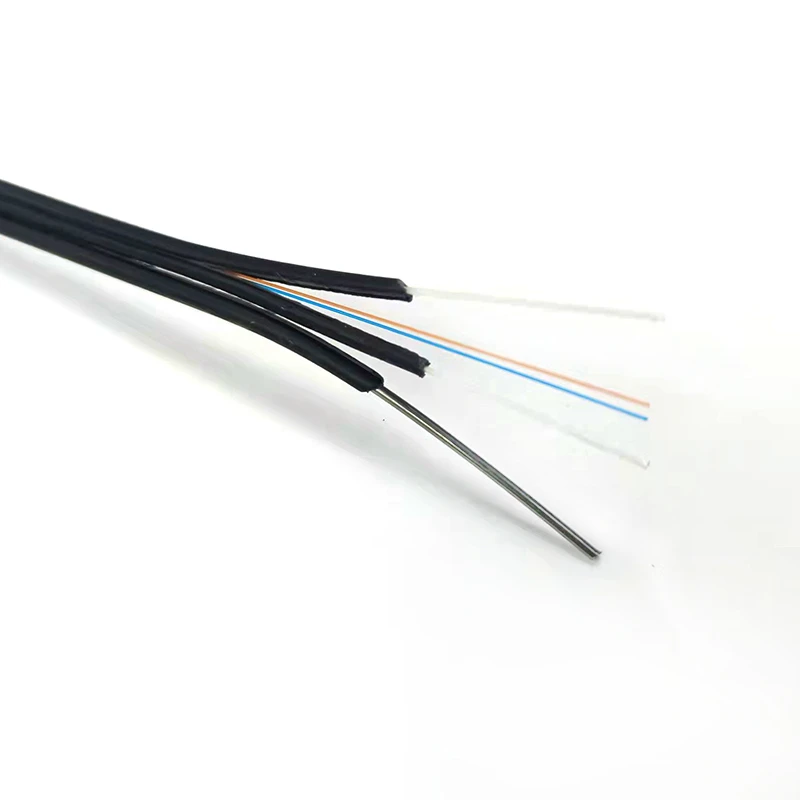

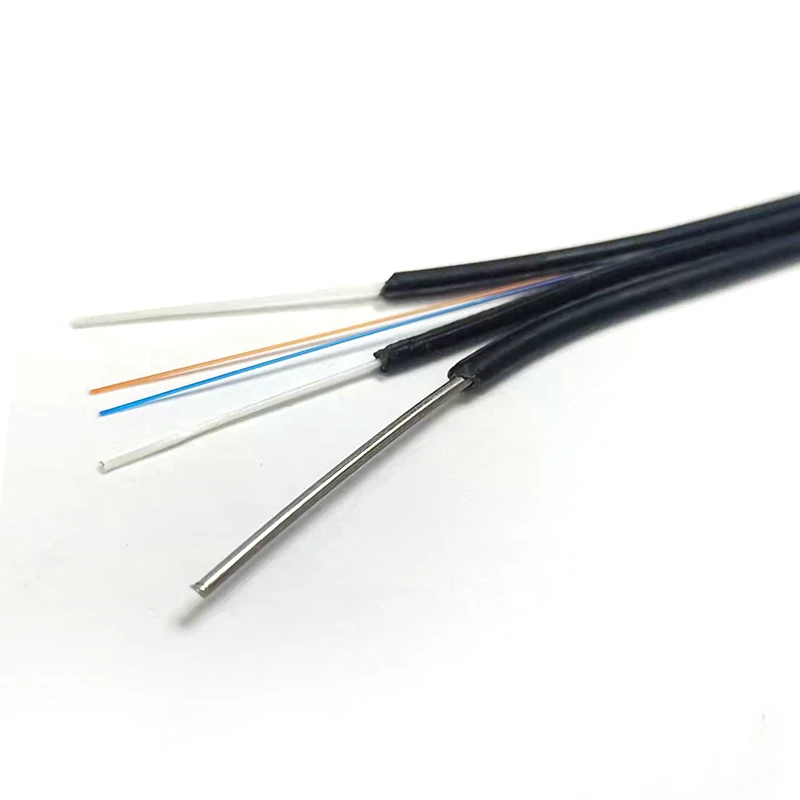

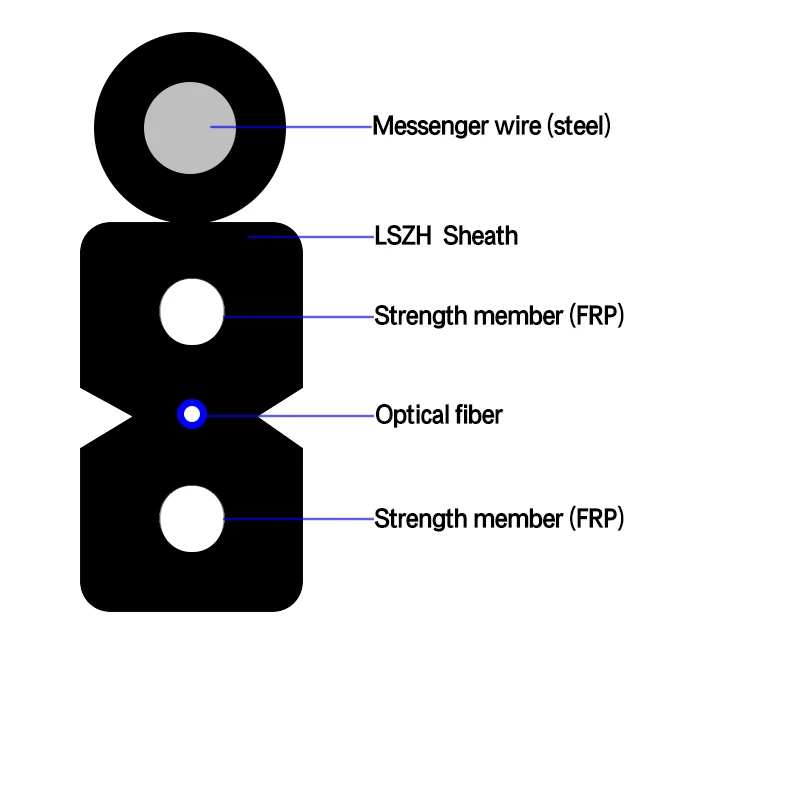

Access network uses the indoor optical cable with a butterfly-shaped that is to place the optical communication unit in the center, two parallel FRP strength member are placed on both sides , and finally it is completed with a black Lsoh Low Smoke Zero Halogen(LSZH) out sheath.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel FRP strength member to protect the fiber and provide adequate tension and pressure
• Single metallic strength member makes optical cable having good tensile performance
• unique groove design, Easy peeled off and splice,simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Optical Fibre Performance
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Technical Performance
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension | Crush (N/100mm) | Bending Radius Static / dynamic |
GJXFH -1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 8 | 40/80 | 500/1000 | 15/30 |
GJXFH -2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 8.5 | 40/80 | 500/1000 | 15/30 |
GJXFJH -1Xn | 1 | (2.0±0.1)×(3.8±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
GJXFDH -4Xn | 4 | (2.0±0.2)×(4.0±0.2) | 10 | 40/80 | 500/1000 | 15/30 |
Contact us for more parameters
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
Application
• Aerial
Packaging & Shipping

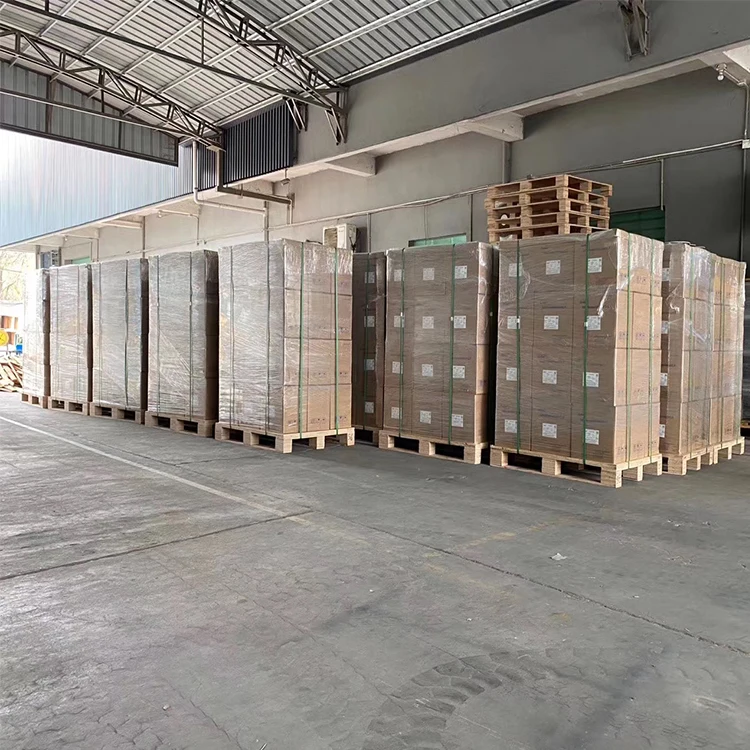

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
Our Services
24 hours online service
Free sample
Production Flow
Related Products
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
