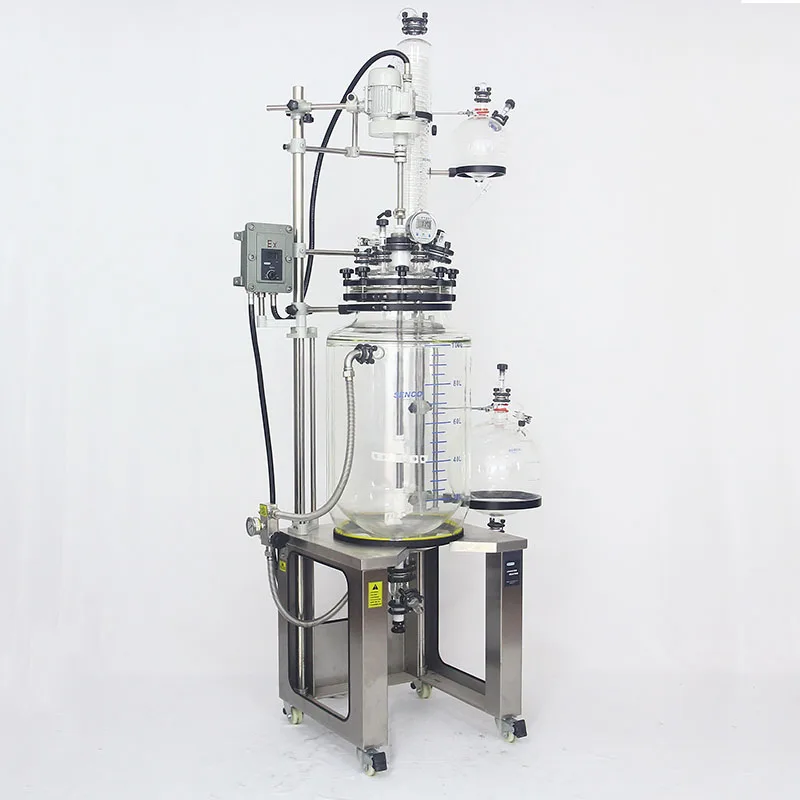

100L Jacketed Glass Reactor Pilot Plant Reactor Manufacturer

Share on (62557070449):


Price:RUB 1,694,524.13 - RUB 1,840,207.20

Quantity:


Product Overview

Description

Product Introduction:

Cap Style Jacketed Reactor Senco FC100-03



Usually experiment use oil to heat material in jackteted reactor. But temperature can't reach over 200°C, otherwise seal set can't bear the high temperature's soften so as to cause air and liquid leakage.





Features:
- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr);

- Long lasting sealing performance, majority user do not replace sealing part in one year;
- Rich function,can be customized as your demand;
- Popular model FC10003 among Senco big Jacketed Reactor

Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
Frequency-conversion stirring system + PTFE seal & bearing system
Digital display and control

Explosion-proof type is optional





FC5003-50L254

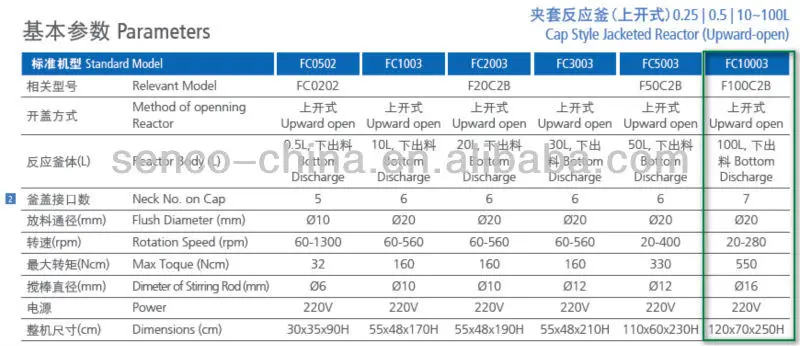

Parameters:







Standard Model FC1003 FC2003FC3003FC5003 FC100-03
Reaction Vessel Capacity(L) 10L20L 30L 50L  100L
Port nos.on Cap7
Flush Diameter(mm)φ22
Rotation Speed(rpm) 60-560  20-400  20-280
Nominal Toque(Ncm) 160  390 475
Motor250W/120W-ex   200W/(120W-ex)/3
Dimeter of Stirring Rod(mm)φ12    φ20
Power 220V,1P,50/60Hz
Dimensions55x48x170H  55x48x190H55x48x210H 110x60x230H 120x70x250H






Commonly required products for ”20L Jacketed reactor Set“
50L4
  SUNDI-735      FC2003     VC100C    MPC301z

Receiving rate 99% by Using SENCO "50L jacketed reactor set" to deal with solvents of low boiling point.
Promotion note: Vacuum controller purchased with rotary evaporator together will be on 80% off price.



Company Information:



Certificate:

Our Service:

Pre-sales service

* Help choose right model and a series of service.

* Provide discount for many sets order.

* Promptly production and delivery, inform you in time.

* Can provide invoice value as you like to decrease your tax.



After-Sales Service

*  1 year complimentary warranty.
*  Training how to install the machine and how to
operatate.
*  Reliable quality and thoughtful after sale service



Packaging & Shipping:

Packaging:

1.Carton cases or Wooden cases.

2.Customized packaging can be available.

Shipping:

1.We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

2.You can also choose any appropriate shipping method based on your timeline and budget.

3.You can choose to use your own shipping agent.



FAQ:

1. Are you trading company or manufacturer?
A: We are professional manufacturer of lab instruments with a history of 20 years and 8 years' export and we have our own factory.

2. What's the minimum order quantity?

A: One set at present.
3. How to choose suitable equipment ?
A: Please tell us your work flow and special requirements (For example: capacity, temperature range,
pressure, power supply, etc ), we will recommend you suitable equipment according to your requirements,
application experience and feedback from our clients.
4. How to solve the equipment trouble during using ?
A: Please send us email of the problem, pictures or a small video will be much better, we will find the
problem and help you to solve it.
If there is a broken, we will send you a new part via express, and it is free in the warranty period.
5. Will you provide service beyond the warranty?

A: Yes. 13-month free parts replacement or mail back repair in China due to manufacturing defect from shipping day. Circulators/Vacuum pumps have no oversea repair service.  User shall have ability to repair at local by self.  SENCO will offer remote instructions.

6. How do you make our business long -term and good relationship?

A: 1. We keep high quality and competitive price to ensure our customers beneift.

    2. We respect every customer as our friend and we sincerely do business and make friends with them, no            matter where they come from.



Welcome to Contact SENCO for detail discussion
