2022 Ex factory Laboratory Liquid Separation Equipment SZ 300 Centrifuge

Product Overview

Description

Centrifuge:

The jacketed centrifuge is the machine that can separate the liqiud from the mix by high speed centrifugation. also our centrifuge plus the soaking fuction, you can use it soak the material and then separate them directly. of course, you may need one powerful chiller to cool down the solvent, like ethanol, etc. even a tank to pre-cooling the solvent for saving time.



Operation Requirements:

1.Working environment: temperature -50 ° C -50 ° C; air relative humidity is not more than 85%.
2.Transportation: Centrifuges must not be rolled and inverted during shipment, and must not be stacked to prevent rainwater intrusion.
3.Handling: The centrifuge must be hoisted according to the position of the center of gravity of the centrifuge during the handling process. The machine is equipped with 4 lifting rings. When lifting, try to keep the level of the centrifuge. Do not roll and invert.
4.Storage: The centrifuge should be placed at a temperature of 0-40 ° C, the relative humidity of the air is not more than 85%, and there is no corrosive medium to avoid the place.
The centrifuge must be kept by a person before installation and use to ensure the integrity of the centrifuge. The technical status and installation of the centrifuge should be confirmed by the manufacturer before operation.

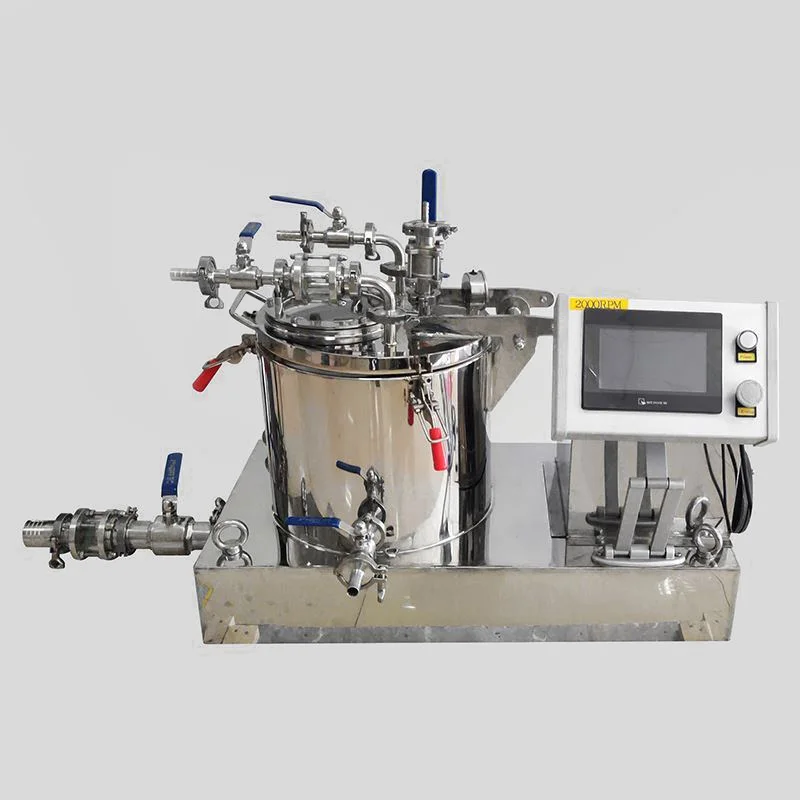

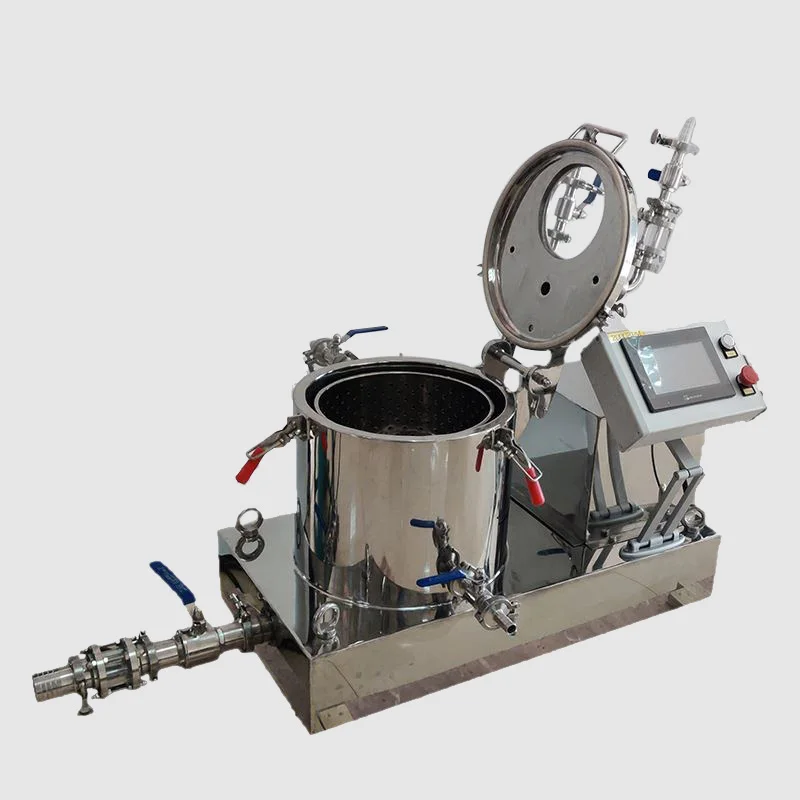

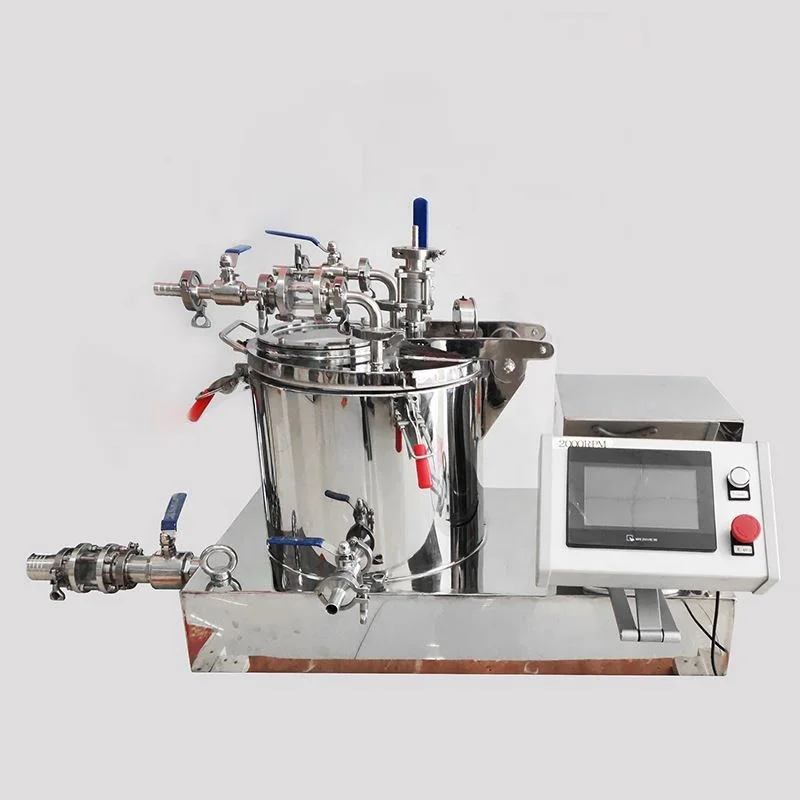

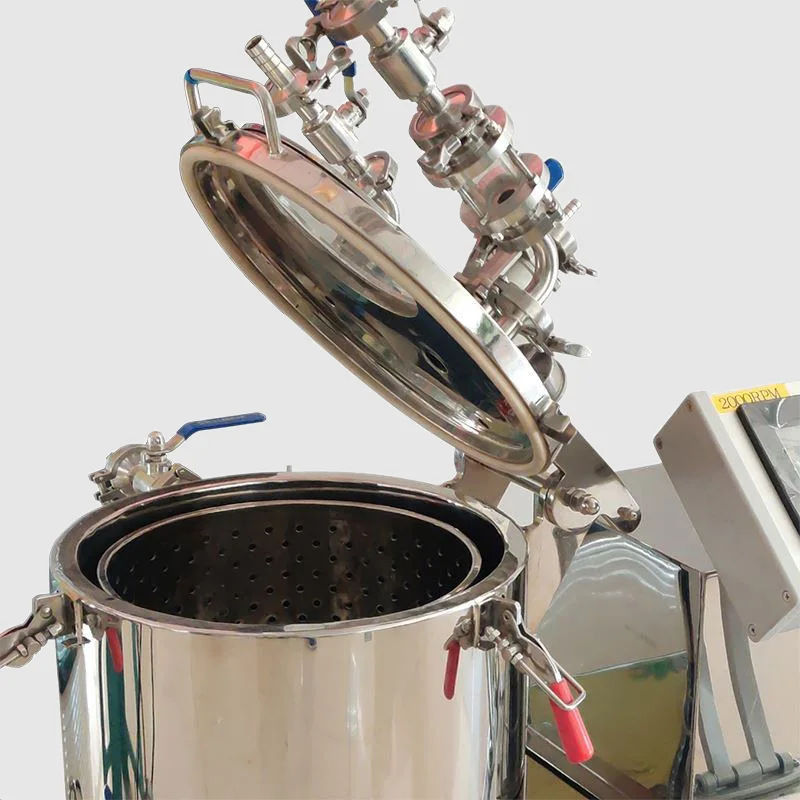

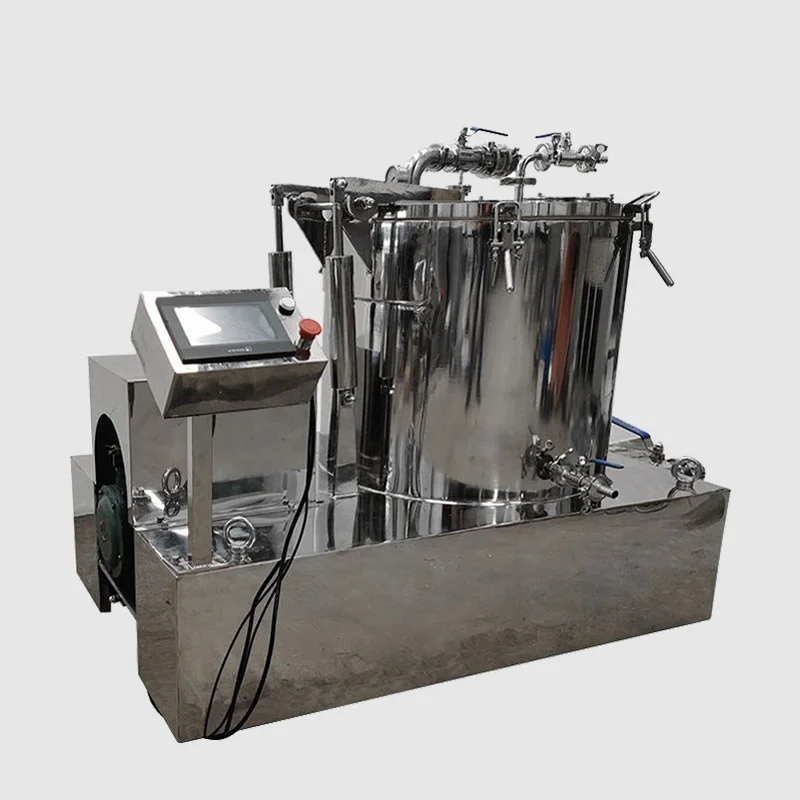

Product Picture:

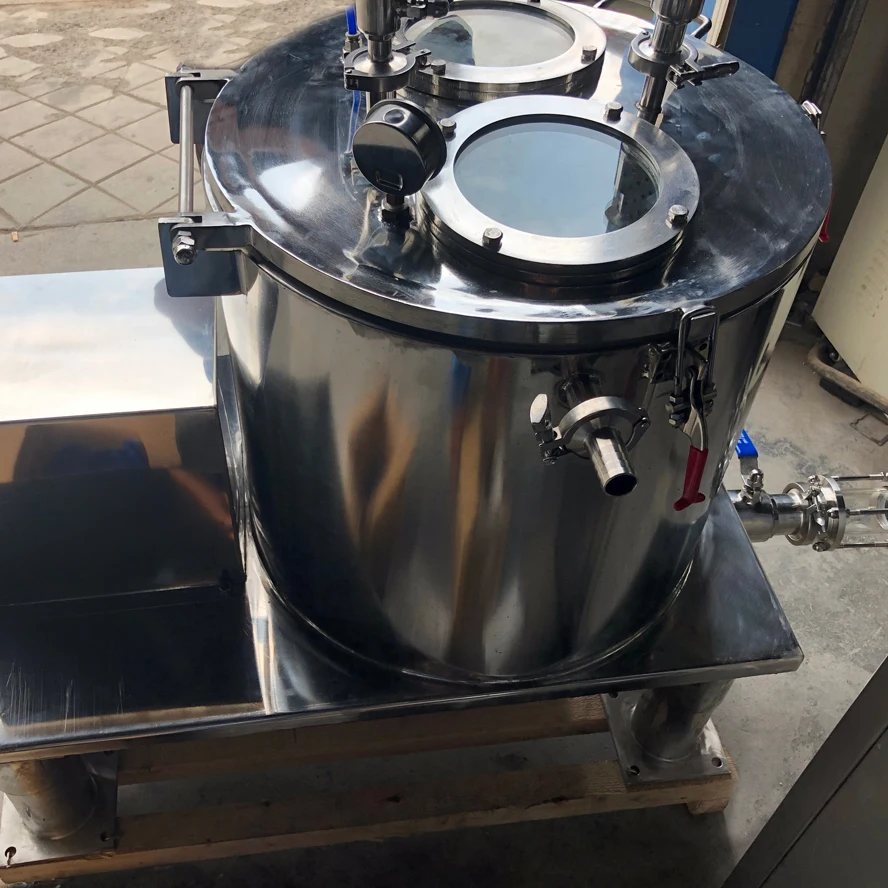

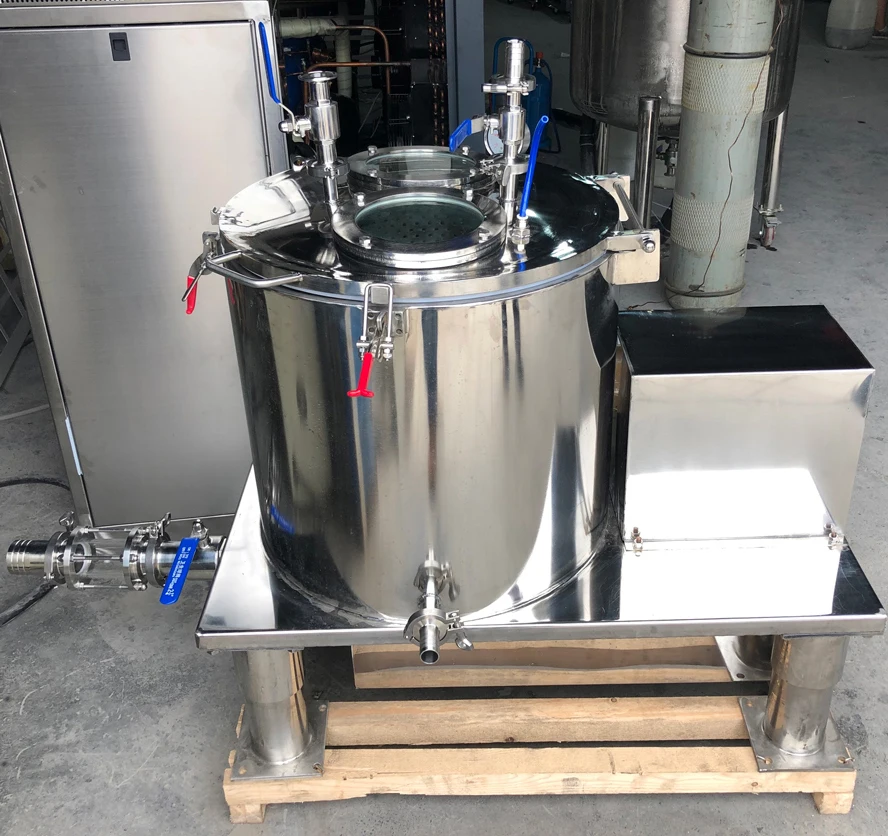

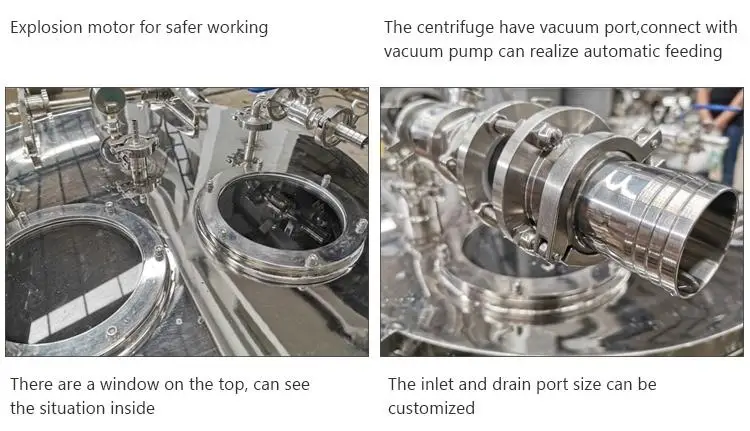

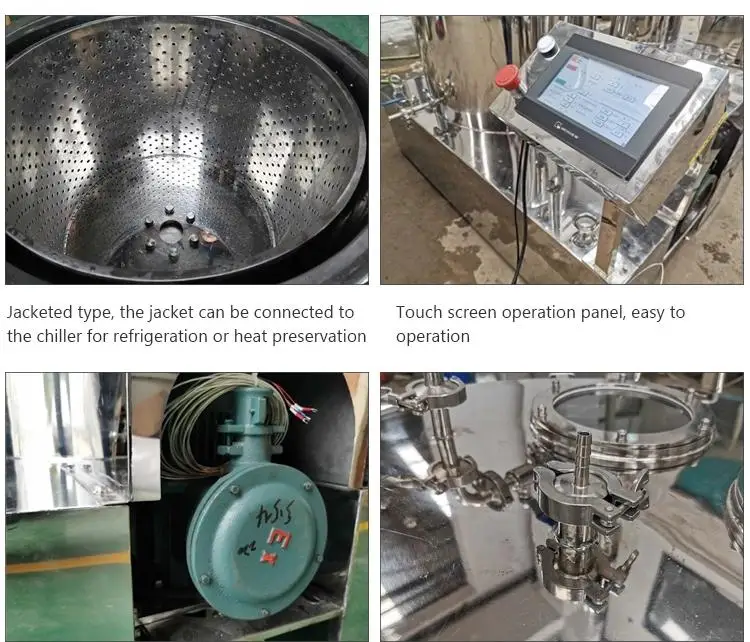

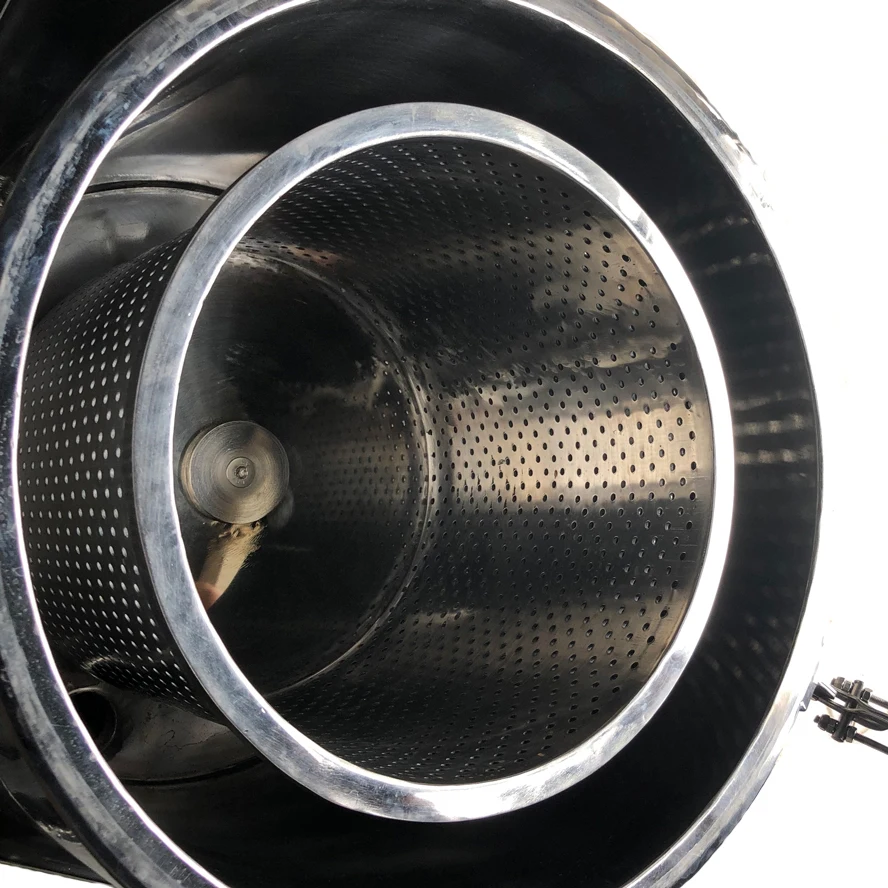

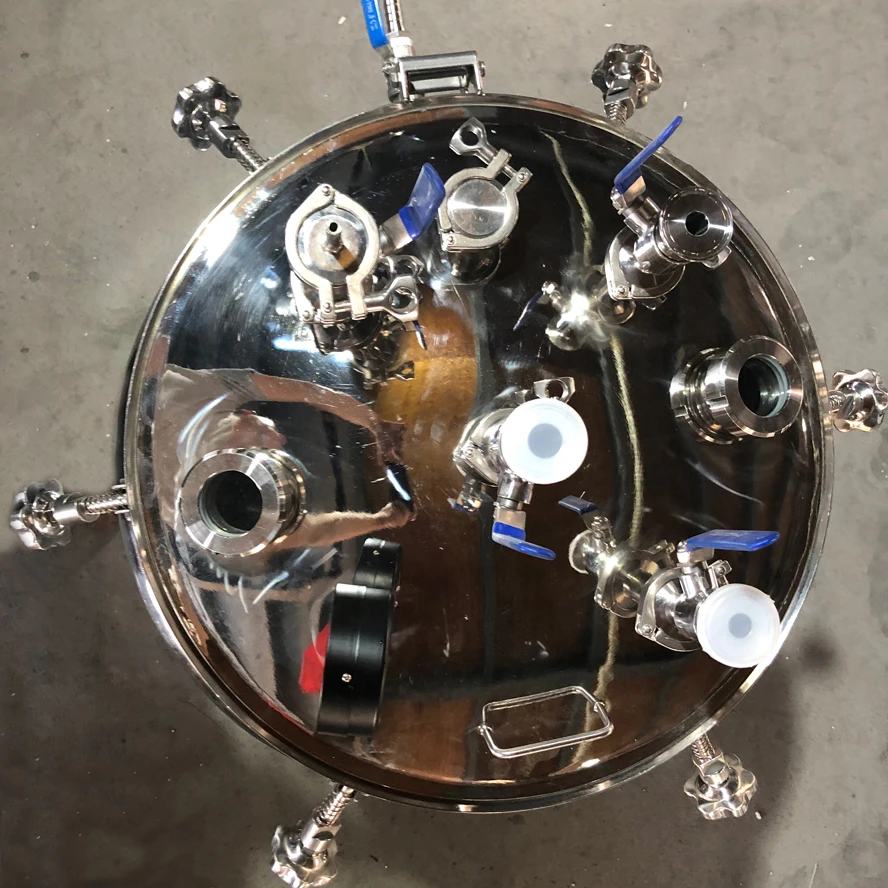

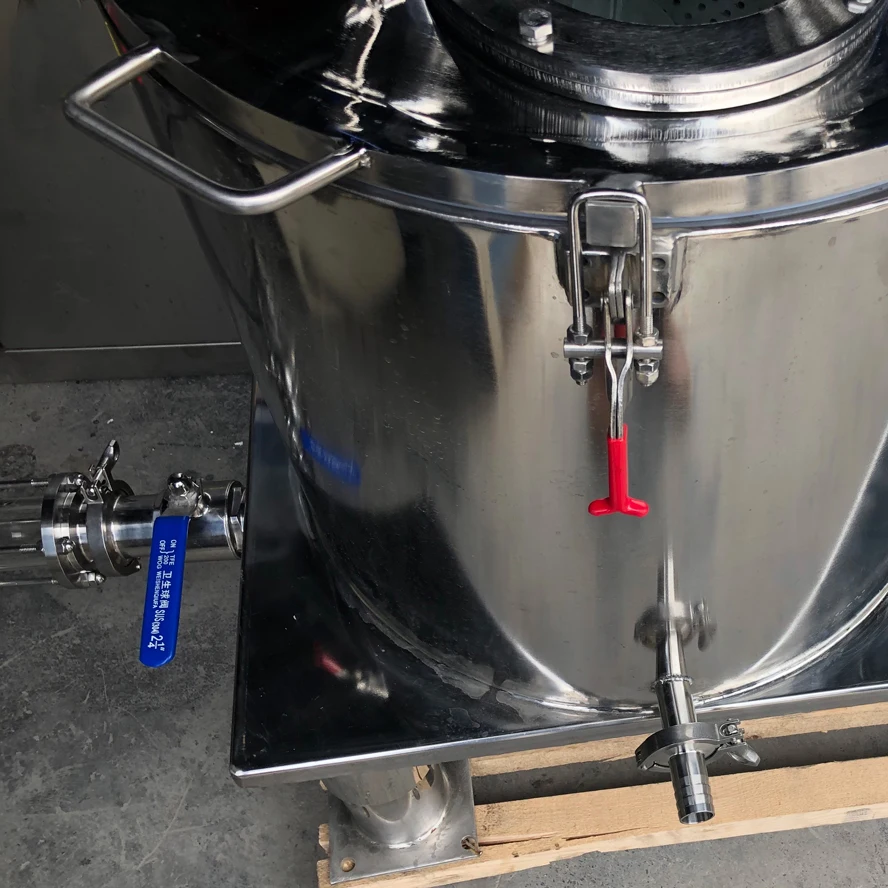

Product Details:

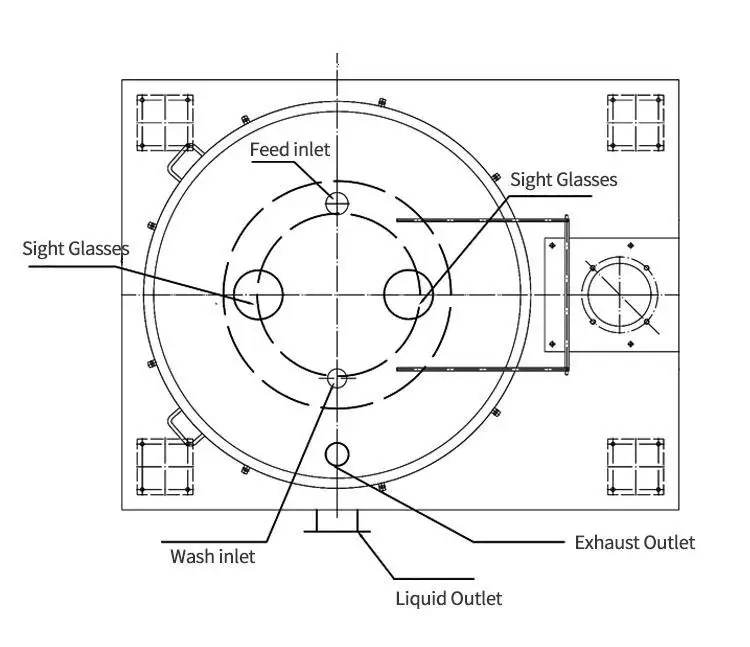

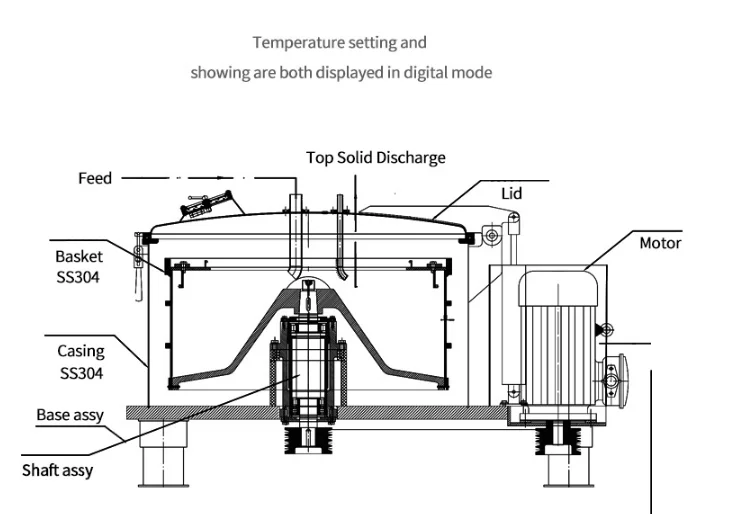

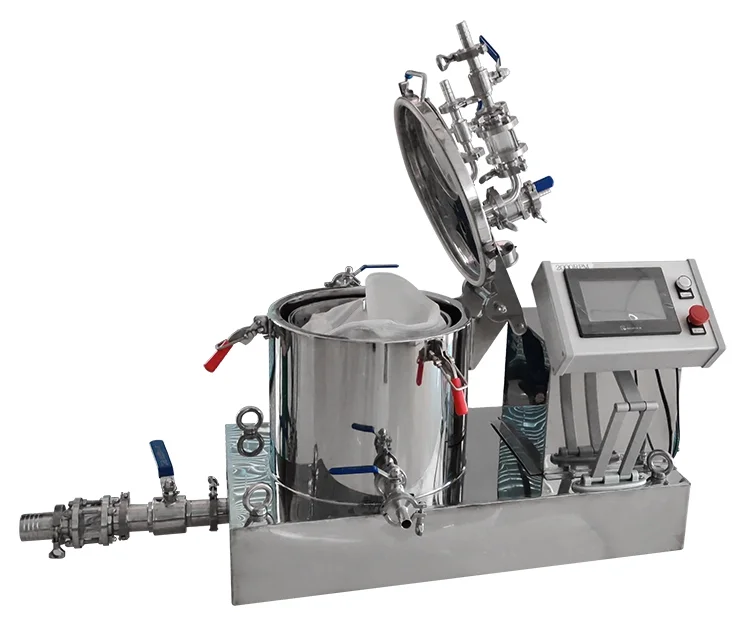

Product Structure:



Detailed Data:

Model	SZ-300	SZ-350	SZ-450	SZ-600	SZ-800	SZ-1000
Power Supply	220V/50HZ
Rotating speed	1200r/min			900r/min	780r/min	700r/min
Separation factor	240w² r/g	280w² r/g	250w² r/g	270w² r/g
Motor Power	1.5KW	1.5KW	2.2KW	3KW	4KW	5.5KW
Drum thickness	5MM			6MM
Shell thickness	3MM			4MM
Capacity(L)	19	30	60	110	200	310

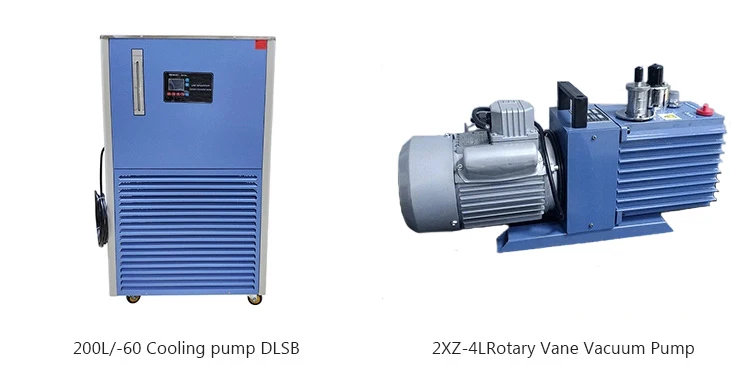

Related Products:



Installation Precautions:

1.Pay attention to the moisture protection of the motor and pay attention to the protection of the electronic control system.

2.Safety must be taken during lifting to prevent the machine from being damaged by collision.

3.The centrifuge installation must be horizontal and the reference surface is the upper plane of the machine base (level ≤ 3mm).

4.There should be sufficient space between the equipment and other equipment installed adjacent to the centrifuge and the centrifuge to prevent the machine from colliding with it and causing damage or noise, and to facilitate inspection and maintenance of the machine.The space required for the use and maintenance of the centrifuge should be considered during the installation position of the centrifuge.There should be a pedestrian passage of not less than 1 meter around the centrifuge main unit. There must be more than 2 meters of assembly and disassembly maintenance space above the centrifuge main unit.

5.Because the centrifuge has slight vibration during high-speed operation, the pipe connected to the centrifuge must be flexibly connected, and the connection must be reliable. Sealed or insulated to ensure no leakage and safe use of electricity. The diameter of the external outlet pipe shall not be less than the diameter of the machine outlet pipe, and shall not have dead bends or blockages. The pipe arrangement shall be lower than the height of the outlet pipe outlet and have a certain height difference so that the liquid discharge is 6.Select the appropriate filter cloth type to make the filter bag according to the characteristics of the separated materials. And ensure the filter bag and the drum body 7.

8.After the centrifuge is installed, turn on the motor power, adjust the tension of the motor's V-belt, and prepare for the test run.



Matters needing attention:
1.The cover must be covered and locked before the centrifuge for hemp oil extraction is running!
2.Do not open the cover when the machine is running!
3.It is strictly forbidden to use rigid connection among the feeding tube, the washing tube and the liquid discharging tube on the main machine of the centrifuge, so as not to affect the vibration damping system of the main machine itself and damage the machine.



Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up  the goods at your local airport,which you can have a local shipping agent to do for you
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port,which you can have a local shipping agent to do for you



Company Information:

Henan Woming Instrument Equipment co.,Ltd is a professional exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 5 years of manufacturing experience with induction rotary evaporators, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europ, India, etc.We attach importance to every customer and every order. 100% customer satisfaction is always our first priority.A strict and complete quality control system is implemented, which ensures that each product can meet quality requirements of customers. Our professional sales team keeps a closet tie with all our clients and always be ready to provide all round services and solutions to our clients purchase and sales.Please feel free to contact us if you would like to learn more of our company and work with our team. Looking forward to a cooperation with you!



Our Services:



FAQ:

1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood case
