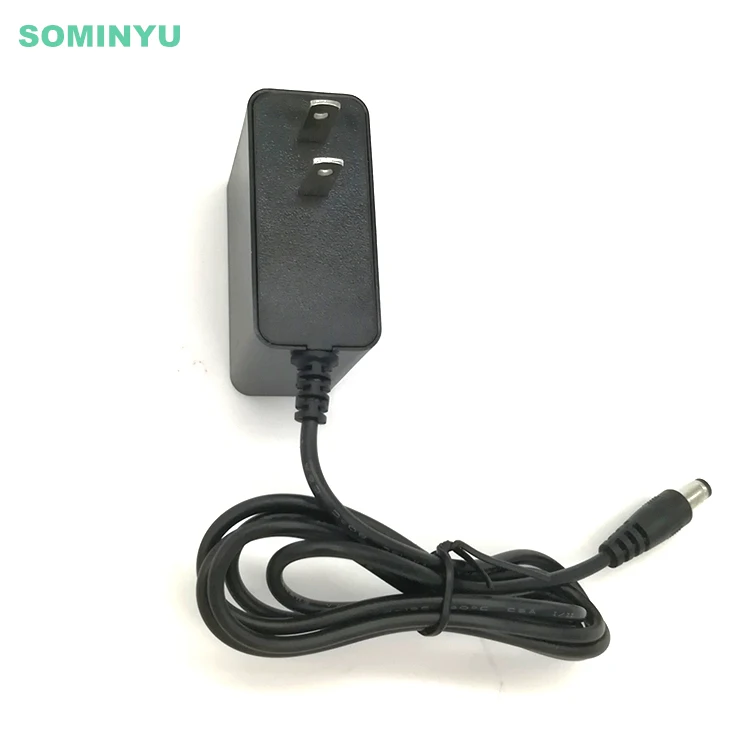

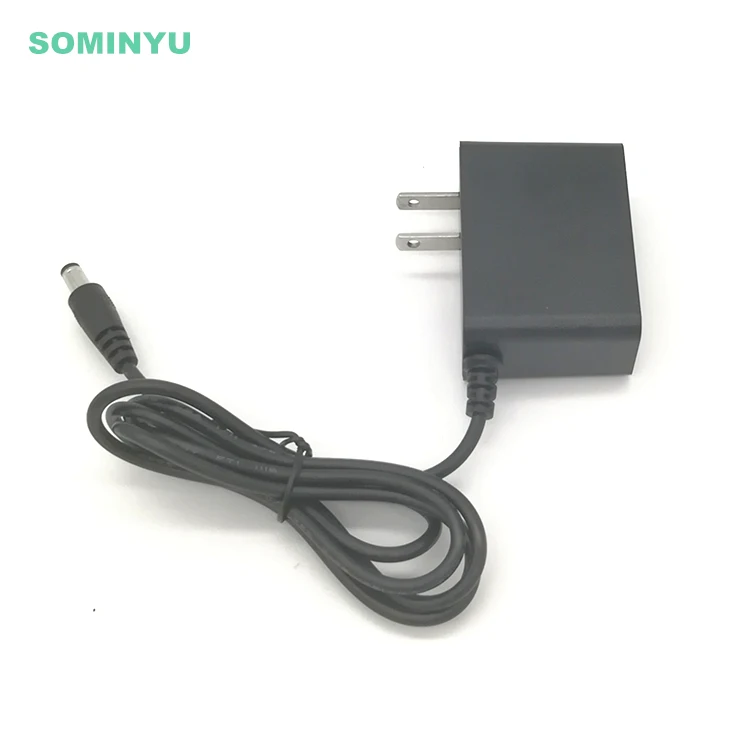

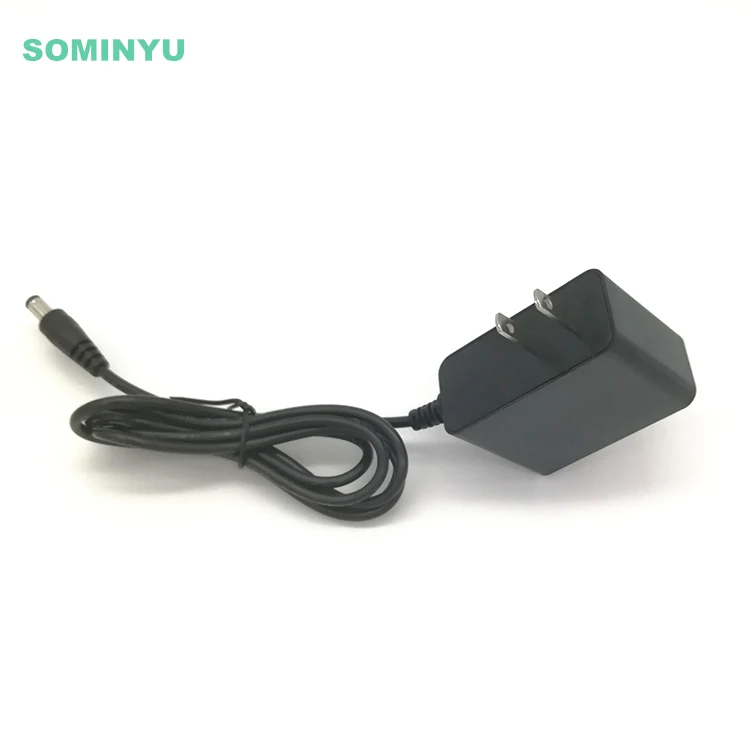

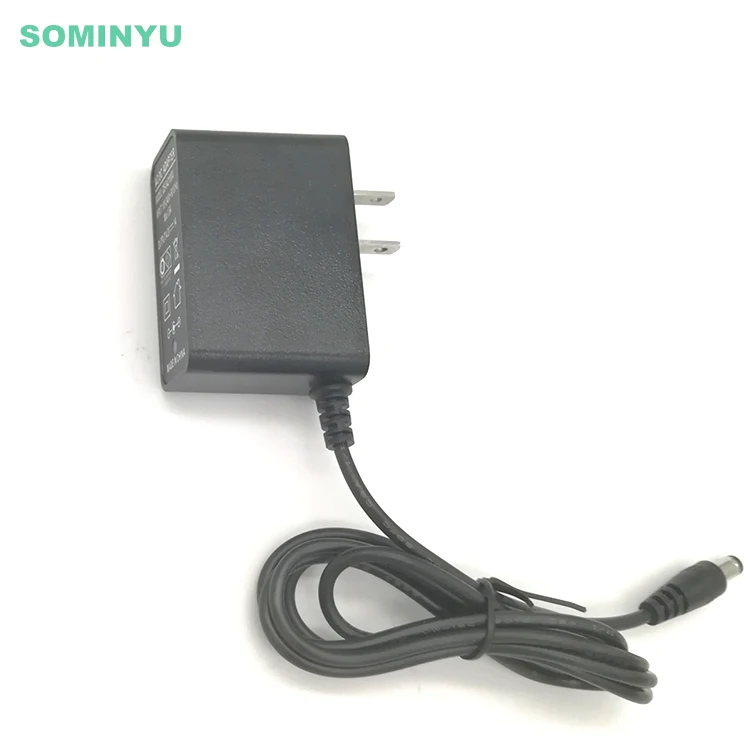

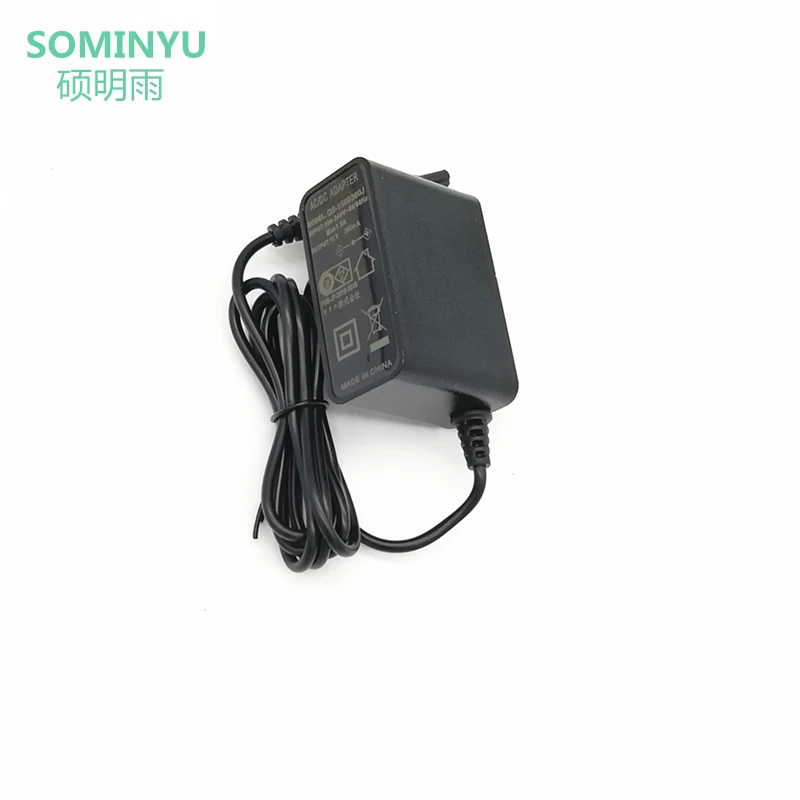

AC DC Adapter 12V1A US plug with UL FCC certified

Share on (62557169150):


Price:RUB 130.07

Quantity:


Product Overview

Description

Product Description



Features:

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;

2). Competitive price design, high reliability,ultrasonic lamination;

3). Built-in over voltage, over current and short circuit protection;

4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.25A Max;

Starting Time:3s max;Inrush Current:20A/240VAC Max

5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;

6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;

Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;

7). Cooling mode: natural cooling;

8). Energy efficiency accordingly: ERP / CEC-VI standard;

9). Safety standards: IEC/EN60950-1, IEC/EN61558, IEC/EN61347, EN55022, EN55024, EN55014 etc.;

10).Meet ROHS standards;

11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE/BIS;

12).MTBF: 50,000 hours



Parameter:

Input

AC 100-240V(96-264V) 50/60Hz

Output

12V1A



Protections

Over Voltage/Current/Power Protection

Over charging

Short Circuit Protection

Working Temperature

0°~ 40°C /5% ~ 90% RH

Storage Temperature

-20°~ 85°C /5% ~ 95% RH

Relative Humidity

5% (0℃) ~ 95% (40℃)RH

Certificates

CE GS FCC SAA UL ROHS PSE KC CCC BS CB C-tick RCM etc.

AC Plug type

EU/UK/AU/US/(Other plug available)

Outlet Way

With dc cable (1.2m /1.5m/1.8m/OEM)

Material

ROHS+PC

Color Available

With / black/white/OEM

DC Plug

5.5*2.1/5.5*2.5/3.5*1.35/4.0*1.7/Micro/Minin5pin/ OEM

Hi-Pot Test

3000Vac/5mA/60s

Service

OEM/EDM

MTBF

Full load over 50000 hours

Efficiency

Level VI

Burn-in Test

100% burn-in test 4 hours

Application:
DVD players,All kind of Battery, LCD and TFT TVs, MP4 players, digital cameras, CCTV ,other A/V products,cell phone charger,network information,security equipment,small home appliances,Lithium Batery,LED,etc.



Certifications

UL,cUL,CCC,CE,CB,GS,FCC,KC,KCC,TUV,SAA,C-tick, ROHS,PSE,REACH etc.
We can supply various kinds of adaptor to meet your requirements.



.jpg

Hot selling Products

We would like to recommend our other hot selling power adapters for you!




Production Flow

.jpg 1.jpg3.jpg4.jpg5.jpg .jpg

Company Information

Shenzhen Sominyu Tehcnology is one of the experienced power adapters, chargers manufacturer, all of our products have got UL CUL FCC CE GS PSE CB BS SAA C-tick RCM CCC KC KCC ROHS etc. certifications!



Safety and keep improving products quality and perfect after-sales service is our mian tenets.



Welcome to SOMINYU!



Why choose us:



1.Fast Delivery-------On time Delivery


2.Tightly packing-----Steady packing to protect goods from damage during shipping


3.Small Orders Accepted--------Small order and trial order are available


4.Guarantee/Warranty--------We have 3yesrs warranty


5.Country of Origin--------We are the original factory, we always offer the most competitive price


6.Quality Approvals-----We have our professional QC team to make sure every goods passed                                              before shipping


7.Product Performance-------Stable,energy-saving,Rohs,energy efficiency VI


8.Experienced Staff-------We have been in this field for more than 10 years


9.International Approvals-----All goods have passed CE GS UL cUL FCC BS SAA Ctick RM CCC                                              PSE KC KCC Rohs Reach etc.



10.Best service-----We are always here to serve you,online 24 hours.
