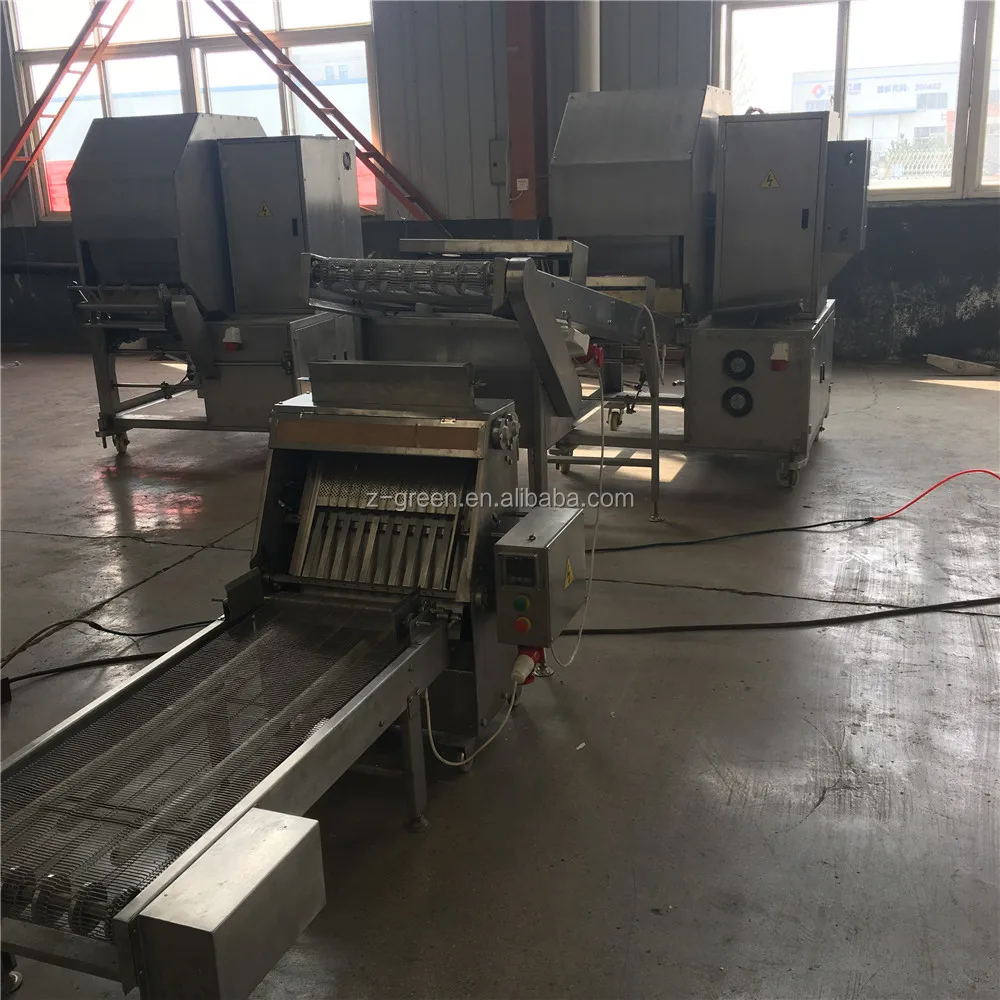

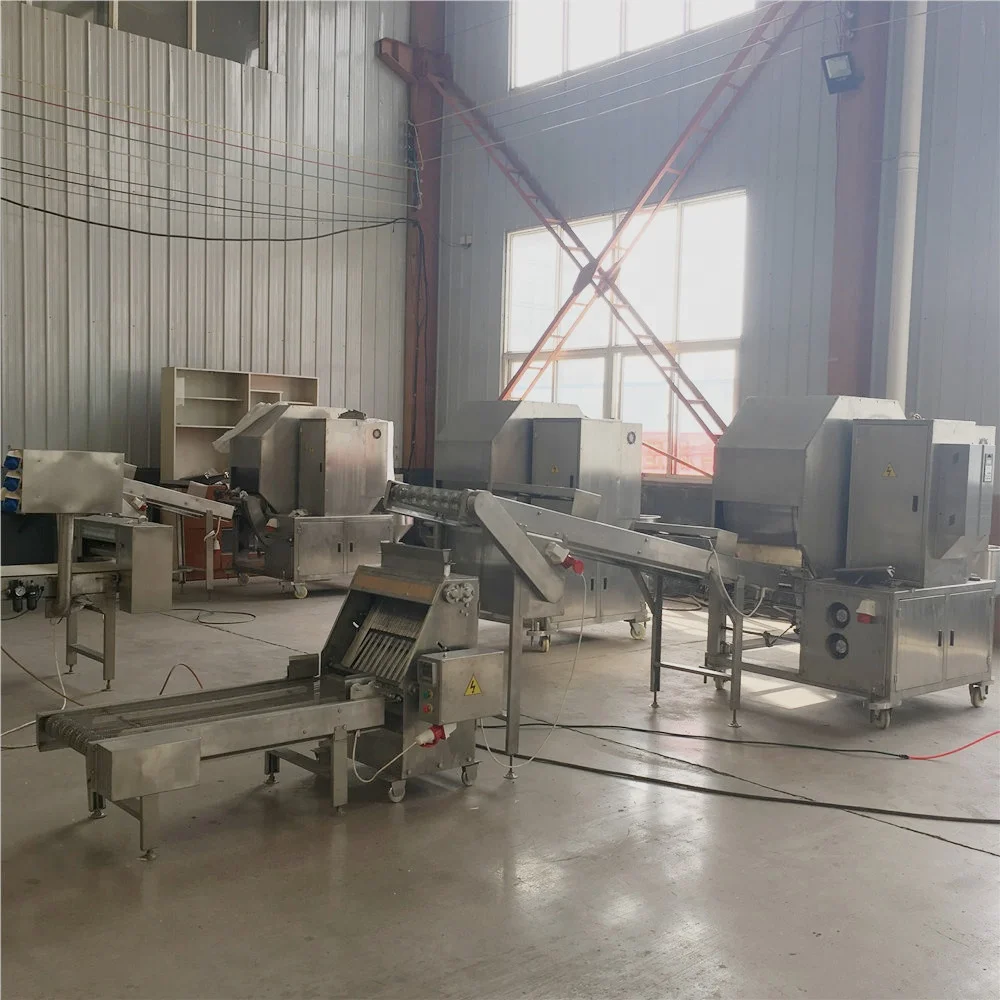

Machine for making spring rolls roller samosa production line
- Category: >>>
- Supplier: Weifang Green Food Machinery Co. Ltd.
Share on (62557192884):
Product Overview
Description
Product Description

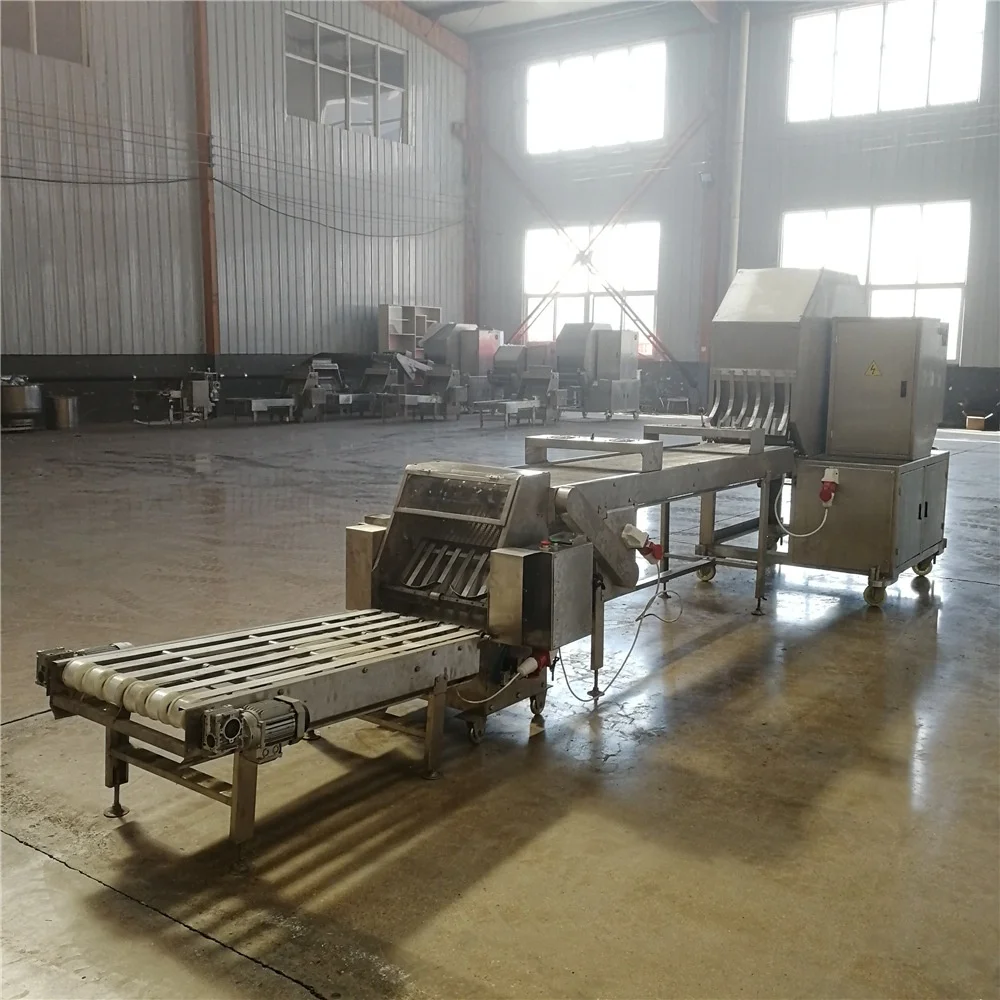

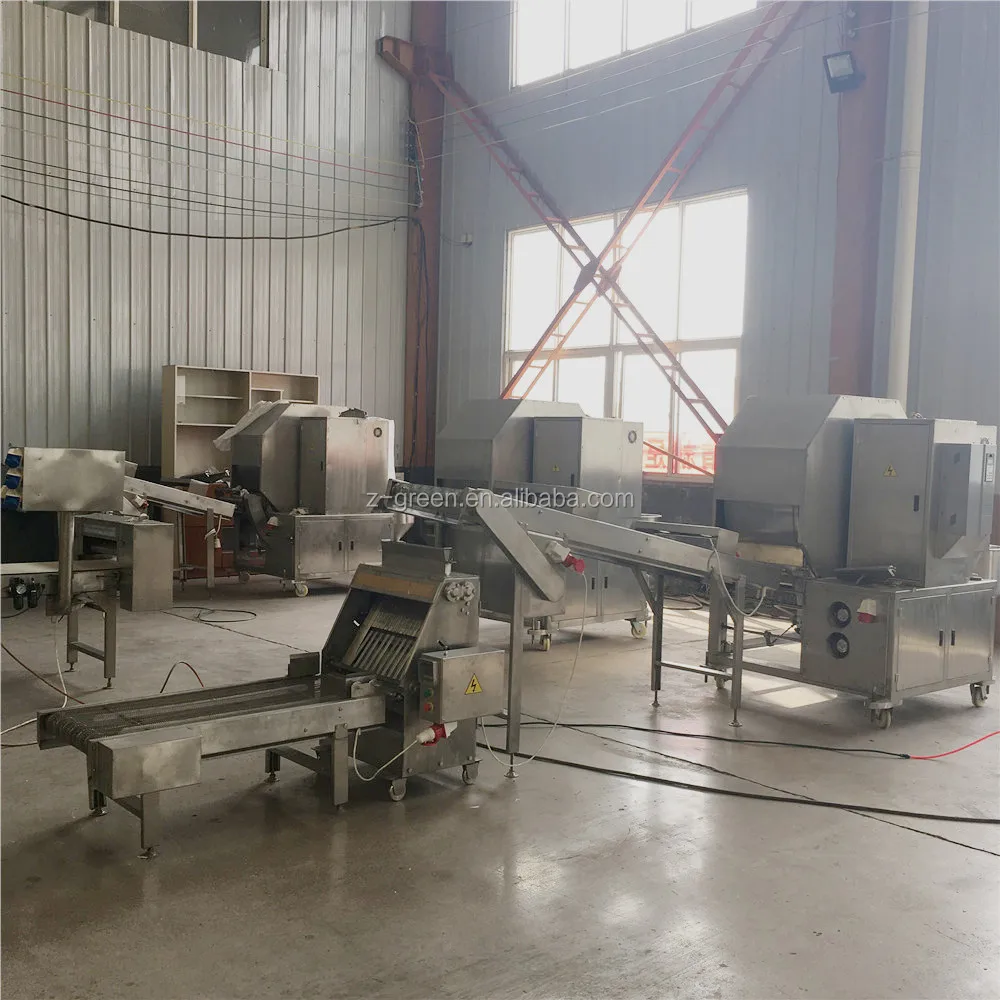

Whole Line Processing:

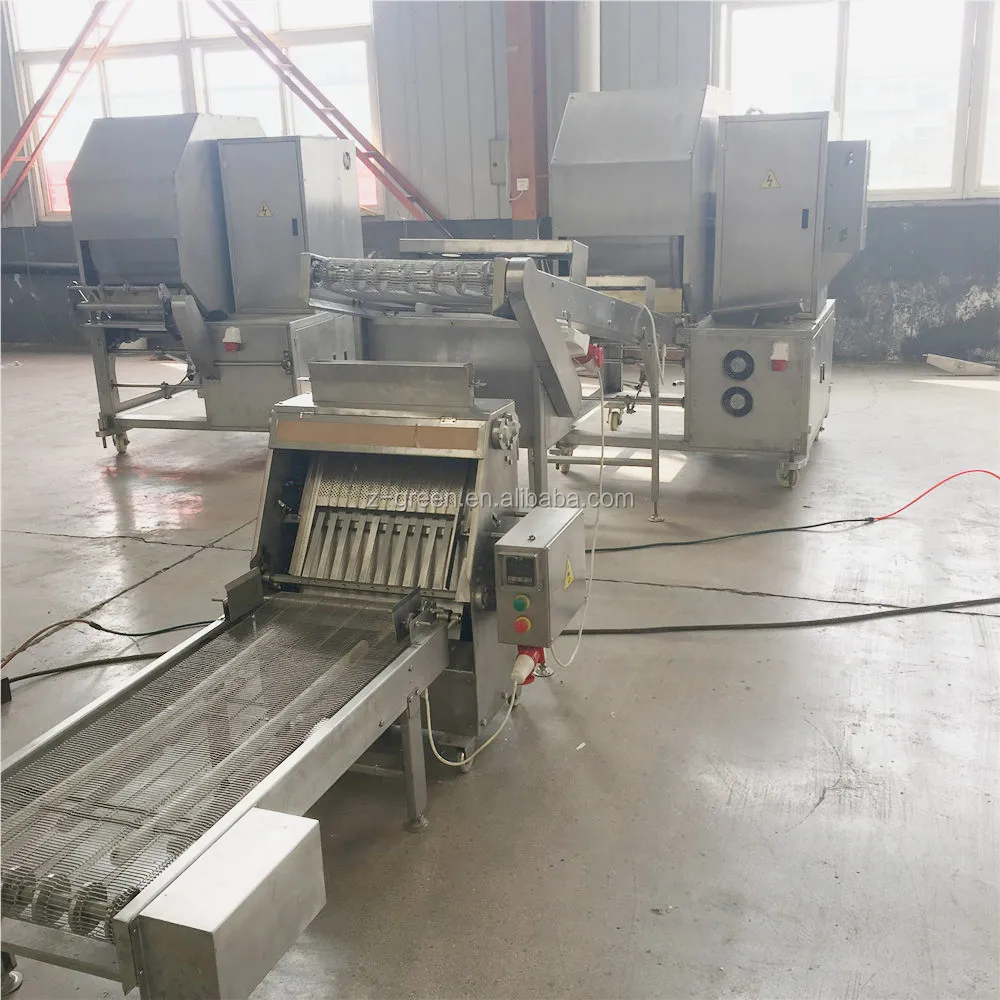

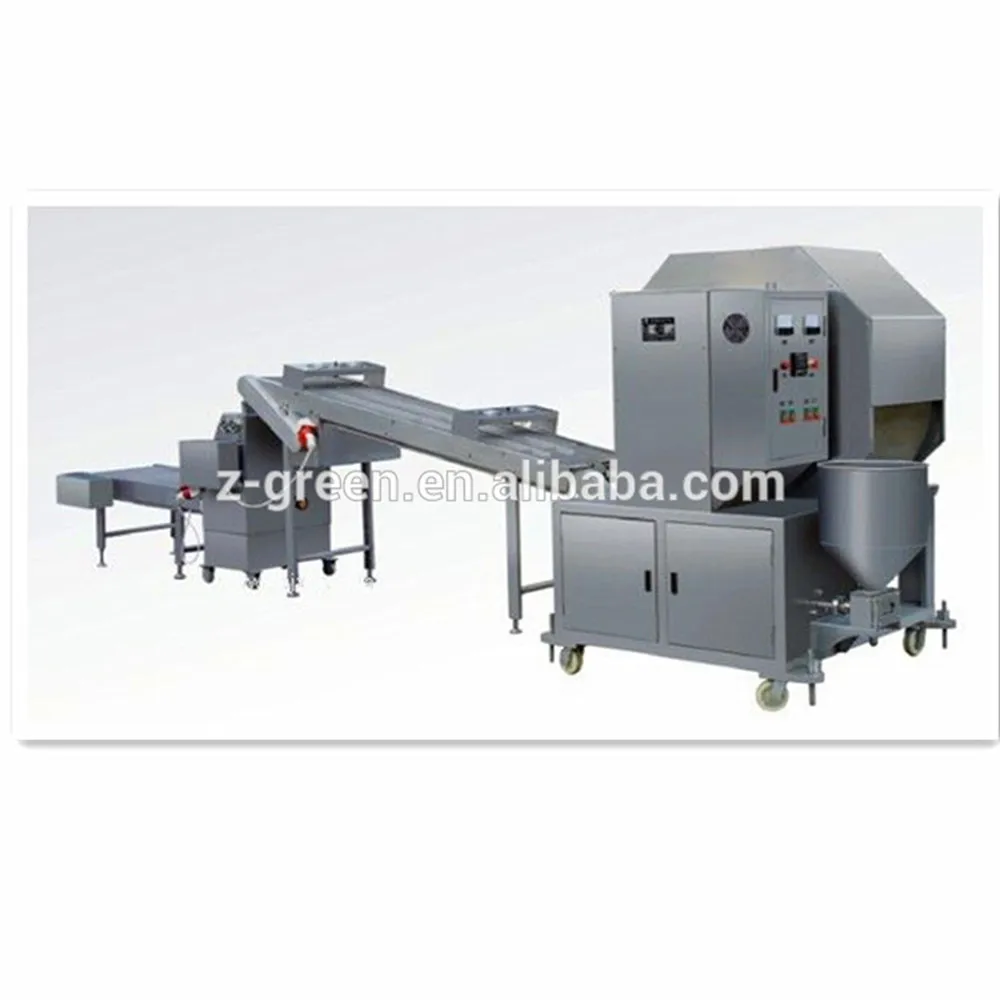

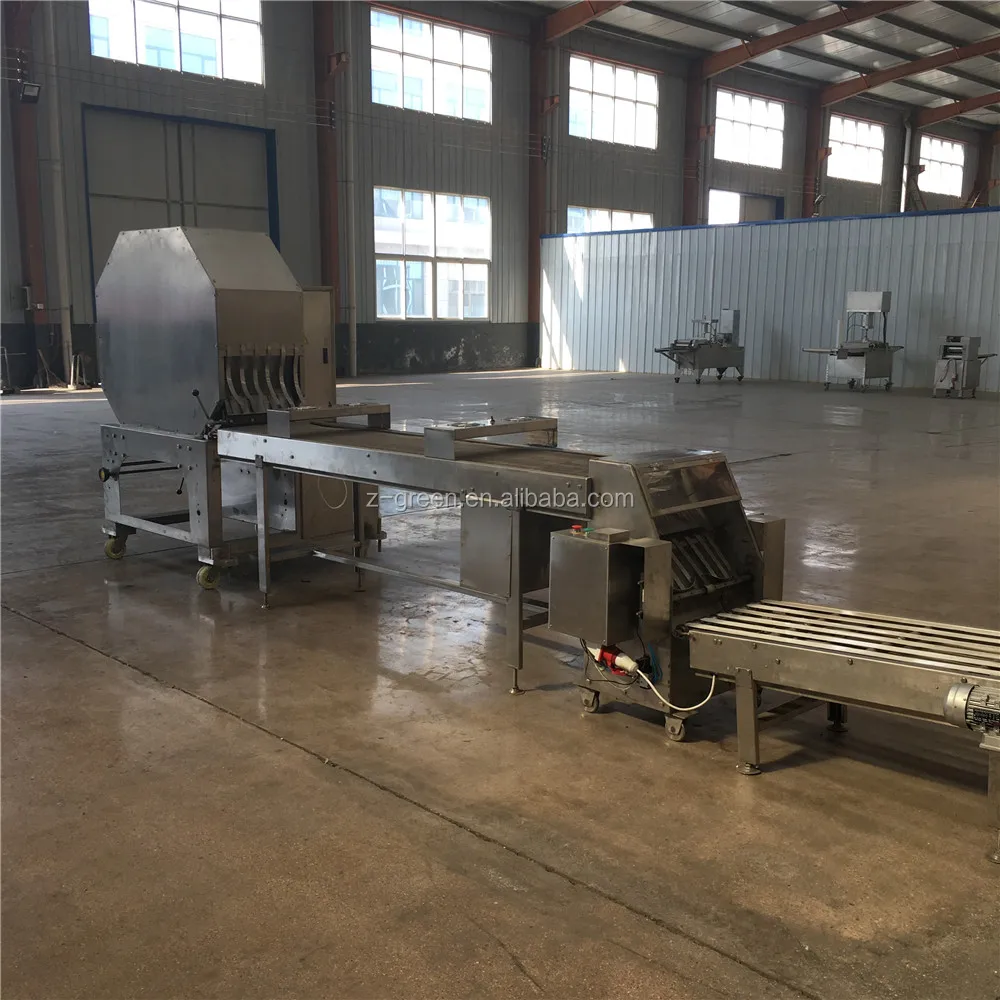

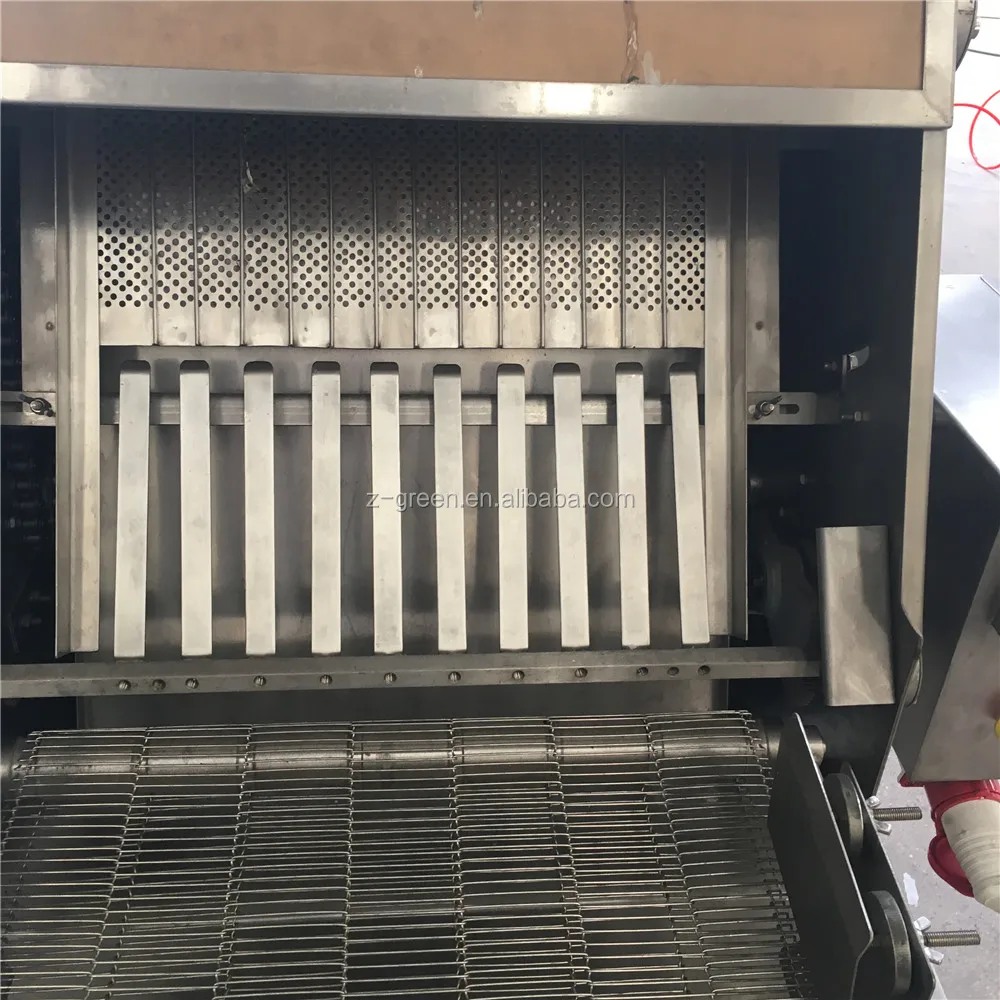

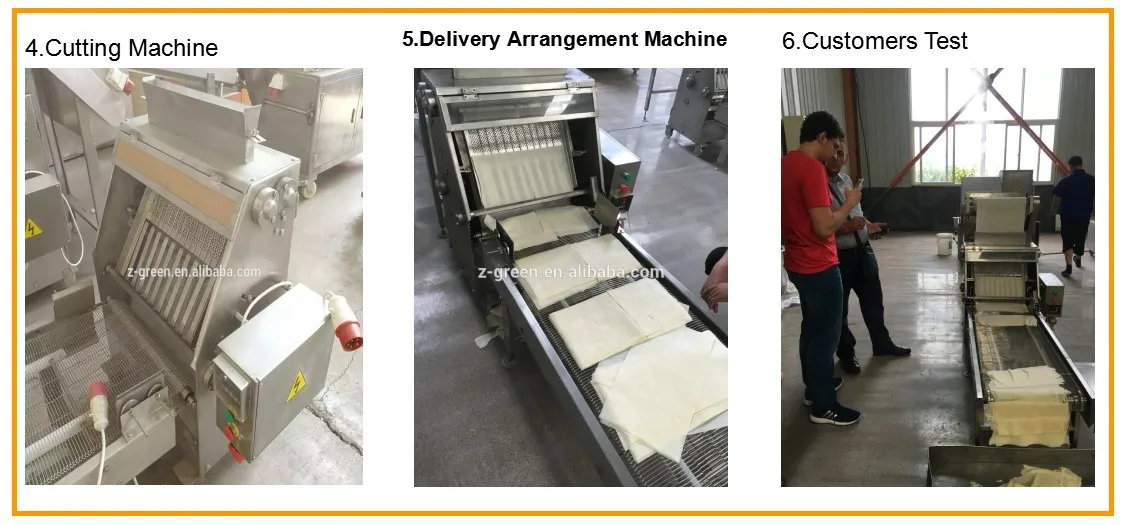

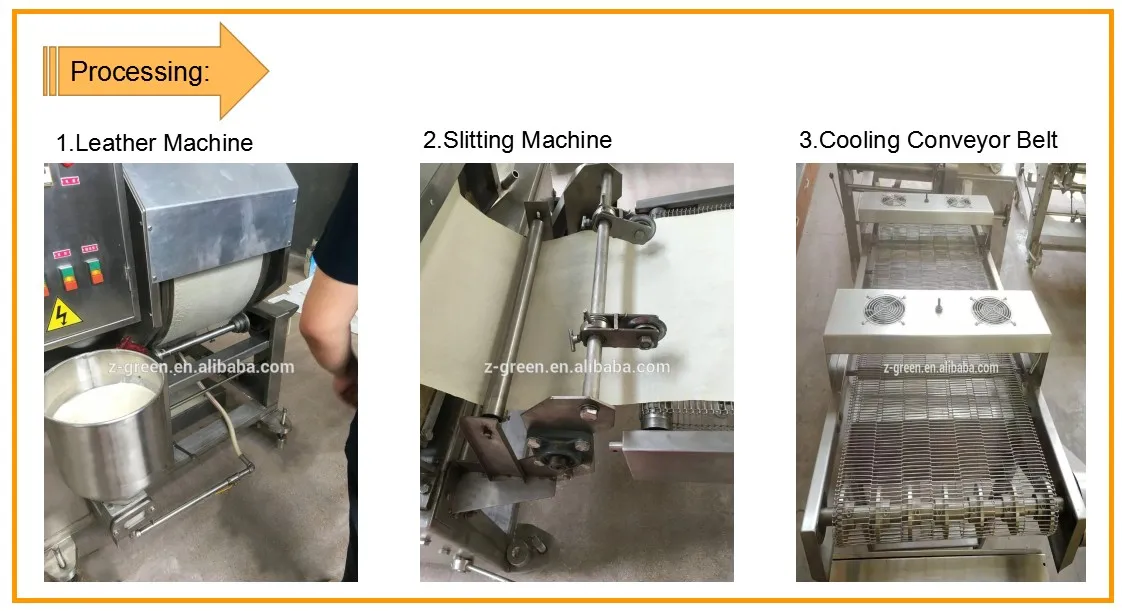

Wrapper making machine ---- Slitting device---- Cooling conveyor belt ---- Cutting machine---- Delivery arrangement machine
Wrapper making machine ---- Slitting device---- Cooling conveyor belt ---- Cutting machine---- Delivery arrangement machine
Technology Parameters:
Model | CPX 400-6 | CPX400-8 | CPX450 | CPX450C | |||
Sheet Width | 400-420 mm | 400-450mm | 450mm | 450mm | |||
Capacity | 226m/h | 301m/h | 452m/h | 566m/h | |||
Roast Wheel Speed | 2 rounds/min | 2 rounds/min | 2 rounds/min | 2.5rounds/min | |||
Heating Mode | Electric Tablet | Electric Tablet | Electric Tablet | Electromagnetic | |||
Heating Drum Diameter | 600mm | 800mm | 1200 | 1200mm | |||
3Voltage | 3 Phases Electric Power | 3 phases electric power | |||||
Power | 24KW | 30KW | 57KW | 50KW | |||
Machine size(L*W*H) | 5500 *1300 *1500 mm | 5500*1300*1600mm | 6000*1400*1800mm | 6000*1400*1800mm | |||
Weight | 800KGS | 900KGS | 1500KGS | 1500KGS | |||
Detailed Images
Technological Processing:

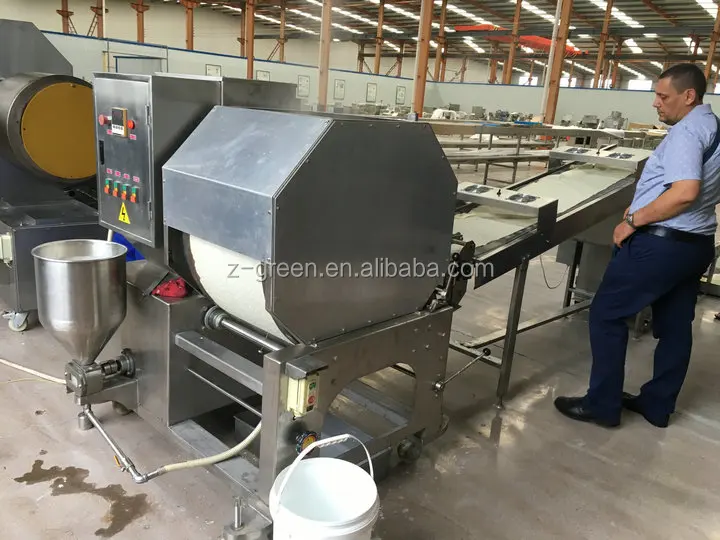

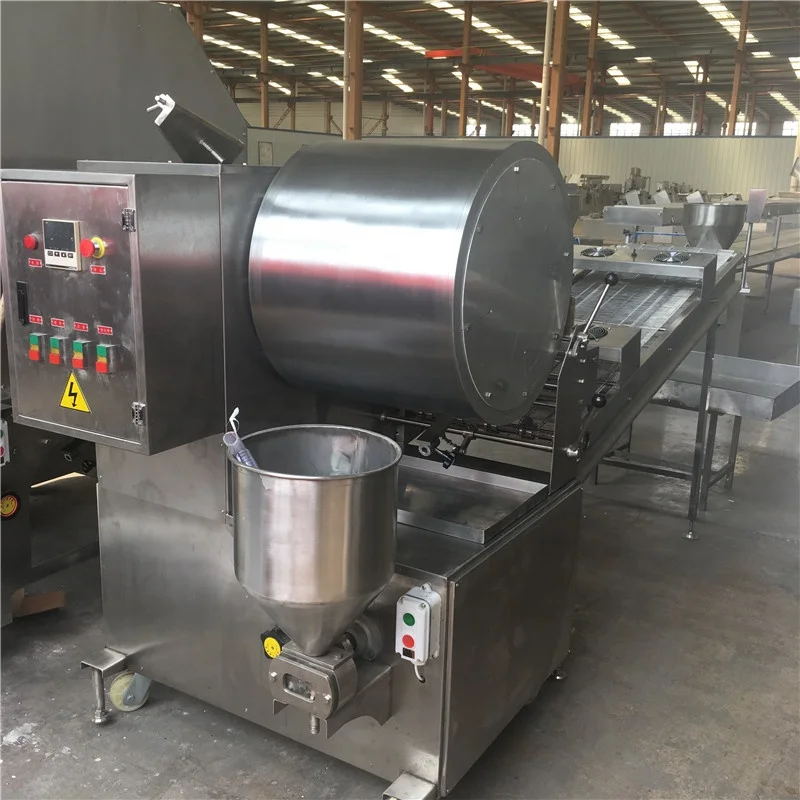

1. Put batter into pulp barrels, when heated to 160 ℃, open the slurry pump to send the batter to nozzle.

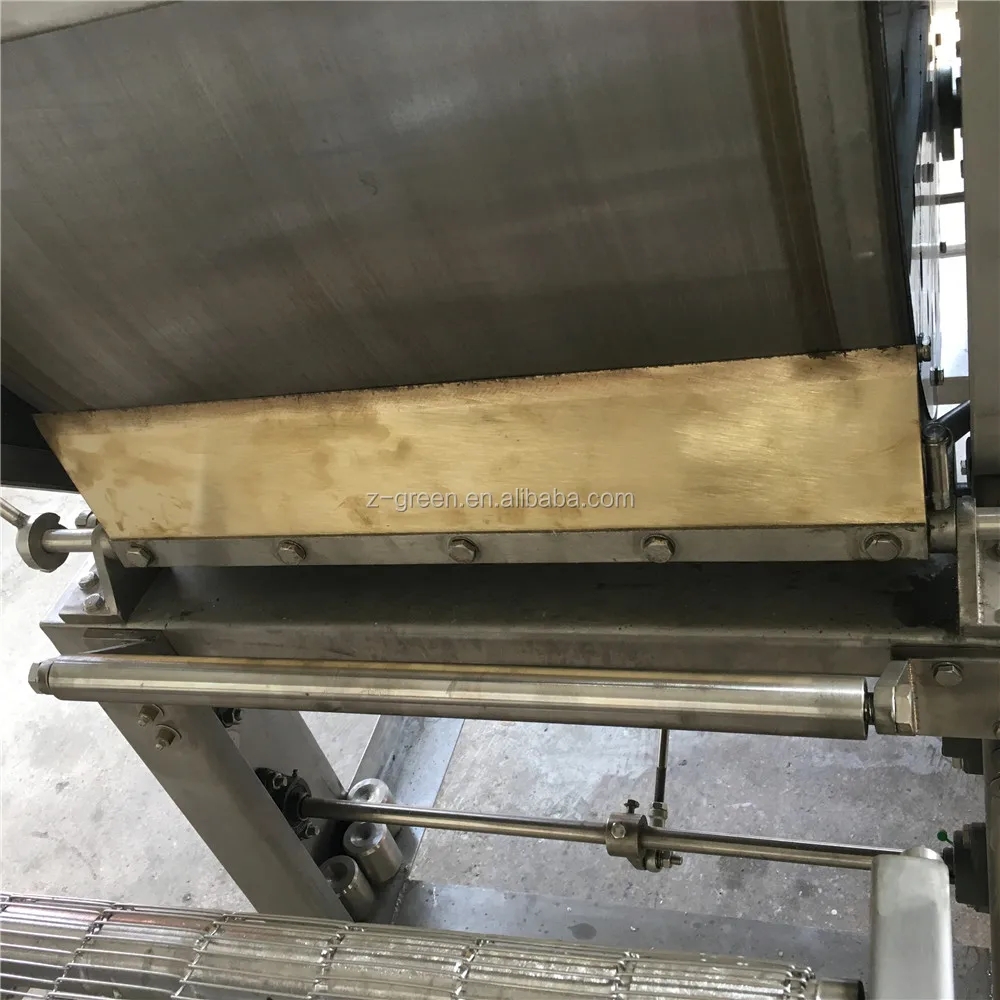

2. Then operating clutch operating lever, make the batter stick to the circular surface of the baking wheel. When the baking wheel rotates over 270-300 degrees, the batter matures and separates automatically from the baking wheel to form spring rolls with a fixed thickness or to be rolled immediately.
2. Then operating clutch operating lever, make the batter stick to the circular surface of the baking wheel. When the baking wheel rotates over 270-300 degrees, the batter matures and separates automatically from the baking wheel to form spring rolls with a fixed thickness or to be rolled immediately.
Advantage of Spring Roll Pastry Making Machine:
1. Production of product size, thickness, crisp, moisture, softness, hardness, can be controlled.
2. Machine is full automatic, Just need one worker, save label.
3. Machine is made of stainless steel material, safe and easy to clean.
4. If you want make different size, we can customized the mould according to your requirement.
Features:
1. Our spring roll wrapper machine is made of food grade stainless steel. The heating mode of the roasting wheel can be gas type of electric type.
2. The thickness of the end product can be 0.3-0.8 mm. The capacity can be 500-4000 pcs/h. Both the diameter and capacity can be customized.
3. It is the intelligent model machine, which has the high output, low energy consumption.
4. It can also save manpower, and reduce the production cost, improve market competitiveness, seize business opportunities.
2. The thickness of the end product can be 0.3-0.8 mm. The capacity can be 500-4000 pcs/h. Both the diameter and capacity can be customized.
3. It is the intelligent model machine, which has the high output, low energy consumption.
4. It can also save manpower, and reduce the production cost, improve market competitiveness, seize business opportunities.

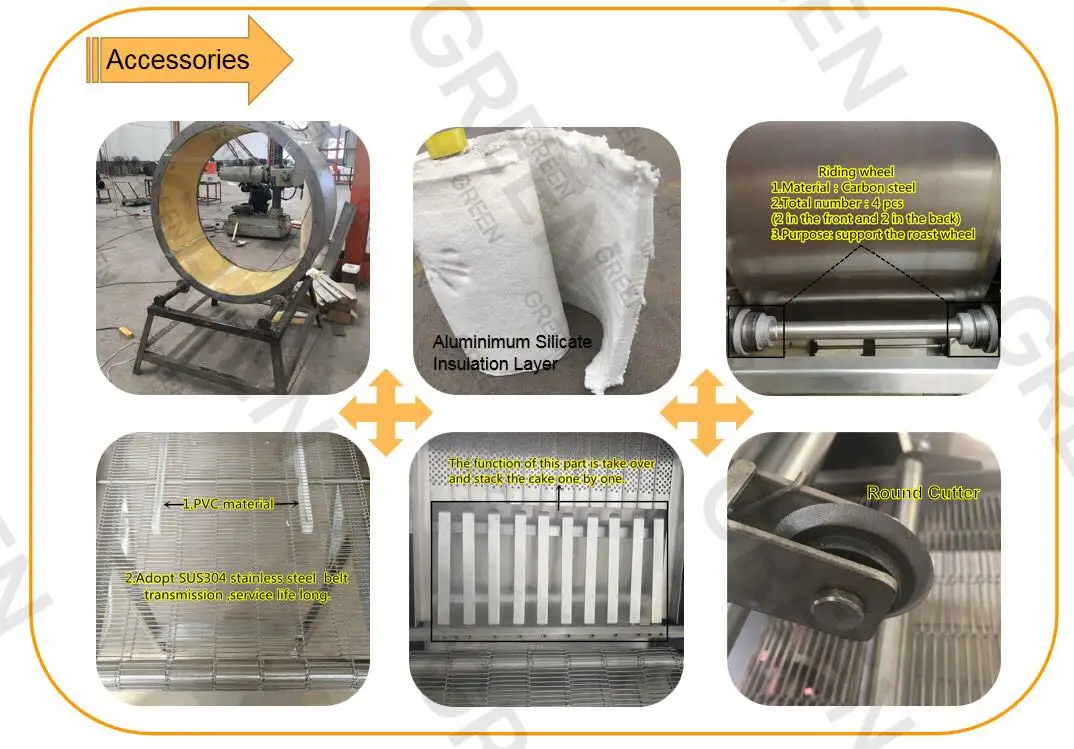

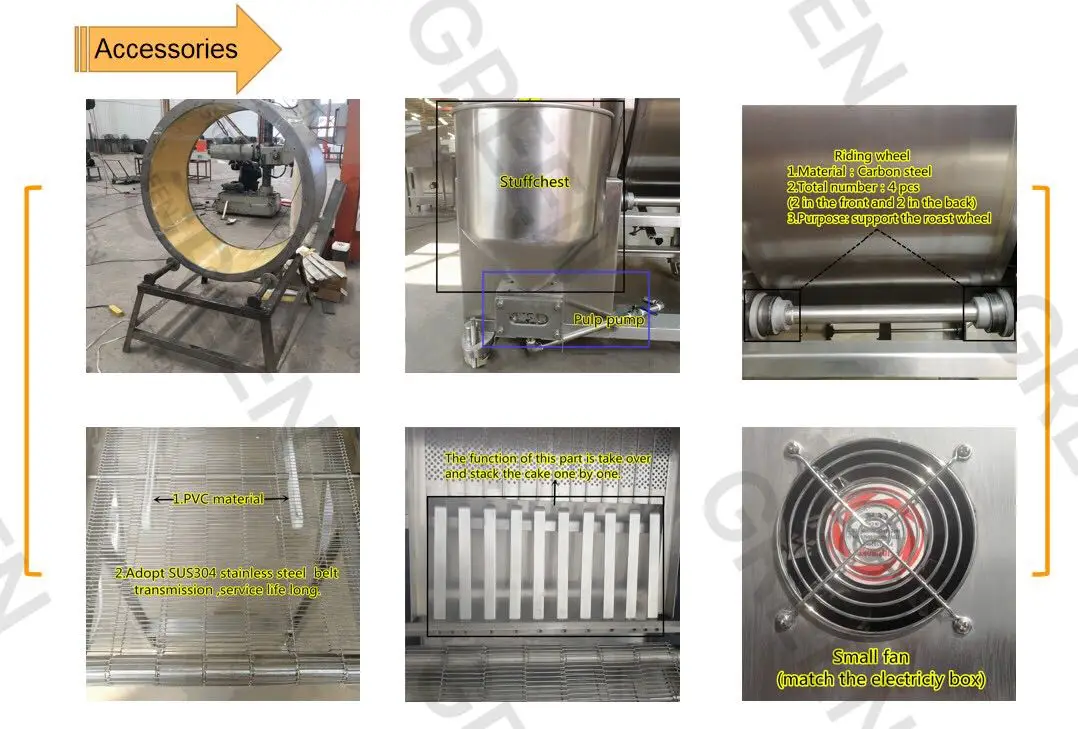

SUS 304
1. Adopt SUS304 Stainless Steel.
2. Have round, rectangular and other speical SUD pipes.
3. Thickness is more than 2mm.
4. Also have carbon steel parts. such as roast wheel.

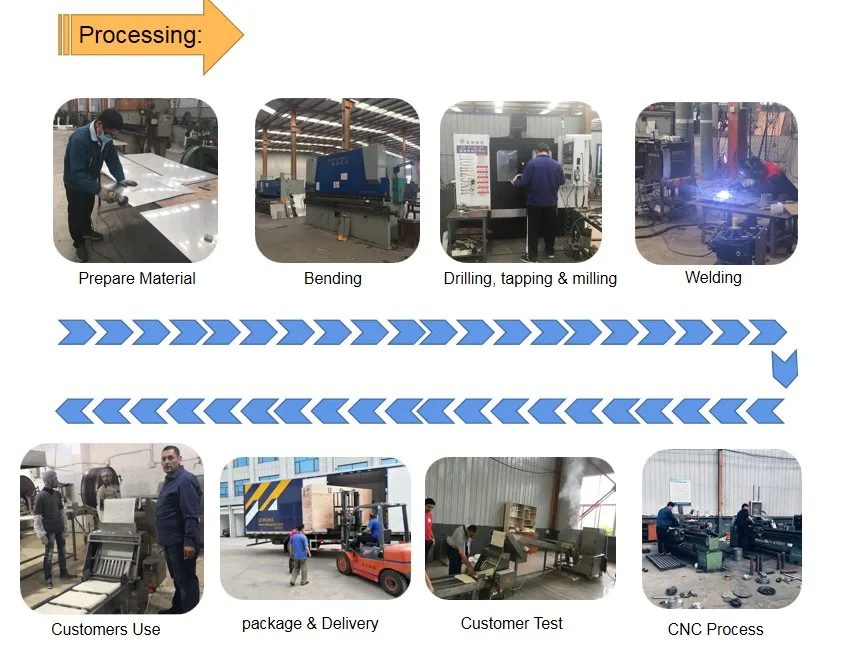

High technology manual welding
1. Excellent technical skills.
2. More than 8 years of welding experience.
3. Have 3 Professional Working Teams.For best quality, raise the awareness of competition.
Scales welding
1. Ensure no leakage.
2. Beautiful appearance.
3. Improve service life.
Numerical control machine tool
1. Improve equipment quality.
2. Ensure productivity.
3. Reduce artificial interference.
4. Processing standard parts.
2. Ensure productivity.
3. Reduce artificial interference.
4. Processing standard parts.
Mobile universal radial drilling machine
1. Improve accuracy.
2. Standardization of main accessories.
3. Reduce artificial interference.
4. Improve productivity.
2. Standardization of main accessories.
3. Reduce artificial interference.
4. Improve productivity.
Exhibition Hall
1. Show the quality and quantity of equipment.

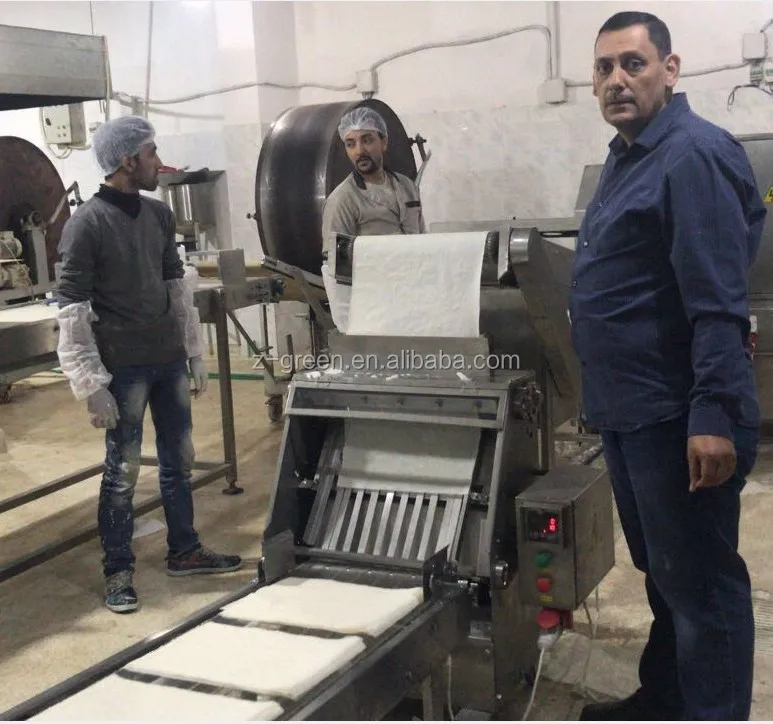

2. Conduct experiments for customers and check whether the equipment is qualified.
3. Showcase your company.
4. Stock can be delivered in time.
2. Conduct experiments for customers and check whether the equipment is qualified.
3. Showcase your company.
4. Stock can be delivered in time.
Application:
It can automatically produce spring roll pastry,samosa pastry lumpia wrapper, crepes pancake, njara and Pecking duck wrapperwith various recipe.
Packing&Shipping
Packing: Anti-rust oil, PE film and complete wooden case (standard export packing).
After Sales Service
Our Services:
2. Technical training and site commissioning and installationare available for you.
3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Company Introduction
Weifang Green Food Machinery Co., Ltd. is a comprehensive enterprise that is integrated with the ability of food machinery development, manufacture, technical advice and service. The company has a group of senior engineers engaged in the development and manufacture of food machinery with more than ten years experience, excellent managerial personnel and staff. The Green people begin with the slight place, constantly absorb the latest technology at home and abroad and learn widely from others' strong points. It ensures the products achieve leading position in the industry with exquisite technology and first-rate technology.
FAQ
1. What is the voltage/phase for this machine?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as
the clients’ requirement.
2. What is the Mode of transportation?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air.
3. How long can we get the goods?
We usually delivery in 15-20 working days after deposit.
4. How long is the guarantee?
We promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your factory.
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as
the clients’ requirement.
2. What is the Mode of transportation?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air.
3. How long can we get the goods?
We usually delivery in 15-20 working days after deposit.
4. How long is the guarantee?
We promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your factory.
Contact US
Amy Pan
Trade Department Manager
Weifang Green Food Machinery Co.,Ltd.
Add: East of East Xinghua Road, Zhucheng City, Weifang City, Shandong Province.
WhatsApp/Tel: +86 18366578052
Email: 1963087437@qq.com
Attention:
Please Kindly Contact with Me To Confirm Machine Model, Weight & Dimension.
