24V Brushless Motor, BLDC Motor Price & Electric Brushless Motor 36V 350W Customizable
- Category: >>>
- Supplier: Shenzhen Maintex Intelligent Control Co. Ltd.
Share on (62557193192):
Product Overview
Description
Product‘s Description
Parameters of MAINTEX BL6208-01 DC Brushless Motor for Air Purifiers
MODEL | ITEMS | SPEC |
BL6208-01 for Air Purifiers | Driving Voltage | 24VDC |
Voltage Range | 22.8~25.2VDC | |
Peak current | 2A | |
No-load Speed | 2600±10%rpm | |
Rated Speed | 2600±10%rpm | |
Speed Range | 500~2600rpm | |
Rated Torque | 0.081N·m | |
Phase number | 3 phases | |
Number of Poles | 10 poles | |
Direction of Rotation | CCW | |
Weight | 0.286kg | |
Diameter | 61.4mm | |
Length | 63.6mm |

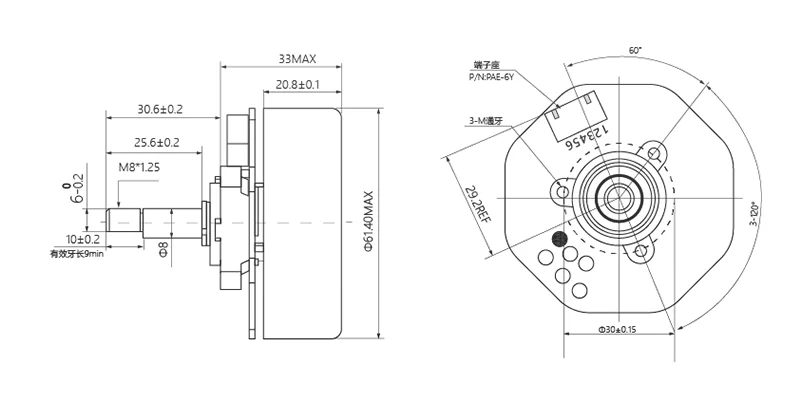

Drawing of MAINTEX BL6208-01 DC Brushless Motor for Air Purifiers
