Thick walled Pipe Cutting And Beveling Machine

Product Overview

Description

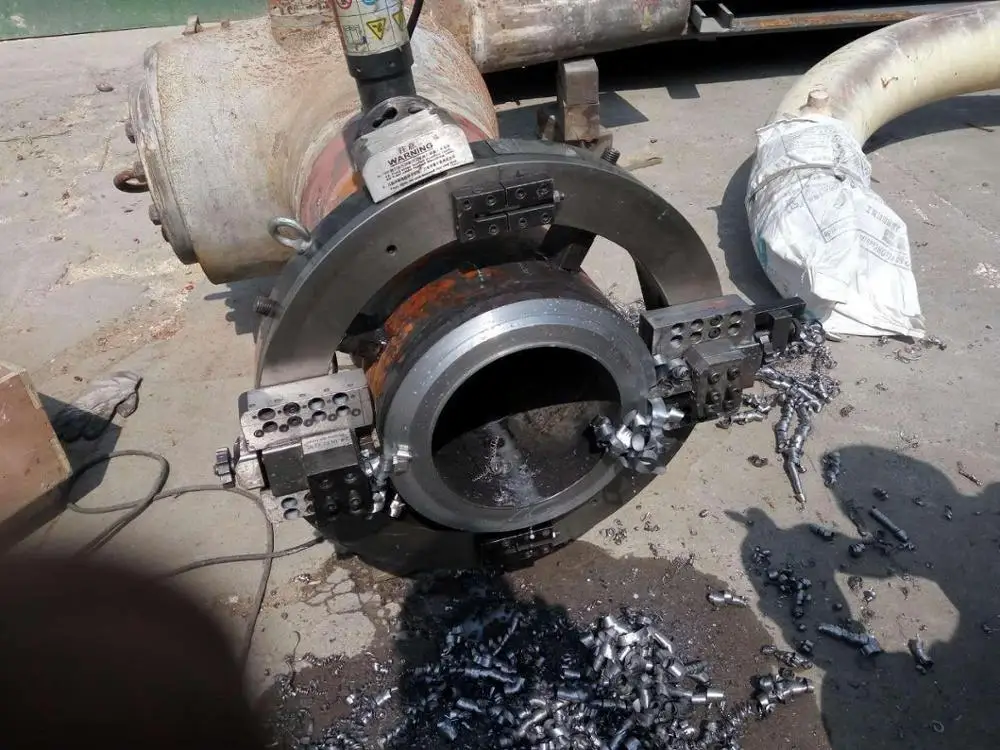

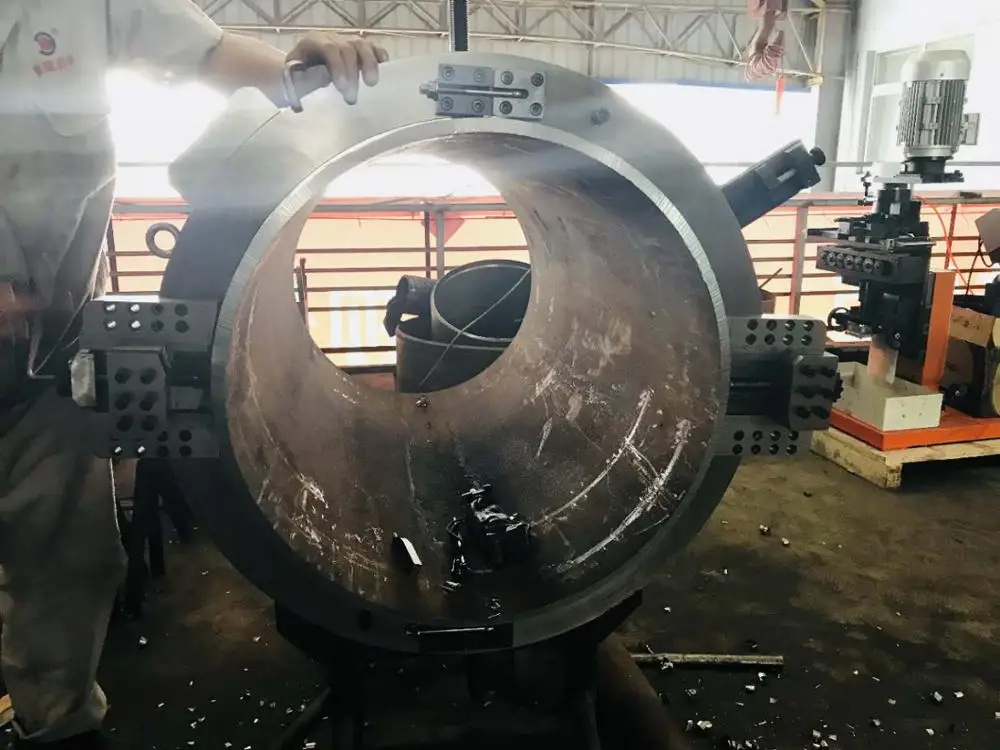

OCH-1430 Portable Stainless Steel Pipe Cold Cutting Beveling Machine Angle Chamfer Automatic



Machine breif introduction

This Series machines are suit for pipe OD-mounted machine. It can be seperated to two half and instalate on pipeline easily.

Easy operated hot selling stainless pipe cutting machine.All types of metal pipe.All Series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital weldingHigh efficiency, meet different process requirement.About tool , machine equip with M42 material tool.Have 2pcs cutting tool ,1pc 30degree beveling tool ,1pc 37.5 degree beveling tool. (other degree can be customized.)



APPLICATION RANGE

Rugged design and powerful function makes these machines widely adopted in many kinds of fields, such as Petrochemical, Beer,Dairy Beverages, Pharmaceutical, Metallurgy, Water Treatment, Shipbuilding, Electric power Industries.

• Coal chemical company replacement valve


• Power plant site construction


• High sulfur pipeline construction


• Natural gas reserve pipeline engineering


• Petrochemical company pipeline maintenance


• ETC.....

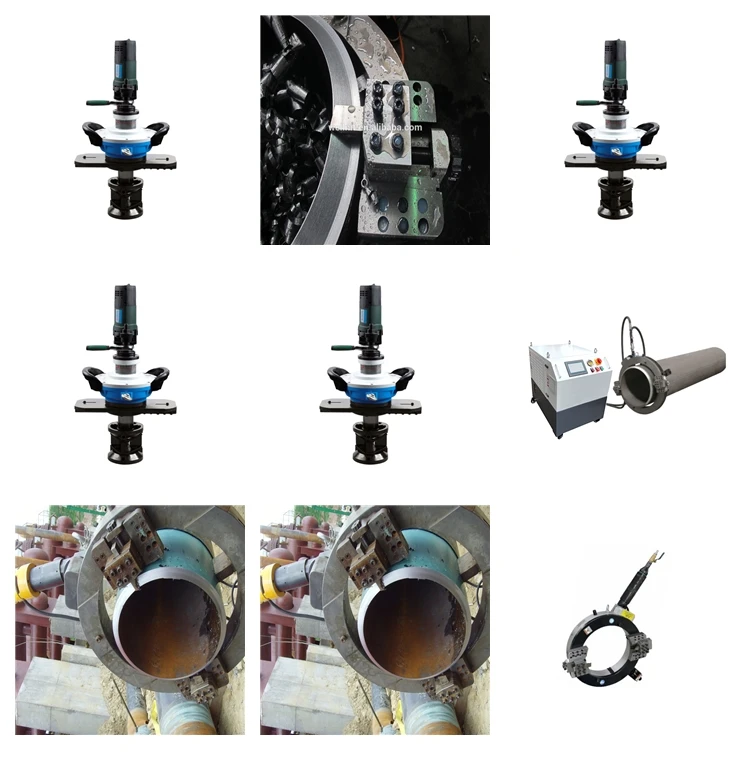

Other Type operation machines:



Electric,penumatic,CNC







Main Characteristic:

Power supply: 220-415V 3PH 50/60Hz

12.5MPa @2-60L/Min

• Powerful drive, high efficiency


• Stable performance


• Low noise adjustable speed


• Ideal for heavy wall and large size pipe


• Lower axial and radial clearance


• Cold cutting and beveling , No spark


• Easy to set up , Robust operation


• Automatic feed, high efficiency


• Can sperate to two half , it's easy for pipe when two end can't open


• Process carbon steel , stainless steel , aluminum alloy , alloy steel etc

Tech date sheet:

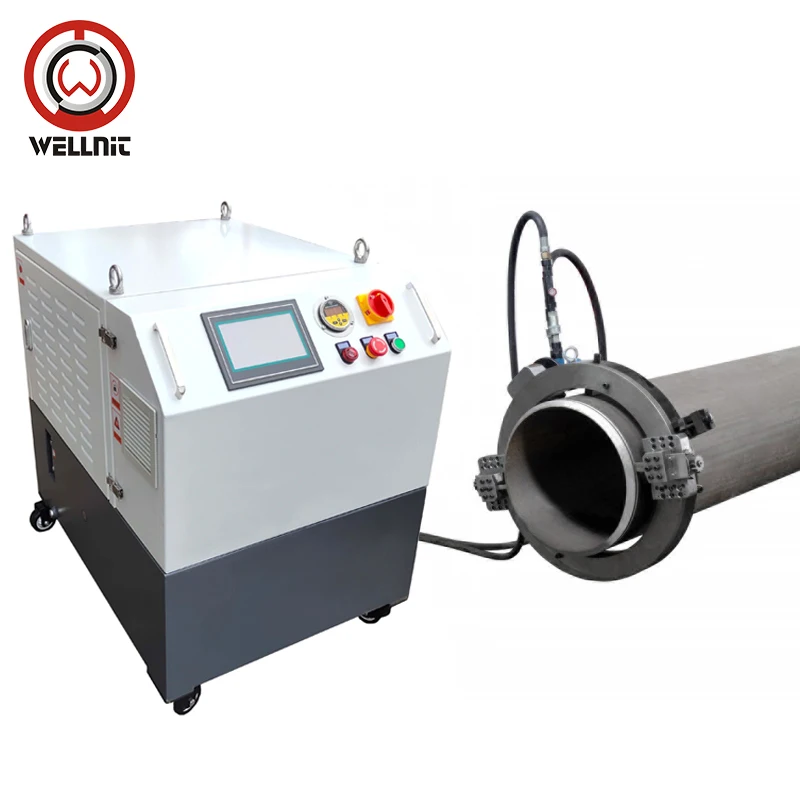

OD-Mounted Hydraulie Type :

Model	Working Range (ID-OD)	Inch	Wall Thickness	Rotation Speed
OCH-89	Φ25-89	3/4''-3''	≤35	100r/min
OCH-159	Φ50-159	2''-5''	≤70	96r/min
OCH-168	Φ50-168	2''-6''	≤70	90r/min
OCH-230	Φ80-230	3''-8''	≤70	85r/min
OCH-275	Φ125-275	5''-10''	≤70	80r/min
OCH-305	Φ150-305	6''-10''	≤70	73r/min
OCH-325	Φ168-325	6''-12''	≤70	70r/min
OCH-377	Φ219-377	8''-14''	≤70	62r/min
OCH-426	Φ273-426	10''-16''	≤70	58r/min
OCH-457	Φ300-457	12''-18''	≤70	55r/min
OCH-508	Φ355-508	14''-20'	≤70	52r/min
OCH-560	Φ400-560	16''-22''	≤70	52r/min
OCH-610	Φ457-610	18''-24''	≤70	50r/min
OCH-630	Φ480-630	20''-24''	≤70	50r/min
OCH-660	Φ508-660	20''-26''	≤70	50r/min
OCH-715	Φ560-715	22''-28''	≤70	48r/min
OCH-762	Φ600-762	24''-30''	≤70	48r/min
OCH-830	Φ660-813	26''-32''	≤70	45r/min
OCH-914	Φ762-914	30''-36''	≤70	41r/min
OCH-1066	Φ914-1066	36''-42'	≤70	32r/min
OCH-1230	Φ1066-1230	42''-48''	≤70	30r/min
OCH-1430	Φ1230-1430	48''-56''	≤70	28r/min

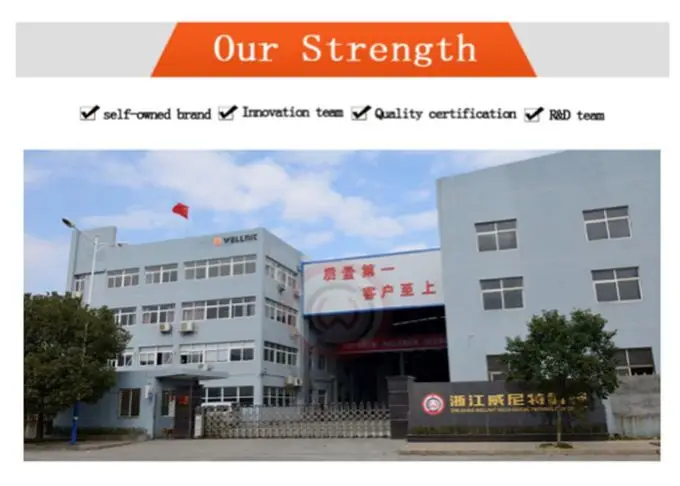

COMPANY INTRODUCTION:



Zhejiang Wellnit Mechanical Technology Co.,Ltd (Original:Wenzhou Huakai Co.,Ltd)is a professional manufacture and exporter that is concerned with the design,development and production of pipe cutting and beveling machine,portable plate beveling machine.

WELLNIT(Original:HUAKAI) on-site machining products are the first choice of industry professionals in power generation, oil and gas production and pipeline distribution. WELLNIT(Original:HUAKAI) products can be used for wherever precision weld preps are required. The products include O.D. mounted light & heavy-duty pipe cutting and beveling machine, I.D. mounted pipe beveling machine, portable plate beveling machine as well as flange facing machines.

WELLNIT(Original:HUAKAI)well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.Besides,we have recieved ISO9001:2008,CE certificates etc.

WELLNIT(Original:HUAKAI) owns the most advanced manufacturing equipments and an experienced team concentrating on technology and research. We are dedicate to continuing the spirit of innovation , manufacturing excellence, enthusiastic work force and the superb after sale service ,we are confident our future will be more and more successful.

"To be honest, pioneer and enterprising, seek for truth and innovation" is our credo. Your satisfaction is our great success

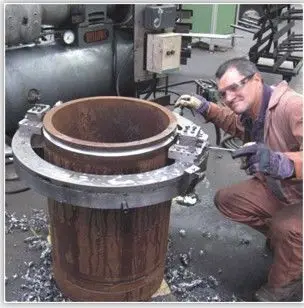

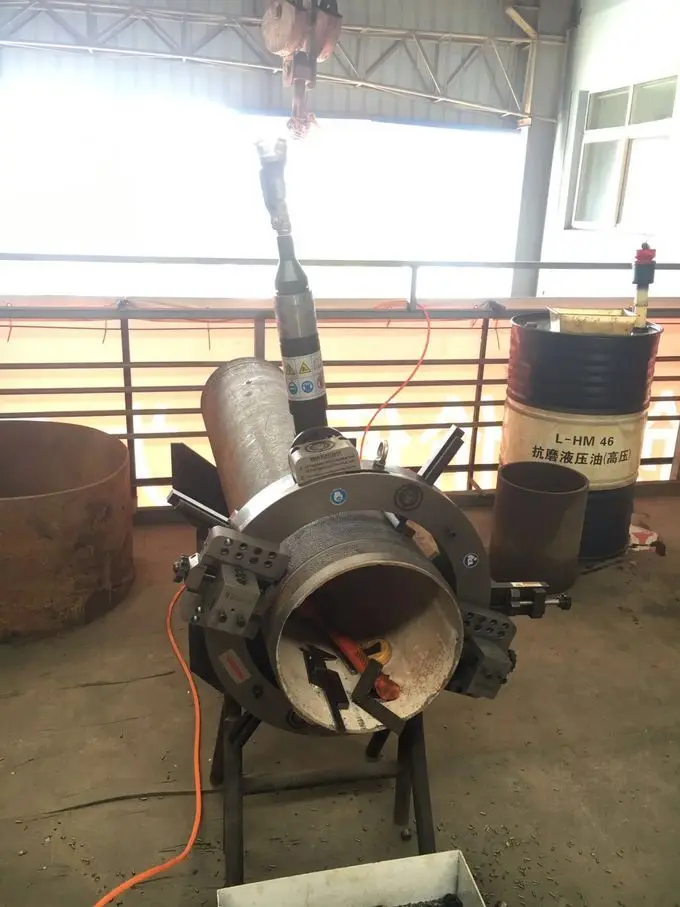

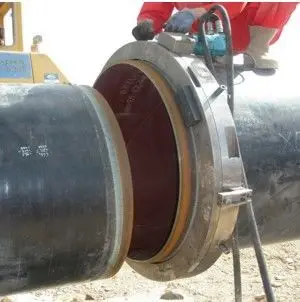

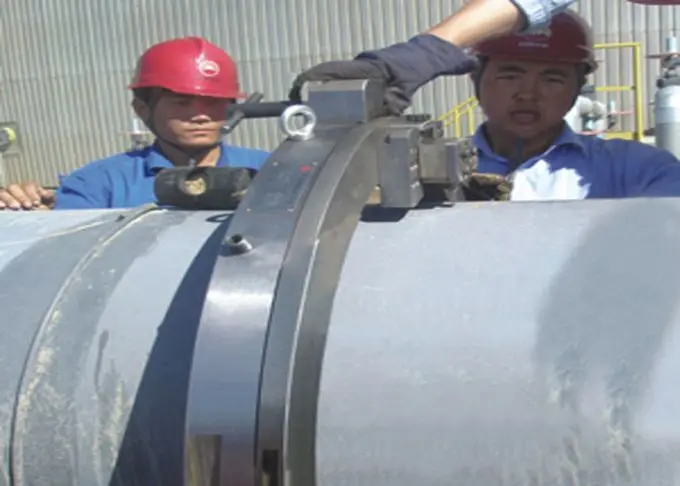

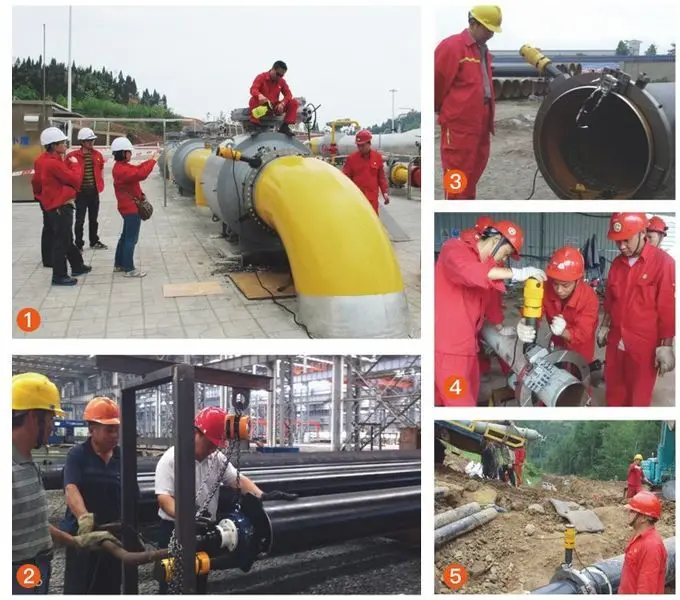

Machine on site:



ORDER GUIDE



Please provide more details about your pipe:

• Pipe size (Outside Diameter)


• Pipe thickness


• Pipe material


• Machine body: Steel or Aluminum Alloy


• Driven: Electric , Pnuematic , Hydraulic , Servo Motor


• Bevel angle


• Bevel type


• Drawing

We will recommend suitable machine to you!
