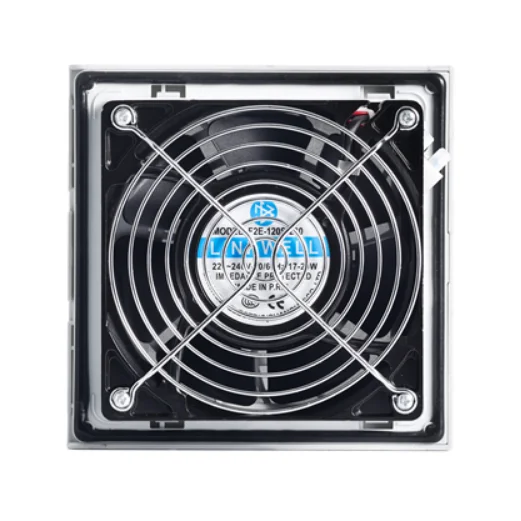

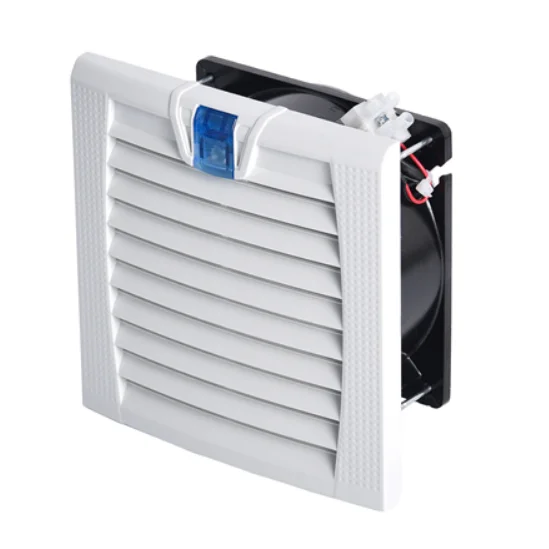

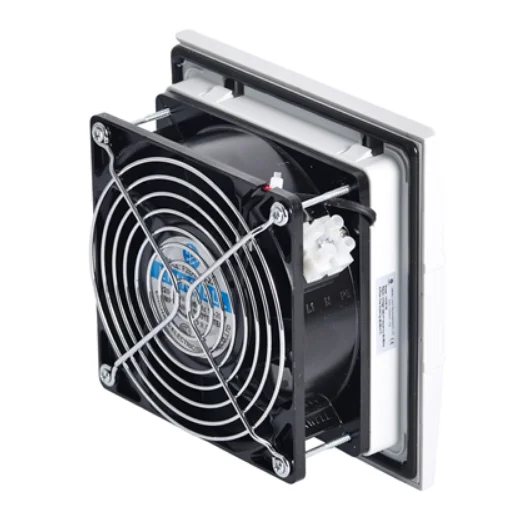

Factory directly IP54 148mm 230VAC Industrial Panel Cabinet Ventilation Enclosure fan with filter
- Category: >>>
- Supplier: Linkwell Electric (Shanghai) Co. Ltd.
Share on (62557348802):
Product Overview
Description
Linkwell New Product Industrial LK3238 230V Exhaust Fan Filter
The feature of LK32 series:
-The fan and filter LK32xx series is produced with new ABS plastic,the flame retardant UL94-V0(optional),Its fire-resistance
ability.
- IP54 standard,IP55 plus precision filter mat,IP56 plus precision filter mat and protective cover.
-The fan which air filter matched has good capability of temperature raise.Big power axial fan can make sure filtration air with best flow speed.
-Ventilation shutters rain-proof capability can not only prevent mechanical damage, and also can resist the moist coming.

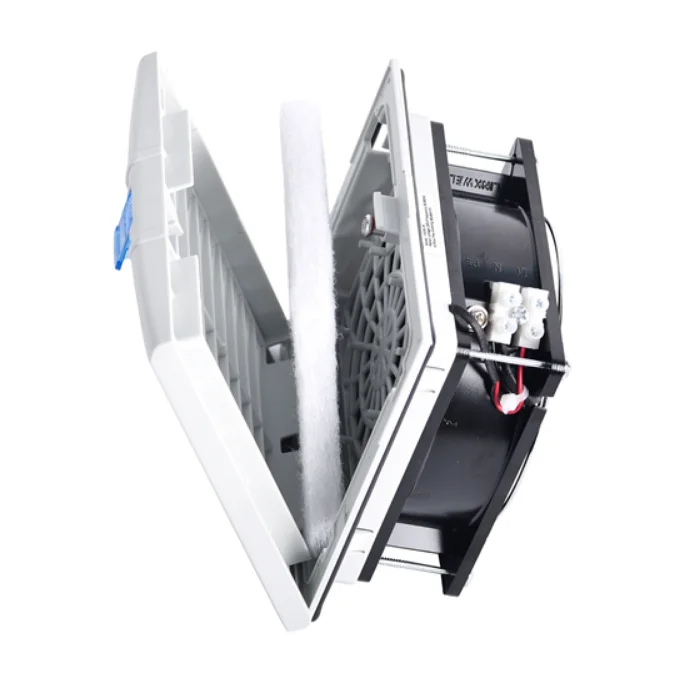

- Easy mounting,You need only open a square hole on it or fix it by screw further more. Its easy to change the filter pad by using the groove handle on shutter.
-The series fan and filter including 230,115,024 to satisfy different requests.
-The fan and filter LK32xx series is produced with new ABS plastic,the flame retardant UL94-V0(optional),Its fire-resistance
ability.
- IP54 standard,IP55 plus precision filter mat,IP56 plus precision filter mat and protective cover.
-The fan which air filter matched has good capability of temperature raise.Big power axial fan can make sure filtration air with best flow speed.
-Ventilation shutters rain-proof capability can not only prevent mechanical damage, and also can resist the moist coming.
- Easy mounting,You need only open a square hole on it or fix it by screw further more. Its easy to change the filter pad by using the groove handle on shutter.
-The series fan and filter including 230,115,024 to satisfy different requests.
Model NO. | LK3238.230 |
Rated operating voltage,frequenc V,Hz | 230V, 50/60Hz |
Air throughput,unimpeded air flow | 65-85 m3/h |
Axial fan | Self-starting shaded pole motor |
Rated current max | 0.12-0.10 A |
Rated power | 19.0-14.0W |
Noise level | 36-40 dB(A) |
0perating temperature range | -30 - +70℃ |
