internal antenna*2 1 *2.4G 1*5G (LTE main Set Diversity Built-in)
GPS
optional

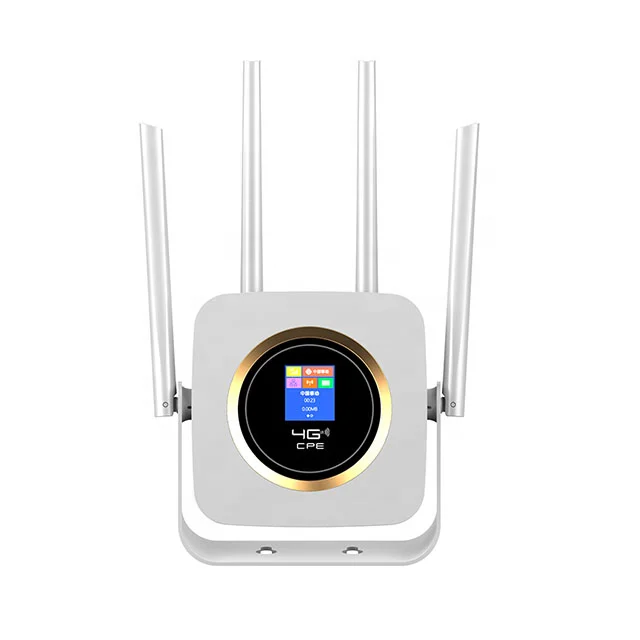

Display
LCD
color screen
LED
LED choose one from two
interfaces
Power
1 power
SIM
2 SIM
USB
USB TYPE A (5V 1A IN)
DC
12V 1A IN
RJ45
1* WAN/LAN
Internet
Wi-Fi
Wi-Fi AP, max up to 10 users(20 users can be supported after adding memery)
WIFI SSID
4GCPE-XXXX(IMEI address last four digitals)
WIFI Password
1234567890
USB
RNDIS
Operation environment
Working temperature
0° - 35°C (32° - 95°F)
work height
max to 3000 meters (10,000 inch)
Operation system
PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10
MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later
IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later
Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later
Operation Browser
Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari above versions
Software Platform
System
Android 6.0
Software name
WEB
IP
//192.168.0.1 (notes:USB 192.168.42.1)
Log in
default password:admin (log in first time need to change management password ); language option(Chinese / English)
Status
Network connection status; Anp information; Ip information; Signal strength; Connection time; Number of wifi client connections
Networks
Apn configuration: international roaming switch, apn, user name, password, authorization type modification; Add a new apn and restore the default apn parameters; PIN code &PUK code input; Traffic statistics: traffic speed limit: after the accumulated traffic reaches the set value, the speed limit is set according to the set rate.
Wifi
WLAN setting : Modify ssid, encryption method and encryption password. Set the maximum number of connections and support PBC-WPS; WIFI connection list: check the list of terminals connected to the device, check mac address, ip address and host name; Can choose to prohibit the Internet and restore the Internet
System Manage
Login Password Management: User name is supported. Password modification System Operation: Support equipment restart, shutdown, Restore factory setting system information: view software version, Mac address of WLAN, IMEI Date time zone setting: set the time update method of the equipment: network time or GPS time, default network time time zone: automatically update the time zone. Custom time zone Phone book settings: add, modify, find and delete contacts GPS control: GPS function on and off
