ESD 316L stainless steel filaments twist thread 14micron*90filaments*2plies for medical product electric car
- Category: >>>
- Supplier: Xing Tech Company Limited
Share on (62557452091):
Product Overview
Description
316L stainless steel filaments twist thread 14micron*90filaments*2plies for carry low current for electroc signal
Product Description
a) Specifications:
| Specification | Weight per Meter(g) | Breaking Load(N) | Elongation (%) | Average Resistance(ohm) |
| 14μm×90×1 | 0.12 | 25 | 1.10% | 61 |
| 12μm×100×1 | 0.095 | 24 | 1.10% | 59 |
| 12μm×100×2 | 0.19 | 41 | 1.10% | 38 |
| 12μm×100×3 | 0.28 | 69 | 1.10% | 22 |
| 12μm×275×1 | 0.26 | 59 | 1.10% | 27 |
| 12μm×275×2 | 0.54 | 75 | 1.10% | 14 |
| 12μm×275×3 | 0.78 | 125 | 1.10% | 9 |
| 12μm×275×4 | 1.05 | 130 | 1.10% | 9 |
| 12μm×275×5 | 1.3 | 160 | 1.10% | 5 |
| 12μm×275×6 | 1.5 | 180 | 1.10% | 4 |
| 8μm×1000×1 | 0.42 | 69 | 1.10% | 16 |
| 8μm×1000×2 | 0.85 | 108 | 1.10% | 8 |
| 12μm×1000×1 | 0.95 | 100 | 1.10% | 7 |
| 12μm×1000×2 | 1.9 | 340 | 1.10% | 4 |
b) Descriptions:
metal fiber twist thread is manufactured into flexible thread by twisting with a single strand or multiple strands of long fibers. It possesses stable resistivity, fine high temperature resistant and conductive performance
c) Purpose:
| Purpose |
| 1. Anti-static brushes |
| 2. High temperature resistant sewing thread |
| 3. Signal transmission line for flexible circuit , electronics |
| 4. Conductive transmission line |
| 5. Heating wire. |
| 6. Intelligent cloths(wearable textiles |

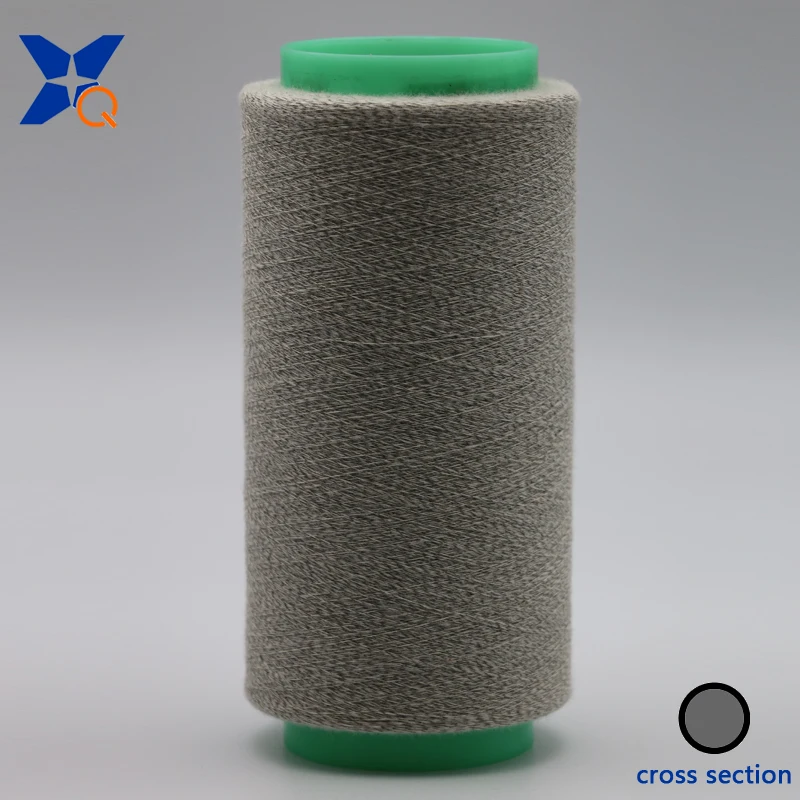

Aslo could produce Nm11/2plies or Nm11/3plies pure 316L stainless steel staple fiber spun yarn.
Packaging & Shipping
500grams-1000grams/bobbin, 50 bobbins/carton, net weight: 25-50kg/carton. Size of carton: 56cm*56cm*60cm.
By DHL, by general air transportation, by sea, all are ok.
