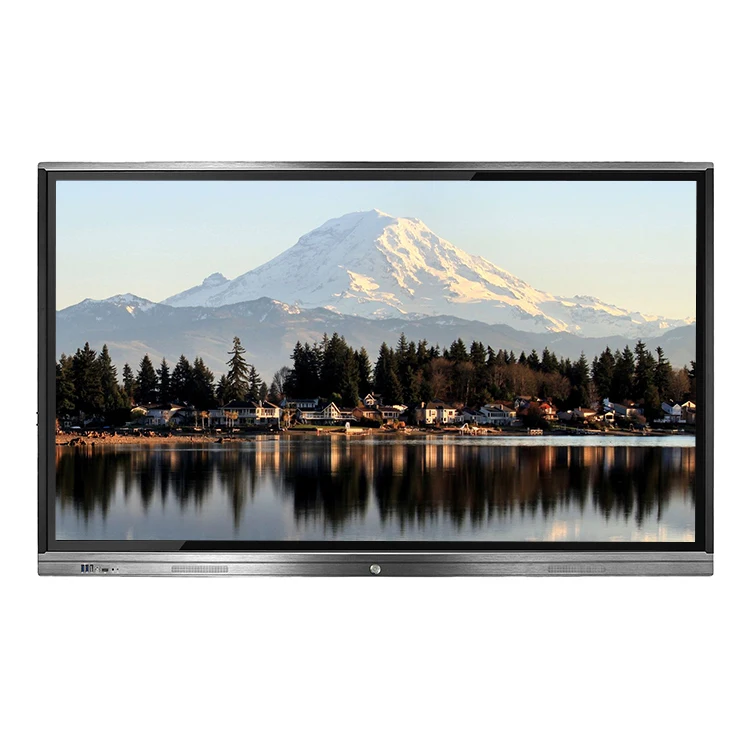

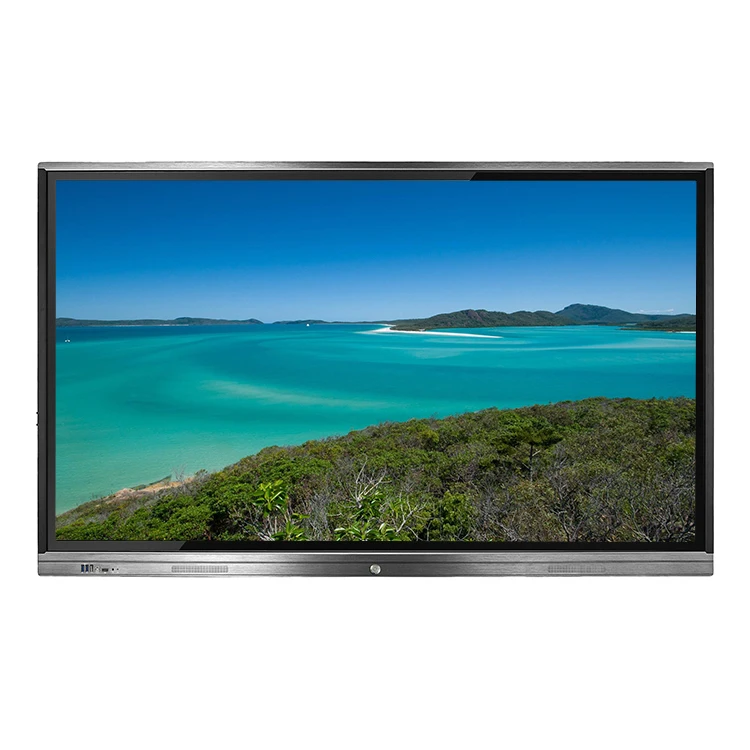

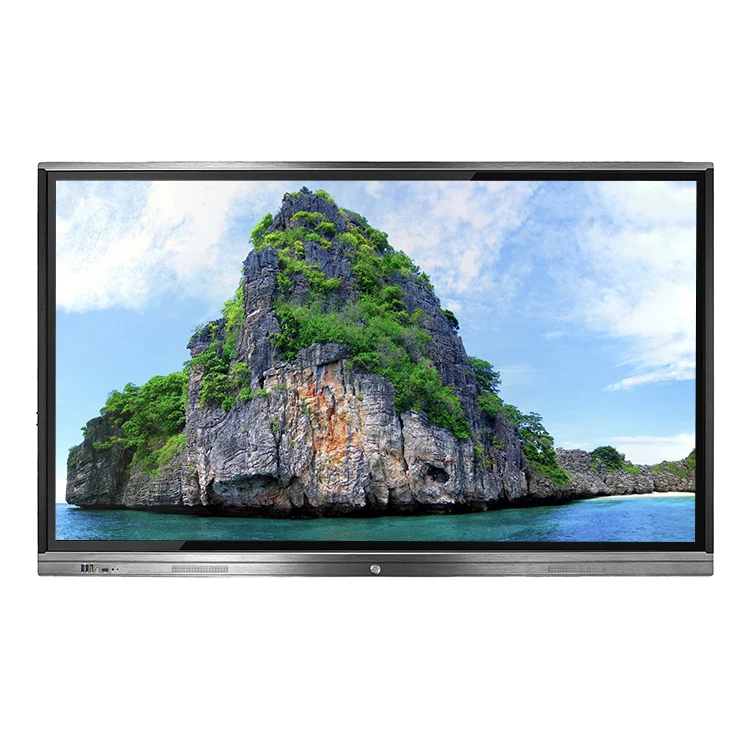

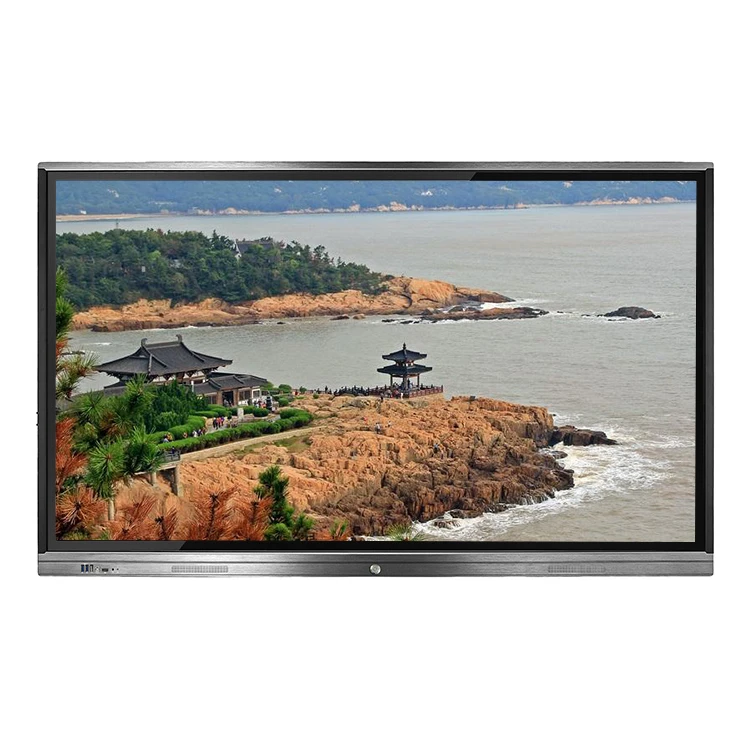

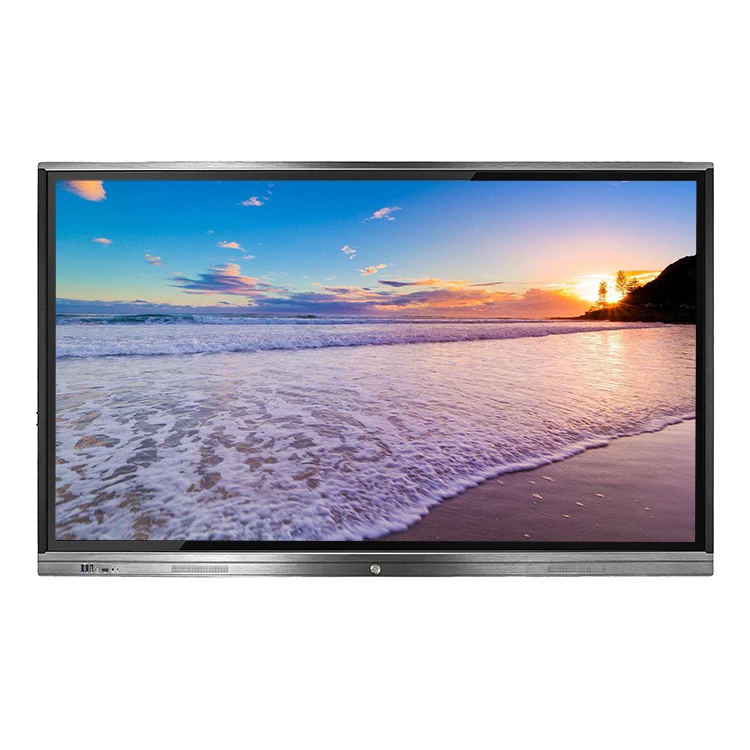

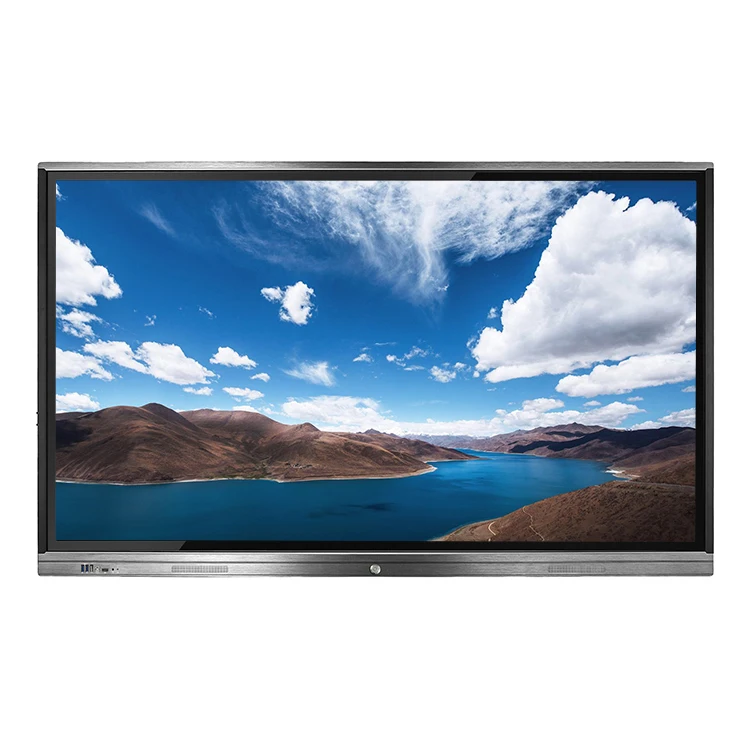

86 inch movable digital multi interface writing IR technology monitor interactive panel
Product Description
LED
LCD screen size
55"
65"
75"
86"
Brand
LG,AUO,Chi Mei,Samsung
Appearance size
without wall hanging (mm)
55": 1291×808×103
65": 1523×944×106
75": 1745×1069×106
86": 1989×1207×106
Dimensions
Package weight
55": 35KG 65": 50KG 75": 62KG 86": 80KG
Carton packaging size (mm)
55": 1410×930×200
65": 1645×1075×210
75": 1905×1215×240
86": 2150×1355×240
Power consumption
Operating Voltage
AC 100V-240V
Power consumption
55"<120W 65"<180W 75"<200W 86"<220W
Standby power consumption
<0.5W
Display
Display size (mm)
55": 1241×712
65": 1472×848
75": 1695×973
86": 1939×1111
Resolution
1920×1080pixels (2K),
3840×2160 pixels (4K)
Display color number
8-bit(D),10-bit(D), 1.07 Billion colors
Contrast
5000:1
Brightness
350cd/m²
Viewing angle
Viewing angle free
( R/L 176 (Min.), U/D 176(Min.))
Touch parameter
Touch principle
Infrared touch
Touch points
10 touch
Cursor speed
80-120point/ms
Touch screen power
5V USB
Power consumption
0.5W-2W
Operating system
compatibleAndriod ,Linux,
Windows7/8/8.1(32 Bit/64 Bit)
TV parameters
Android system
Android 5.0
RAM
integrated2 .0GMB DDR3
CPU
MaliMP4 (4+2) 600MHz
Video
MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Audio
MPEG1/2 layer I/II,AC-3(Need to be customized),AAC-Lc,WMA…
ATV
NTSC,PAL,SECAM
DTV
DTMB
HD video
480i/480p/576i / 576p / 720p
/ 1080i / 1080p/2160p
Resolution
1920×1080/60Hz ;3840×2160/60Hz
Input and
output port
Network port
2road RJ45 Standard socket(RG45)
Computer input(HD-MI)
2road External standard socket
Computer output(HD-MI)
1road External standard socket
Video input(VGA)
1road External standard socket
Computer output(VGA)
1road External standard socket
Component inputYPbpr IN
1road Small socket
Video input AV IN
1road Small socket
Video output AV out
1road Small socket
Headphone jack(Earphone)
1road Headphone standard socket
High frequency head(Tuner)
1road IEC Standard head
Coaxial input(Spdif)
1road Coaxial socket
OPS
Motherboard
Intel Core
CPU
Intel I3/I5/I7
RAM
DDR3 4GRAM RAM Maximum support16G
hard disk
SSD 128G
WIFI
2.4G/5.2G
OPS Box size
195mm (L) x 180mm (W) x42mm (H)
Display
Intel Integrated HD graphics
Support dual display
System
Windows XP,Windows 7/8,Windows 10,Linux
Wireless mouse
Stand by
Functional
description
Support one button switch machine and one button energy saving
Support for writing without PC
Support touch menu function,Can realize each channel switching
Support browsing the web
Support local , Online HD video playback,Support 1080P playback
Support local and online music playback
Support browsing multiple formats of images
Support the browsing and management of various documents
Support USB update software
Support WIFI wireless Internet access
Support wireless bridging
Company Information
We, Guangzhou Hao Min Sheng Electronic Technology Co., Ltd., is engaged in large screen display equipment, liquid crystal module, TVset, advertising boards education touch integrated sets research and development, production and sales company.
Companies adhering to harmony, transcendence, efficient, seeking truth with the spirit of enterprise and market first, customer first, quality first as their business philosophy. The company has trained a high-quality R & D team, holds advanced R & D technology and production technologies, and setted up the best sales team and the most professional after-sales service. We firmly believe that via our continuous efforts and pursuit, we will create the best products, provide our best services, will win the best reputation from you.thank you.
Packaging & Shipping
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways(whatsapp,wechat, skype and etc. so we can give you a rapid quotations in details. thank you, for your kind atentions.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on you1r order quantity and the season you place the order. -Usussally we candelivery within 7-15 working days days for small quantity(less than 10pcs., and about 30 days for large quantity(more than100pcs..
4.What is your payment term?
negotiateable, T/T, L/C at signt,Western Union,MoneyGram,and Paypal.
5.What is the shipping method?
-It could be shipped by sea,by air or by couriers(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before you placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-3, our policy of marketing is based on sole agent system, local area.year by year.
