AI Binocular Thermal Imaging System 1080p Human Body Temp Infrared Thermal Scanning Camera
- Category: >>>
- Supplier: Shenzhen Unicon Vision Technology Co. Ltd.
Share on (62557738047):
Product Overview
Description
Product Description

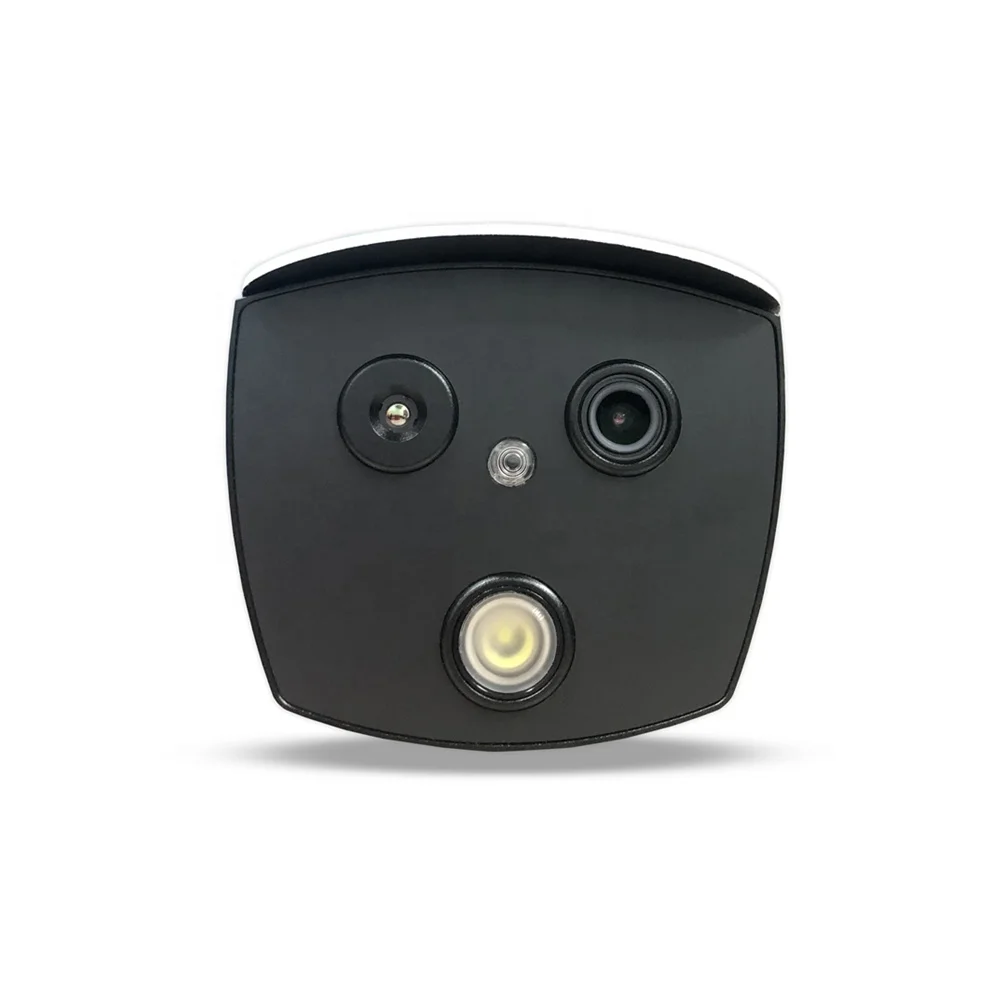

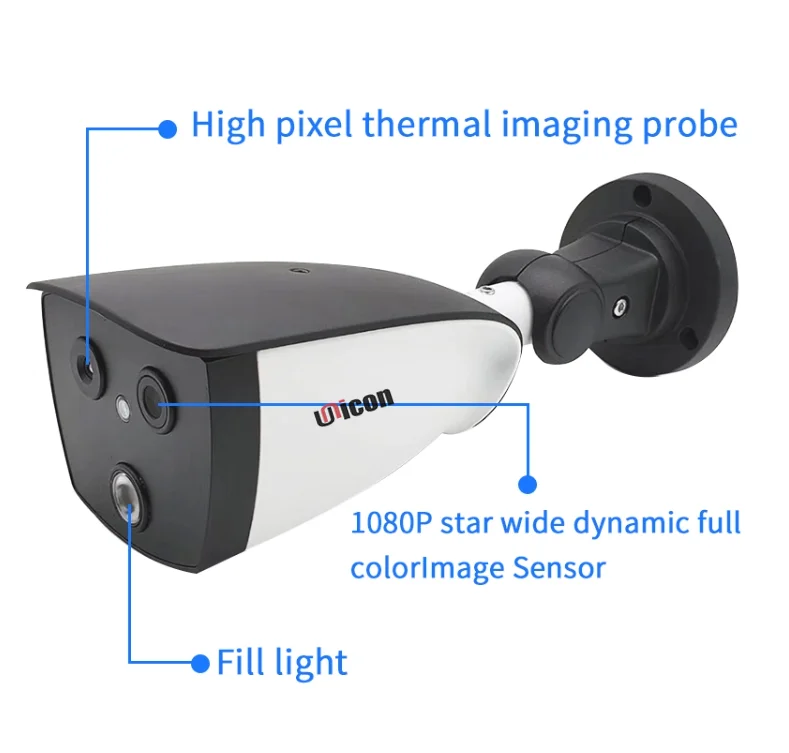

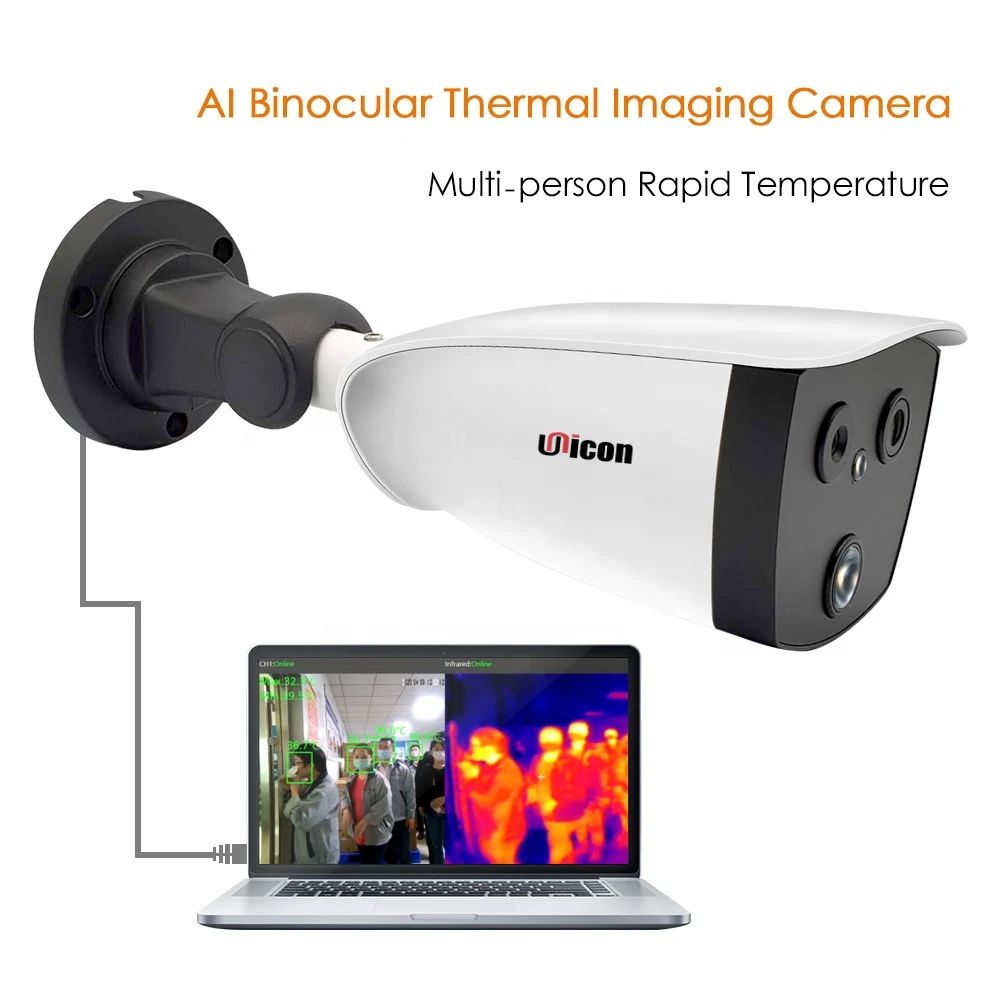

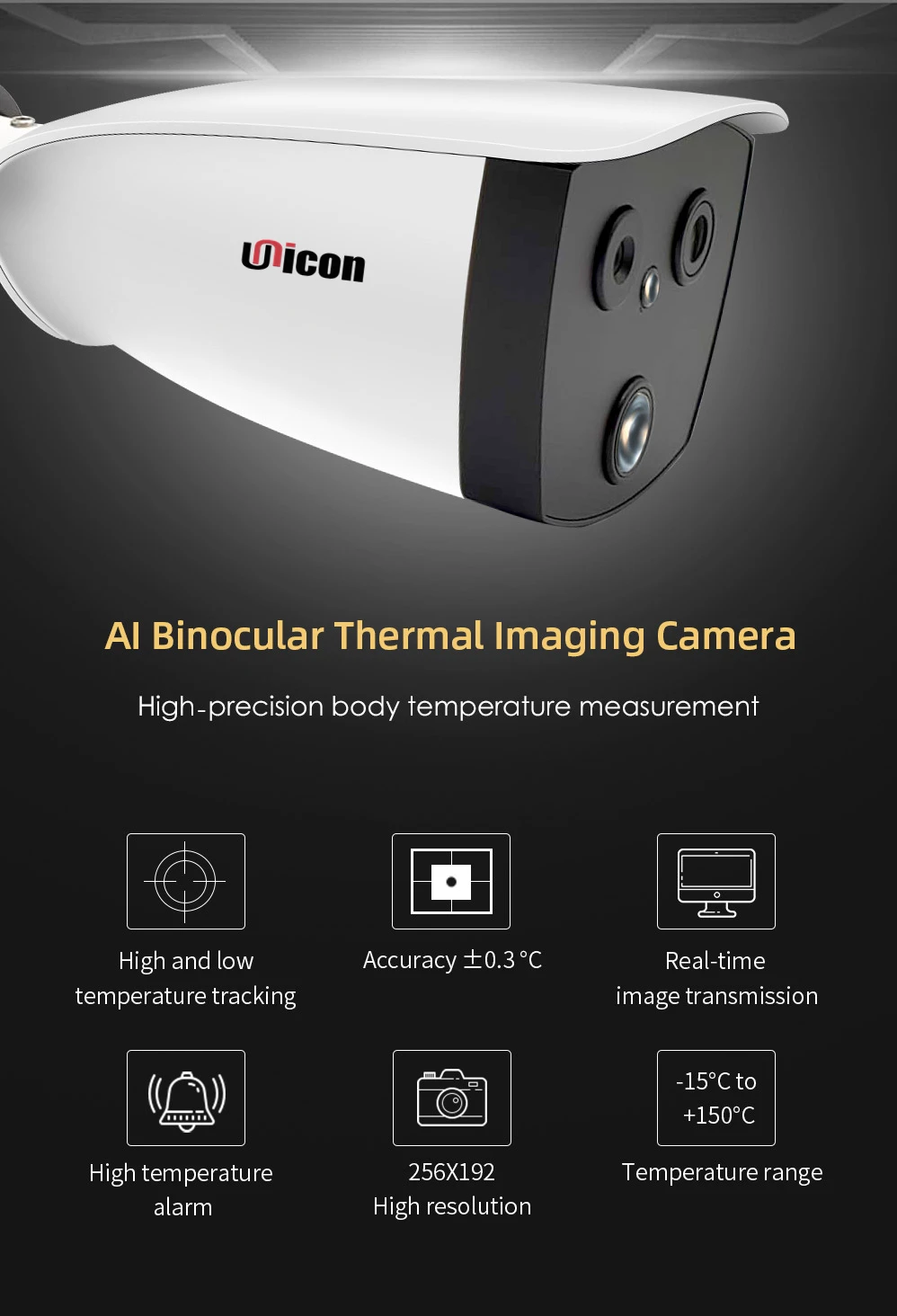

AI Binocular Thermal Imaging System 1080p Human Body Temperature Infrared Thermal Scanning Camera
Key Features:
*Highsensitivity sensor with 256 x 192 thermal resolution;
*NETD is lessthan 60 mk (@25° C, F#=1.0);
*Tenperature detetion rang:-15° C-150° C; precision:min ± 0.3 ° C;
*Up to 8 palettes of adjustable color;
*Support real-time display and overlay of human body temperature OSD;

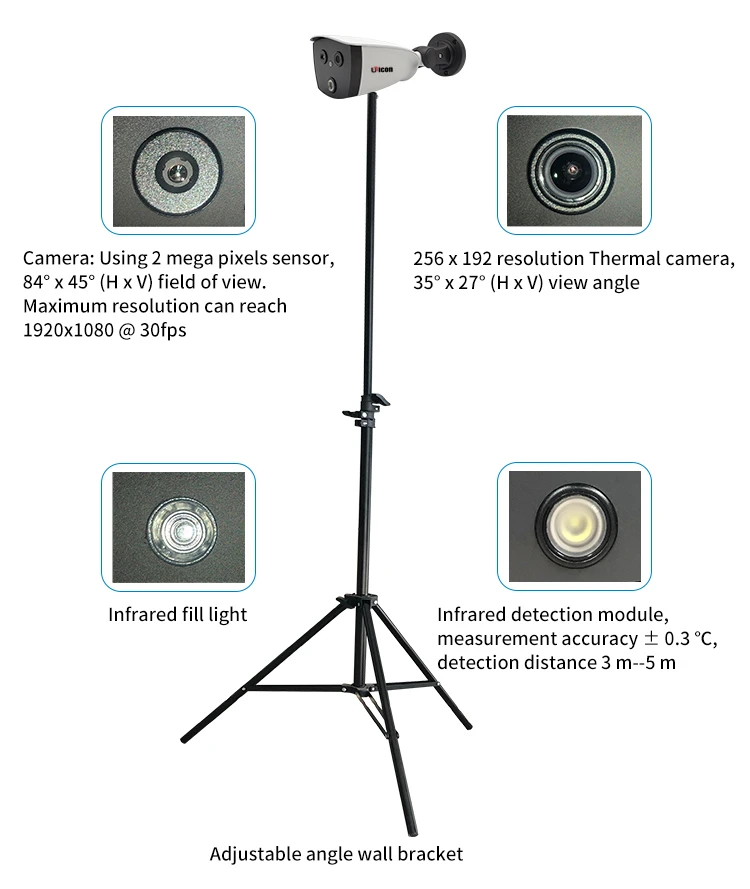

*1/2.8” 2.0M CMOS Sensor;
*High qualityimaging with 1920X1080@30fps resolution;

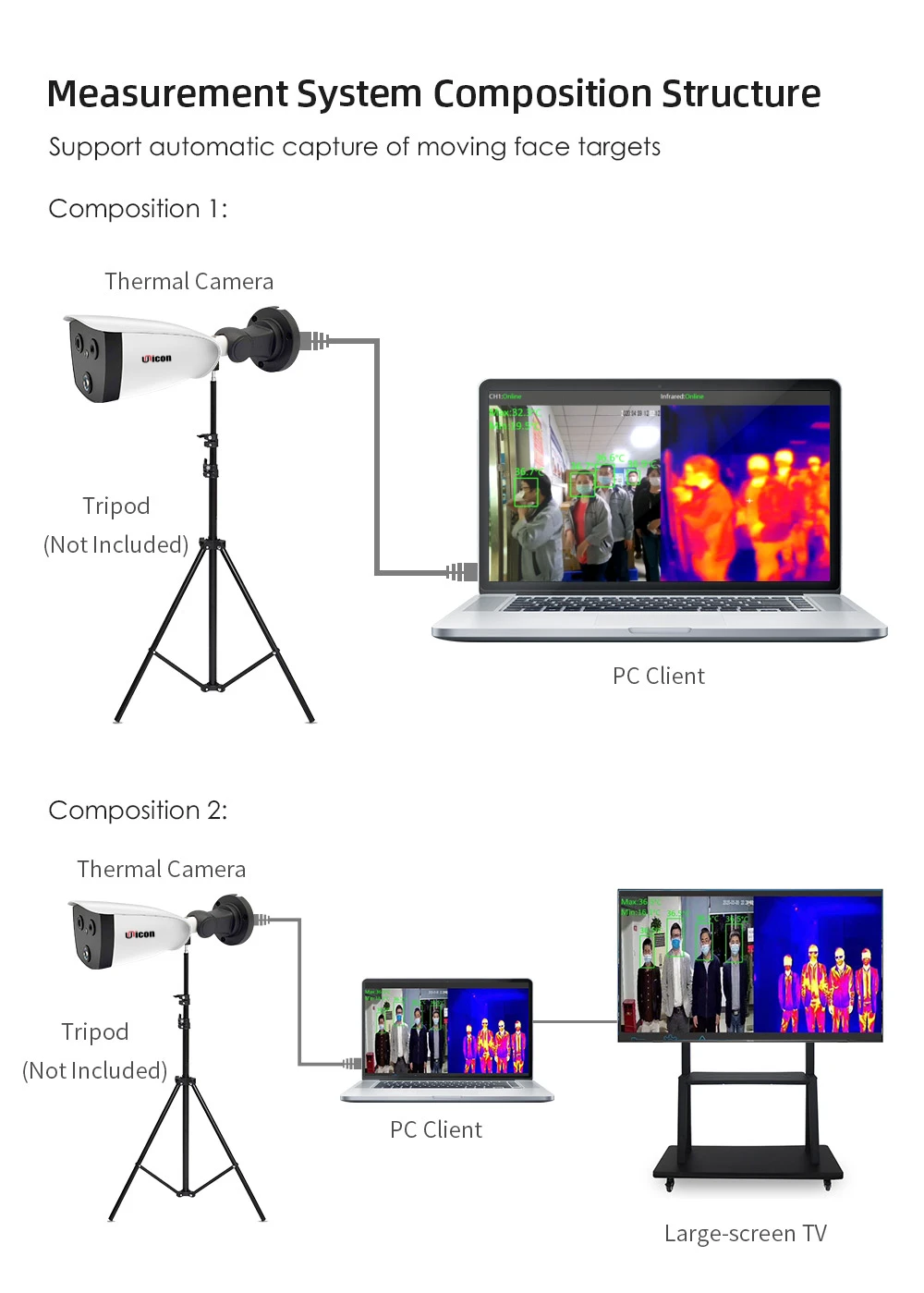

*Support for capture and save in PC of personnel in and out.
*Mutil Person Temperature Measuring
*2M Effective Distance

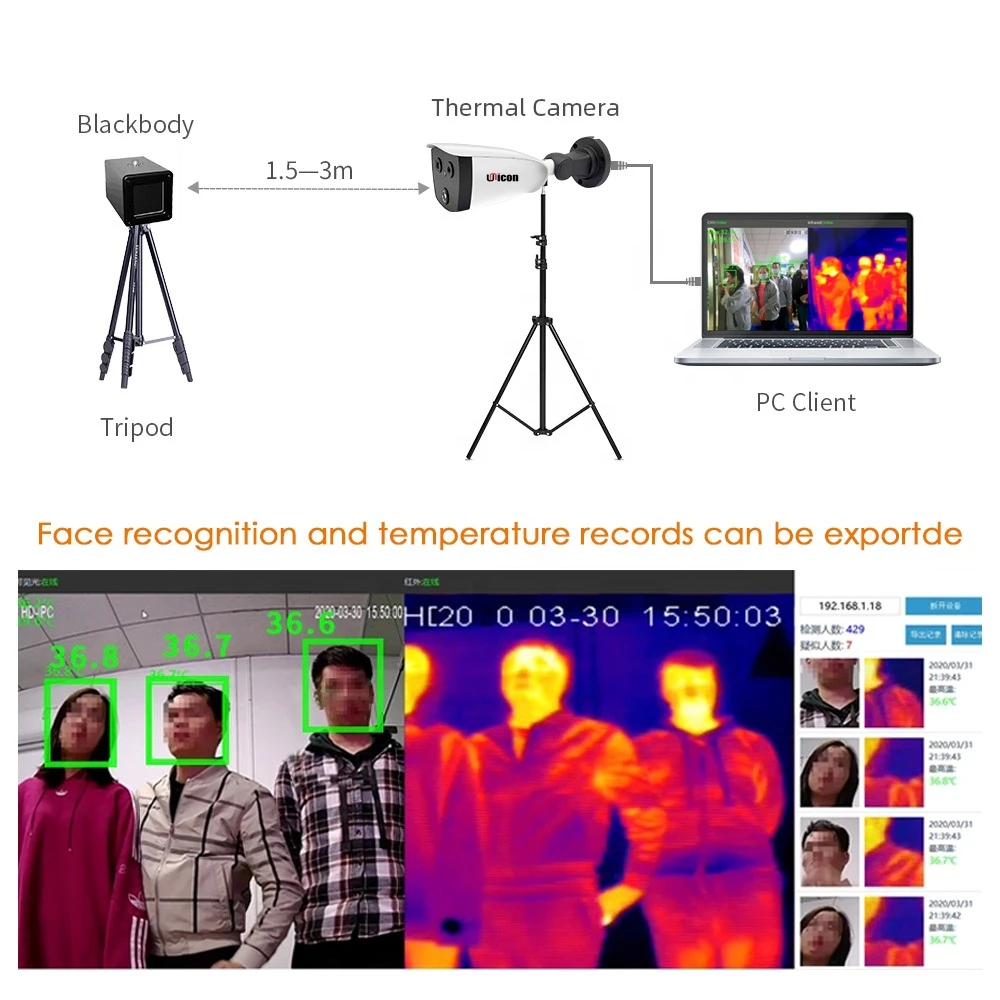

*Black body optional
Specification :
Thermal | ||
Image Sensor | VOx Uncooled Focal Plane Arrays | |
Resolution | 256×192 | |
Pixel Interval | 12μm | |
NETD | Less than 60 mK (@25°C,F#=1.1) | |
Aperture | F1.0 | |
Field of View | 35° × 27° (H × V) | |
Optical | ||
Image Sensor | 1/2.8" 2.0M Pixel CMOS | |
Resolution | 1920×1080P | |
Min. Illumination | Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
Field of View | 84° × 45° (H × V) |
Focal Length | 4mm |
Shutter Speed | 1s to 1/100,000s |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
Day & Night | ModeIR cut filter with auto switch |
WDR | 80 dB |
Feature | |
Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image |
Smart Function | |

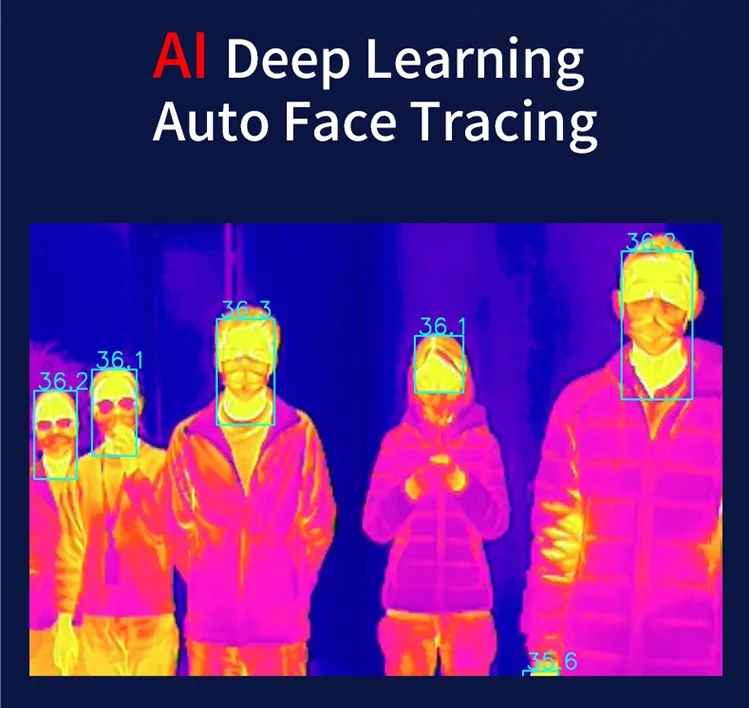

Face snapping | Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces |
Temperature Measurement | Support global and local temperature |
Temperature Range | From -15°C to +150°C |
Temperature Accuracy | Target temperature 35°C ^ 38°C ±0.3 °C Target temperature 20°C ^ 33°C ±0.6 °C Target temperature 38°C ^ 50°C ±0.6 °C |
Network | |
Main Stream | Thermal: 25fps(1920 × 1080, 1280 × 720) |
Sub Stream | Thermal: 25fps(704 × 576, 352 × 288) |
Video Compression | H.264 (Baseline/Main/High Profile) /MJPEG/H.265 |
Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
Protocols | TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP |
API | ONVIF (Profile S, Profile G, Profile T), SDK |
General | |
Web Client Language | languages English, Chinese |

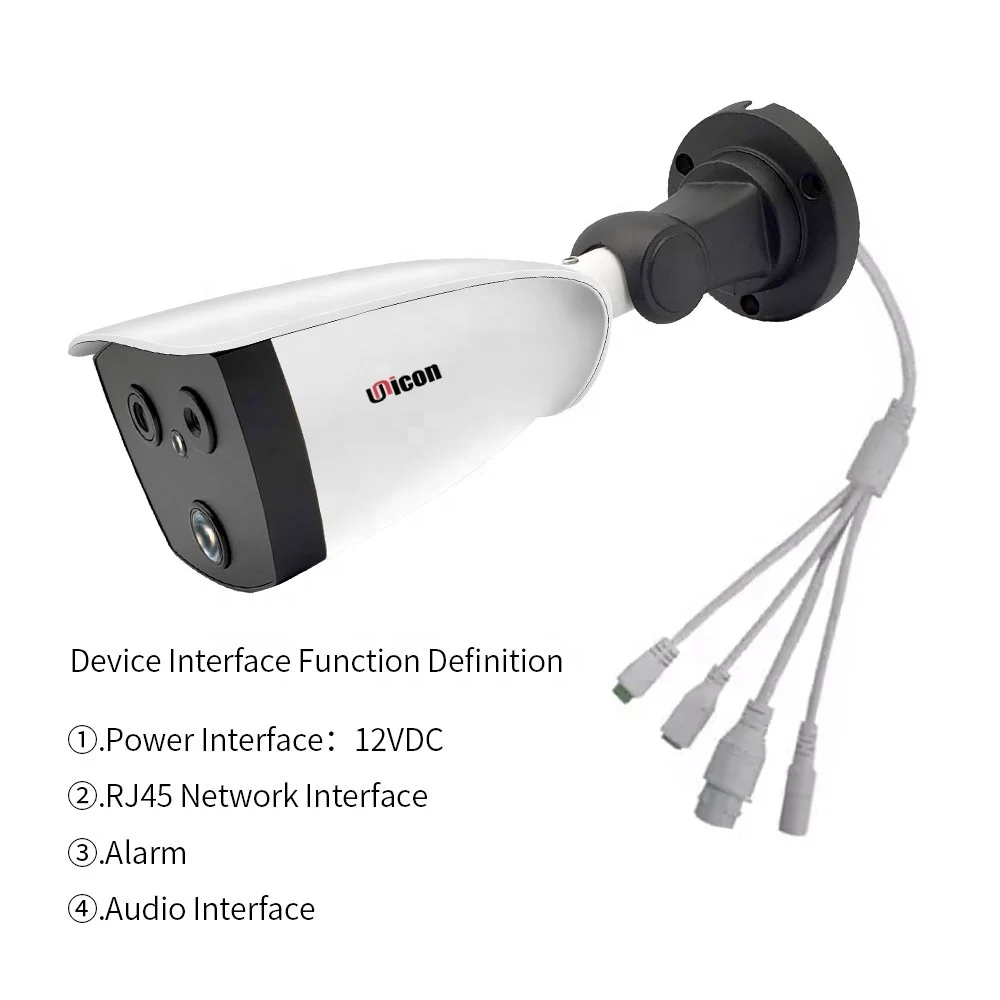

Power | DC 12V, 0.65A |
Work Temperature/Humidity | From -20°C to 55°C; Humidity: 95% or Less |
Protection Level | IP67 |
Dimension | 246 mm × 101 mm × 81 mm (with bracket) |
Weight | Approx. 1.0 kg |
Company Information
Unicon Vision Technology Co.,Ltd. is a professional HD security products provider. Experienced team devote all of our energy to developing better security products for society and customers.
Unicon Vision specialized in Multi-sensor Stitching Panoramic IP Camera, 4 lens 180 degree, 5/8 lens 360 degree Panoramic in high resolution 10MP, 15MP, 24MP and 100MP.
The latest technology we combined 8 lens Panoramic camera with 30X optical zoom PTZ camera to build the world first Vehicle Pano & PTZ System.
Our Services
OEM Services: Customized (Silk print/metal) LOGO, Label, Packing box, Manual printing for customers.
Technical Support: With an outstanding CCTV professional team, we offer 24 hours / 7 working days ONLINE technical support before & after sales.
Fast Delivery: Sample Order delivery within 3-5 days; Mass production with raw material in stock.
Quick Response: Your any question & inquiry will be responsed promptly within 12 hours.
Warranty: Three years warranty for all products. Moreover, we are pleased to repair products out of warranty with less charges.
Related Products
Buyer Feedback

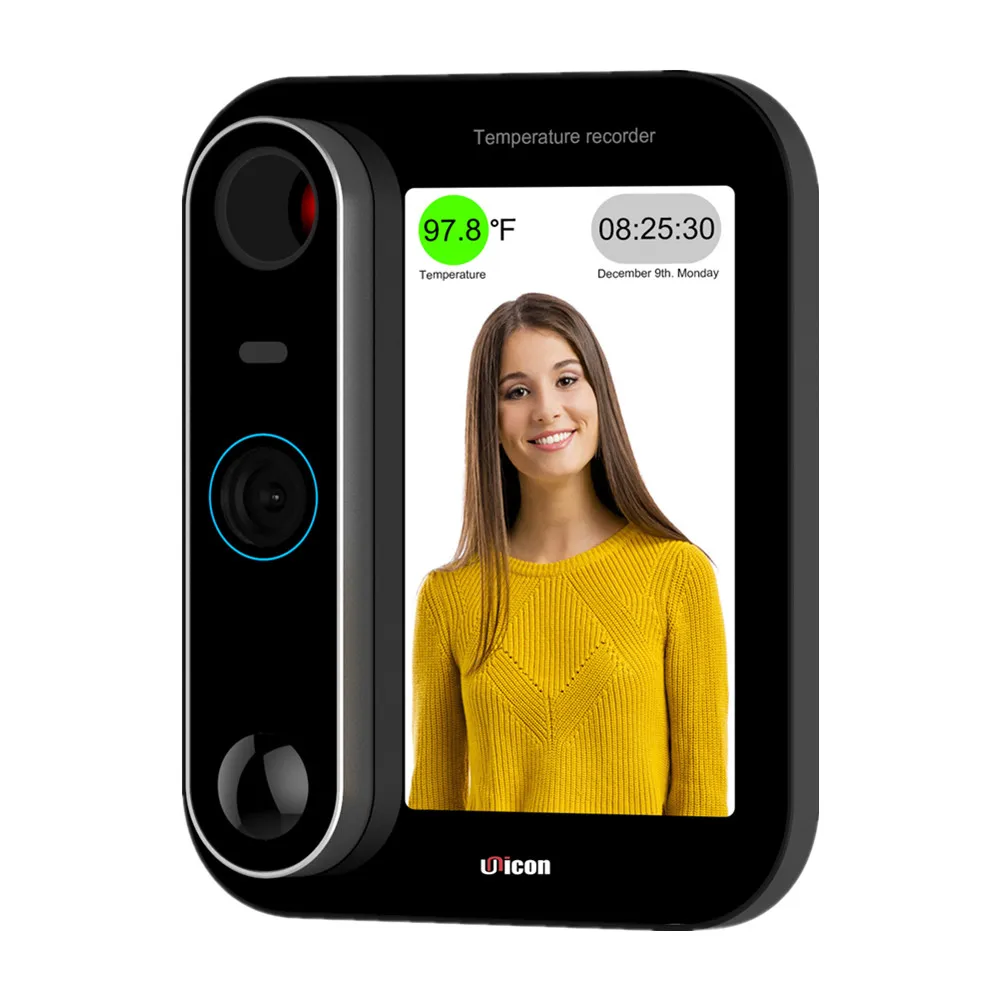

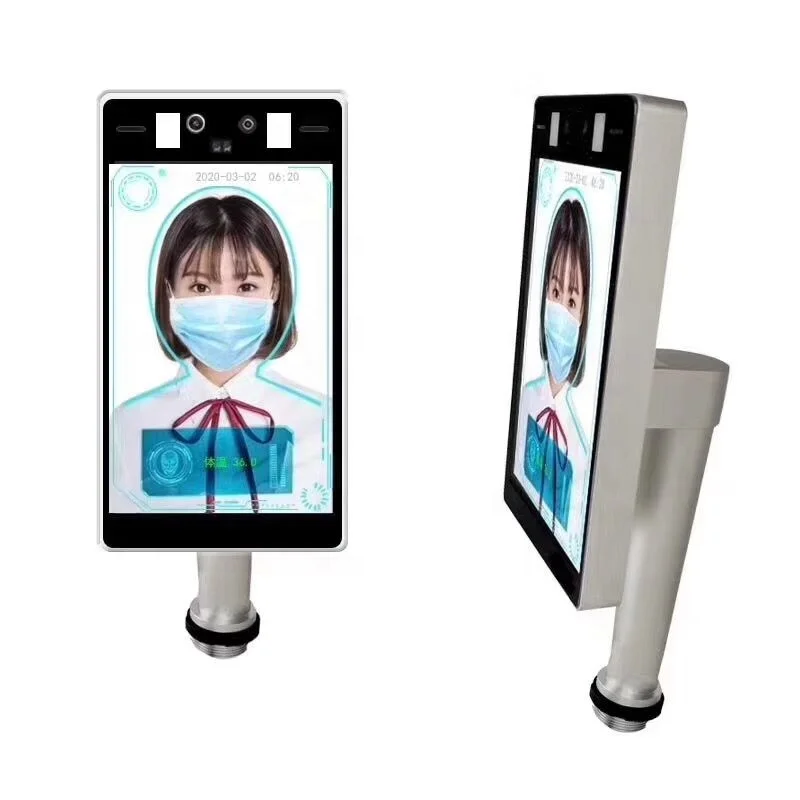

2020 New Face Recognition 1080P Tablet Network IP Non Contact Body Temperature Measuring Infrared Thermal Camera
