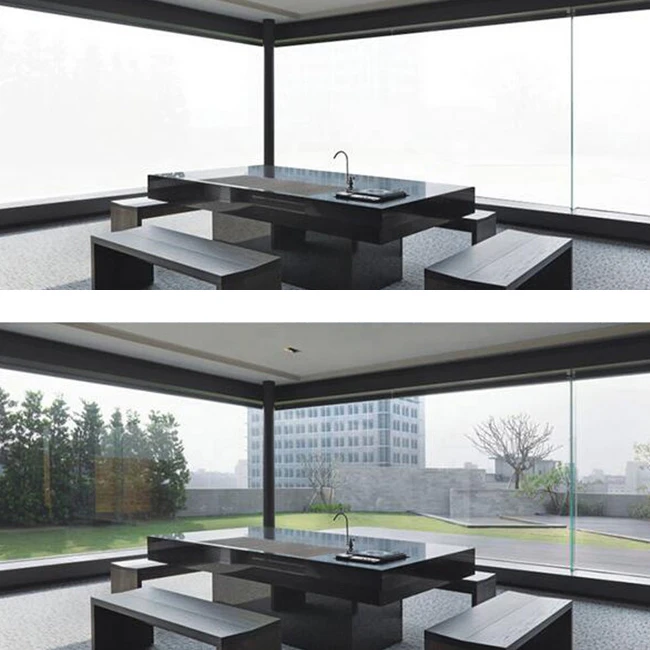

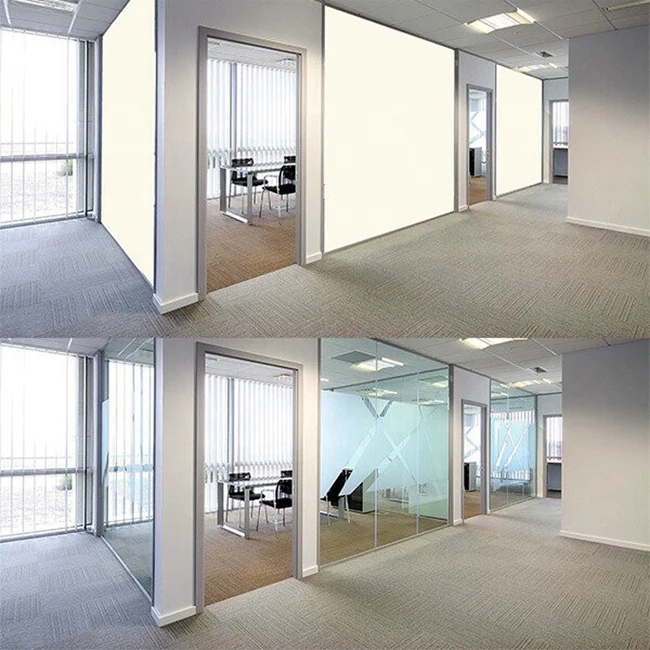

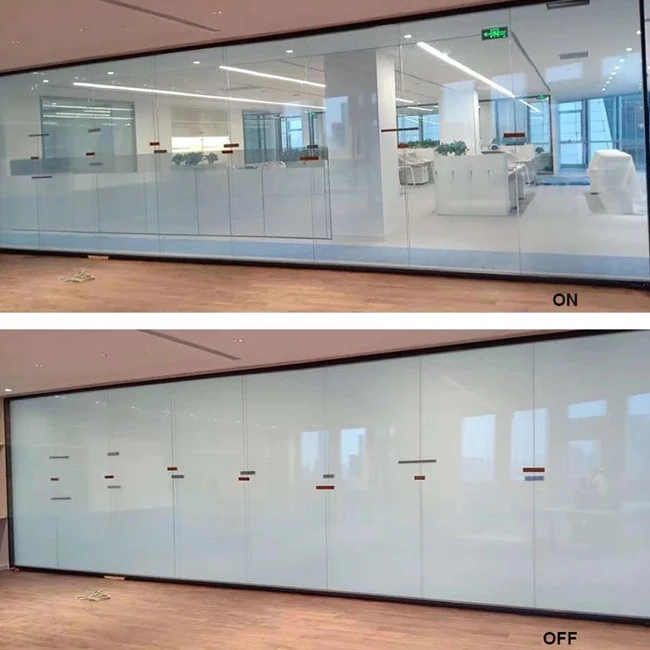

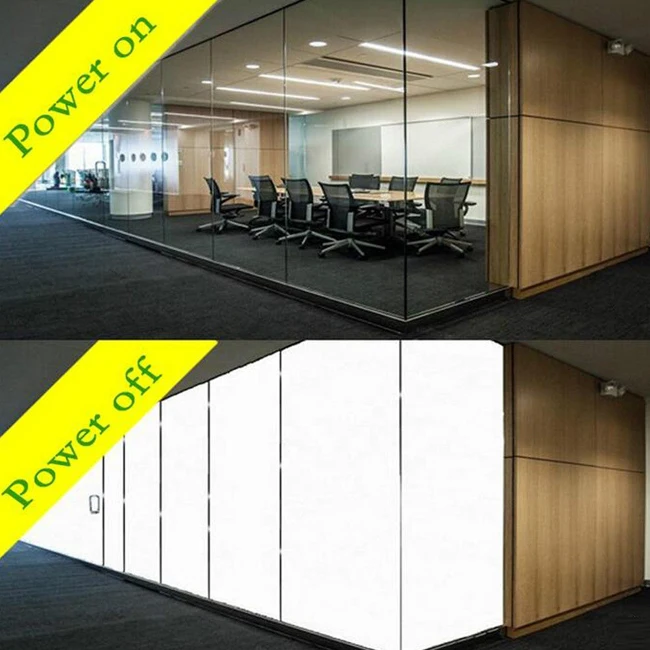

Smart personalized switchable film magic pdlc film privacy glass foil
- Category: >>>
- Supplier: Yancheng Shining Windoware Co. Ltd.
Share on (62557740048):
Product Overview
Description
Product Description
SHINING PDLC Switchable Film, also called Switchable film, is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. With continual improvement in moisture resistance, the new (3rd) generation of the film can be directly installed on existing windows with special glue or self-adhesive. It combines many functions, such as light adjustment, UV and infrared blocking, advertising and security.
Product properties
Most of the film applications are via glass, acrylic or polycarbonate laminates, mainly having to do with the voltage (110VAC) required to operate the film. Companies continue to attempt various installation methods in order to use the film by itself without having to add the lamination cost.
One of the advantages of smart film is that it eliminates the need for blinds, shades or window treatments.
Smart personalized switchable film magic pdlc film privacy glass foil
Project | Mode | Parameter | ||
Optical Properties | Visible Light Transmission | POWER ON | >83% | |
POWER OFF | >55% | |||
Parallel Transmittance | POWER ON | >66% | ||
POWER OFF | <1.5% | |||
Haze | POWER ON | <3% | ||
POWER OFF | >90% | |||
Visual Angle | POWER ON | >150% | ||
Electrical Parameter | Working Voltage | POWER ON | 48V AC | |
Saturation Voltage | POWER ON | <20V | ||
Response Time | OFF-ON | <200ms | ||
ON-OFF | <10ms | |||
Power | POWER ON | <5W/M² | ||
Physics Parameter | Thickness | 0.53(MM) | ||
Max Size | ≤1.5*3.2(M) | |||
Roll Size | 1/1.2/1.5M(W)*20/30/50M(L) | |||
Adhesive Force | 25g/mm | |||
Environment Parameter | Working Temperature | -10°C -65°C | ||
Storage Temperature | -20°C -80°C | |||
Life Time | POWER ON>10Years | |||
Switch Time | >80,000,000 | |||

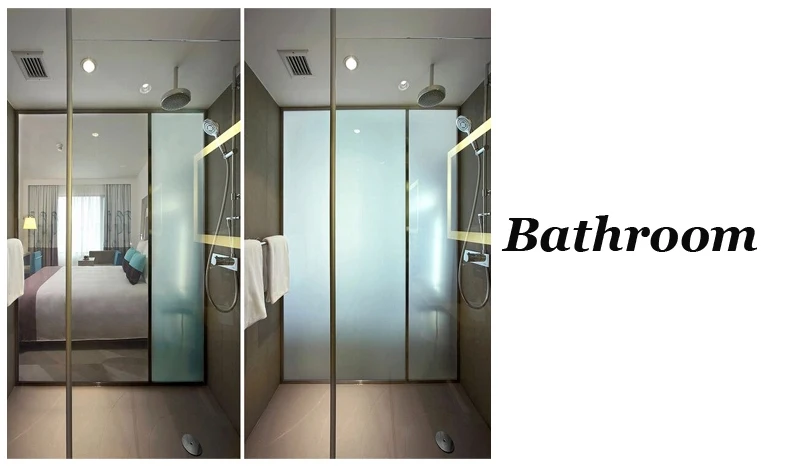

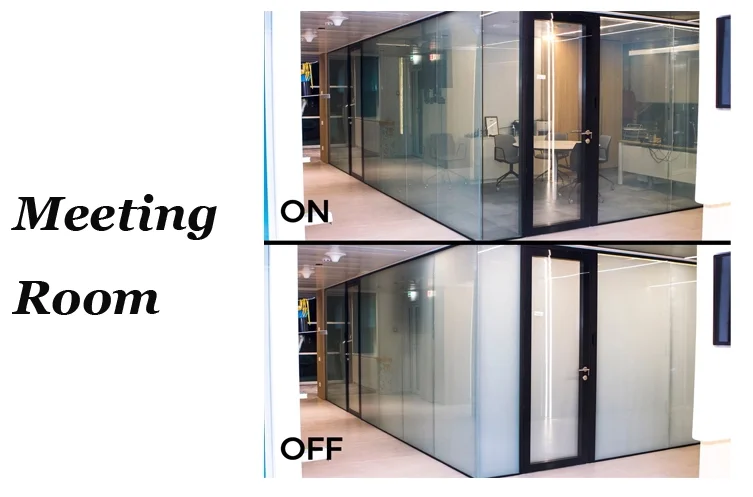

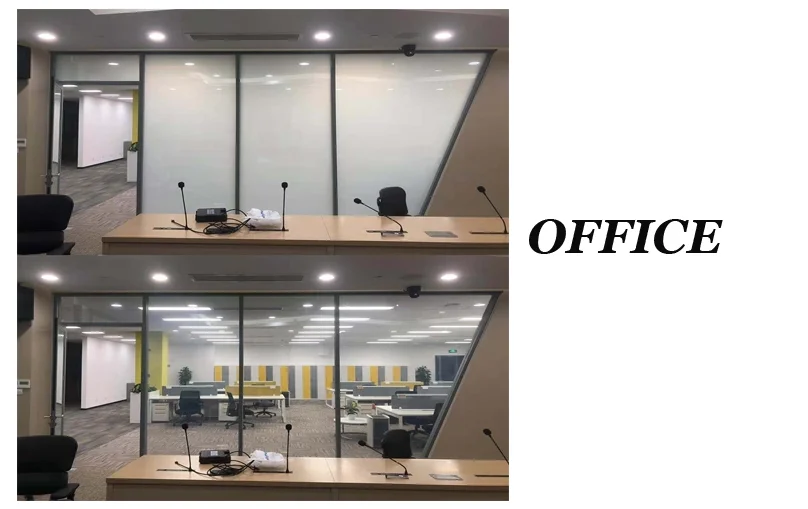

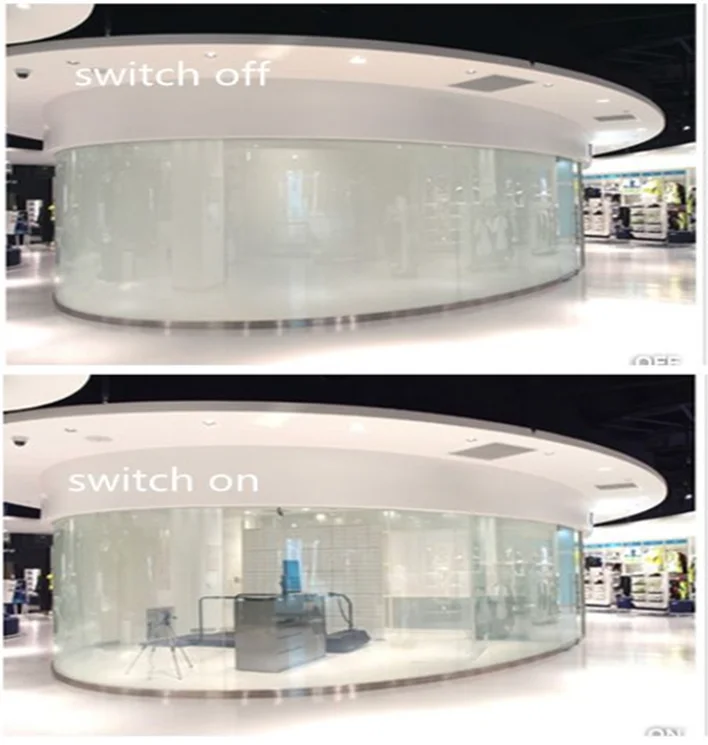

Product application
Product advantages

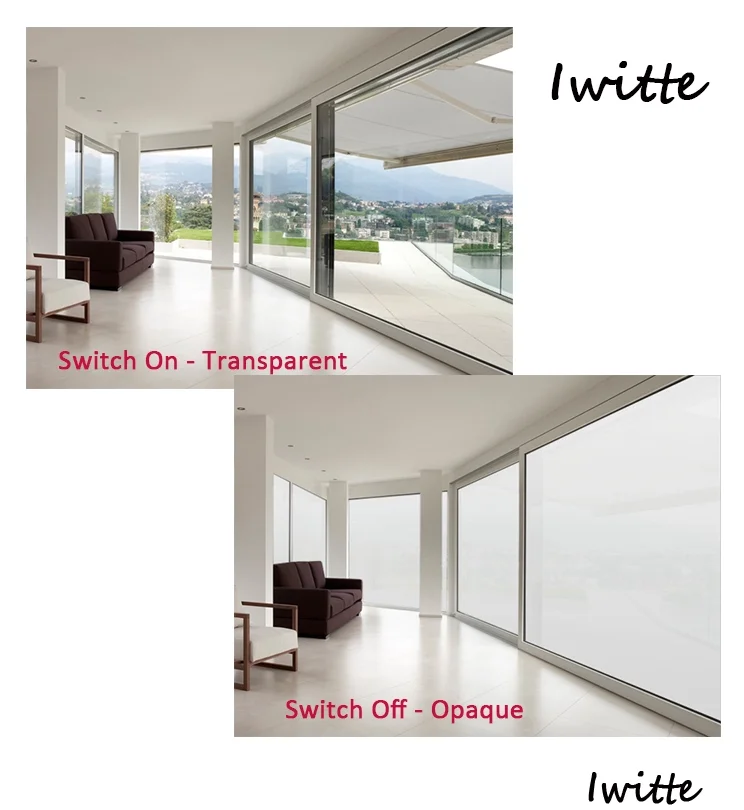

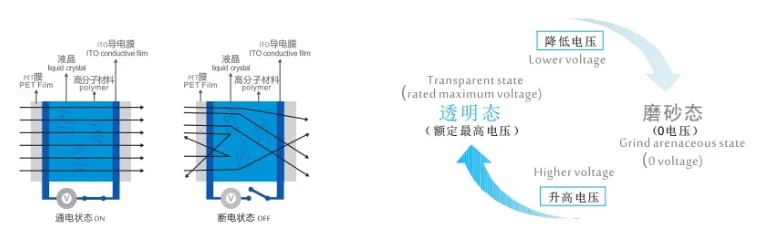

Polymer Dispersed Liquid Crystals (PDLCs)
1. Without power the liquid crystal molecules (microdroplets) are disordered. This prevents light from penetrating the film,
rendering it opaque.2. When power is applied to the smart film the liquid crystal molecules are forced into alignment, rendering it transparent.
PRODUCT TYPE
TYPE 1.SELF-ADHESIVE FILM SHEET
You can stick the self-adhesive smart film to glass, acrylic panel and any other flat transparent material, with a structure: glass + film.
Remark: Product Shape and Size
• Any shape, including holes anywhere.
• Max size: 1500mm*4000mm
• Thickness: 0.53-0.56mm.
You can stick the self-adhesive smart film to glass, acrylic panel and any other flat transparent material, with a structure: glass + film.
Remark: Product Shape and Size
• Any shape, including holes anywhere.
• Max size: 1500mm*4000mm
• Thickness: 0.53-0.56mm.
TYPE 2. NON-ADHESIVE FILM SHEET- LAMINATED PDLC FILM
Laminated PDLC film is the main material to make smart glass. Customers can choose this item to make the ideal smart glass according to their own demands, being put between two pieces of glasses the structure: glass+Laminated PDLC film + glass.
Remark: Product Shape and Size
• Any shape, including holes anywhere.
• Max size: 1950mm*4000mm
• Thickness: 0.4mm
Laminated PDLC film is the main material to make smart glass. Customers can choose this item to make the ideal smart glass according to their own demands, being put between two pieces of glasses the structure: glass+Laminated PDLC film + glass.
Remark: Product Shape and Size
• Any shape, including holes anywhere.
• Max size: 1950mm*4000mm
• Thickness: 0.4mm
TYPE 3. SMART GLASS - END PRODUCT.
The customized smart glass is available and can be directly installed on specified projects.
The customized smart glass is available and can be directly installed on specified projects.
SGS Report
Product installation
Preparation tools
Start filming

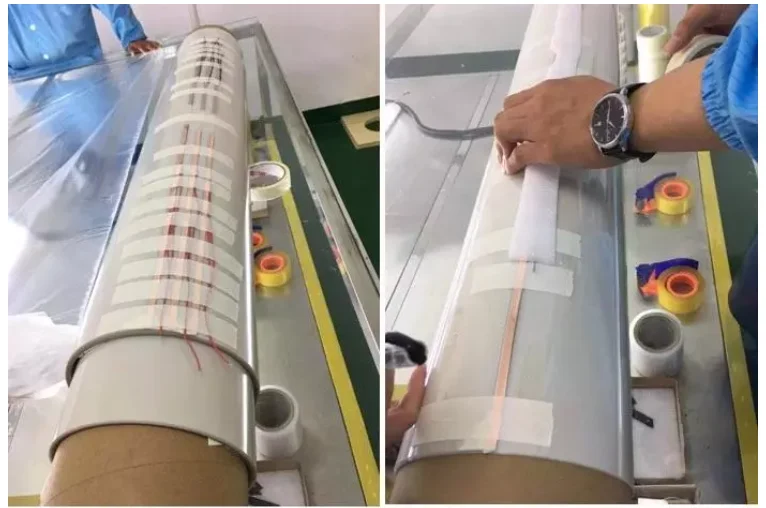

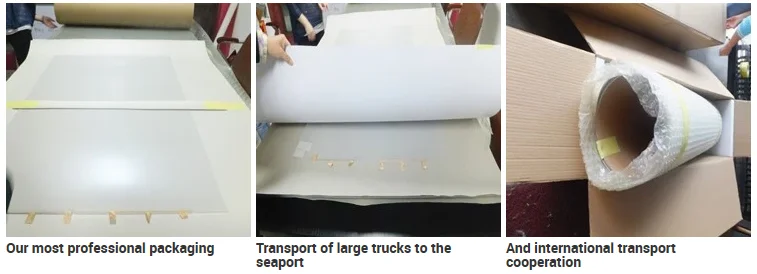

Product packaging

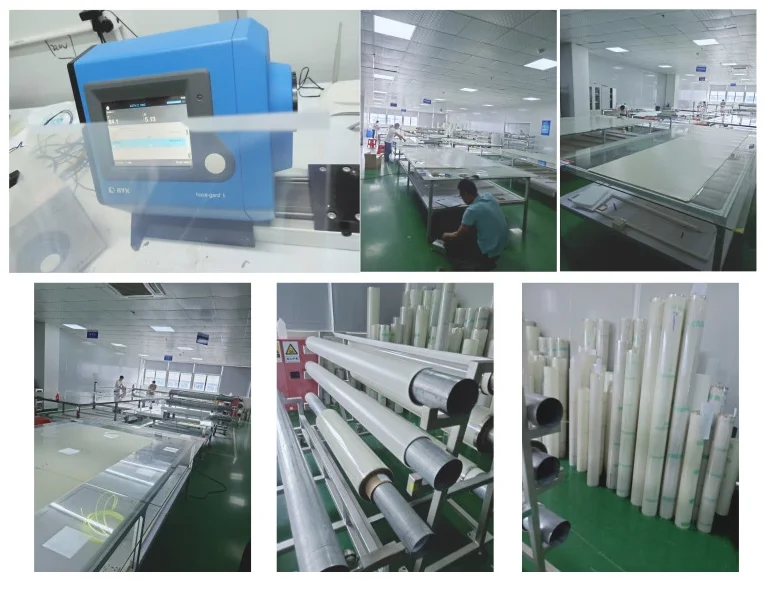

Company Profile
Shining Windoware Co., Ltd is one of the leading manufacturer & Distributor for all kinds of window coverings, partitions, smart glass & films in China Mainland.We provide the service of ONE-STOP SHOPPING for all blinds shades and the related accessories .every customers can find the proper products and get the satisfied service from our company.
On 16 August 2011, we have been successful to got the certificate of ISO 9001, more and more customers recognize our products and services.
FAQ
1) Are you factory?
Yes.welcome to visit our factory.
2) How can I get your pdlc film quotation?
Please tell me the thickness, size, color, quantities, whether need to further process and other detailed requirements etc.
3) Can you do the production as customized?
Yes, we could produce the pdlc film according to your requirements.
4) How do you make our goods arrived safely?
1. Interlay powder or paper between two sheets.
2. Seaworthy wooden crates.
3. Iron or Plastic belt for consolidation.
5) What is the transportation?
Small suggest to send by Courier, If large amount,by shipping. You can also use air freight.
6) Do you provide sample? Is it free or extra ?
Yes, we can provide the samples . All the sample cost will be refunded after you place the order.
Yes.welcome to visit our factory.
2) How can I get your pdlc film quotation?
Please tell me the thickness, size, color, quantities, whether need to further process and other detailed requirements etc.
3) Can you do the production as customized?
Yes, we could produce the pdlc film according to your requirements.
4) How do you make our goods arrived safely?
1. Interlay powder or paper between two sheets.
2. Seaworthy wooden crates.
3. Iron or Plastic belt for consolidation.
5) What is the transportation?
Small suggest to send by Courier, If large amount,by shipping. You can also use air freight.
6) Do you provide sample? Is it free or extra ?
Yes, we can provide the samples . All the sample cost will be refunded after you place the order.
Switchables smart pdlc film is becoming more and more popular because of its wide application and multi-function. And we are a professional manufacturer of self-adhesive PDLC film, non-self-adhesive PDLC film and smart glass. Welcome to consult!
