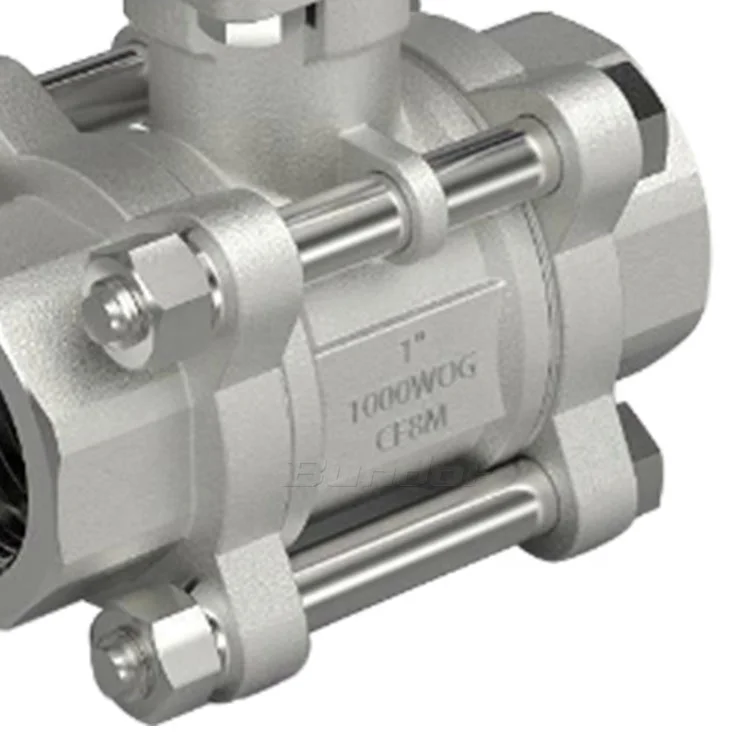

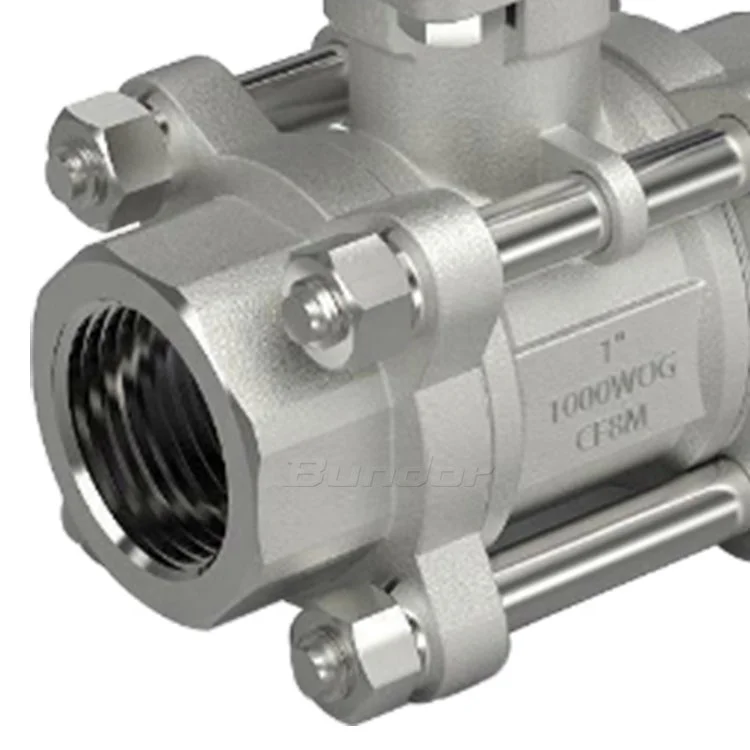

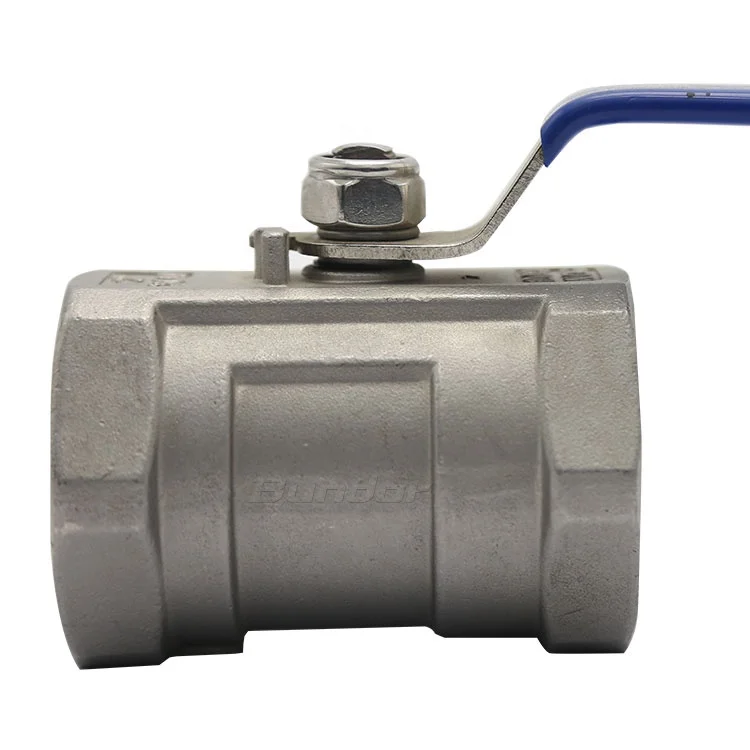

Шаровой кран Bundor CF8/CF8M ss316, прайс лист, 4 дюйма, 100 мм, 3 шт., шаровой кран с высокой платформой
- Category: >>>
- Supplier: Henan Bundor Flow Control Co. Ltd.
Share on (62557839082):
Product Overview
Description
Product Description
Advantages

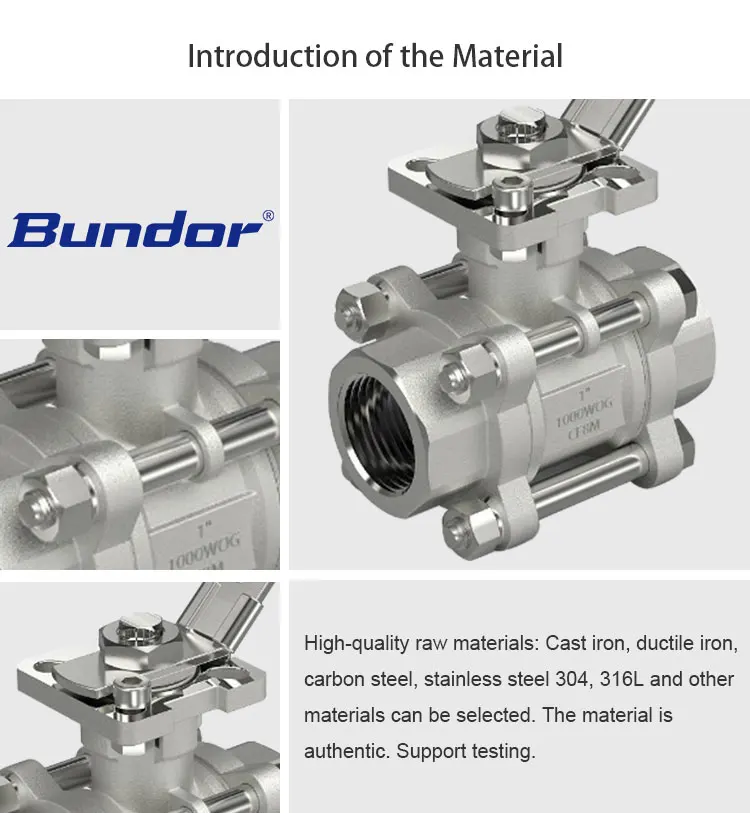

1. Chemical composition and mechanical properties of valve body material completely meet the national standards.
2. The cleanliness of valve chamber meets the requirements of JB/T7748.
3. Each valve must be tested in accordance with the national standard before leaving factory.
4. Explosion-proof design valve stem.

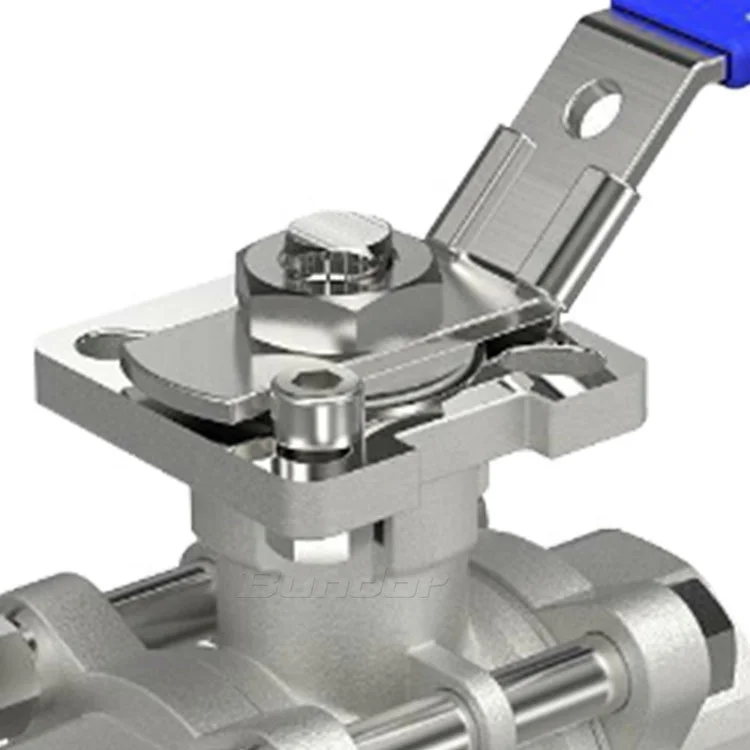

5. Handle with locking device.

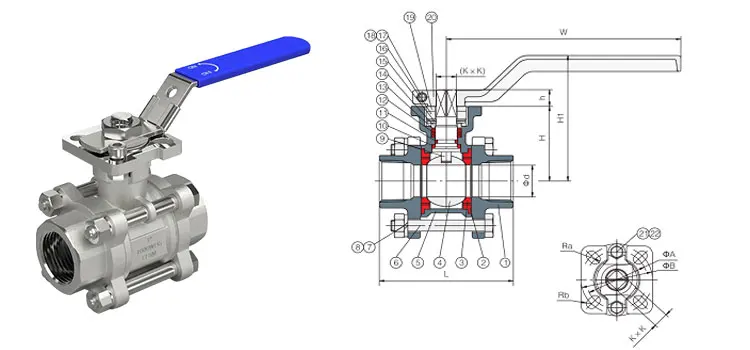

| Name | Body | Ball | Bonnet | Seat | Stem | Handle |
| Material | CF8 | CF8 | CF8 | PTFE | 304 | 201 |
| DN | NPS(Inch) | Φd | L | W | K*K | |
| 15 | 1/2'' | 15 | 68.5 | 140 | 9*9 | |
| 20 | 3/4'' | 20 | 79 | 140 | 9*9 | |
| 25 | 1'' | 25 | 89 | 170 | 11*11 | |
| 32 | 1 1/4'' | 32 | 100.5 | 170 | 11*11 | |
| 40 | 1 1/2'' | 38 | 111 | 200 | 14*14 | |
| 50 | 2'' | 50 | 129 | 200 | 14*14 | |
| 65 | 2 1/2'' | 65 | 169.5 | 300 | 17*17 | |
| 80 | 3'' | 80 | 191 | 300 | 17*17 | |
| 100 | 4'' | 100 | 242 | 300 | 17*17 | |
Company Information
Packaging & Shipping
Our Services
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
