automatic machinery electric transformer cut to length for machines and equipment
- Category: >>>
- Supplier: Shanghai Tongli Electrical Engineering Equipment Factory
Share on (62557985491):
Product Overview
Description
Quick Details
| Port: | Port of shanghai |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 20 Set/Sets per Year |
| Delivery time: | 90 Days |
| After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Online support,Free spare parts,Video technical support |
| Cutting Tolerance: | 0.02mm |
| Dimension(L*W*H): | 20000*7000mm |
| Feature: | Two-speed control |

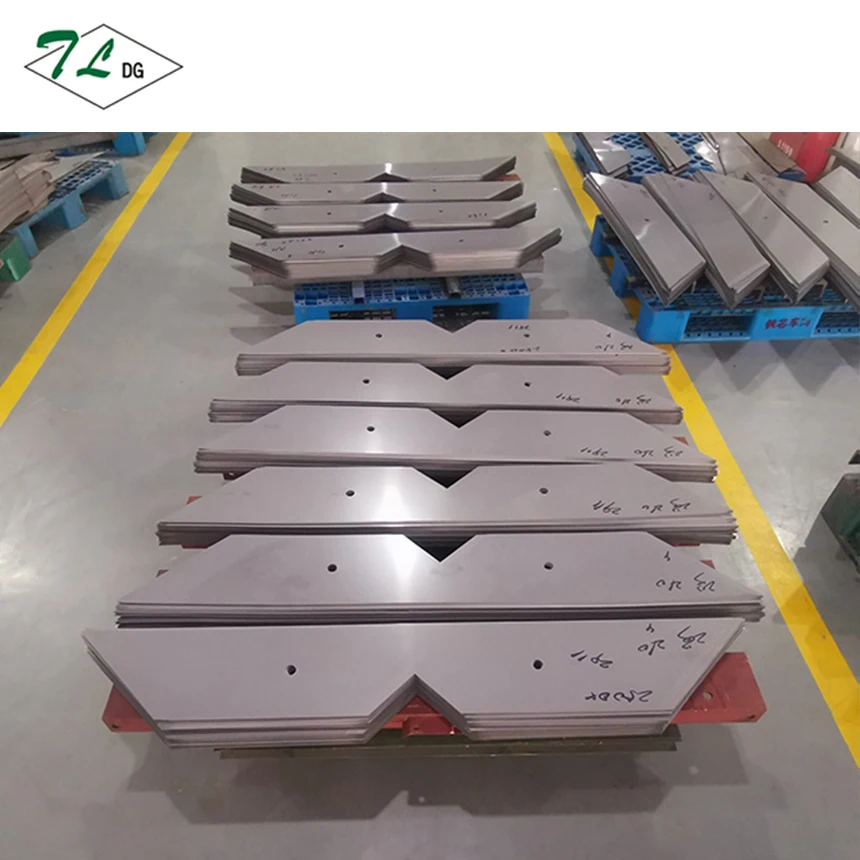

| Function: | Shear silicon steel sheet |
| Key Selling Points: | Automatic |
| Cut to length line: | Cut as required |
| Voltage: | 380V |
| Local Service Location: | None |
| Condition: | New |
| Speed: | 240m/min |
| Place of Origin: | Shanghai China |
| Warranty: | 1 Year |
| Showroom Location: | None |
| inner diameter of coil material: | 500mm |
| Cutting Width (mm): | 340 - 4500 mm |
| Weight: | 8000~20000Kg |
| Brand Name: | Tongli |
| Year: | 1984 |
| Cutting Speed(m/min): | 1 - 240 |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant |
| Product name: | SKJ-Cut-to-length |
| Leveling Precision(±mm/m): | 0.5 ±mm/m |
| Model: | SKJ-300/450/600/800 |
| Rated Power: | 21~45kw |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service |
| Application: | Three parts interlocked |
| Material Thickness(mm): | 0.23 - 0.35 mm |
| Coil Weight (T): | 1.5 |
| Packaging Detail: | Packing in wooden cases. It depends on the purchase quantity, whether it is assembled or assembled |
| Package Preview: | https://sc03.alicdn.com/kf/Hdbda4c4f008d48ee90459becb3d65710V.jpg_640x640.jpg |
