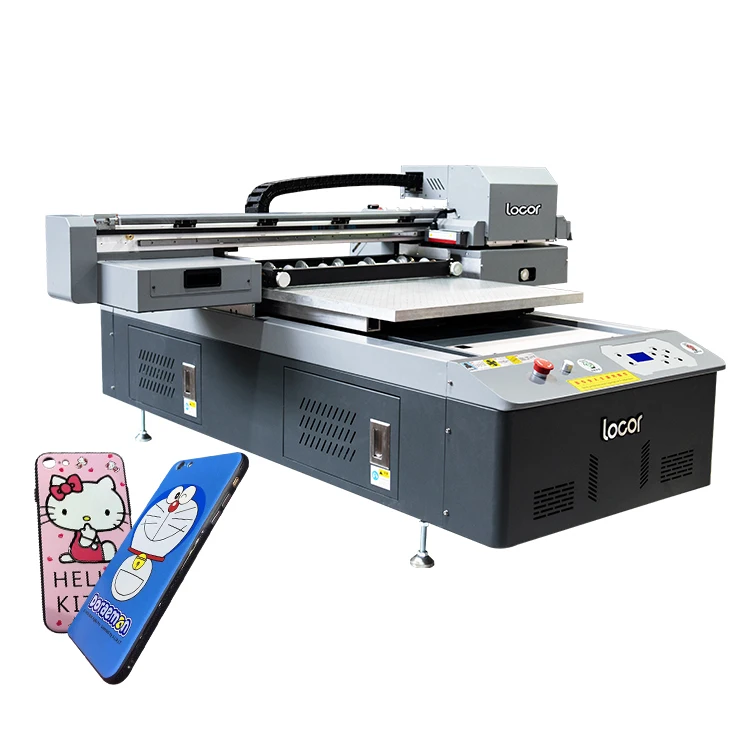

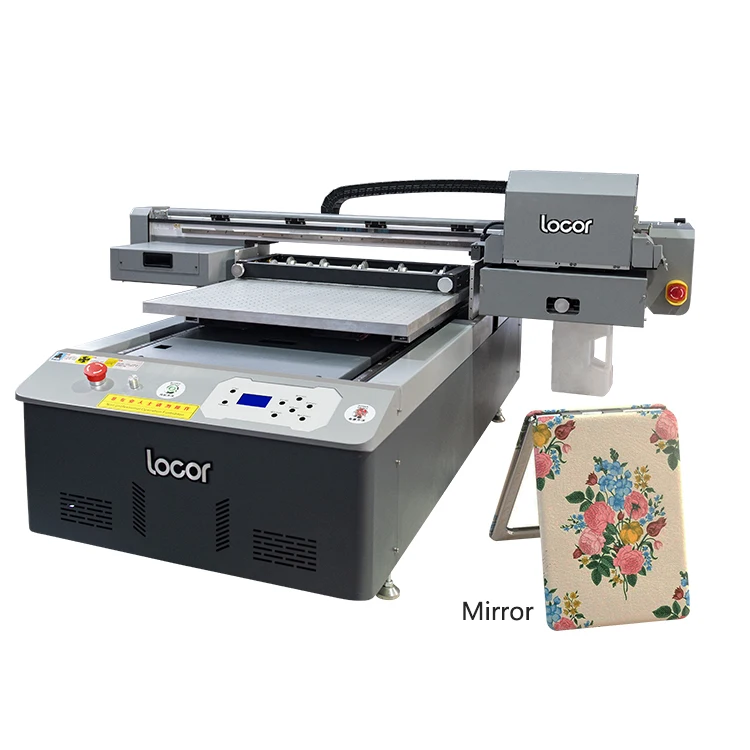

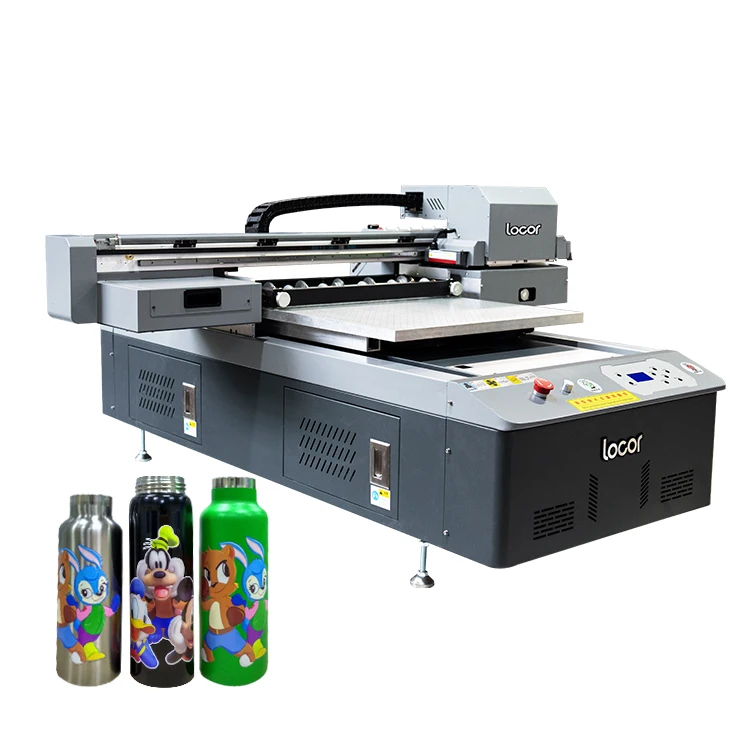

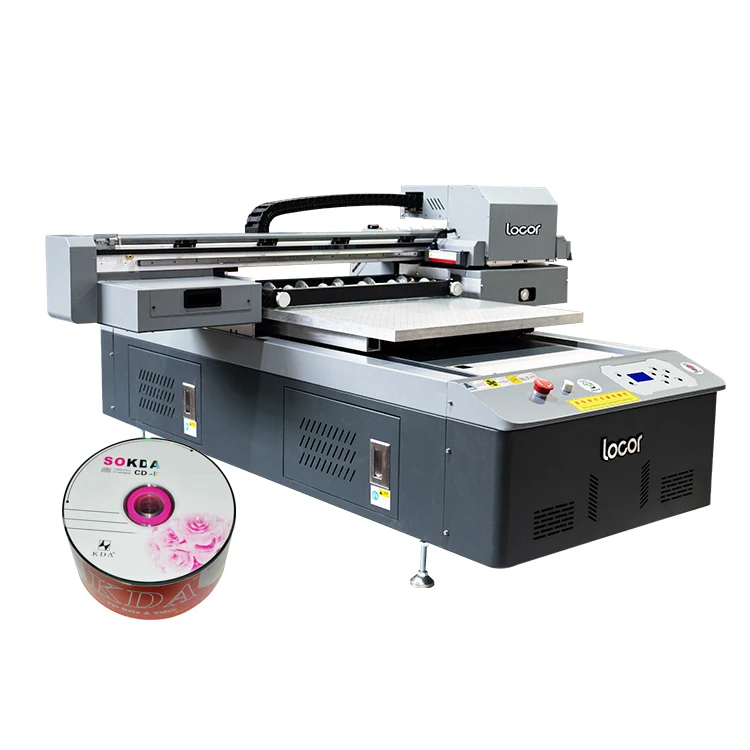

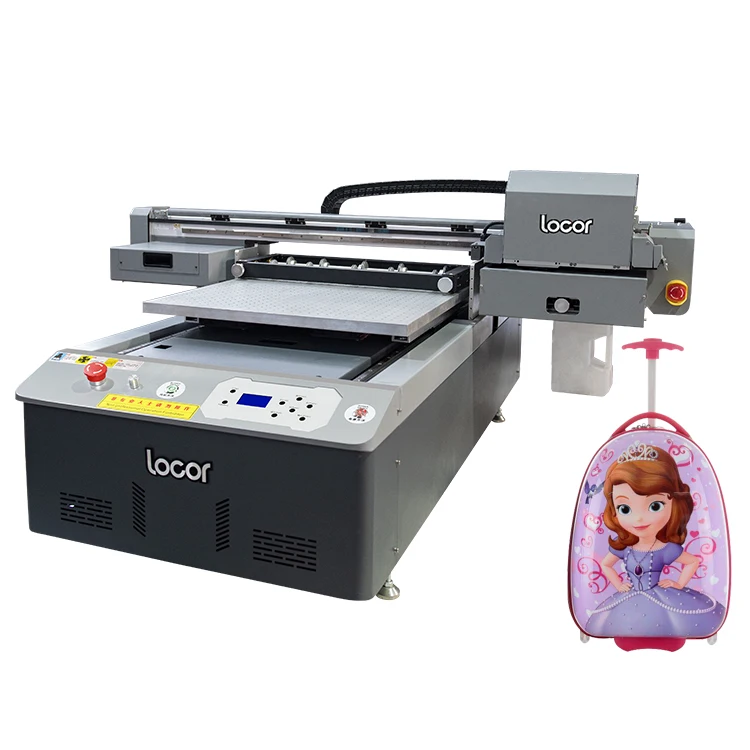

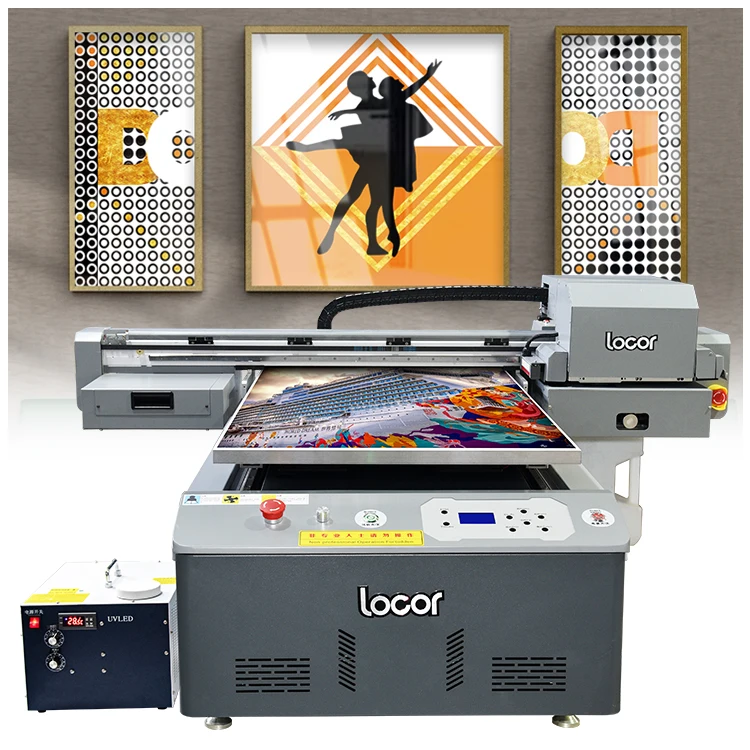

high speed 6090 varnish uv printing machine with 3pcs xp600 head writing pen plate bottle 3D uv printer




Product Description


This 6090 UV flatbed printer is our improved and upgraded new model, which is mainly used for personalized printing products with crystal relief effect, achieving customized high-end products, suitable for various materials:
Hard media: glass, ceramic tile, ceiling sheet, aluminum plate, wood plate, metal board, acrylic board,sign board, density board, KD plate, foam board, plexiglass plate, chevron plate, corrugated box, brick, stone, plastic, etc.
Flexible materials: wallpaper, reflective materials, canvas, carpet, leather, paper, PVC cloth, etc.




Product Paramenters


Model
LC-6090
Print head
Epson xp600
Print head number
3个
color
White+Colors+Varnish（C/M/Y/K+LC/LM+White+Varnish）
General option
one for white, one for colors, one for varnish
Two for colors, one for white
UV lamp configure
water-cooling
Print height
0-15cm
Print width
60*90cm
Cylinder print size
1.5-13cm


Print resolution
4pass 360*720dpi
6pass 360*1080dip
8pass 720*1440dpi
16pss 720*2440dpi
Platform
Vacuum adsorption type (8 turbofans )
Sensor configuration
Left and right automatic anti-collision induction
Height measuring device
Infrared automatic height sensing 、 Induction of automatic height measurement with electromagnet (Either-or)
Guide
THK mute Guide
Motor
Leisai motor
Board
Guangzhou Senyang board card
fixture
Cylinder clamp / Pen holder (optional)
Ink supply system
positive pressure system
Print head cleaning
Automatic cleaning, Automatic Moisturizing , Automatic scraper nozzle
RIP software
6.0UV Maintop(standard)
12.0UV PhotoPrint （Optional, paid）
Computer configure
Windows 7 i5 and above（ standard ）
Windows 10 i5 and above（Optional, paid）
Ink tank
500ml/bottle UV-black
CMYK+LCLM+V standard ink tank
WInk bottle with mixing motor - prevent white ink from settling
voltage
AC:220V, 50HZ / 60HZ
Body size
1602mm*1650mm*672mm
NET weight
200KG
Package size
1780MM*1740MM*850MM
Gross weight
260KG


Configuration








Real picture


01 ADSORPTION PLATFORM
Aluminum platform, can move around, up and down,Maximum printing thickness up to 10cm for all kinds of materials.
02 AUTOMATIC WHITE INK SHAKING SYSTEM
The motor can mix white ink to prevent sediment and protect printhead.


03 GUIDE
Taiwan HIWIN guide with high accuracy, famous brand in printing industry.
04 AUTOMATIC HEIGHT SENSOR
Detect the distance between head and material automatically.


05 Rotary Attachment
Used for printing drinking bottle,glass cup,mug,thermos cup,ect.
06 3pcs Epson DX11 heads
one for CMYK ink,one for White ink,one for warnish,achieving emboss relief with crystal result.


Packing&Shipping




Certificate








FAQ




1)How can I place order?
Contact us about your order details, we will prepare the PI . We accept T/T , you can also place order on line directly.

2) How can I know if it is paid successfully?
We will send you a payment confirmation email upon receiving your payment

3) If I buy the machine, can you supply the ink, material, etc also?
Yes sure, please use the Original ink, it's better for the printer maintenance, we can supply the relate material also.

4) What’s you delivery time?
We will arrange the shipping time within 3-10 working days after receiving the deposit. And we keep some models in stock all year round.

5) How about warranty service?
1 Year Warranty for printer, not include print head, damper, cable and cap, as they are consumables.
3 Years Warranty for boards, whole life online after sales service, professional engineers team for online technical support and solutions. More than 17 years rich printer experience.
Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.

6) What service can you supply?
1.Manual books and videos for installment operation and maintenance .
2.One to one professional technical free training.
3.Instant online support service.
4.one year warranty, life-long after-sale service.
5For printer ink, the more you order , the cheaper the price.
6.Welcome to visit our company or factory at anytime.

7) If I have some technical problem, how can you help us to solve it ?
Detailed description, photo or video will help our technician analyze the problem and give solution accordingly.

8) once there is something need to replace ,what can I do ?
We supply all the spare parts for printer. If any part is broken, we will fix or send you new parts after users send back the broken ones. We suggest that users order some spare parts for long time maintenance and fast replacement. According to the instructions and videos, if you have any questions, please contact us at any time. We will arrange special technicians to train and guide you, mainly including operation and maintenance training
