Проволочный Трос AISI304 из нержавеющей стали 1x19 3,18 мм
- Category: Metals & Alloys >>>
- Supplier: Jiangsu,Yasheng,Metal,Products,Co.,Ltd.
Share on:
Product Overview
Description
Structure | diameter（mm） | weight kg/100m） | EN12385-4 MBL Kn（1570N/MM2） | DIN3060 MBL Kn（1570N/MM2） | GB/T9944-2015 MBL Kn |
1x19 | 0.4 | 0.08 | 0.132 | 0.132 | 0.17 |
0.5 | 0.13 | 0.206 | 0.210 | 0.24 | |
0.6 | 0.18 | 0.297 | 0.297 | 0.343 | |
0.8 | 0.32 | 0.530 | 0.530 | 0.617 | |
1.0 | 0.5 | 0.820 | 0.825 | 0.950 | |
1.2 | 0.72 | 1.190 | 1.200 | 1.270 | |
1.5 | 1.13 | 1.850 | 1.860 | 2.250 | |
1.8 | 1.62 | 2.670 | 2.680 | 3.100 | |
2.0 | 2.0 | 3.300 | 3.300 | 3.820 | |
2.2 | 2.42 | 3.990 | 4.00 | 4.510 | |
2.5 | 3.13 | 5.150 | 5.15 | 5.580 | |
3.0 | 4.5 | 7.420 | 7.42 | 8.030 | |
4.0 | 8.0 | 13.190 | 13.7 | 13.9 | |
5.0 | 12.5 | 20.610 | 20.6 | 21 | |
6.0 | 18.0 | 29.700 | 29.7 | 30.4 | |
8.0 | 32 | 52.800 | 52.8 | 52.8 | |
10.0 | 50 | 82.400 | 82.5 | 82.5 | |
12.0 | 72 | 118.700 | 119 | 119 | |
14.0 | 98 | 161.600 | 162 | 162 | |
16.0 | 128 | 211.00 | 211 | 211 | |
18.0 | 162 | 267.00 | 267 | 267 | |
20.0 | 200 | 330.00 | 330 | 330 |
Construction | 1x19 |
Diameter Range | 0.4mm~25mm |
Material | Stainless steel |
Grade | AISI 304(A2), AISI 316(A4) |
Standard | EN12385,DIN,RR-W-410G,GB/T9944-2002 |
Tensile strength | 1570N/mm2,1770N/mm2 |
Lay direction | RHRL or LHRL |

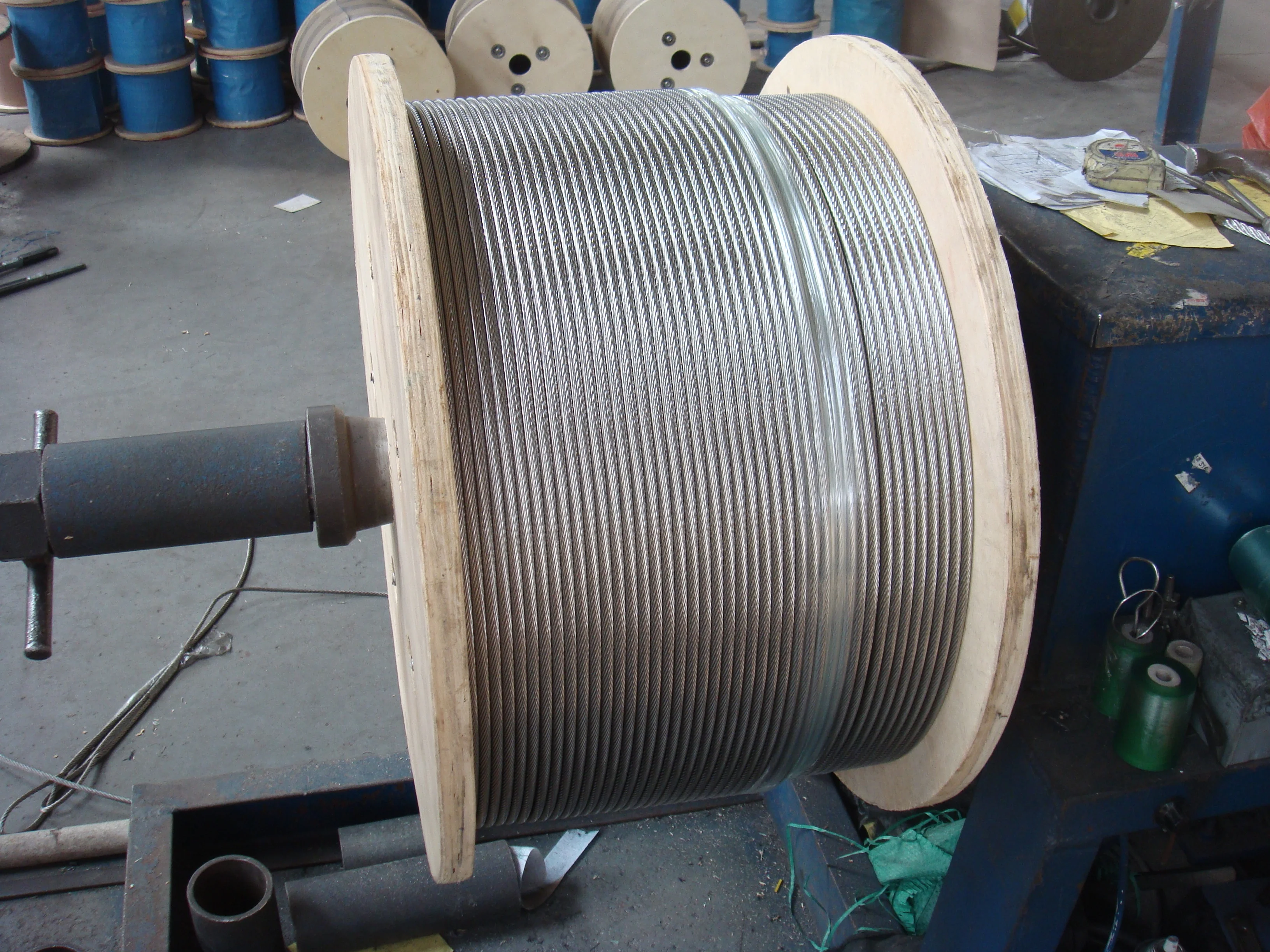

Packing term | Coil, Plastic spool+plywood case, Plywood reel+pallet |
Length | 100m,200m,250m,305m,500m,1000m,1525m,2000m |
Feature | durable, bright surface, high tensile strength,good rust and corrosion resistance |
Application | Balustrading system,Cable railing system,Fall protection system,Height safety, Lifting gear,Fencing,Netting,Fishing industry,Railway,Yatch rigging,Automobile control system,Agriculture |
During the manufacturing process of stainless steel wire rope, due to the residual drawing stress and twisting stress, the steel wire will be loose. Loose wire rope is not easy to use, but also affects its service life due to poor fatigue performance.
Therefore, not loose is an extremely important performance index for the steel wire rope. Its benefits for wire rope are specifically expressed in:
(1) Improve the fatigue performance of stainless steel wire rope by about 40%, thus extending the service life of stainless steel wire rope.
(2) When the stainless steel wire rope is cut, the strands and steel wires will not fall apart, and still maintain their own position and the size of the twist pitch, so as not to damage the structure of the stainless steel wire rope.
(3) There is close contact between the strands in the rope and the rope core, and between the steel wires in the strand. In the process of use, the structure has a small elongation, and the twisting length and the diameter of the stainless steel wire rope change little.
(4) The flexibility of the stainless steel wire rope is improved and becomes soft; the backlash is very small, and no curling buckle is formed; the non-rotation performance is improved. Therefore, the non-loose wire rope is easy to install, safe and reliable to use, uniformly stressed, and stable in operation.
(5) Wire breakage is unlikely to occur during use. Even if the wire is broken, it does not warp, and it still lies in its original position, so as not to scratch the rope wheel or the drum, and does not affect the normal work of other steel wires.
Therefore, not loose is an extremely important performance index for the steel wire rope. Its benefits for wire rope are specifically expressed in:
(1) Improve the fatigue performance of stainless steel wire rope by about 40%, thus extending the service life of stainless steel wire rope.
(2) When the stainless steel wire rope is cut, the strands and steel wires will not fall apart, and still maintain their own position and the size of the twist pitch, so as not to damage the structure of the stainless steel wire rope.
(3) There is close contact between the strands in the rope and the rope core, and between the steel wires in the strand. In the process of use, the structure has a small elongation, and the twisting length and the diameter of the stainless steel wire rope change little.
(4) The flexibility of the stainless steel wire rope is improved and becomes soft; the backlash is very small, and no curling buckle is formed; the non-rotation performance is improved. Therefore, the non-loose wire rope is easy to install, safe and reliable to use, uniformly stressed, and stable in operation.
(5) Wire breakage is unlikely to occur during use. Even if the wire is broken, it does not warp, and it still lies in its original position, so as not to scratch the rope wheel or the drum, and does not affect the normal work of other steel wires.
A very special substance added to 316 stainless steel cable is mo. After adding this substance, the characteristics of stainless steel cable will be enhanced. In many respects, it has been further improved than before, and the usable range is becoming wider and wider, especially in the coastal areas of China. Due to the special climate, the general stainless steel cable is easy to break, but it is added Mo's 316 stainless steel cable can be well used to the climatic characteristics here and used in many occasions.There are still many places in the industry where stainless steel cables are used. Many occupations need to use this kind of wire rope that can have good tensile strength to connect various substances and can withstand greater tensile ability. Whether it is a construction occupation or the production of industrial equipment, there will be 316 stainless steel cable. In addition, in the paper industry and the dyeing cloth occupation, this kind of wire rope is also essential.
In addition to having better tensile strength, the precision of this stainless steel cable has also changed greatly. From very
precise new characters to thicker wire ropes, you can use this material for manufacturing. It is also very possible to combine and twist 316 stainless steel cable in various forms to form a stronger steel wire rope. At present, some advanced regional manufacturers in China have used this method, and it will be more and more in the future.
In addition to having better tensile strength, the precision of this stainless steel cable has also changed greatly. From very
precise new characters to thicker wire ropes, you can use this material for manufacturing. It is also very possible to combine and twist 316 stainless steel cable in various forms to form a stronger steel wire rope. At present, some advanced regional manufacturers in China have used this method, and it will be more and more in the future.
Q1.Can I have a sample order for stainless steel wire rope products?
A:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2.What about the lead time?
A:Sample needs 3-5 days.
Q3:Do you have any MOQ limit for stainless steel wire rope products order?
A：Low MOQ,1 pcs for sample checking is available.
Q4:How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL,UPS,Fedex or TNT.It usually takes 3-5 days to arrive.Arrive and sea shipping also optional.For mass products,ship freight is prefered.
Q5:Is it OK to print my logo on products?
A:Yes.OEM and ODM are available for us.
Q6:How to ensure the quality?
A：Mill Test Certificate is supplied with shipment.If needed,a Third Party Inspection is acceptable or SGS.
A:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2.What about the lead time?
A:Sample needs 3-5 days.
Q3:Do you have any MOQ limit for stainless steel wire rope products order?
A：Low MOQ,1 pcs for sample checking is available.
Q4:How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL,UPS,Fedex or TNT.It usually takes 3-5 days to arrive.Arrive and sea shipping also optional.For mass products,ship freight is prefered.
Q5:Is it OK to print my logo on products?
A:Yes.OEM and ODM are available for us.
Q6:How to ensure the quality?
A：Mill Test Certificate is supplied with shipment.If needed,a Third Party Inspection is acceptable or SGS.
