Indoor FTTH Fiber Optical Drop Wire Factory Aerial Fiber Optic cable G657A FRP Steel Wire 1 2 4 6 8 10 Core FTTH Drop Cable
- Category: >>>
- Supplier: Hunan Feibo Guangtong Communication Equipment Co. Ltd.
Share on (62558275320):
Product Overview
Description
Indoor FTTH Fiber Optical Drop Wire Factory Aerial Fiber Optic cable G657A FRP Steel Wire 1 2 4 6 8 10 Core FTTH Drop Cable
Product Description
Indoor FTTH Fiber Optical Drop Wire factory Aerial fiber optic cable G657A FRP Steel wire 1 2 4 6 8 10 core FTTH drop cable
Indoor FTTH Fiber Optical Drop Wire (GJXFH)

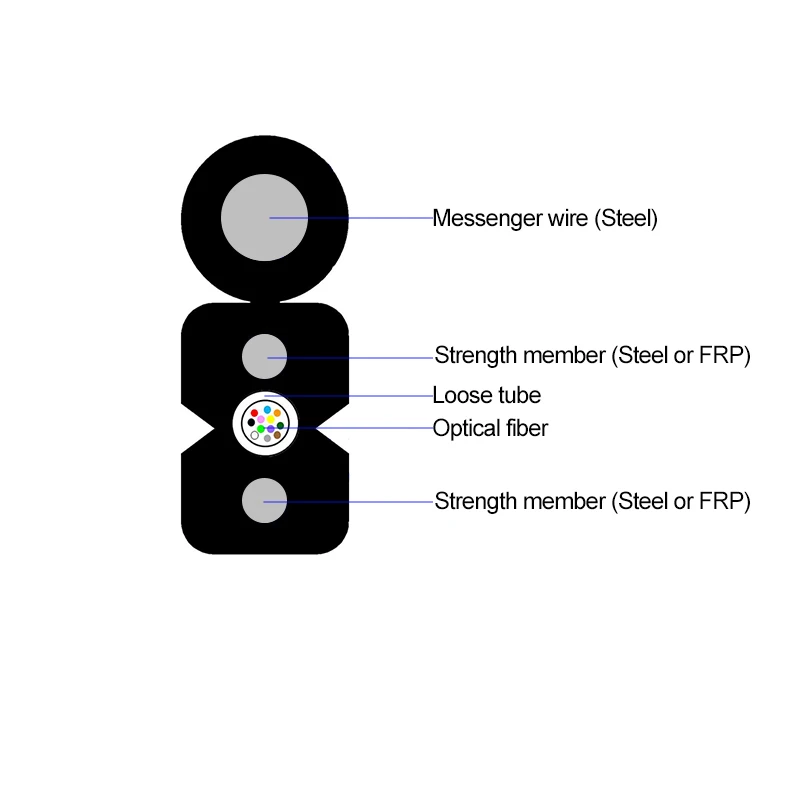

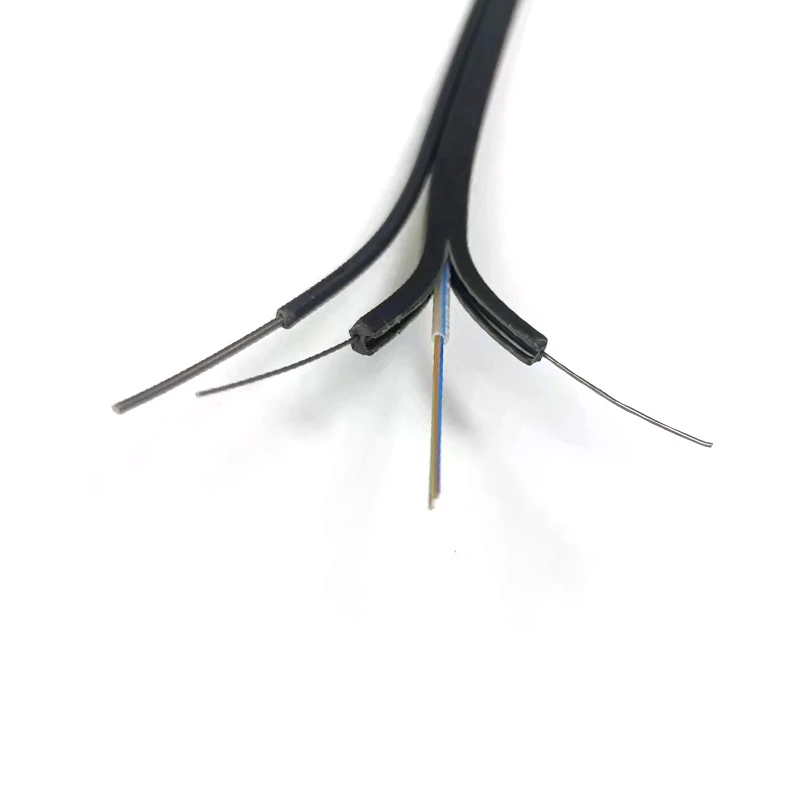

Access network uses the indoor optical cable with a butterfly-shaped that is to place the optical communication unit in the center, two parallel FRP strength member are placed on both sides , and finally it is completed with a black Lsoh Low Smoke Zero Halogen(LSZH) out sheath.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel FRP strength member to protect the fiber and provide adequate tension and pressure
• Single metallic strength member makes optical cable having good tensile performance
• Unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Applications
•Pipeline, overhead, direct burial
Structural Parameter
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension | Crush (N/100mm) | Bending Radius Static / dynamic |
GJXFH -1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 8 | 40/80 | 500/1000 | 15/30 |
GJXFH -2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 8.5 | 40/80 | 500/1000 | 15/30 |
GJXFJH -1Xn | 1 | (2.0±0.1)×(3.8±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
GJXFDH -4Xn | 4 | (2.0±0.2)×(4.0±0.2) | 10 | 40/80 | 500/1000 | 15/30 |
Storage and use temperature: -40 °C to +70 °C.
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | 10 | |||||
G657A2 | 0.36/0.22 | 0.5/0.4 | 7.5 | |||||
OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||
OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 | ||
Our Services

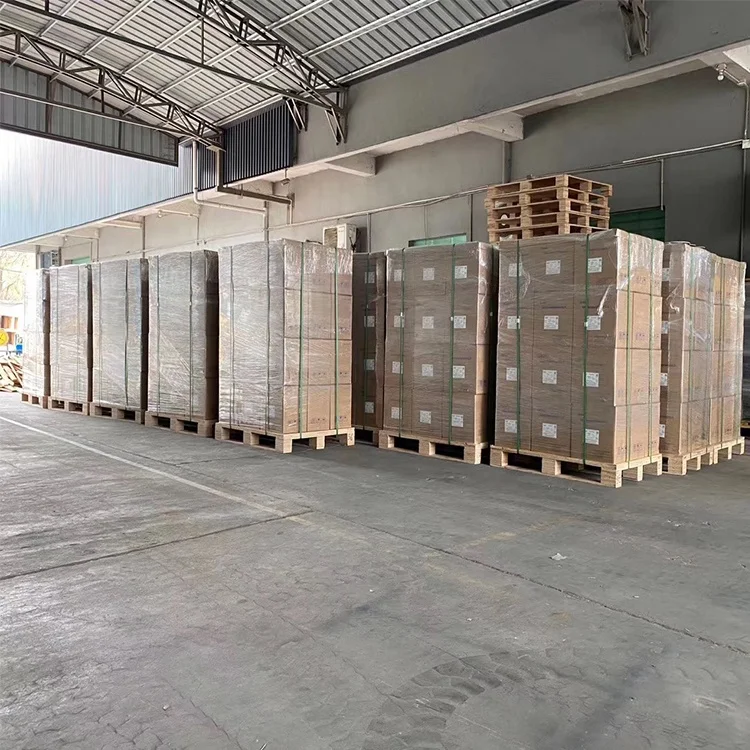

Packaging & Shipping

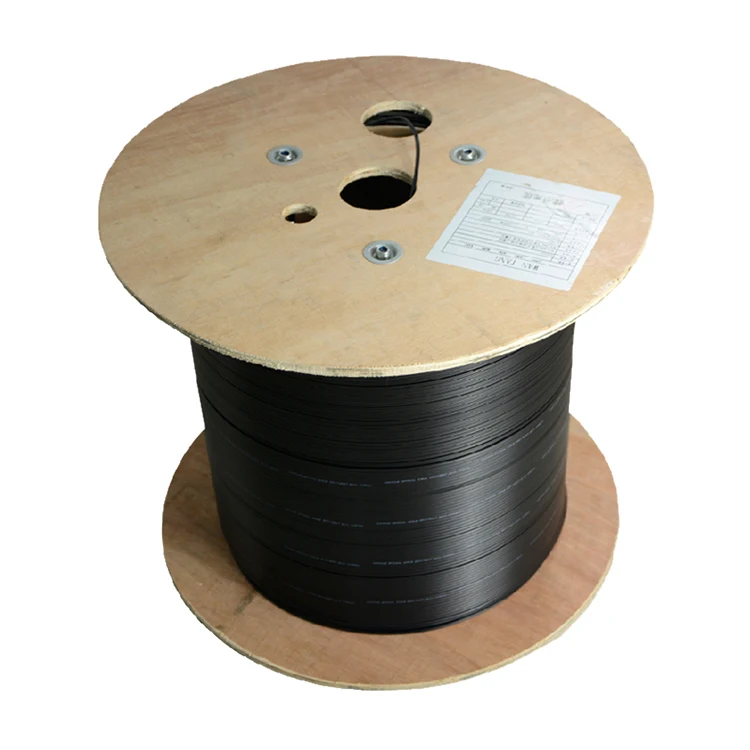

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease.Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
