SKYLAB Wireless USB WiFi Adapter Dual Band 2.4/5GHz 867Mbps High Gain Dual Antennas Network WiFi module
- Category: WiFi Modules >>>
- Supplier: Skylab M&C Technology Co. Ltd.
Share on (62558470368):
Product Overview
Description
Product Description

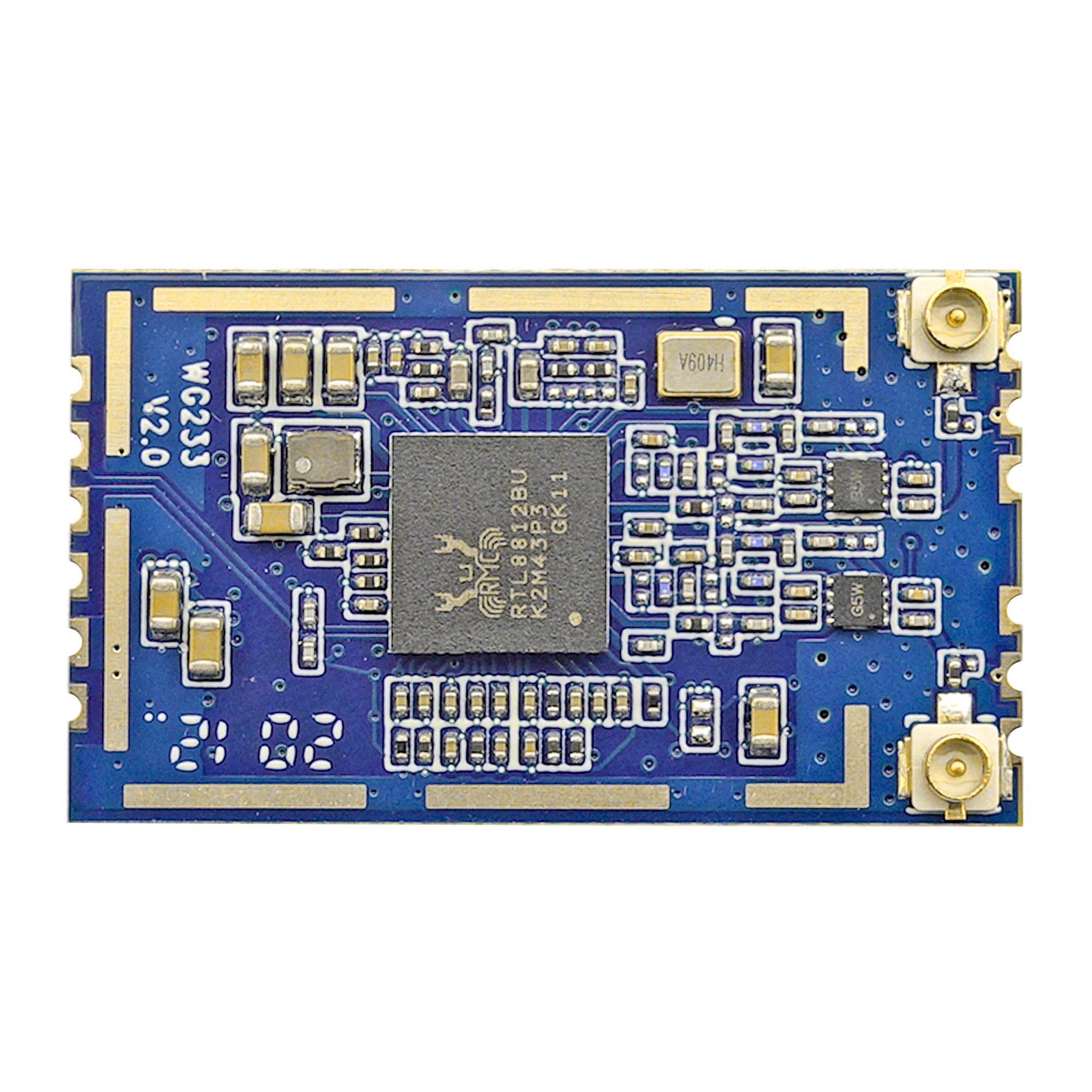

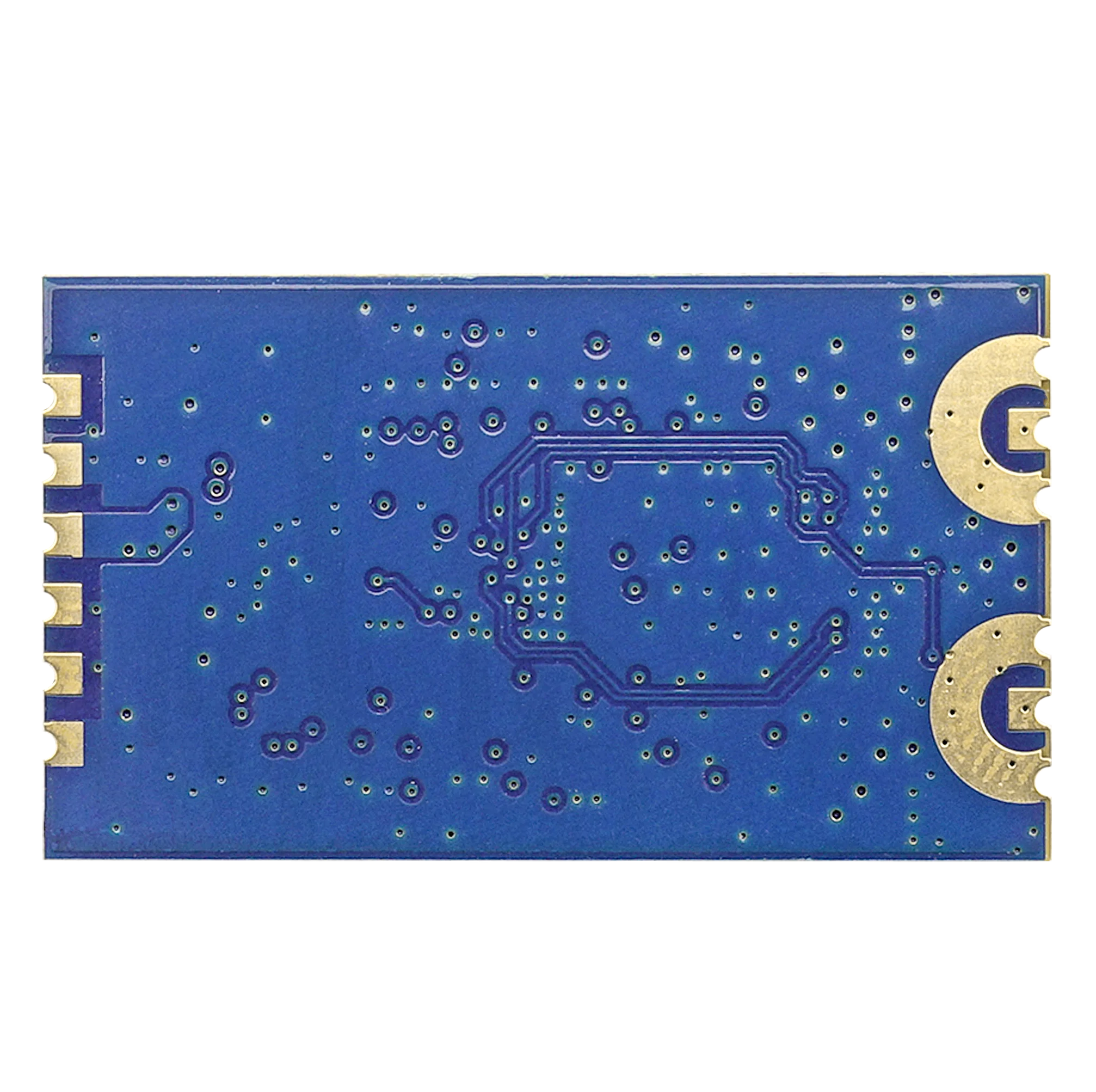

WG233 is a highly integrated USB Wi-Fi module which supports 867Mbps PHY rate. It is compliant with IEEE 802.11ac draft specification, offering feature-rich wireless connectivity and reliable throughput from an extended distance.
WG233 is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.
WG233 is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.
Features
◆IEEE 802.11a/b/g/n/ac WLANs
◆2.4G /5G 2T2R mode
◆With support of 867Mbps PHY rate
◆IEEE 802.11e QoS Enhancement(WLAN)
◆USB LPM/Selective Suspend support
◆Fully compliance with USB2.0 High-speed mode.
◆IEEE 802.11i(WPA, WPA2). Open, shared key, and pair-wise key authentication services
◆Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android
◆RoHS compliance meets nvironment-friendly requirement.
◆FCC,CE compliance
◆29.0(L) x 17.0(W) x 2.8mm small dimension.
◆2.4G /5G 2T2R mode
◆With support of 867Mbps PHY rate
◆IEEE 802.11e QoS Enhancement(WLAN)
◆USB LPM/Selective Suspend support
◆Fully compliance with USB2.0 High-speed mode.
◆IEEE 802.11i(WPA, WPA2). Open, shared key, and pair-wise key authentication services
◆Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android
◆RoHS compliance meets nvironment-friendly requirement.
◆FCC,CE compliance
◆29.0(L) x 17.0(W) x 2.8mm small dimension.
Application
Specification
item | value |
Model Number | WG233 |
Type | WiFi Module |
Country of Origin | china |
Brand | SKYLAB |
Chipset | RTL8812 |

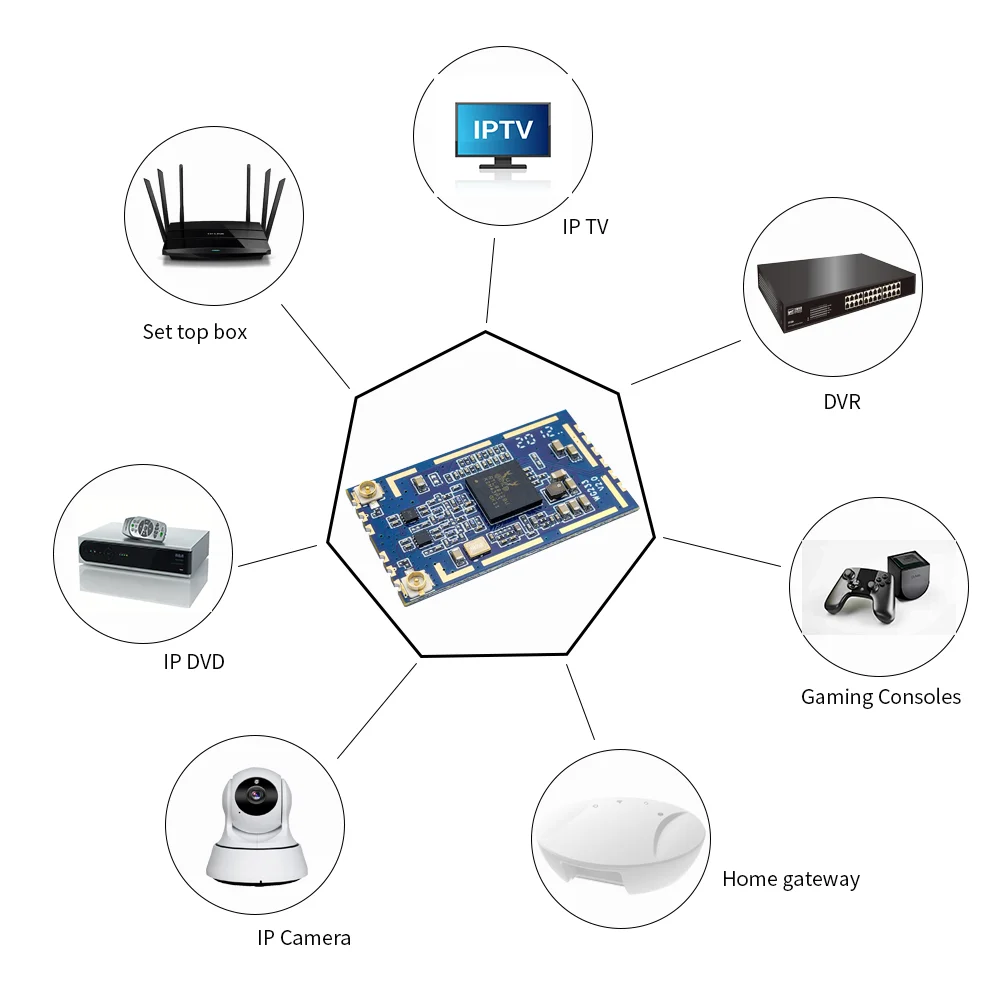

Application | IP Camera/IP TV/Set Top Box |
Product name | usb Wifi Module |
ANTENNA TYPE | IPEX connecter or PCB antenna |
Size | 29.0(L) x 17.0(W) x 2.8mm |
Power supply | 3.3VDC |
WIRELESS STANDARDS | IEEE 802.11 a/b/g/n/ac |
Interface | USB 2.0 |
FREQUENCY RANGE | 2.4/5GHz |
Operating Temperature | -10℃~70℃ |
Storage Temperature | -40℃~125℃ |
Operating Humidity | 10%~90% non-condensing |
