Product Overview

Description

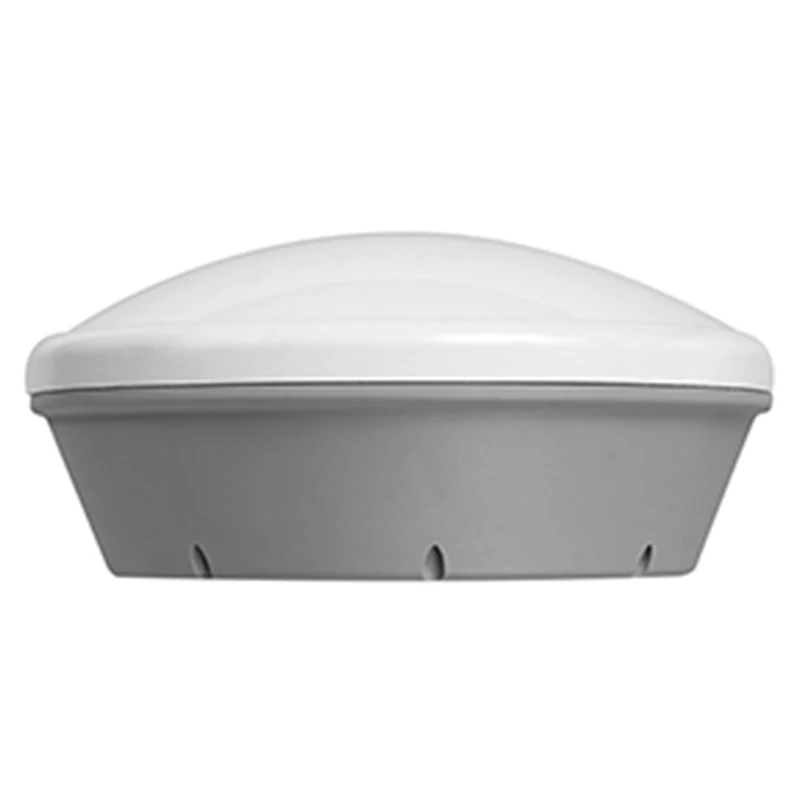

Trimble AG25 Antenna



Trimble AG25 GNSS antenna is designed to support high precision land applications. Designed for quick installation, the Trimble AG25 antenna is equipped with a magnetic attachment for simple mounting onto any metal surfaces.

COMPREHENSIVE GNSS SUPPORT

The Trimble AG25 antenna offers full support for current and near-future GNSS signals from GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, OmniSTAR, Trimble RTX and SBAS.



Key Features of Trimble AG25:



–  Equipped with a mag switch to allow users to change between MSS wideband and narrowban

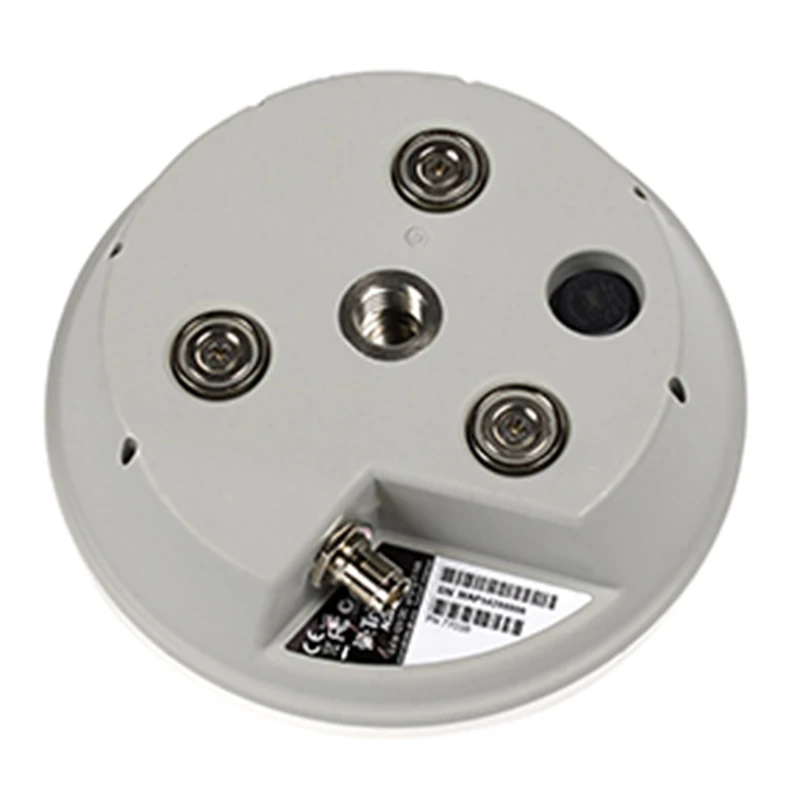

–Magnetic mount allows for the easy install and removal of the antenna

–  Comprehensive GNSS support, including GPS modernization signals, GLONASS, BeiDou, Galileo, QZSS and IRNSS

–  OmniSTAR and RTX Support

–  Supports MSS narrowband and wideband

–  Rugged and 100% humidity proof



TECHNICAL SPECIFICATIONS

Comprehensive GNSS Tracking:

– GPS: L1, L2, L5

– GLONASS: L1, L2, L5

– Galileo: E1, E5a, E5b, E6

– BeiDou: B1, B2, B3

– QZSS: L1, L2, L5, LEX

– IRNSS: L5

– SBAS: WAAS, EGNOS, GAGAN, and MSAS

– MSS: OmniSTAR, Trimble RTX

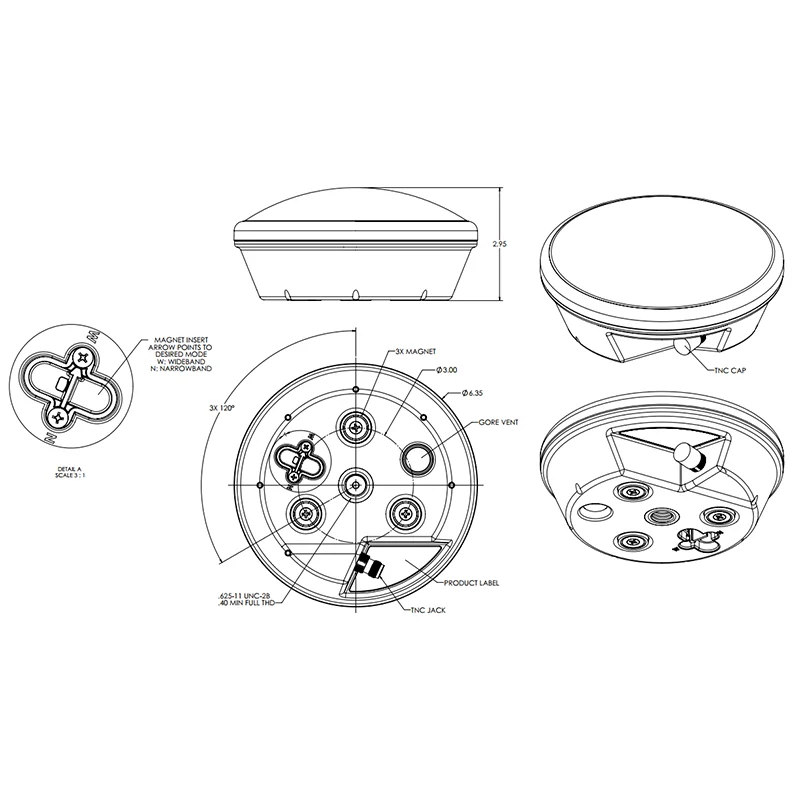

Magnetic switch for narrowband and wideband

– Wideband mode: 1525 - 1614 MHz

– Narrowband mode: 1555 - 1608 MHz MTBF >5,000 hours

PHYSICAL AND ELECTRICAL SPECIFICATIONS

Dimensions . . . . . . . . . 16.13 cm diameter x 7.5 cm

height. . . . . . . . . . (6.35 in diameter x 2.95 in height)

Weight. . . . . . . . . . . . . . . . . . . .0.57 Kg (1.26 lb)

Input Voltage. . . . . . . . . . . . . . . 3.4 V DC to 12 V DC

Input Current. . . . . . . . . . . . . . . . . . . . <130 mA

Signal Gain. . . . . . . . . . . . . . . . . . . . . . .48 dB Signal

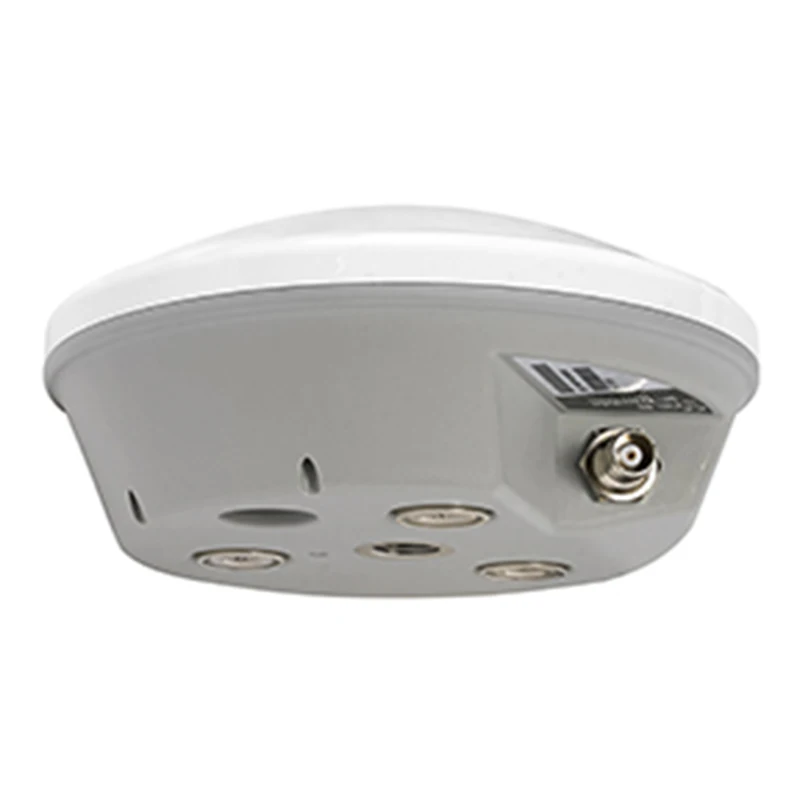

Connector. . . . . . . . . . . . . . . . . TNC Female

Mounting . . . . . . . . . . . . . . . . . . Magnetic Mounts
