Grease meter LAGM1000E Compact and lightweight design Corrosion resistant aluminium housing
- Category: >>>
- Supplier: Jingjiang Acepom Instrument Manufacturing Co. Ltd.
Share on (62558716931):
Product Overview
Description
Product Description

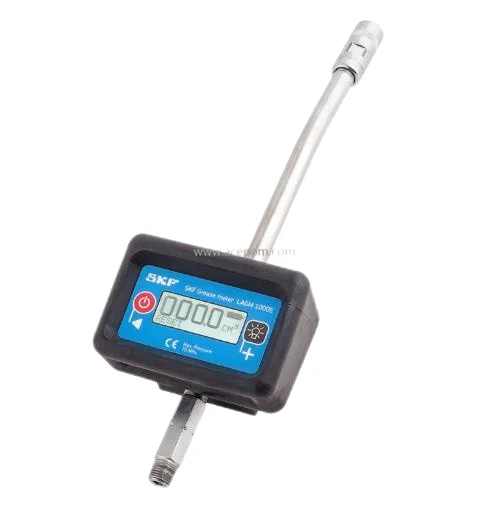

Grease meter
Accurate grease quantity measurement
The amount delivered per stroke by grease guns depends on many variables. It is generally difficult to supply an accurate quantity of grease when manually lubricating bearings. The right amount of grease, however, is critical for the bearings’ service life, as over- or under-greasing can result in machine breakdown. Although a common practice is to weigh the grease per stroke, this procedure does not consider the backpressure, the ongoing wear inside the grease gun or any other variables.
The SKF Grease Meter LAGM 1000E accurately measures grease discharge in volume or weight in metric (cm3 or g) or US units (US fl. oz or oz), making conversion calculations unnecessary.
Suitable for most NLGI 0-3 greases
A rubber sleeve protects the electronics in case of impact and is also oil and grease resistant
The backlit LCD displays large and clear-to-read digits
Maximum pressure of 700 bar (10 000 psi)
Compact and lightweight design
Corrosion-resistant aluminium housing
Fits with all SKF manual grease guns and air-operated grease pumps
Fixed installation in conjunction with a lubrication system possible.
| Designation | LAGM 1000E |
| Housing material | Aluminium, anodised |
| Weight | 0,3 kg (0.66 lb) |
| Maximum grease flow | 1 000 cm³/min (34 US fl. oz/min) |
| IP rating | IP 67 |
| Suitable greases | NLGI 0 - NLGI 3 |
| Maximum operating pressure | 700 bar (10 000 psi) |
| Thread connections | M10 x 1 |
| Display | Lit LCD (4 digits / 9 mm) |
| Accuracy | ±3% from 0 - 300 bar |
| ±5% from 300 - 700 bar | |
| Selectable units | cm³, g, US fl. oz or oz |
| Display lamp auto switch off | 15 seconds after last pulse |
| Low battery | Indication on display |
| Battery type | 1.5 V AA Alkaline |
| Unit auto switch off | Programmable |
SPARE PARTS
| Designation | Description |
| LAGM 1000E-1 | Repair kit gear wheel |
