Motor: 24V / 220W Gearbox Ratio: 1:23.5 Pole: 4 P IP44 Rated Output Speed: 4200±150 RPM Rated Gearbox Motor torque: around 19N-m Recommend loading: 150KG each gearbox motor Power-off Brake: 3 N-m without lever
Series Product SPEC
Diameter
100mm
IP Degree
IP44
Motor Output
500~900W
Gearbox Ratio
1:23.5 / 1:30.65 / 1:38
Speed Output(rpm)
65.8~242.6 RPM
RPM
2500~5700 RPM
Rated Voltage
12V
24V
36V
48V
Electromagnetic Brake
1,2,3,4,6,8,10 N-m with lever or without lever
Rated Loading
150KG (each gearbox motor)

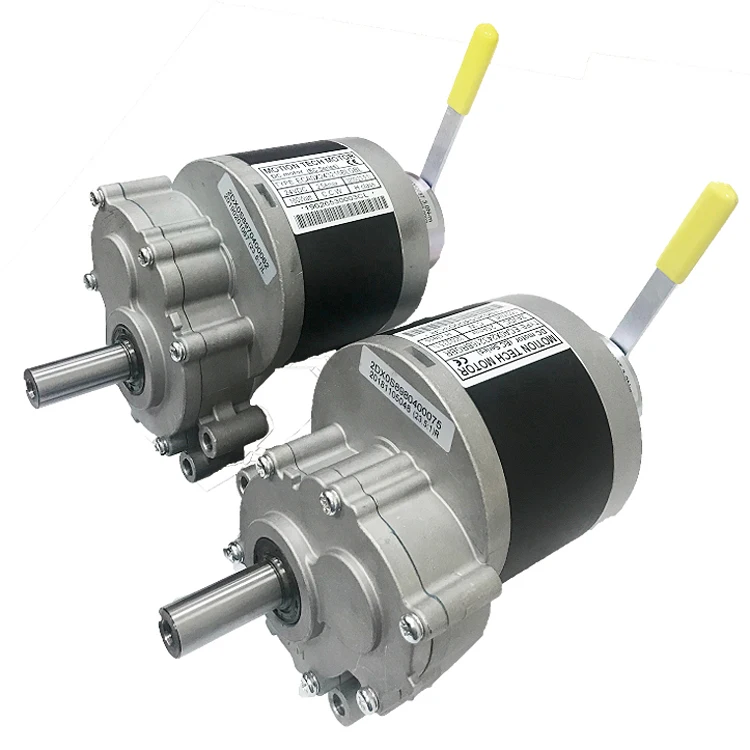

Product Configuration
24V 250W 4200 RPM Brush DC motor
4 poles
Optional 3N.m brake with lever
characteristic curve

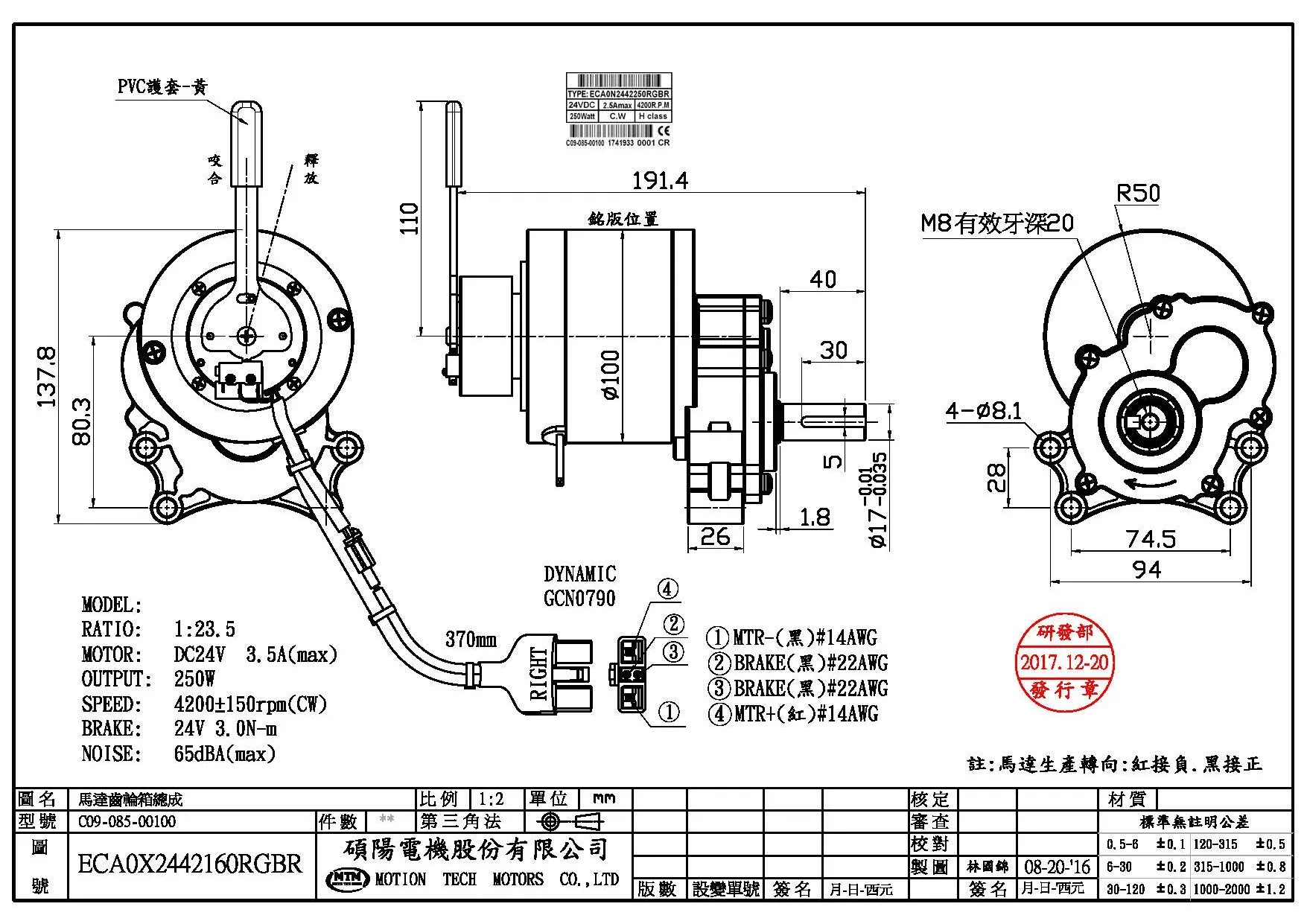

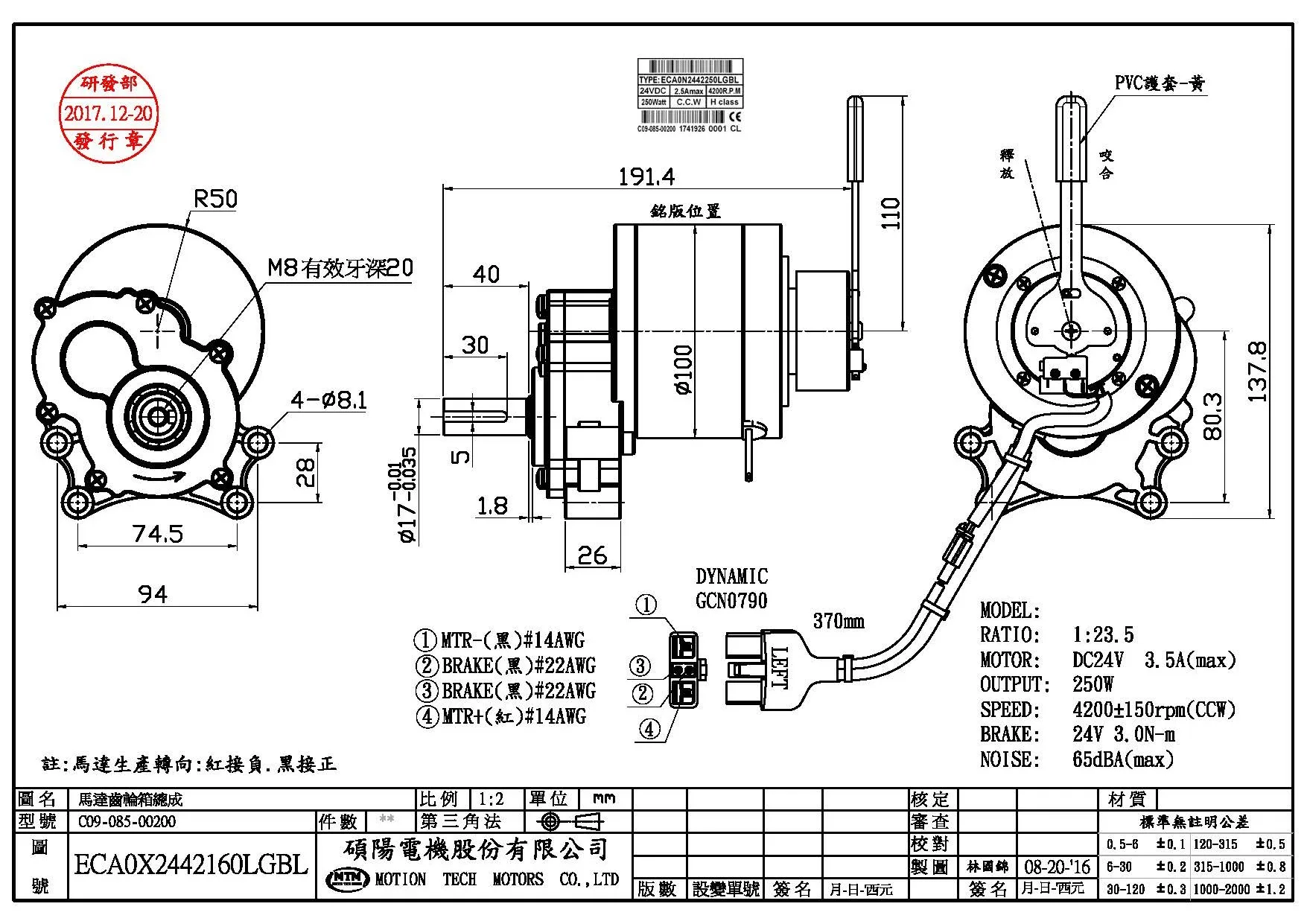

Product Paramenters
Certifications
About Brush Series
Brush DC Motor:
Standard DC63 products:20~100W Standard DC71 products:30~300W Standard DC82 products:80~450W Standard DC90 products:80~500W Standard DCA5 products:200~900W Standard DCC4 products:200~1200W
Standard EC63 products:80~270W Standard EC71 products:80~300W Standard EC82 products:150~500W Standard EC90 products:120~600W Standard EC92 products:250~600W Standard EC94 products:250~500W Standard ECA0 products:500~900W Standard ECA5 products:500~950W Standard ECC4 products:350~1300W
Standard SC63 products:80~270W Standard SC71 products:100~300W Standard SC82 products:150~450W Standard SC90 products:250~500W Standard SC92 products:300~500W Standard SC94 products:250~500W Standard SCA5 products:500~950W Standard SCC4 products:600~1300W
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Company Profile

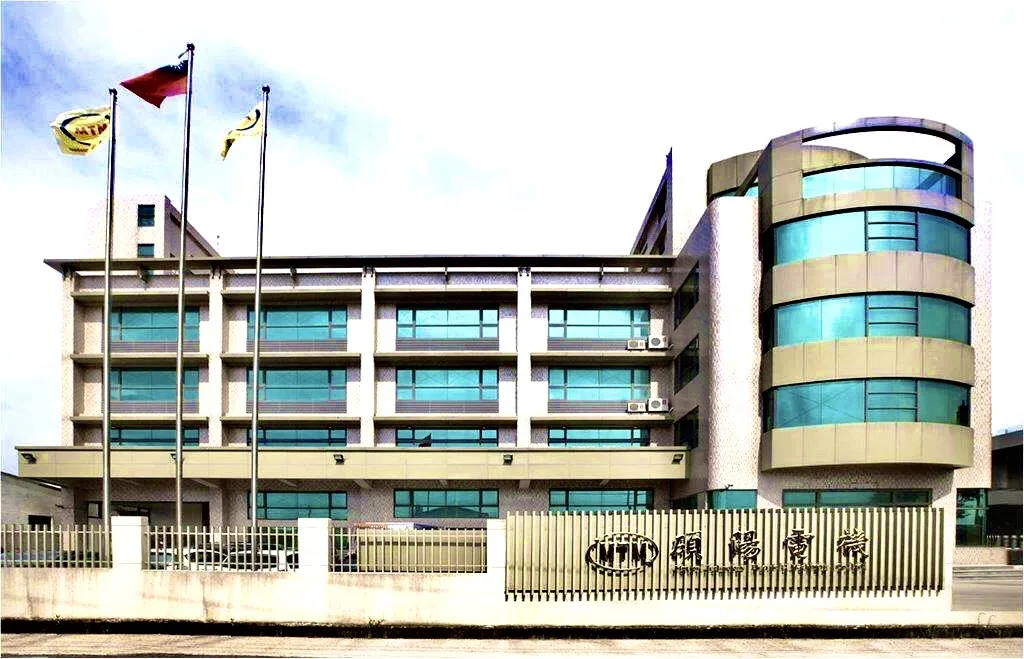

About MTM
ISO 9001, ISO 14001 AUTHORIZED. Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world.. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
