The specification above is only for reference. No further notice of any change in specification resulting from technical upgrading
BS-III MACHINE FEATURES
INJECTION UNIT
DOUBLE-INJECTION CYLINDER DOUBLE-CARRIAGE CYLINDER NOZZLE PURGE COVER LINEAR GUIDE RAIL THREE KINDS SCREW AS OPTION FOR EVERY MACHINE NOZZLE CONTACT FORCE ADJUSTMENT FUNCTION NOZZLE CENTRAL DEVICE BARREL COVER LOW-SPEED HIGH-TORQUE HYDRAULIC MOTOR RPM SENSOR (4 TIMES / 1 ROUND) REMOVABLE HOPPER RAIL
CLAMPING UNIT
MOULD FIXING DESIGNATION REFERRING EUROMAP 2 ROBOT MECHANICAL INTERFACE REFERRING EUROMAP 18 EJECTION DISTRIBUTION REFERRING EUROMAP 2 BIG OPERATION ROOM FOR EJECTION ANTI-PITCH SLIDER (ABOVE BT150) CLAMP TRANSDUCER CONNECT DIRECTLY TO CROSS HEAD OF TOGGLE CENTRAL OIL LUBRICATION
HYDRAULIC UNIT
VARIABLE DISPLACEMENT PUMP ONE SET SETS CORE PULLER OIL TEMPERATURE ALARM OIL LEVEL METER AND OIL TEMPERATURE INDICATOR LOW PRESSURE CLAMPING FUNCTION QUICK-CLAMPING MOULD HEIGHT ADJUSTMENT BY GEAR MECHANISM BACK-PRESSURE CONTROL FUNCTION SUCKBACK PRESSURE RELIEF VALVE FOR CARRIAGE MOVING (BELOW BT650) OIL COOLER HIGH-PRECISION BYPASS FILTER (ABOVE BT480) FITER BLOCK ALARM (ABOVE BT800) SELF-SEALING FILTER (ABOVE BT800) NOZZLE MOVING FUNCTION √
ELECTRIC AND CONTROL PART
KEBA CONTROLLER LANGUAGE (CHINESE AND ENGLISH) DATA LOCK AND OPERATION PASSWORD SPC QUALITY MANAGEMENT ALARM AND PARAMETER RESETTING RECORD PID TEMPERATURE CONTROL SCREW PROTECTION FUNCTION SUPPORT CURRENT/VOLTAGE ANALOGUE OUTPUT CLAMPING FORCE AUTO-ADJUST CAN INTERFACE INJECTION 6 STAGE/PRESSURE HOLDING 5 STAGE/CHARGE 5 STAGE MOLD CLAMP/OPEN 5 STAGE /EJECTION 2 STAGE
Certifications
Machine Details

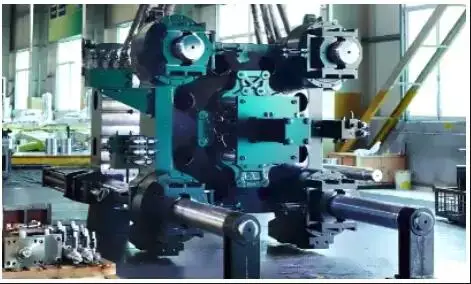

MOVING PLATEN CLAMPING
1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance. 2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking. 3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.

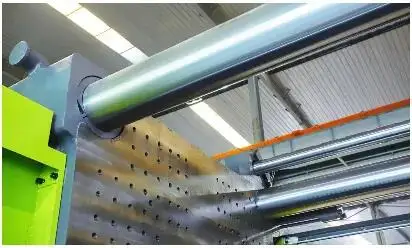

SUPER LONG LASTING TIE BAR
During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.
INNOVATED INJECTION STRUCTURE
1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection supporting made by one piece casting, is rigid and compact. 2-Double carriage cylinder insures injection unit better centering, and movement stable.
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Packaging & Shipping
Packaging
Size
710×240×210
Weight
1.9 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
710×240×210
Weight
1.9 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
