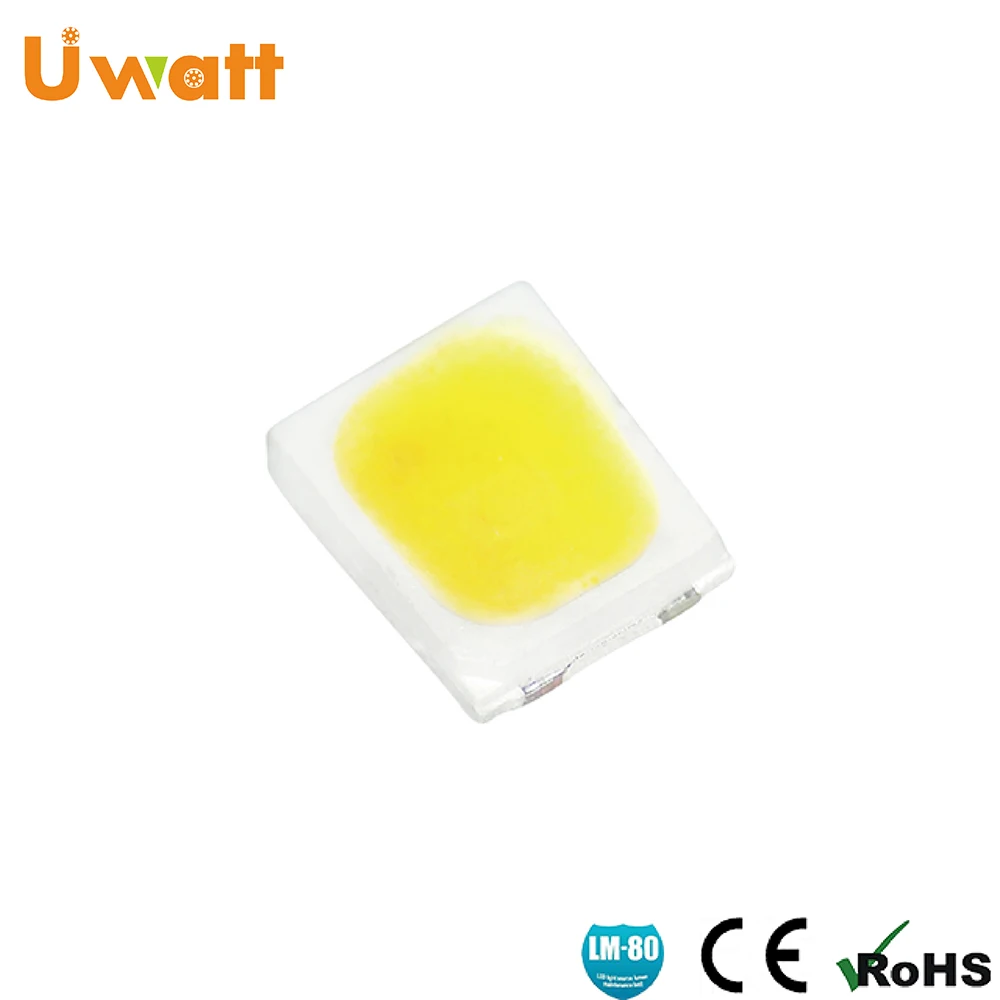

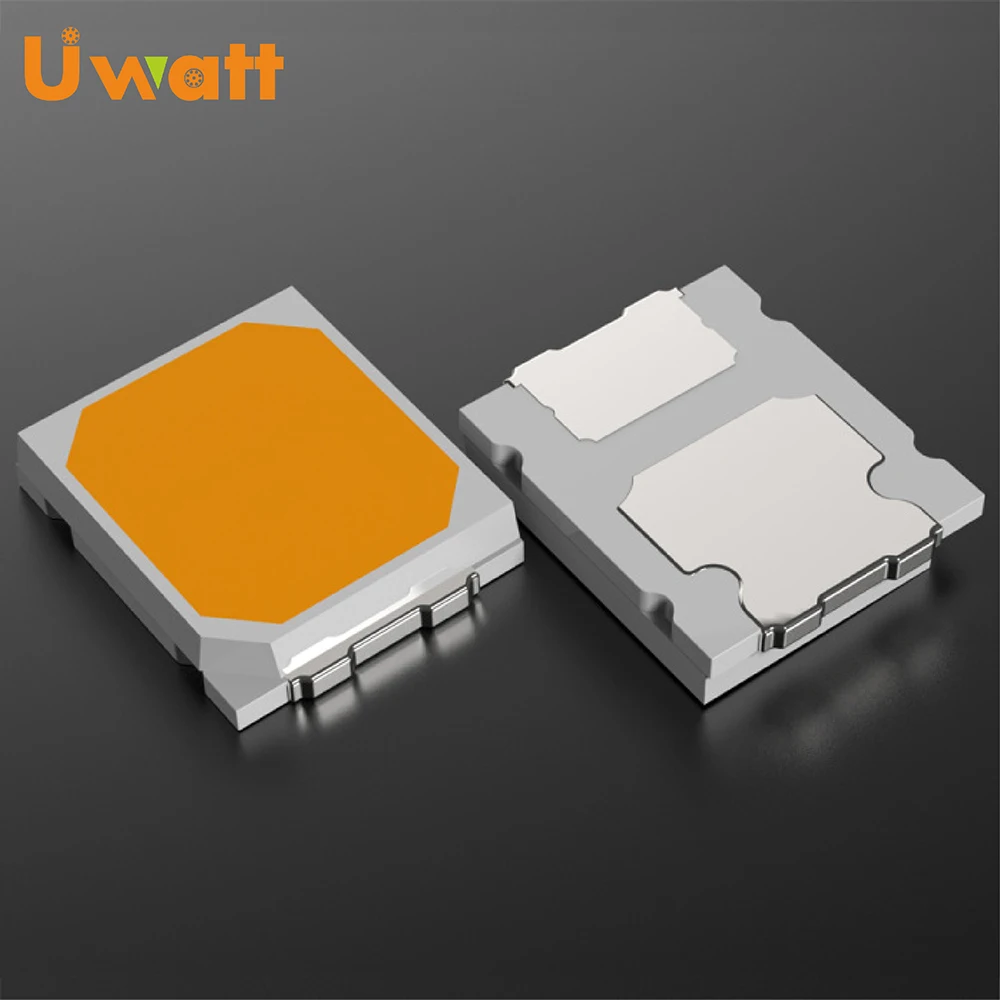

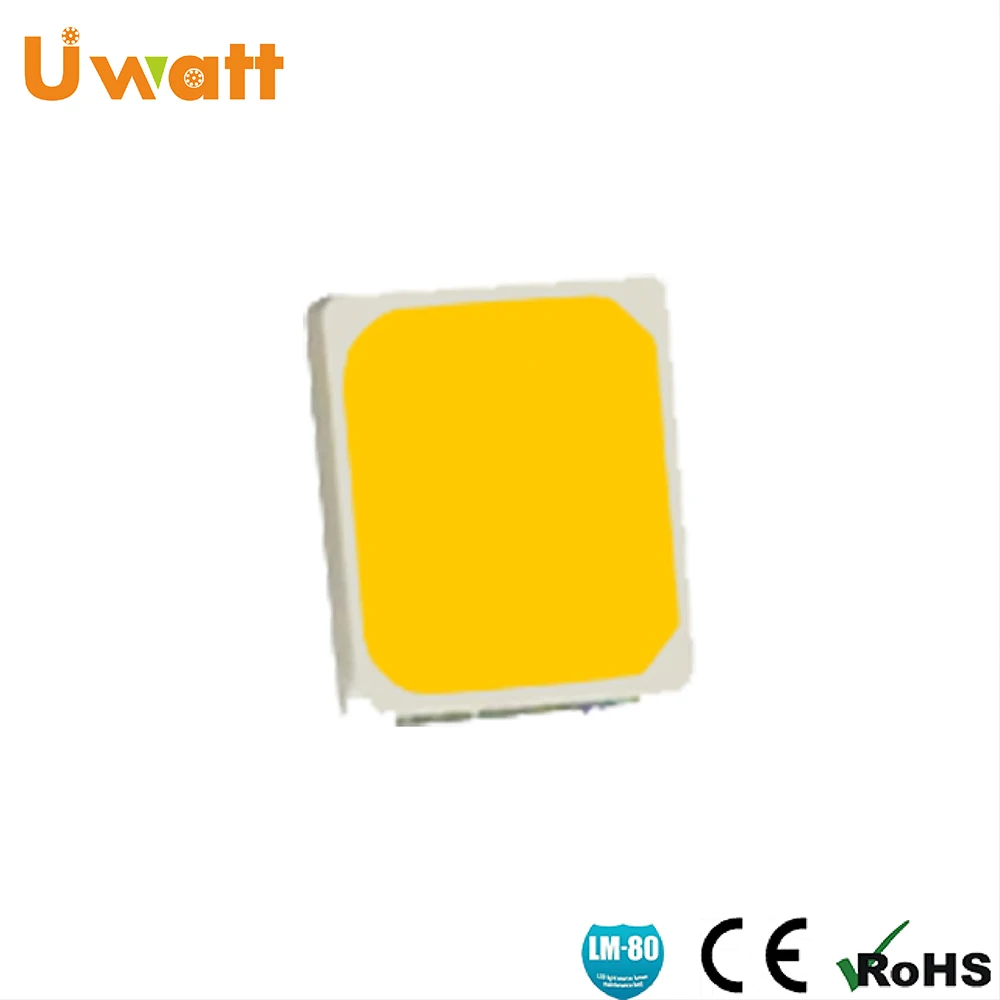

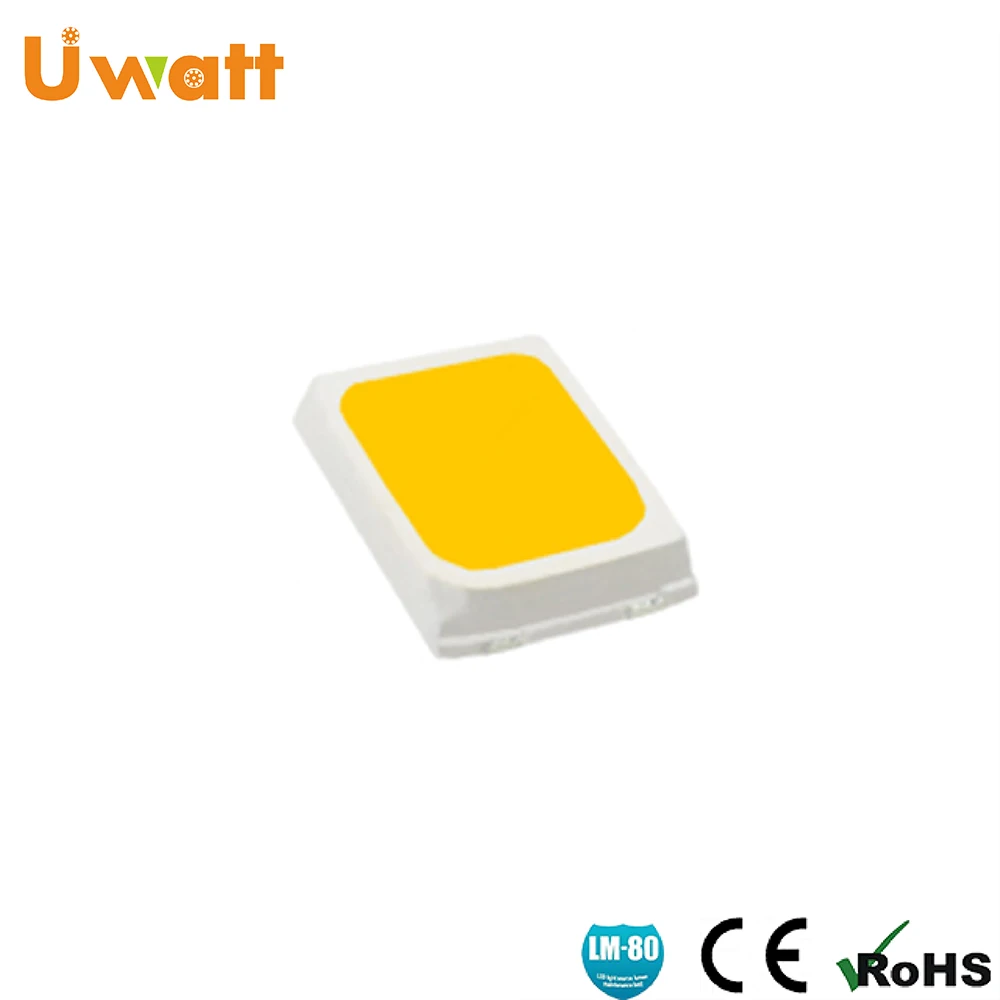

Best Sellers Smd 2835 Datasheet Led 0.5W 2835 Led Diode With Lighting
- Category: >>>
- Supplier: Shenzhen Superlighting Electronics Co. Ltd.
Share on (62558870408):
Product Overview
Description
Product Description
Feature & Benefits:
2. Based on InGaN/GaN technology
3. Wide viewing angle : 120°
4. Excellent performance and visibility
5. Suitable for all SMT assembly methods
6. IR reflow process compatible
7. Environmental friendly: RoHS compliance
Best Sellers Smd 2835 Datasheet Led 0.5w 2835 Led Diode With Lighting
Ultra high luminous efficacy, combined with the flexbility in design due to its slim and miniature size, PLCC LED Series are optimized to be used as lighting for signboard.
Description:
1. Best luminous and color uniformity
2. Enables halogen and CDM reolacement
3. The article itself present the actual color
4. High reliability product (pass LM-80 verification)
1. Best luminous and color uniformity
2. Enables halogen and CDM reolacement
3. The article itself present the actual color
4. High reliability product (pass LM-80 verification)
Absolute Maximum Ratings (Ta=25℃)
Parameter | Sysbol | 2835 | 2835 & 5630 | |
Value | ||||
Forward Current | IF (mA) | 200 | 200 | |
Pulse Forward Current (tp<=100us, Duty cycle=0.25) | Ipulse (mA) | 400 | 400 | |
Reverse Current | IR (uA) | 10 | ||
Reverse Voltage | VR (V) | 5 | ||
LED Junction Temperature | TJ (℃) | 125 | ||
Operating Temperature | - (℃) | -40~+85 | ||
Storage Temperature | - (℃) | -40~+125 | ||
ESD Sensitivity | VB (V) | 2000 | ||
Soldering Temperature | Ts | Reflow Soldering: 255~260℃/10~30sec Manual Soldering: 350℃/3sec | ||
Characteristics
Color BIN code
Color region stay macadam "3-Step/5-Step" ellispse from the chromaticity center
The chromaticity center refers to ANSI C78.377:2008
Please refer to ANSI C78.377 for the chromaticity center
Advantage
Good consistency
Provides three-step led beads
Relate Product
Model | Power(W) | Voltage(V) | CCT(K) | CRI | Lumen(lm) |
PLCC-2835-3V-0.2W | 0.2W | 3V | 3000K 4000K 6500K | 80 | 26-28lm |
PLCC-2835-3V-0.5W | 0.5W | 3V | 80 | 60-65lm | |
PLCC-2835-3V-0.5W-HE | 0.5W | 3V | 80 | 65-70lm | |
PLCC-2835-18V-0.5W | 0.5W | 18V | 80 | 60-70lm | |
PLCC-2835-3V-1W | 1W | 3V | 80 | 110-120lm | |
PLCC-2835-6V-1W | 1W | 6V | 80 | 115-125lm | |
PLCC-2835-9V-1W | 1W | 9V | 80 | 120-130lm | |
PLCC-2835-18V-1W | 1W | 18V | 80 | 120-130lm |
Application
Packing & Delivery

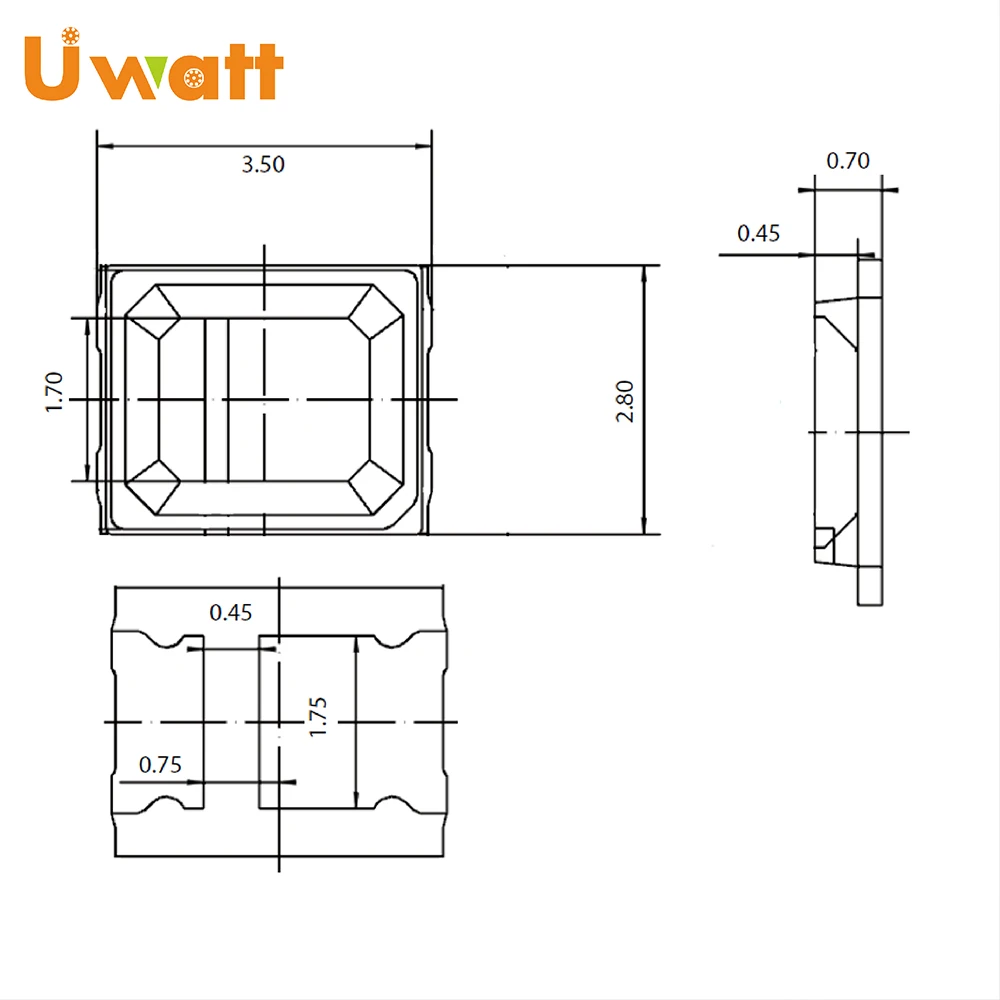

2835 Package
17000 Pcs/Roll/Anti-static Bag
4 Anti-static Bags/Box (353*254*256mm)
Starting with 150pcs empty, and 150pcs empty at the last
Packaging Details:
Generally, we use white or yellow carton box for packaging.
Packages can also use color box according to client's requirements.
- Delivery Detail: 7-15 days for mass production.
- Shipping Detail:By express: Such as DHL,UPS, TNT, FEDEX etc..
- Air Freight:When you order more than 100 kg which will be more economical than express,
- Sea Freight: Shipping by SEA is available after customer provide destination port.
- Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.
Generally, we use white or yellow carton box for packaging.
Packages can also use color box according to client's requirements.
- Delivery Detail: 7-15 days for mass production.
- Shipping Detail:By express: Such as DHL,UPS, TNT, FEDEX etc..
- Air Freight:When you order more than 100 kg which will be more economical than express,
- Sea Freight: Shipping by SEA is available after customer provide destination port.
- Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.
