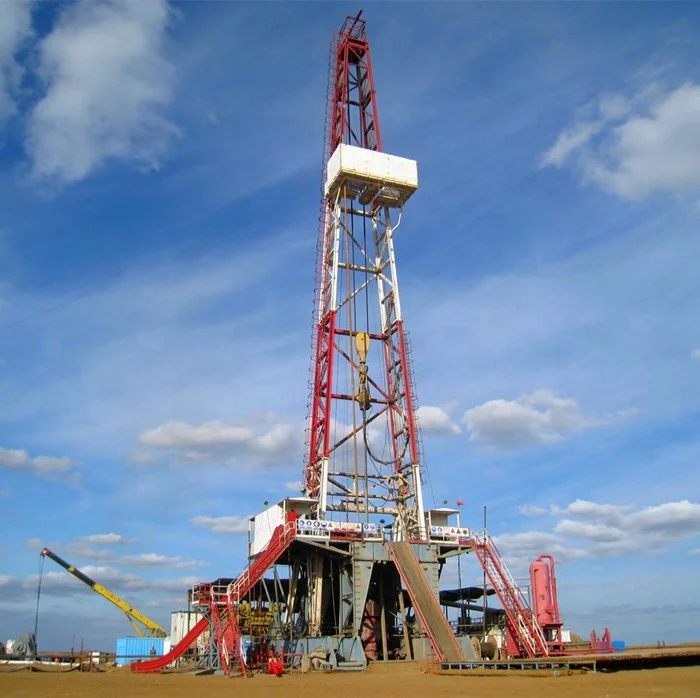

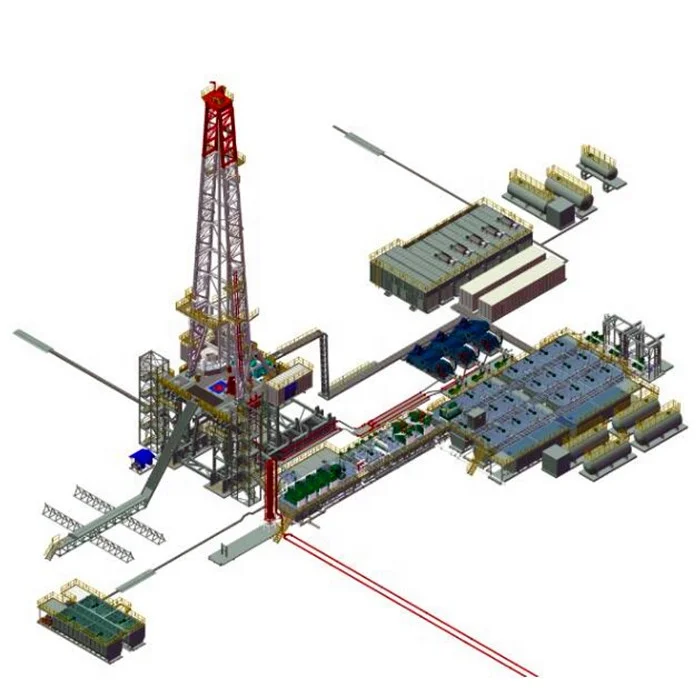

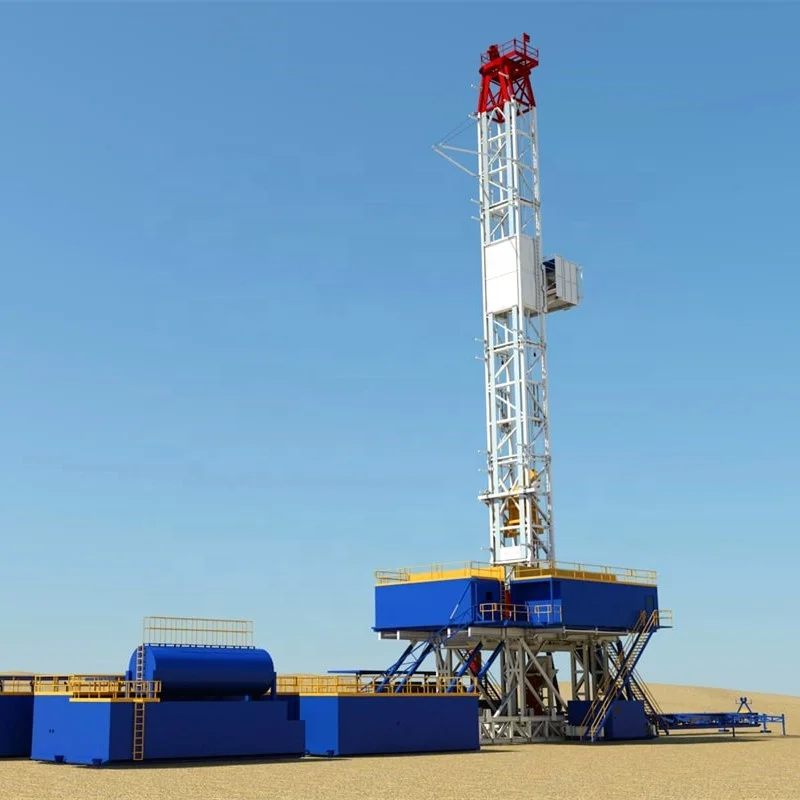

The basic parameters of rig are in compliance with the requirements provided in GB/T23505-2009Petroleum Drilling and Workover Rigs.
Adopt modern world advanced VFD full digital control technology, and can adjust lift speed, speed of rotary table and of mud pump as required so as to improve drill effectiveness.
Driven by wide band and high power motor, realizing stepless speed of drawworks, rotary table and mud pump during the whole process .

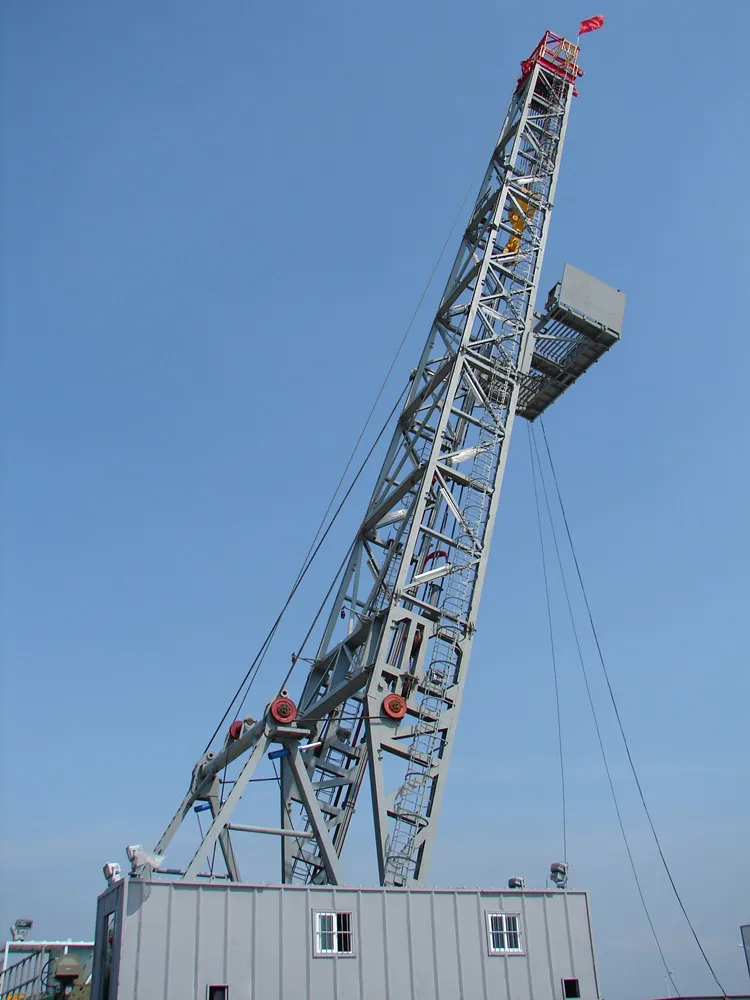

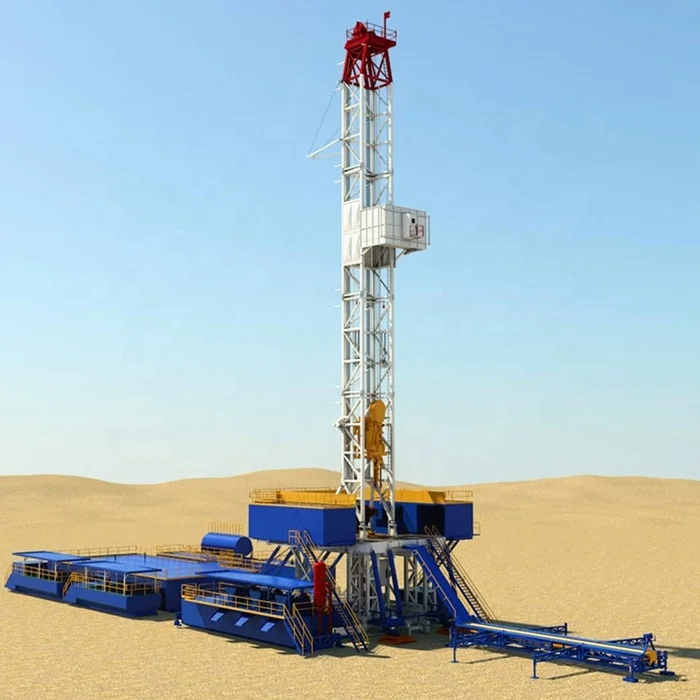

The lifting way adopts double lift or rotating lift structure (height of drill floor are 7.5m, 9m and 10.5m), the rigcan be lifted by drawworks or Hydraulic drawworks power to expected position.
The drawworks brake adopts a braking way of a combination of hydraulic disc brake and Energy consumed braking by AC variable-frequency motor to ensure performance;the rotary table adopts combined drive or independent drive, the actuating device is below the drill flow, thus the drill floor is with large operation space.
Drilling rig can be equipped with monolithic movement device to meet the moving requirement between wells by clustered drilling.
The drill rig is realized intelligent driller control as well as data storage, printing and remote transmission by applying PLC Automatic bit feed, real-time monitoring of run in and put out of hole and drilling conditions.
The design of main parts is in compliance with related API provisions.
Model
ZJ40/2250D
ZJ50/3150D
ZJ70/4500D
ZJ80/5850D
ZJ90/6750D
Nominal depth range (114mm DP) m
2500-4000
3500-5000
4500-7000
5000-8000
6000-9000
Max hook load rating kN
2250
3150
4500
5850
6750
Max number of lines for traveling block
10
12
12
14
14
Dia.of wireline mm (in)
32 (11/4)
35 (13/8)
38(11/2)
42(15/8)
45(13/4)
SheaveO.D.oftravelingblock mm (in)
1120 (44)
1270 (50)
1270 (50)
1524 (60)
1524 (60)
1524 (60)
I.D. of swivel stem mm (in)
75 (3)
75 (3)
75 (3)
101.6 (4)
101.6 (4)
Rated power of drawworks kW (hp)
735 (1000)
1100 (1500)
1470 (2000)
2210 (3000)
2210 (3000)
Transmission of drawworks
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Dia. of rotary table opening mm (in)
520.7 (201/2)
698.5 (271/2)
698.5 (271/2)
952.5 (371/2)
952.5 ( 371/2)
952.5 ( 371/2)
952.5
( 371/2)
1257.3 (491/2)
Rotary speeds
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Stepless speed regulation
Power of a mud pump kW (hp)
956 (1300)
956 (1300)
1176 (1600)
1176 (1600)
1176 (1600)
1176 (1600)
1620 (2200)
Working height of mast m (ft)
43 (142)
45 (147)
45 (147)
48 (157)
46 (151)
48 (157)
Height of drillfloor m (ft)
7.5 (25)
7.5 (25)
9 (30)
10.5 (35)
10.5 (35)
10.5 (35)
12 (40)
Clearheightunder rotary table beam m (ft)
6.26(20.5)
6.26 (20.5)
7.6 (25)
9 (30)
8.92 (29.2)
9 (29.5)
10 (33)
Notes
DB-Driven with A.C. motor with frequency converter

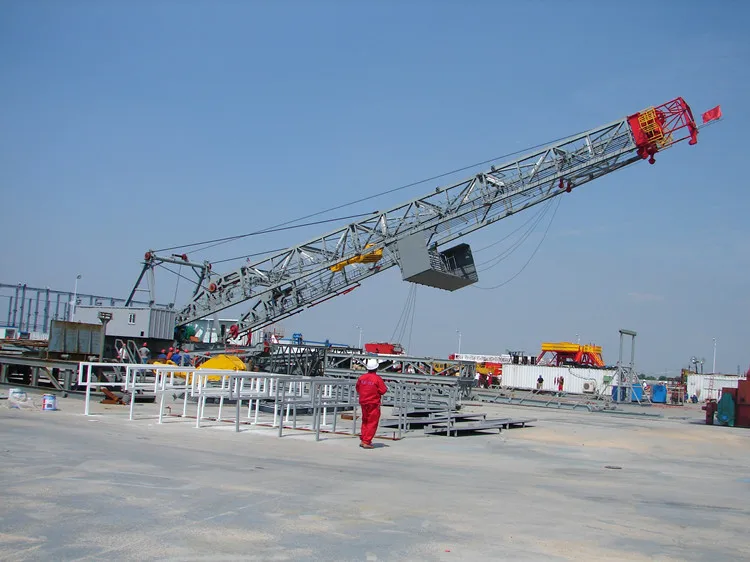

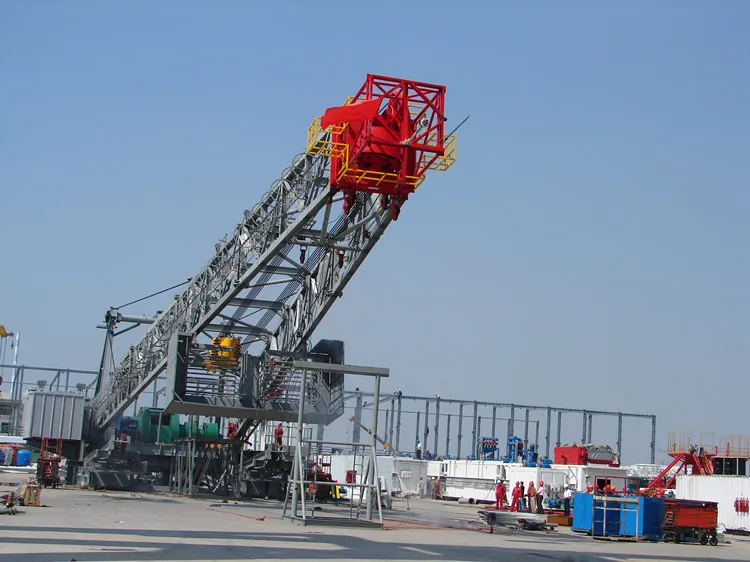

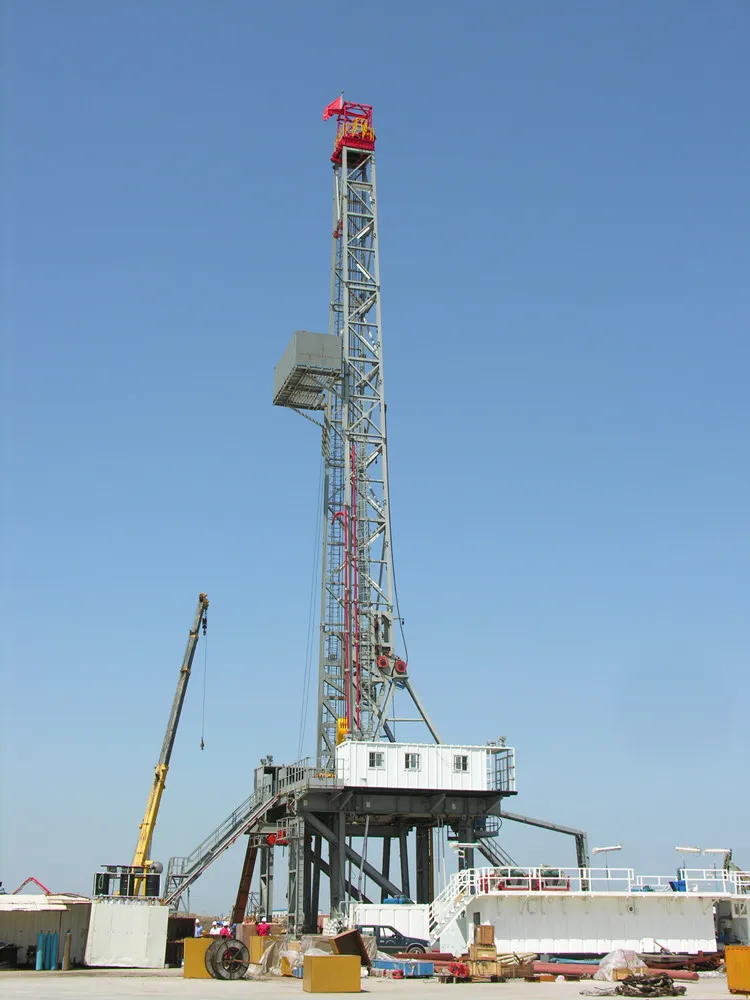

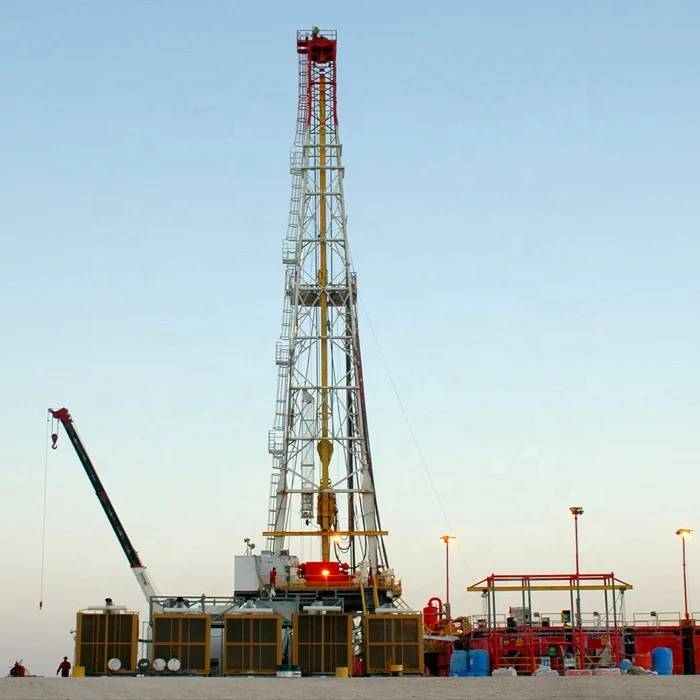

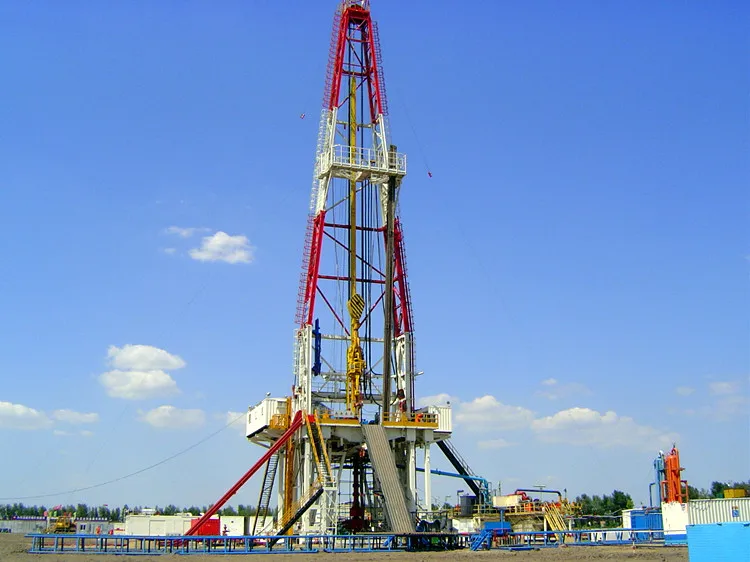

Rig installation and commissioning
