Product Overview
Description
Product Description

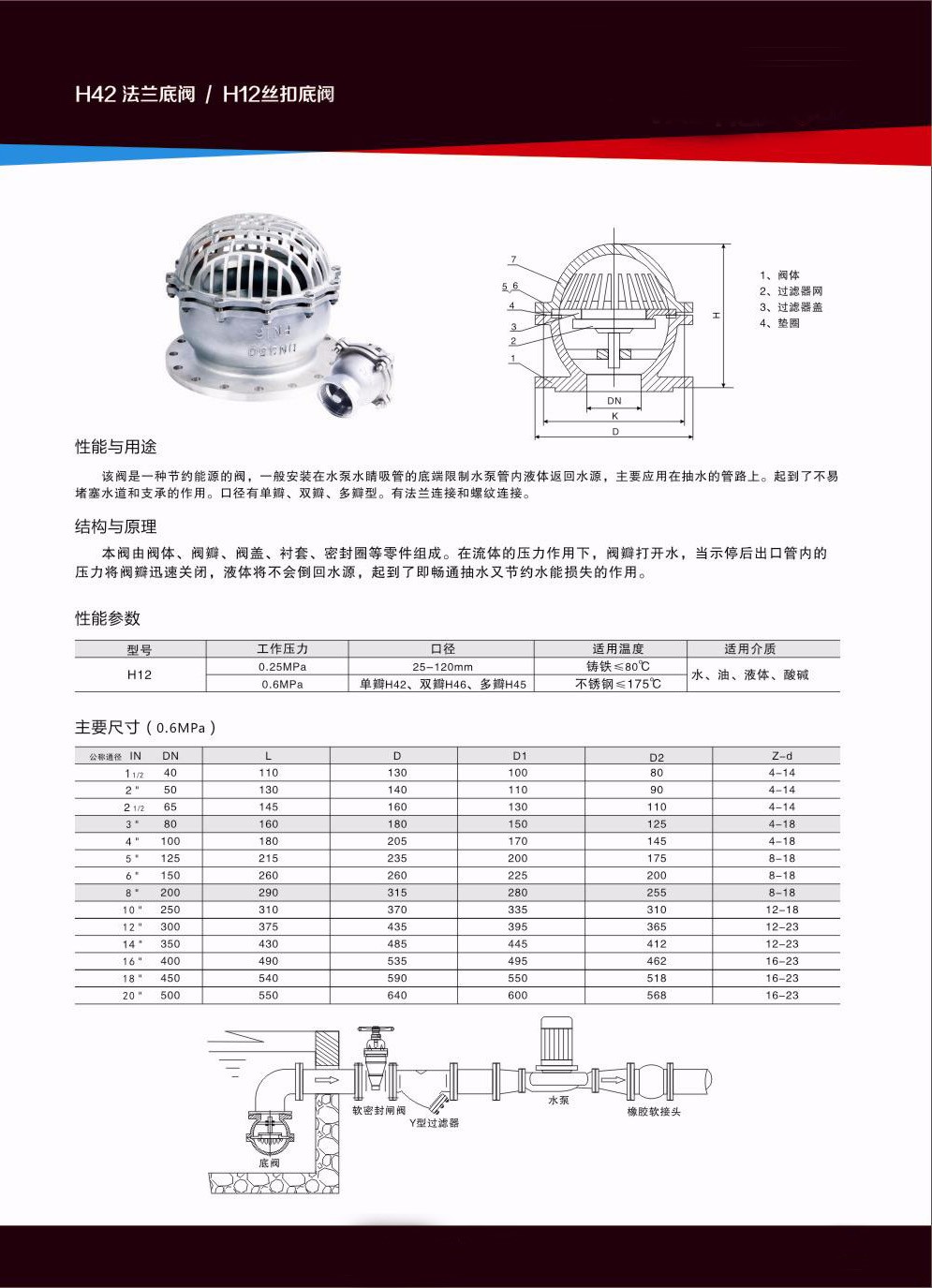

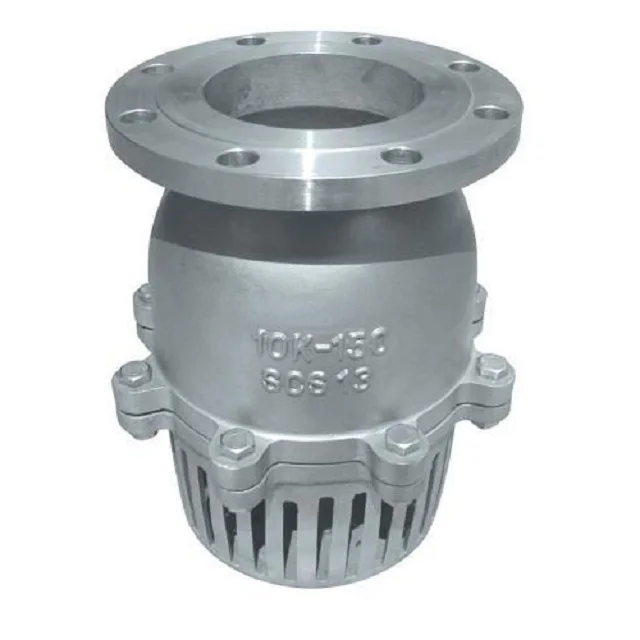

Foot valve is a kind of energy-saving valve, usually installed at the bottom of pump suction pipe, to prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs in the valve cover, so the pipe will not be easily clogged up.
Foot valve consists of bonnet, disc, bush, seal-ring, etc. Water enter into the valve body through bonnet. Under the influence of flow pressure, disc will be opened. When stop, pressure in the outlet pipe will close the disc instantly, water will not flow back to water source. It effects the functions of smooth pumping and saves water loss.
Product Name | Foot valve ,bottom valve |
Material | stainless steel CF8 CF8M CF3 CF3M F304 F316etc |
End Connection | RF ,FF ,RTJ flanged end ,NPT ,BSP,SW/ BW welded end |
Standard | GB |
Pressure Grade | 0.6Mpa-1.6 Mpa ;2.5Mpa 150LB |
Brade | APIRT |
Working temperature | Working temperature-29~425℃ WCB -40~500℃ SS |
Used Medium | Water,Oil,Gas,Niric Acid ,etc |
Products Show
Our Service
API gate valve
The structure designs tightly packed reasonable, shape beauty.
High quality
Position by the valve stem threads are divided into clear shot valve and the dark bar gate two. This type valve in the pipe should normally be installed horizontally.
High quality
API gate valve : Inspection and Test: API 598
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Contact Us:
Our Certifications
Professional manufacture for API VALVES;
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

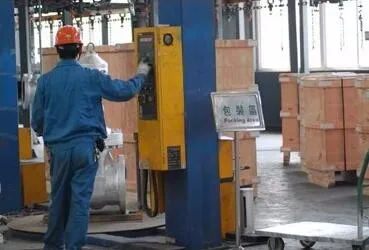

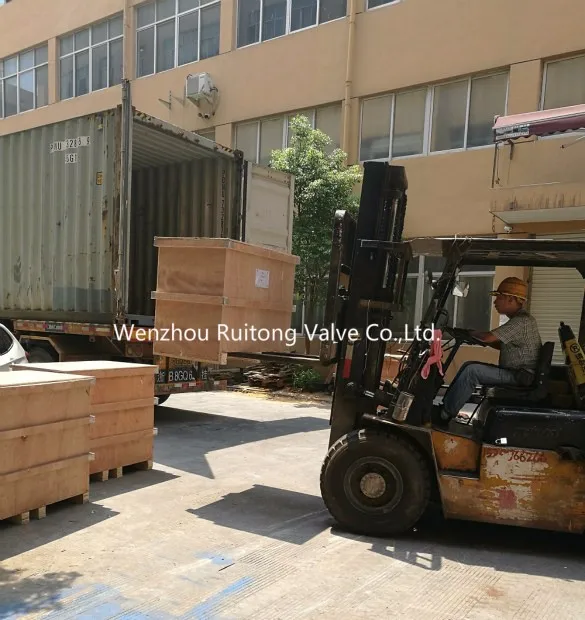

Packing & Delivery
Packing Details : Use plywood case to package all valves.
Delivery Details : 3-30 days after order of API flanged gate valve
Ruitong Packing
We psusuit every detail perfect,casting high quality valves.The handle wheel is epoxy coating spray paint.The valve handle.Use plywood case to package all API Gate valves.
Favorable Comment
RUITONG VALVE is one of the professional Gate Valve Manufacturer in china.. We supplies :Cast Steel Gate Valve、Forged Steel Gate Valve, Resilient seated gate valve, Flanged End Gate Valve etc, We can manufacture and supply Gate Valves according to your requirements, please contact us !
Favorable Comment
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
