2020 High Speed Customized Super low Altitude Injection Robot
- Category: >>>
- Supplier: Zhuhai Kowey Precision Machinery Co. Ltd.
Share on (62559158661):
Product Overview
Description
Product Description

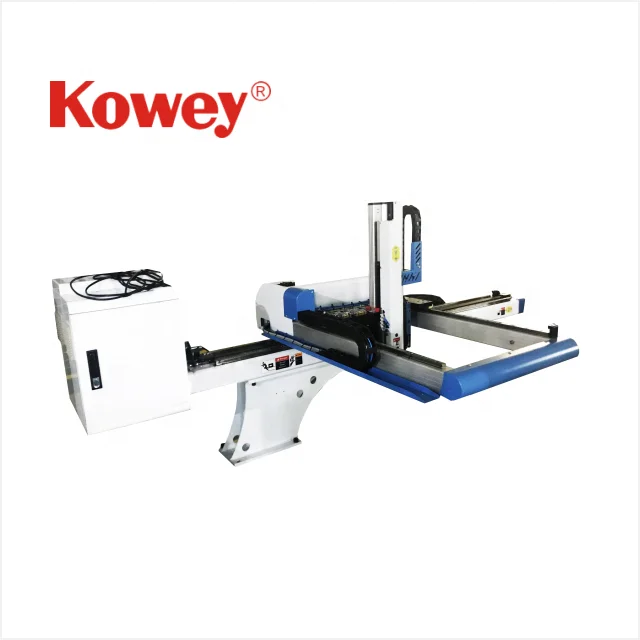

2021 High Speed Customized Super-low-Altitude Injection Robot(Mainly suitable for the low height space room factory)
| Supply capacity | one phase AC220V 50HZ |
| Work air pressure | 5-7kdf/cm² |
| Driven method | servo motor for XYZ axis |
| Crosswise stroke for X axis(mm) | 420; as requested |
| Vertical stroke for Y axis(mm) | 900; as requested |
| Traverse stroke for Z axis(mm) | 1280; as requested |
| Arm type | Telescopic |
| Max load(KG)(with fixture) | 5.5 |
| Min take-out time(sec) | 0.65 |
| Full cycle time(without fixture)(sec) | 2.8 |
| Air consumption(NL/cycle) | 1.8 |
| X,Y,Z average Speed(when max load) | 1000mm/S |
| Tooling head structure | Single with diameter 32mm pneumatic |
| Control system | HC |
| Operation Screen | Touchable Screen |
| Positioning and repeatability | ±0.05mm |
| Connecting Standard | Kowey Industrial Standard |
| Net weight(KGS) | 252 |
| Package size(mm) | L2440*W1220*H1350 |
