1ge 1fe LAN PORTS telephone ports CATV WIFI GPON ONT XPON ONU FTTH RF output port compatible analog ONU CATV WIFI
- Category: >>>
- Supplier: APT Prosper Technology Co. Ltd
Share on (62559259228):
Product Overview
Description
Product Description

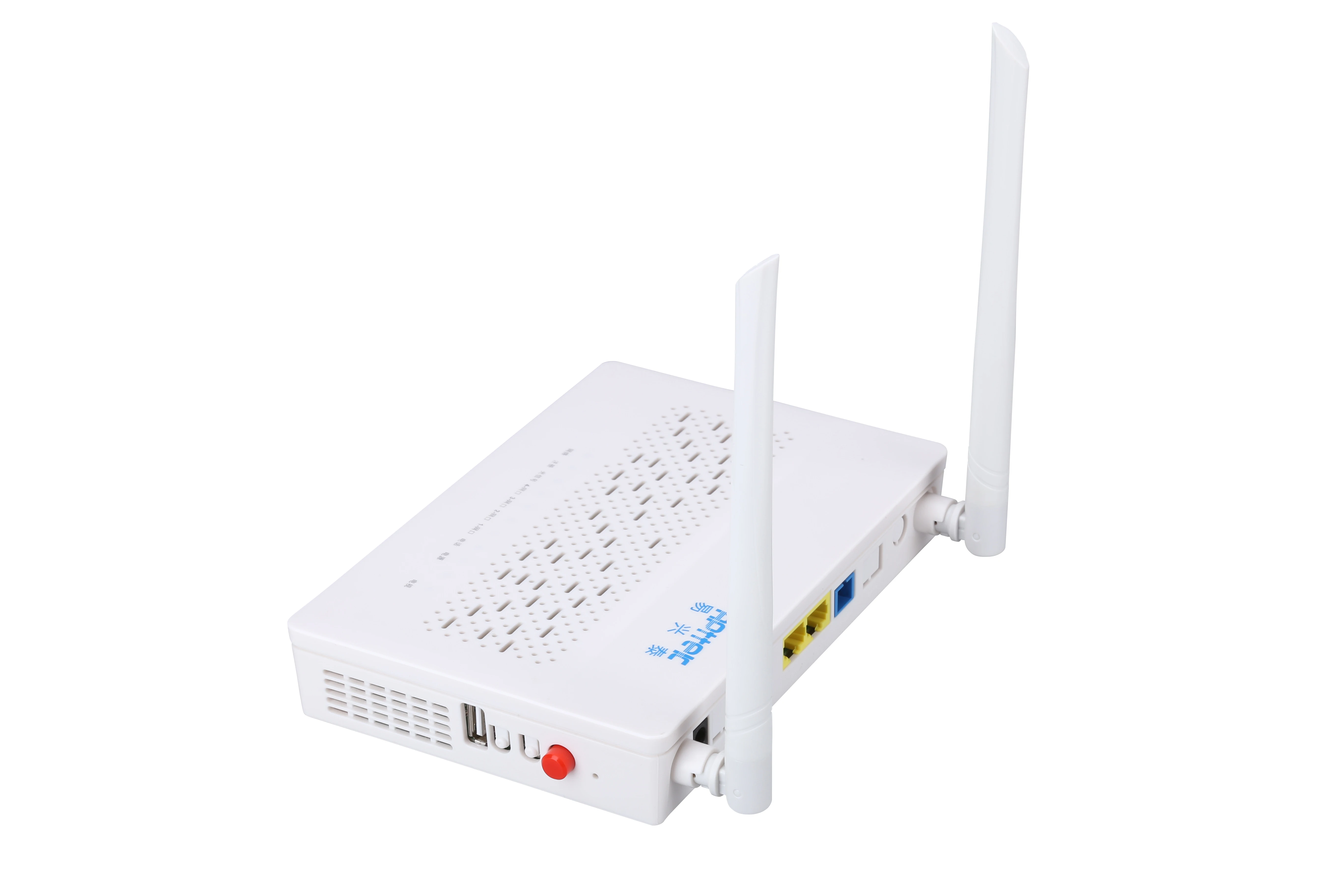

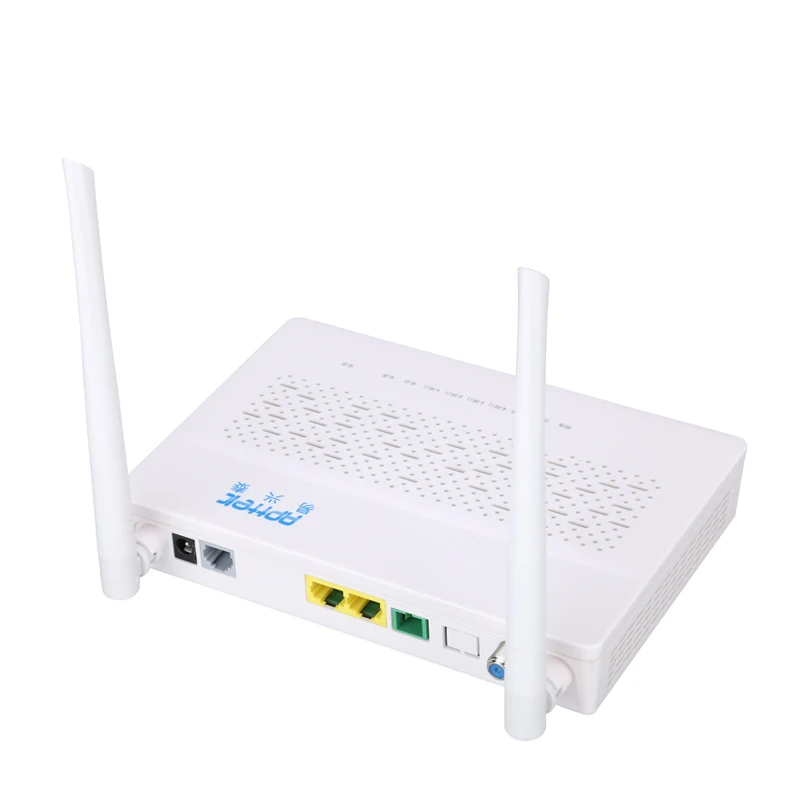

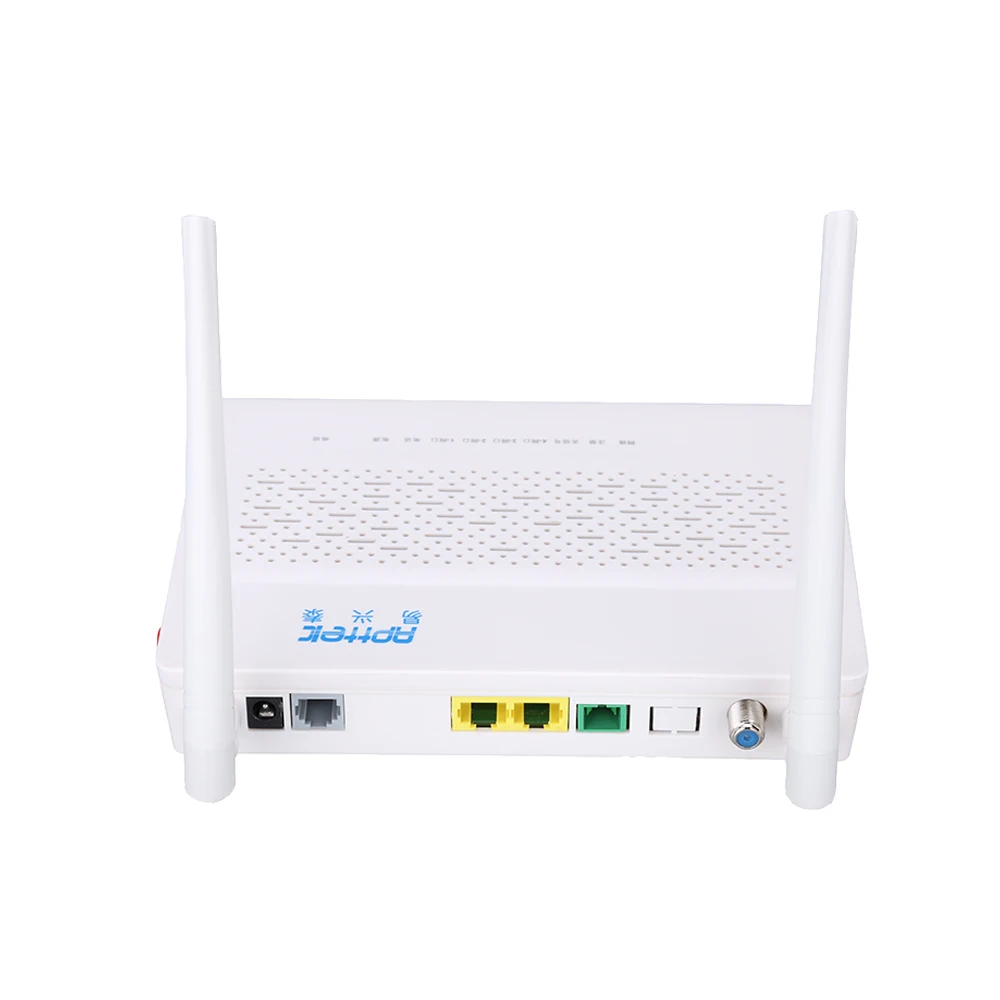

1ge +1fe LAN PORTS telephone ports CATV WIFI GPON ONT XPON ONU FTTH RF output port compatible analog ONU CATV WIFI
XPON ONU 1GE+1FE+POTS+2.4GWIFI+CATV
Remark: When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode
EPON Mode Features:
1. Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement
2. Support bidirectional FEC
3. Support downlink triple churning
4.Support AES128 decryption function
5. ONU discovery and registration process implemented by Pure hardware
6. Support the report of the CTC requirement
7. Support Dying-Gasp check and report
8. Support OAM remote management
9. Support VLAN function
10. Operation mode:SFU or HGU option
11. Support TR069,NAT,DMZ,DNS features
12. Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
13. Support IP,MAC Filtering,Firewall Functionality in routed mode
14. Good interworkingwith the OLT from different manufacturers,such as
Broadcom,ZTE,Cortina etc
2. Support bidirectional FEC
3. Support downlink triple churning
4.Support AES128 decryption function
5. ONU discovery and registration process implemented by Pure hardware
6. Support the report of the CTC requirement
7. Support Dying-Gasp check and report
8. Support OAM remote management
9. Support VLAN function
10. Operation mode:SFU or HGU option
11. Support TR069,NAT,DMZ,DNS features
12. Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
13. Support IP,MAC Filtering,Firewall Functionality in routed mode
14. Good interworkingwith the OLT from different manufacturers,such as
Broadcom,ZTE,Cortina etc
Gpon Mode Features:
1.Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
2. Support bidirectional FEC and RS(255,239) FEC CODEC
3. Support 32 TCONT and 256 GEMPORT
4. Support AES128 decryption function of G.984 standard
5. Support SBA and DBA dynamically broadband allocation
6. Support the PLOAM function of G.984 standard
7. Support Dying-Gasp check and report
8. Support synchronous Ethernet
9. Support the rogue ONU alarm function
10. Support multiple VLAN function
11. Operation mode:SFU or HGU option
12.Support TR069,NAT,DMZ,DNS features
13. Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
14.Support IP,MAC Filtering,Firewall Functionality in routed mode
15. Good interworking with the OLT from different manufacturers
2. Support bidirectional FEC and RS(255,239) FEC CODEC
3. Support 32 TCONT and 256 GEMPORT
4. Support AES128 decryption function of G.984 standard
5. Support SBA and DBA dynamically broadband allocation
6. Support the PLOAM function of G.984 standard
7. Support Dying-Gasp check and report
8. Support synchronous Ethernet
9. Support the rogue ONU alarm function
10. Support multiple VLAN function
11. Operation mode:SFU or HGU option
12.Support TR069,NAT,DMZ,DNS features
13. Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
14.Support IP,MAC Filtering,Firewall Functionality in routed mode
15. Good interworking with the OLT from different manufacturers
PON Quantity | 1PCS EPON PON Port | |||||
PON interface receiving rate | 1.25Gbits/s | |||||
PON interface Transmitting rate | 1.25 Gbits/s | |||||
Optical power | -1+(-)4 dBm | |||||
Sensitivity | -26 dBm | |||||
PON Quantity | 1PCS GPON PON Port | |||||
PON interface receiving rate | 2.488Gbits/s | |||||
PON interface Transmitting rate | 1.244Gbits/s | |||||
Optical power | 0-4 dBm | |||||
Sensitivity | -28 dBm | |||||
safety | ONU authentication mechanism | ||
Down-link interface | Fiber type | Single mode single fiber, max 20km | |
Wavelength(nm) | TX 1310nm,RX 1490nm | ||
Fiber Port | SC/PC SC/UPC SC/APC | ||
Ethernet Port | 1pcs 10/100/1000M with auto-negotiation 1pcs 10/100M with auto-negotiation | ||
Ethernet Port | 4PCS*10/100/1000M with auto-negotiation | ||
POTS (Telephone) | 1 pcs POTS (Telephone) Ports | ||
CATV | CATV interface: SC/APC dual fibers,without WDM | ||
CATV | NO CATV interface: single fiber ,with WDM | ||
RF interface | Type-F, diameter of thread is 9.3mm or 9.7mm | ||
WIFI | Dual-band antennas,external antenna, support 2.4G | ||
USB interface | 1pcs USB2.0 interface | ||
WPS Function | Support | ||
Power Supply | 12V 1A | ||
Power | ≤5W | ||
Operating temperature | -5~+55℃ | ||
Humidity | 10~85%(non-condensation) | ||
Storage temperature | -30~+60℃ | ||
WIFI Technical features | ||||||||
2.4G | ||||||||
Standard | IEEE802.11b/g/n | |||||||
Frequency | 2.4~2.4835GHz | |||||||
Transmission speed | 2.4GHz Frequency: IEEE 802.11b :max11Mbps IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps | |||||||
Channel number | 2.4GHz :13 | |||||||
Spread-spectrum Technique | DSSS(Direct sequence spread spectrum) | |||||||
Data Modulation | DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM | |||||||
Multiple encryption methods | WFA,WPA,WPA2,WAPI | |||||||
Antenna | 2T2R Mode External antenna 5DBI Gain per pcs Su MIMO:2*2 | |||||||
WPS function | Support | |||||||
VOIP Technical features
* Support SIP voice protocol
* Support H.248 voice protocol
* Port ringing current voltage: 50±10VAC
* Port type: RJ11
* Support T38 and fax
* Support G.711A-law/u-law,G729,G722 coding/decoder technology.
* Support H.248 voice protocol
* Port ringing current voltage: 50±10VAC
* Port type: RJ11
* Support T38 and fax
* Support G.711A-law/u-law,G729,G722 coding/decoder technology.
CATV Technical features | ||||||||
Technology Features | Description | |||||||
Optical wavelength | 1100~1650nm(Dual Fiber,NO PWDM) 1540~1560nm(Single Fiber,internal PWDM component) | |||||||
Optical input Range | 0~-15 DBm | |||||||
Optical Return loss | >45DB | |||||||
RF bandwidth range | 40MHz ~ 1000MHz; | |||||||
Flatness | ±1.5BD | |||||||
RF output level | The default≈75±5dBuV@155MHZ | |||||||
AGC Control range | 0 ~ (-14)BD | |||||||
RF Output return loss | ≥14 DB | |||||||
Output impedance | 75Ω | |||||||
MER | Regulation accuracy：±1DB | |||||||
CNR | ≥43 DB | |||||||
CTB | ≥54 DB | |||||||
CSO | ≥54 DB | |||||||
