FDD/TDD: Up to 150Mbps DL; Up to 50Mbps UL WCDMA: HSDPA up to 42.2Mbps DL; HSUPA up to 11.5Mbps UL EVDO: 3.1Mbps DL
Wi-Fi Chipset
MT6625L
Wi-Fi
IEEE 802.11b/g/n
Wi-Fi Transfer rate
up to 150Mbps
Encryption
Wi-Fi Protected Access™ (WPA/WPA2)2
WIFI type
2.4G
Antenna
2.4G External antenna *2, Main LTE antenna( diversity antenna internal)*1

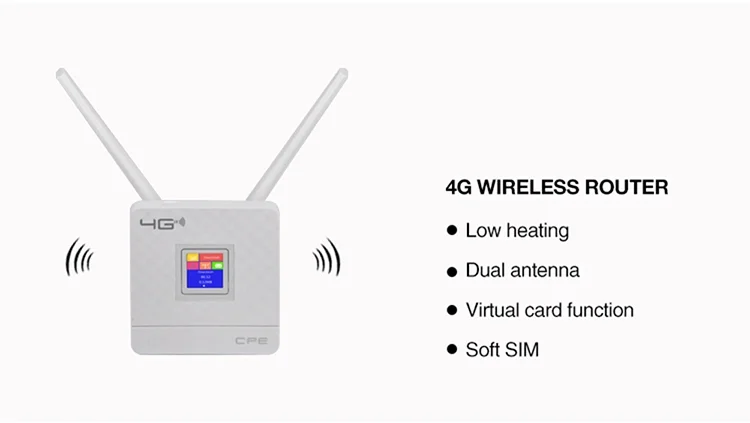

Special function
Virtual card
4G+2G
Soft SIM
esim or softsim
Customization
Smart system, strong customization ability
Display
LCD
Color display
LED
LED

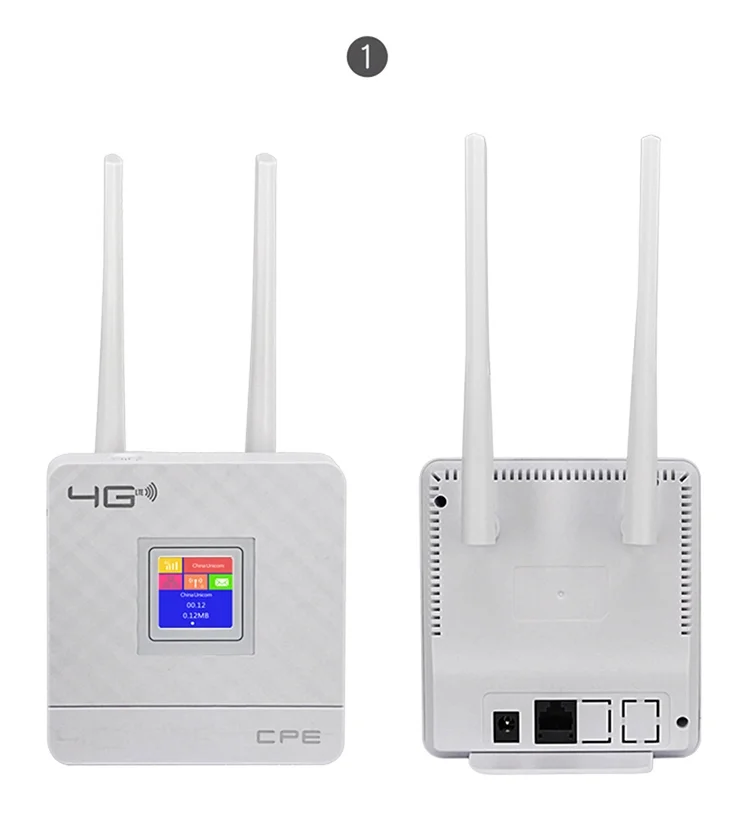

Port
On/off button
1 power

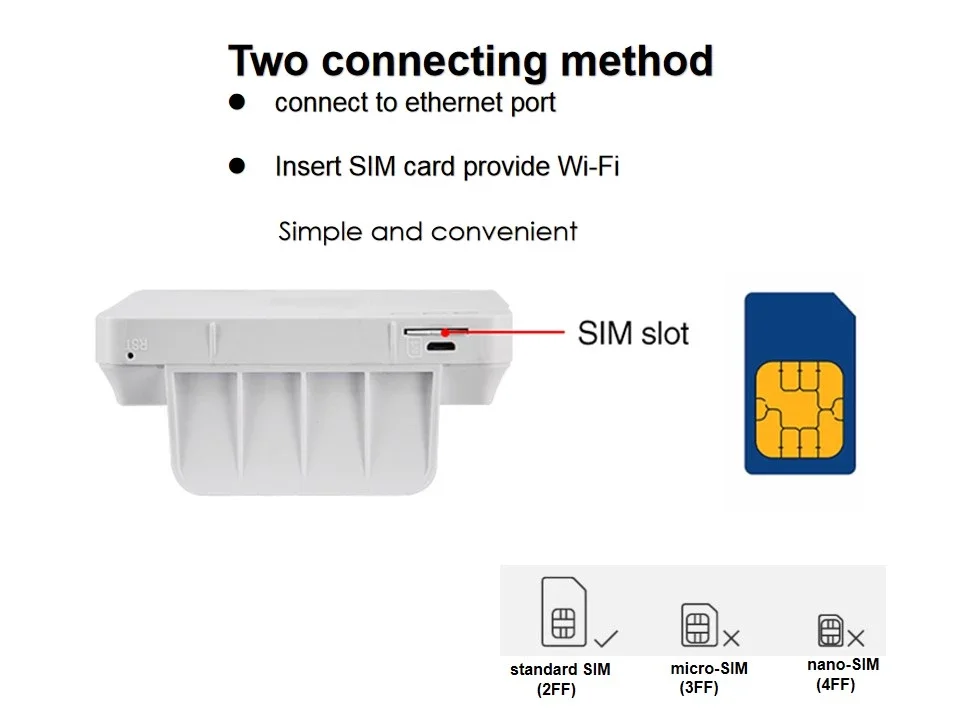

SIM
2 SIM
USB
USB TYPE A (5V 1A IN)
DC
12V 1A IN
RJ45
1* WAN/LAN
Internet
Wi-Fi
Wi-Fi AP, Max 10 users (up to 20 users if add RAM)
SSID
4GCPE-XXXX(last 4 digits of the MAC address)
WIF password by default
1234567890
Operating Environment
Working temperature
0° - 35°C (32°F - 95°F)
Working height
Current tested max height 3000m (10,000 inches)
Operation system
PC Users:A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 MAC Users:A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later Android Uers: A mobile Phone or Tablet PC with Android 2.3 or later
Operation Browser
Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari and above
Password:admin ( passord modification reqested to done at first loging as default setting Language(Chinese/English)
Status
Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users
Networks
APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore defaulf APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set.
Wifi
WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet.
Ethernet mode
System Manage
Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact
SMS Management
SMS create, delete, send
OTHER
SIM lock
SIM card lock/unlock
SIM card compatibility
China Unicom, China Telecom, China Mobile and other 4G SIM cards
