MRL Type Passsenger Elevator

Product Overview

Description

Specifications:

MRL Type Passsenger Elevator

1.Load capacity: 450 - 1600 kg
2.Rated speed: 1.0 - 2.0 m/s

3.With or without machine room

4.VVVF drive



1. MRL Type Passsenger Elevator Specifications

Loading capacity	Rated speed	Door opening size	Door open type	Car size	Hoistway size
(Passengers)		(W x H)mm		(A x B)mm	(AH x BH)mm	Pit	OH
450kg	1.0	800x2100	Center	1400x850	2000x1550	1500	4500
6 passengers	1.5 1.75					1600
630kg	1.0	800x2100	Center	1400x1100	2000x1750	1500	4500
8 passengers	1.5 1.75					1600
800kg	1.0	800x2100	Center	1400x1350	2000x2000	1500	4500
10 passengers	1.5 1.75					1600
1000kg	1.0	900x2100	Center	1600x1400	2200x2150	1500	4500
13 passengers	1.5 1.75					1600
1250kg	1.0	1100x2100	Center	2000x1400	2600x2150	1500	4500
16 passengers	1.5 1.75					1600	4700
1350kg	1.0	1100x2100	Center	2000x1500	2600x2250	1500	4500
18 passengers	1.5 1.75					1600	4700
1600kg	1.0	1100x2100	Center	2000x1750	2600x2500	1500	4500
21 passengers	1.5 1.75					1600	4700

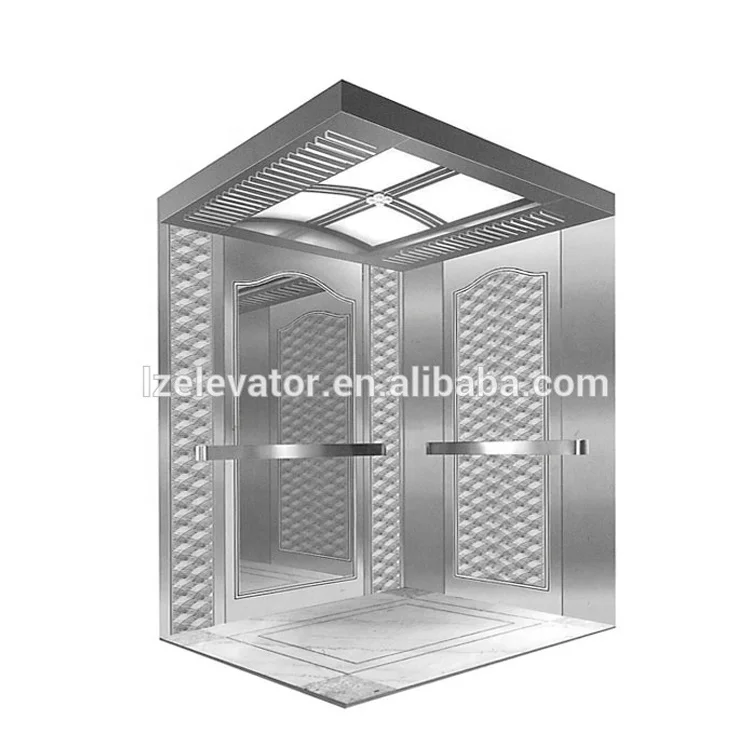

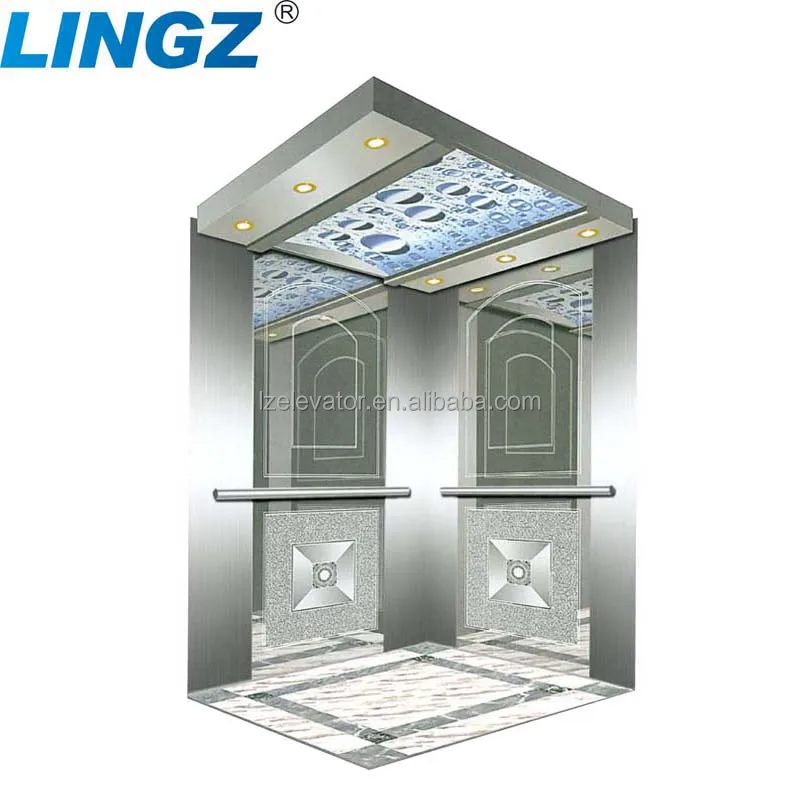

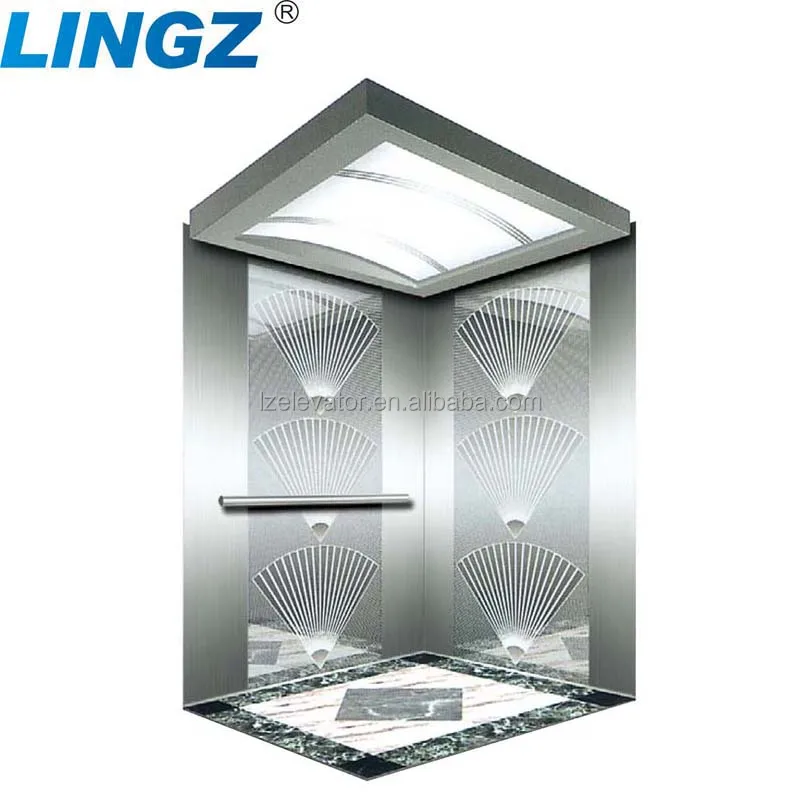

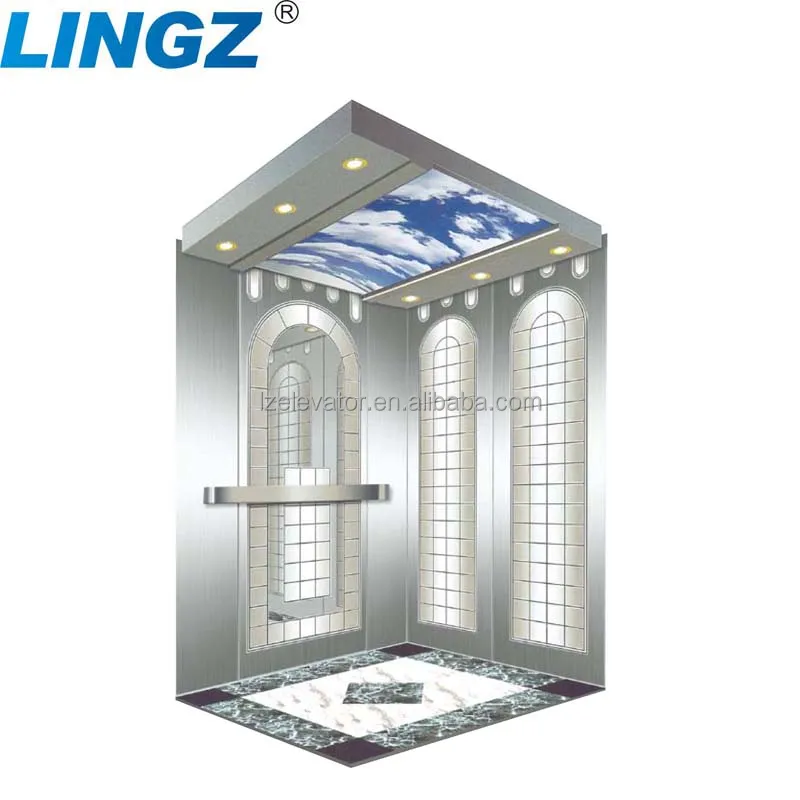

3. Car optional



4. Production process

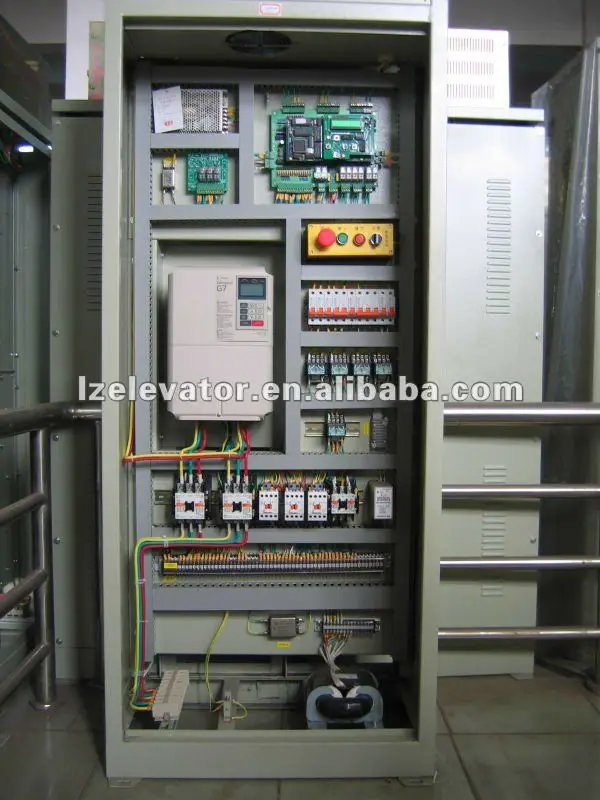

5.Elevator Integrated Controller

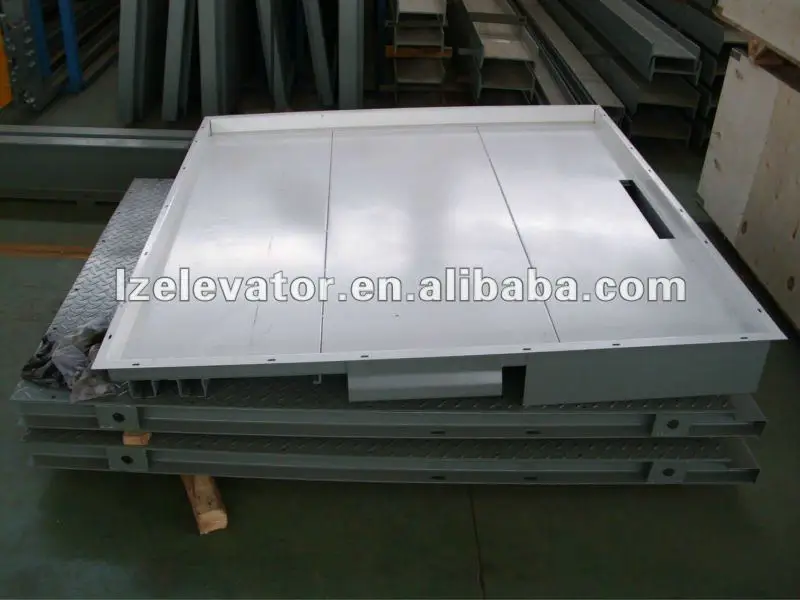

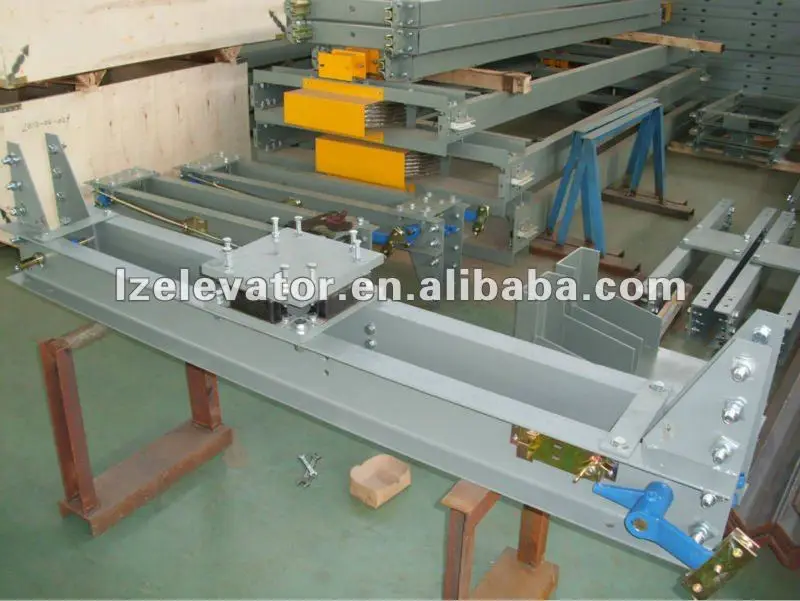

6.Elevator Parts



7. The Advantages of Our Factory



(1)Our products
Our products with National standard quality
Competitive price with excellent quality
A great variety of different models to meet customer requirements
Exported to Southeast Asia, Africa, Europe and other regions

(2)Our company

A full-service system integrating manufacture, distribution, repair service and domestic &  International trade
Our service is as close as your phone
Customer satisfaction is our highest pursuit

(3)Our team
Highly trained team members with rich working experience
Response quickly with effective information within 12 hours
Provide timely professional technical support service
Not only to sell but to solve customers’ problems
Considerate after-sale service





PLS CONTACT US!
