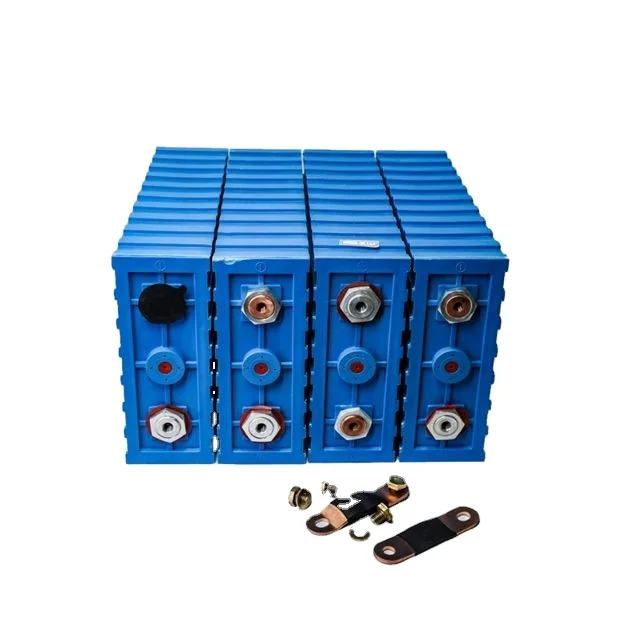

Prismatic LiFePO4 li ion Battery Cell
- Category: >>>
- Supplier: Shanghai Ximeng New Material Technology Co. Ltd.
Share on (62559547475):
Product Overview
Description
Original A Grade 3.2V 100AH 180AH 200AH Lithium ion Battery
Ensure Grade A NEW quality, welcome to consult!
Product Description
Cell Dimensions
3.2V 100AH Dimensions
3.2V 180AH Dimensions
3.2V 200AH Dimensions
Technical Parameters
No. | Items | Parameter | ||||||
1 | Type | LFP | LFP | LFP | ||||
2 | Nominal Capacity | 100Ah | 180AH | 200AH | ||||
3 | Minimal Capacity | 100Ah | 180AH | 200AH | ||||
4 | Work Voltage | 2.5~3.65V | 2.5~3.65V | Plastic | ||||
5 | Internal Resistance（Ac. 1kHz） | 0.1~0.6mΩ | 0.1~0.5mΩ | 0.1~0.5mΩ | ||||
6 | Charging Time | Standard Charge | ~4h | ~4h | ~4h | |||
7 | Fast Charge | ~1h | ~1h | ~4h | ||||
8 | Recommended SOC Window | SOC ：10%~90% | ||||||
9 | Operating Temperature | Charging Temperature | 0~45°C | |||||
10 | Discharging Temperature | -20~55°C | ||||||
11 | Maximum Constant Discharging Current | 100A | 180A | 200A | ||||
12 | Maximum Pulse Discharging Current （Long Pulse） | 200A | 360A | 400A | ||||
13 | Maximum Pulse Discharging Current （Short Pulse） | 300A | 540A | 600A | ||||
14 | Weight | 3.3±0.2 kg | 5.6±0.1kg | 5.7±0.3kg | ||||
15 | Shell Material | Plastic | Plastic | Plastic | ||||

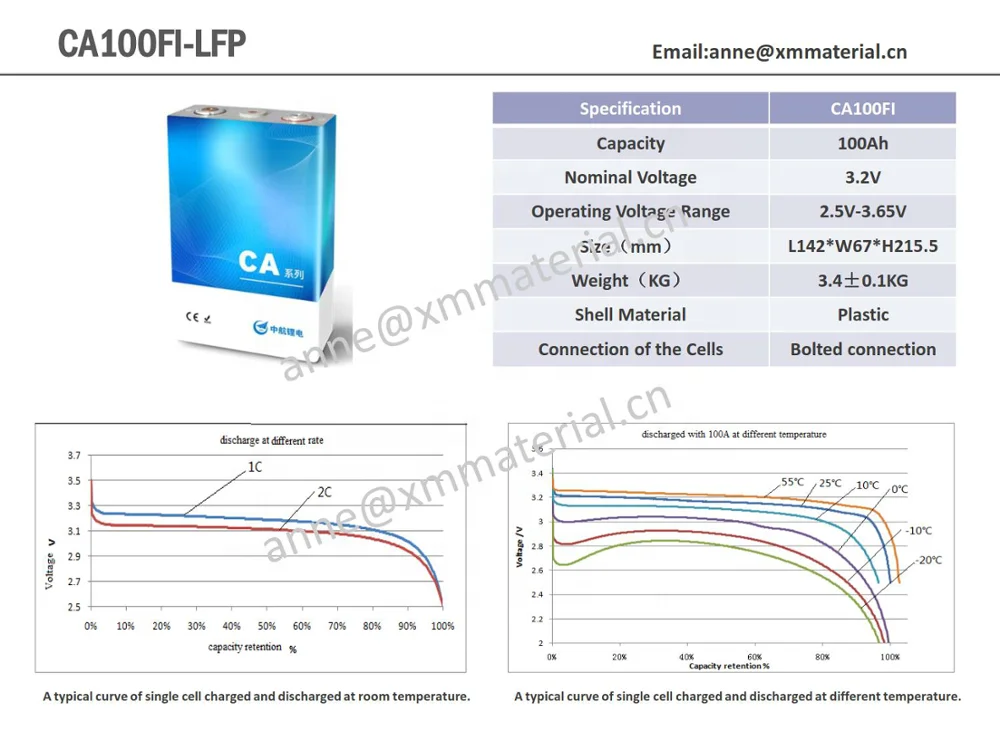

Discharge curve of CA100 at room temperature
Discharge curves of CA100 at different temperatures

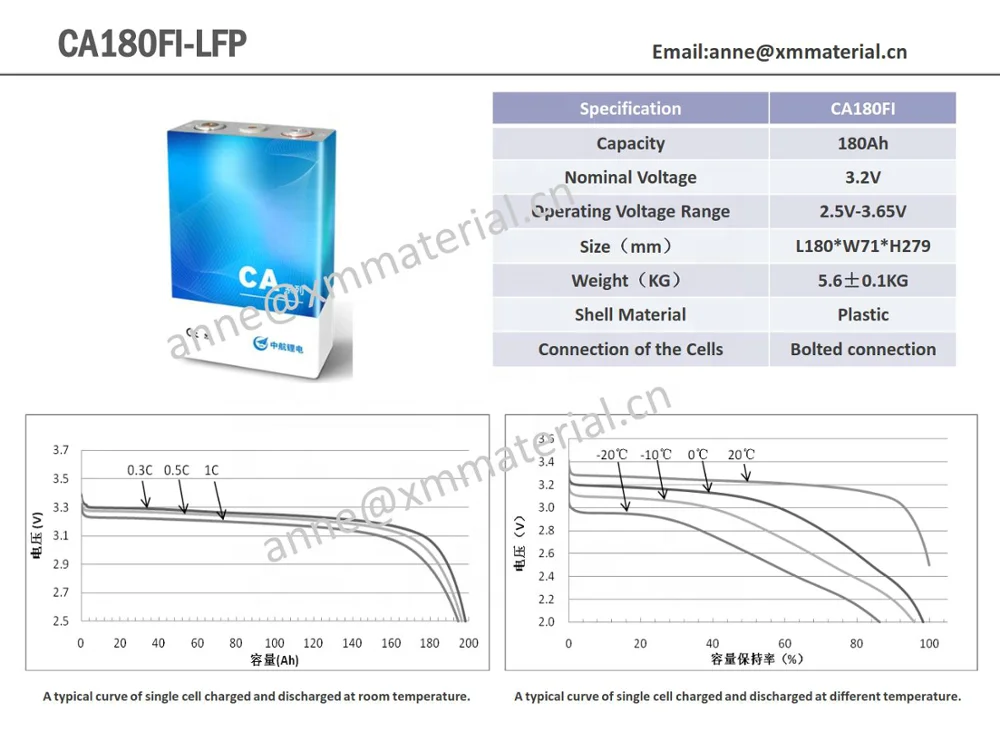

Discharge curve of CA180 at room temperature
Discharge curves of CA180 at different temperatures

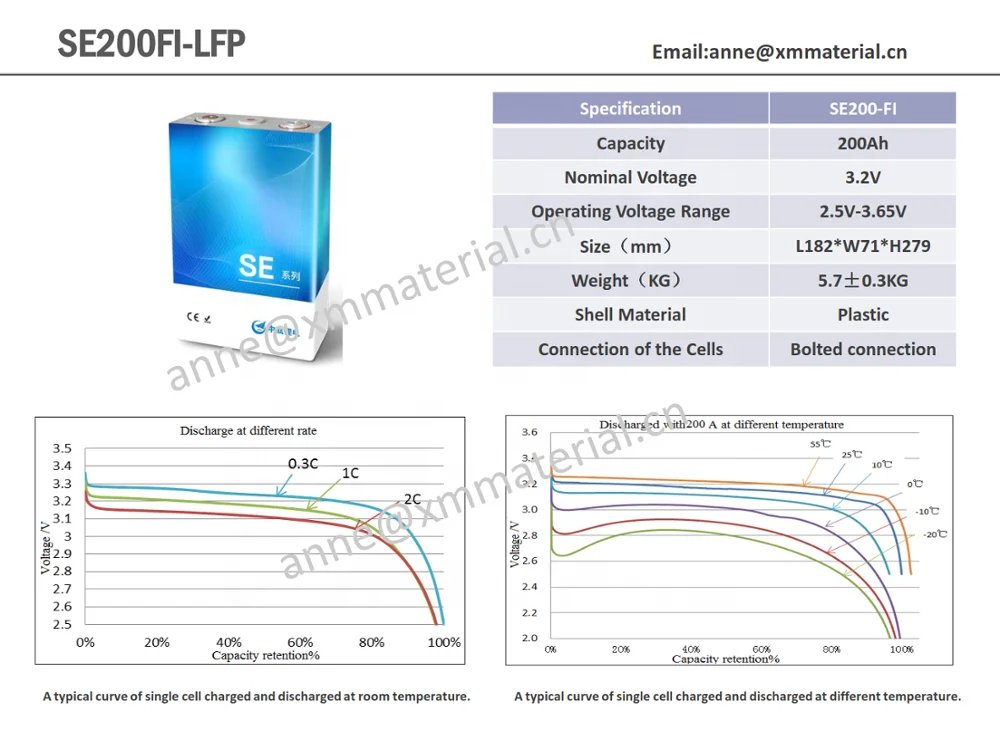

Discharge curve of SE200 at room temperature
Discharge curves of CA180 at different temperatures
Application
\t\t\t\t\t\t\t\t\tCertificate for LiB \t\t\t\t\t\t\t
Packing & Delivery
Packing:5ps/Box
Transport
FAQ for LiB
No.1 | Q: Can you guarantee the quality with such a low price? A: We have signed a long-term strategic cooperation agreement with battery manufacturers. All the prices are the lowest in the market, and cell consistency is good. We buy a lot at one time, so the price is very competitive. | ||||
No.2 | Q: Can you provide inspection report when delivery? A: We can provide the manufacturer's test report and the original purchase contract. | ||||
No.3 | Q: How do you transport lithium batteries? A: We have professional freight forwarding and export qualifications. We can ensure that the goods are received within 15-20 days after payment is received. | ||||
No.4 | Q: How are your batteries after sale? A: We have a 10-year R&D experience of professional and technical team, can remote guidance or help customers solve problems on the spot. | ||||
No.5 | Q: What's the MOQ for lithium batteries? A:We Support small order as one piece. | ||||
