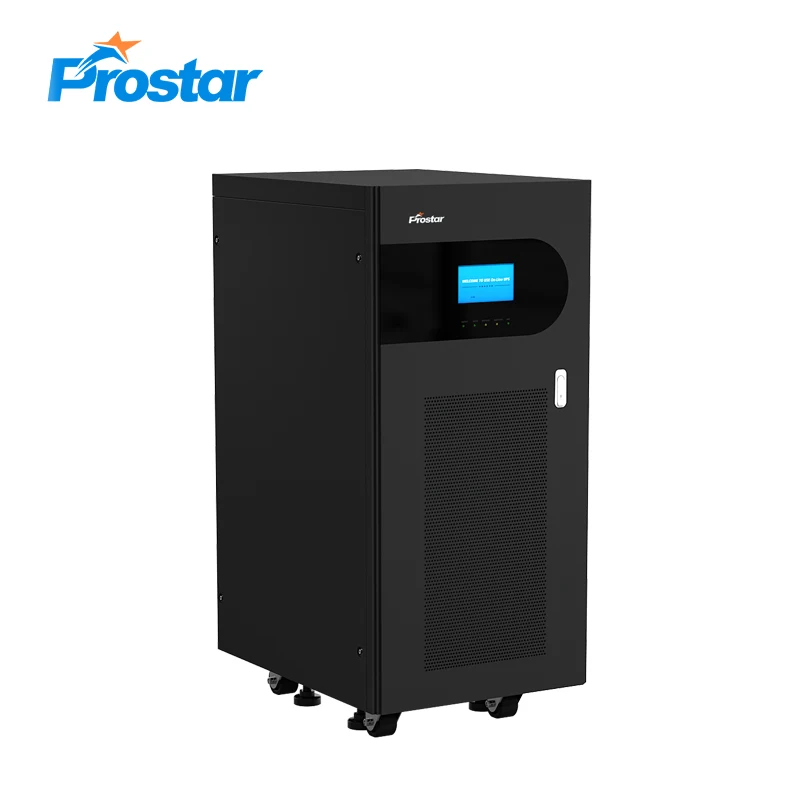

Prostar GT60K 3 phase industrial uninterrupted power supply 60kva ups
- Category: >>>
- Supplier: Guangdong Prostar New Energy Technology Co. Ltd.
Share on (62559636152):
Product Overview
Description
Product Description
Product Name | 3 Phases Low Frequency Online UPS |
Model | GT60K |
Capacity | 60KVA/48KW |
Input Voltage | 380V±25% |
Output Voltage | 3 Phases 4 Wires and Ground, 380V±25% |
Battery Voltage | 384V |
Battery Type | Lead Acid Battery |
Prostar Low Frequency Online UPS
Prostar 60KVA/48KW Low Frequency Online UPS is adopting the technology , which combined with the world’s most advanced DSP digital control technology currently, and IGBT high frequency Pulse Width Modulation technique (PWM).Double-conversion online topology design makes the output frequency of UPS, which used for tracking, phase-locking, voltage regulator and filter out noise, interference from the power grid fluctuations in pure sine wave power supply, and make the UPS more comprehensive and perfectly protection for the users.
Product Paramenters
Model | GT60K | |
Capacity | 60KVA/48KW | |
UPS Efficiency | >95% | |
Noise | 48dB~54dB(Distance 1 Meter) | |

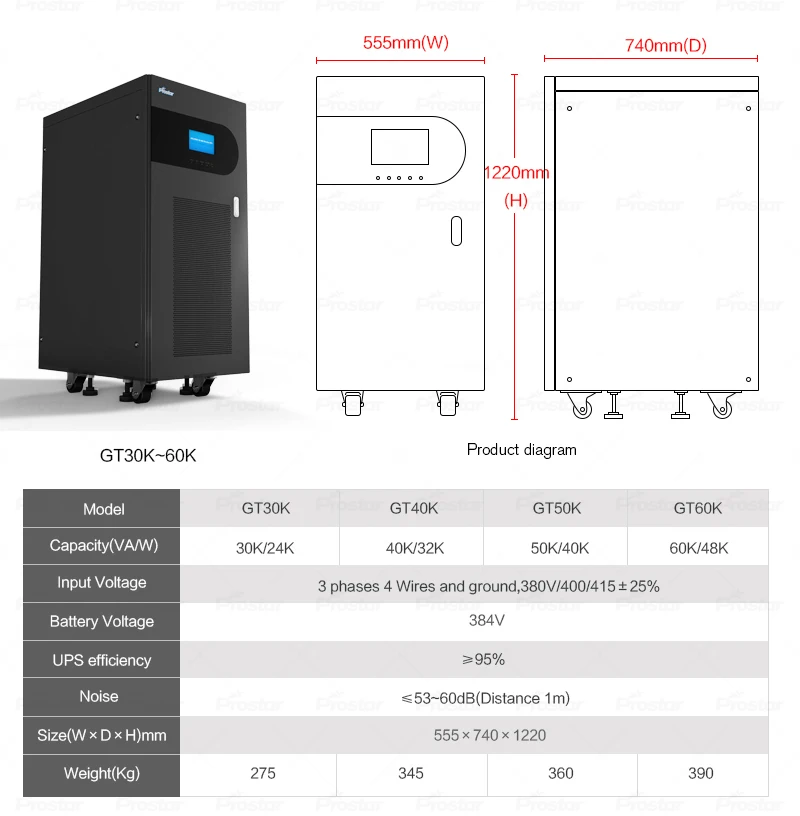

Dimension(WxDxH mm) | 555x740x1220 | |
Weight(Kgs) | 390 | |
INPUT | ||
Voltage | 3 Phases 4 Wires, 380Vac/400Vac/415Vac ± 25% | |
Frequency | 50Hz/60Hz±5% (Automaticly) | |
Power Factor | ≥0.95 | |
OUTPUT | ||
Voltage | 3 Phases 4 Wires, 380Vac/400Vac/415Vac ± 1% | |
Frequency | 50Hz/60Hz±0.05%(By Battery) | |
Harmonic Distortion | Linear load<3%, Non-linear load<5% | |
Imbalance Voltage | Balance load≤1%, Imbalance load≤3% | |
Phase Shif Angle | Balance load≤1°, Imbalance load≤2° | |
Transient Response | Output at 0~50%~100% ≤5%, response ≤ 10ms | |
Overload Capacity | 110%≥300Min, 125%≥10Min, 150%≥1Min | |
Crest Factor | 3:1 | |
Wave Form | Pure sine wave | |
Transfer Time | 0ms | |
BATTERY | ||
Type | Support VRLA Battery | |
D.C. Voltage | 384Vdc | |
Max. Charging Current | 0.2AxC10 | |
Charging Time(Standard) | 12hours | |
SYSTEM | ||
Protection | Input over-voltage, under-voltage; output overload, shortcircuit; Inverter over-temperature; Battery under-voltage,over-voltage | |
IP Protection | IP20 | |
Parallel Mode | N+1,N+X,can be in parallel with differenct power capacity | |
Software Interface | Windows9x,2000,NT,ME,XP,Linux,Novell,Macosx,NT4.0 | |
Meantime Between Failures | 300,000Hours | |
ENVIRONMENT | ||
Operating Temperature | 0℃ to 40℃ | |
Humidity | 0~95% (non-condensing) | |
Altitude | <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m | |
Storage Temperature | -15℃ to 50℃ | |
MANAGEMENT | ||
Communication Interface | RS232/RS485 | |
Remote Signaling | Dry contact (battery low,battery discharging,bapass/fault),EPO | |
Remote Control | EPO and bypass | |
SNMP | Power managemetn from SNMP manager and web browser | |
Optional | Dustproof & dampproof, Isolating inverter transformer, lightning surge absorption, static switches, manual maintainence switch | |
