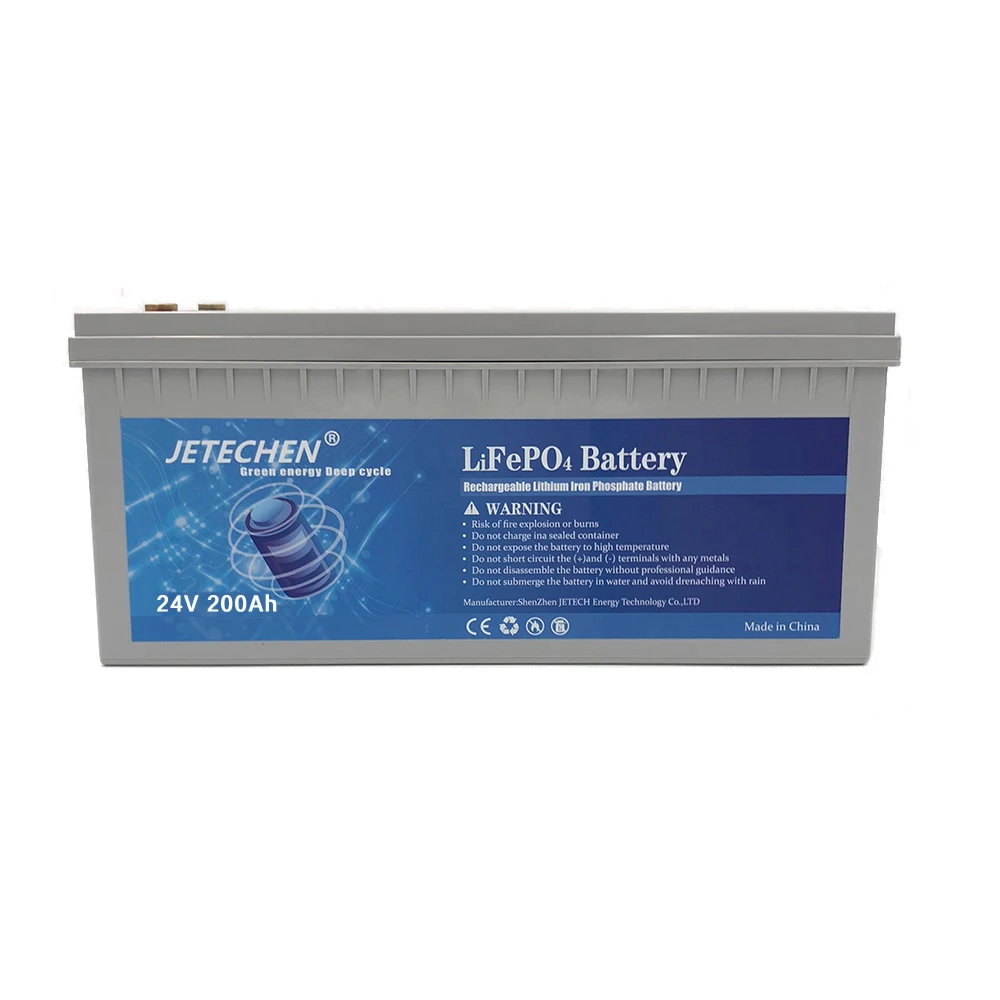

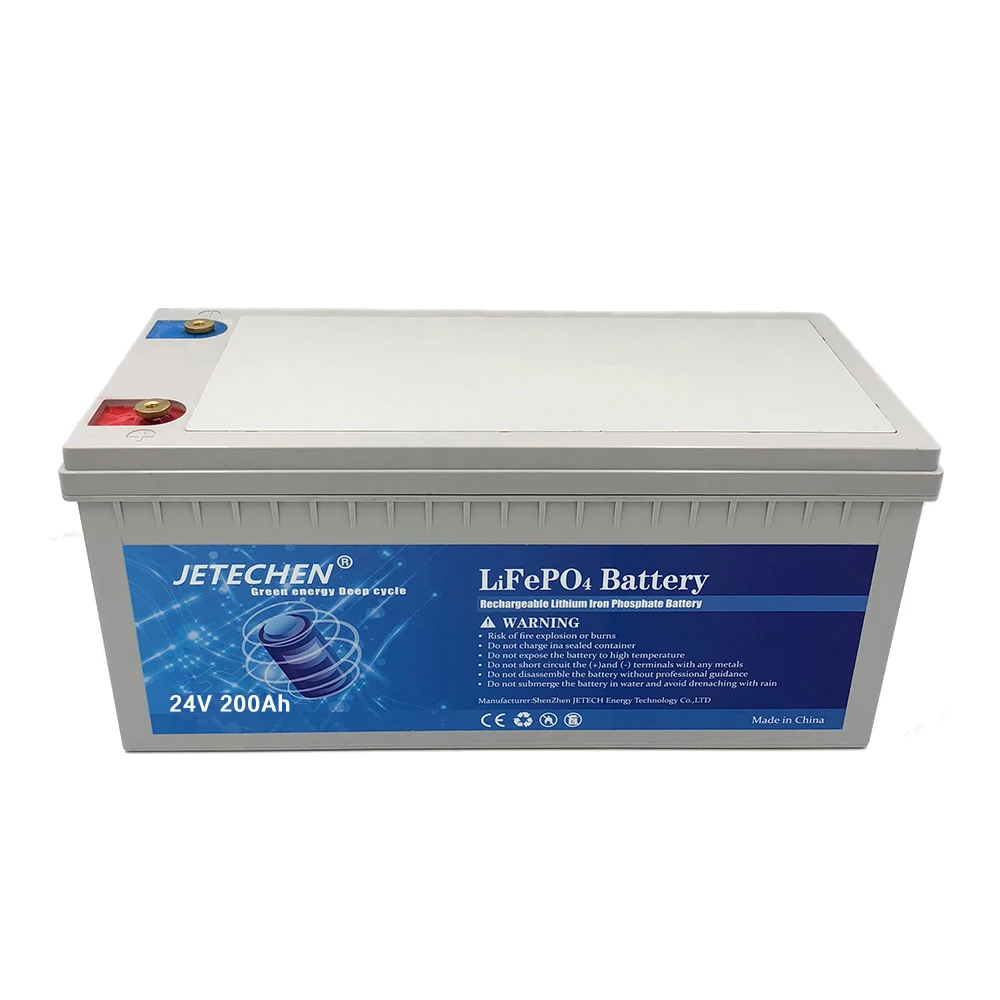

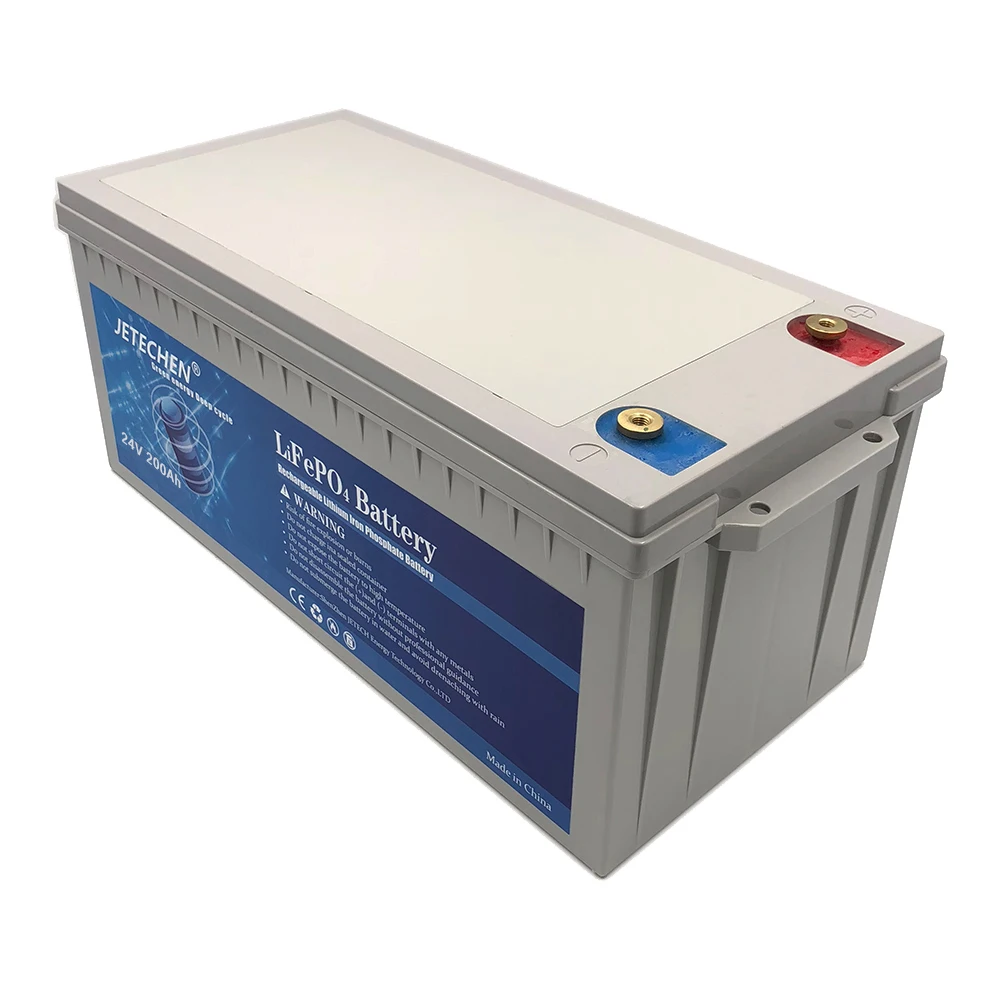

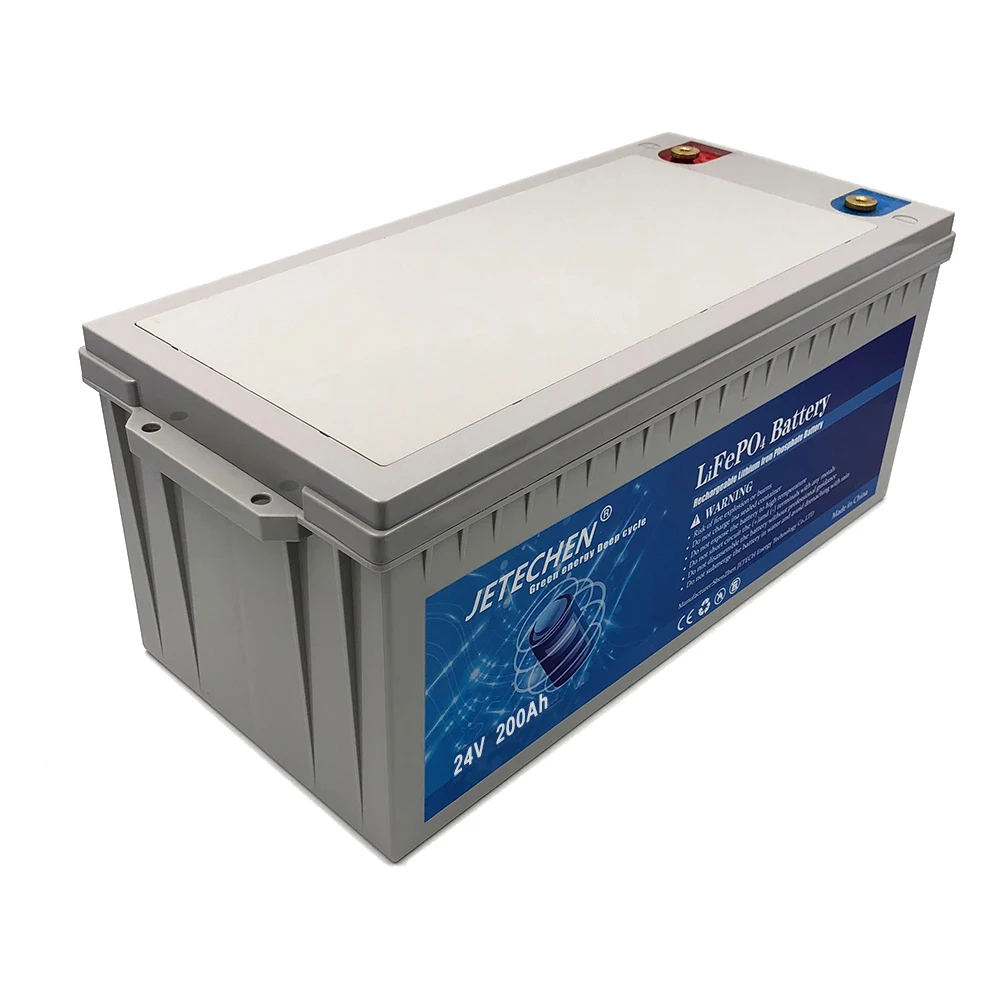

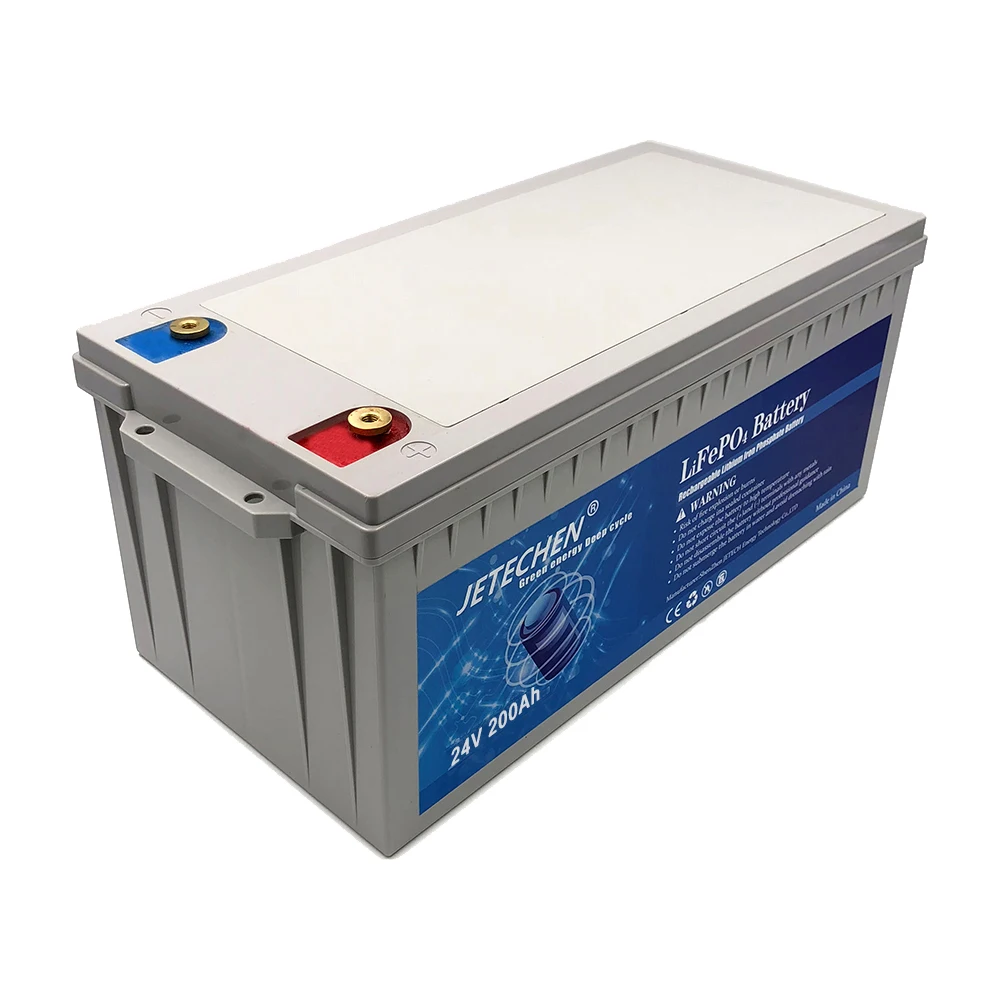

factory outlet lifepo4 24v 200ah emergency storage battery for telecom tower(50ah 100ah)
- Category: >>>
- Supplier: Shenzhen Jiatai Energy Technology Co. Ltd.
Share on (62559898121):
Product Overview
Description
Description 24V200Ah
| NO | Items | MODEL : JT-ESS-24200 | Remark |
| 1 | Cell Technology | LiFePO4 | lithium |
| 2 | Battery Module Energy (Wh) | 5120 | N/A |
| 3 | Battery Module Voltage (V) | 25.6 | N/A |
| 4 | Battery Module Capacity (Ah) | 200 | N/A |
| 5 | Charge Method | CC/CV | N/A |
| 6 | Battery Module Charge Voltage (Vdc) | 29.2 | N/A |
| 7 | Battery System Charge Current (Standard) | 40A | N/A |
| 8 | Battery Module Charge Current (Max) | 100A | N/A |
| 9 | Battery Module Discharge cut-off Voltage (Vdc) | 20V | N/A |
| 10 | Battery System Discharge Current (Standard) | 40A | N/A |
| 11 | Battery Module Discharge Current (Max) | 200A | N/A |
| 12 | AC Resistance | ≤100mΩ | N/A |
| 13 | Efficiency | 98% | N/A |
| 14 | Dimension (L*W*H, mm) | 550*443*200 | Accept Customized |
| 15 | Weight(kg) | 57.2 | N/A |
| 16 | Communication | Option of CANBUS OR RS485 | N/A |
| 17 | Protection Class | IP65 | N/A |
| 18 | Operation Cycle Life | >2000 cycles @1C 80%DOD | N/A |
| 19 | Charge Temperature Range | 0 -- 45℃ | N/A |
| 20 | Discharge Temperature Range | -20 -- 60℃ | N/A |
| 21 | Storage Temperature Range | -20 -- 45 ℃ | N/A |
| 22 | Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years | N/A |
Product Description

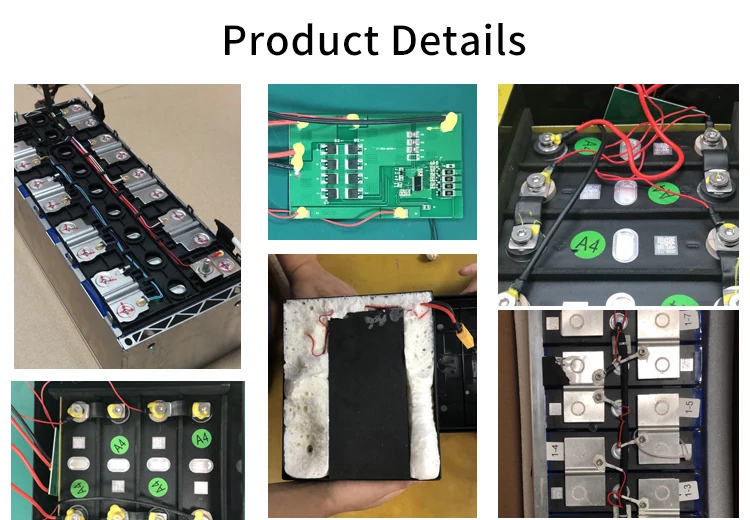

Product Details
| Model | Voltage | Capacity | Dimension(Accept Customized) | Weight |

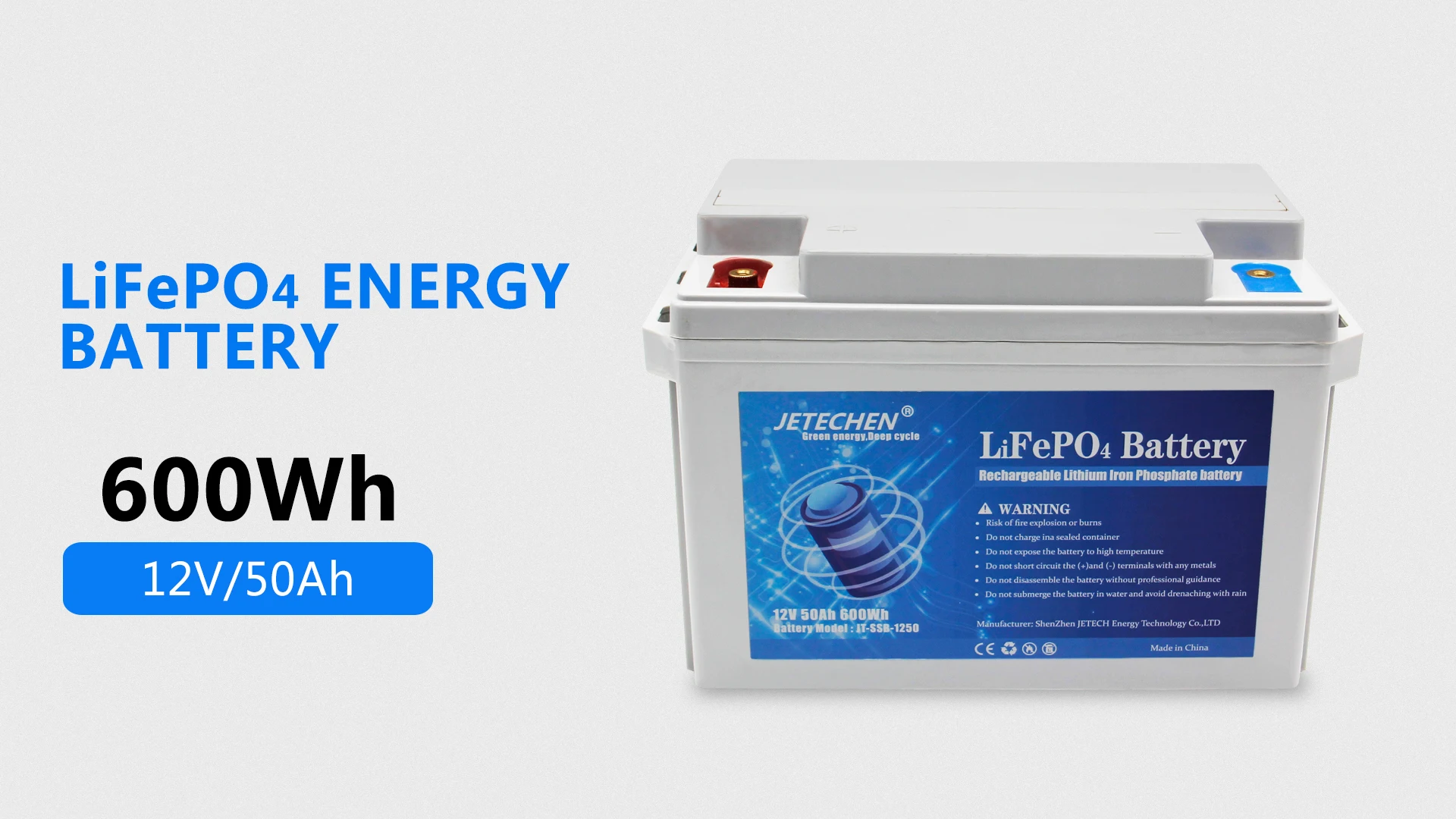

| JT-ESS-1250 | 12V | 50Ah | 285*165*195mm | 7.5kg |

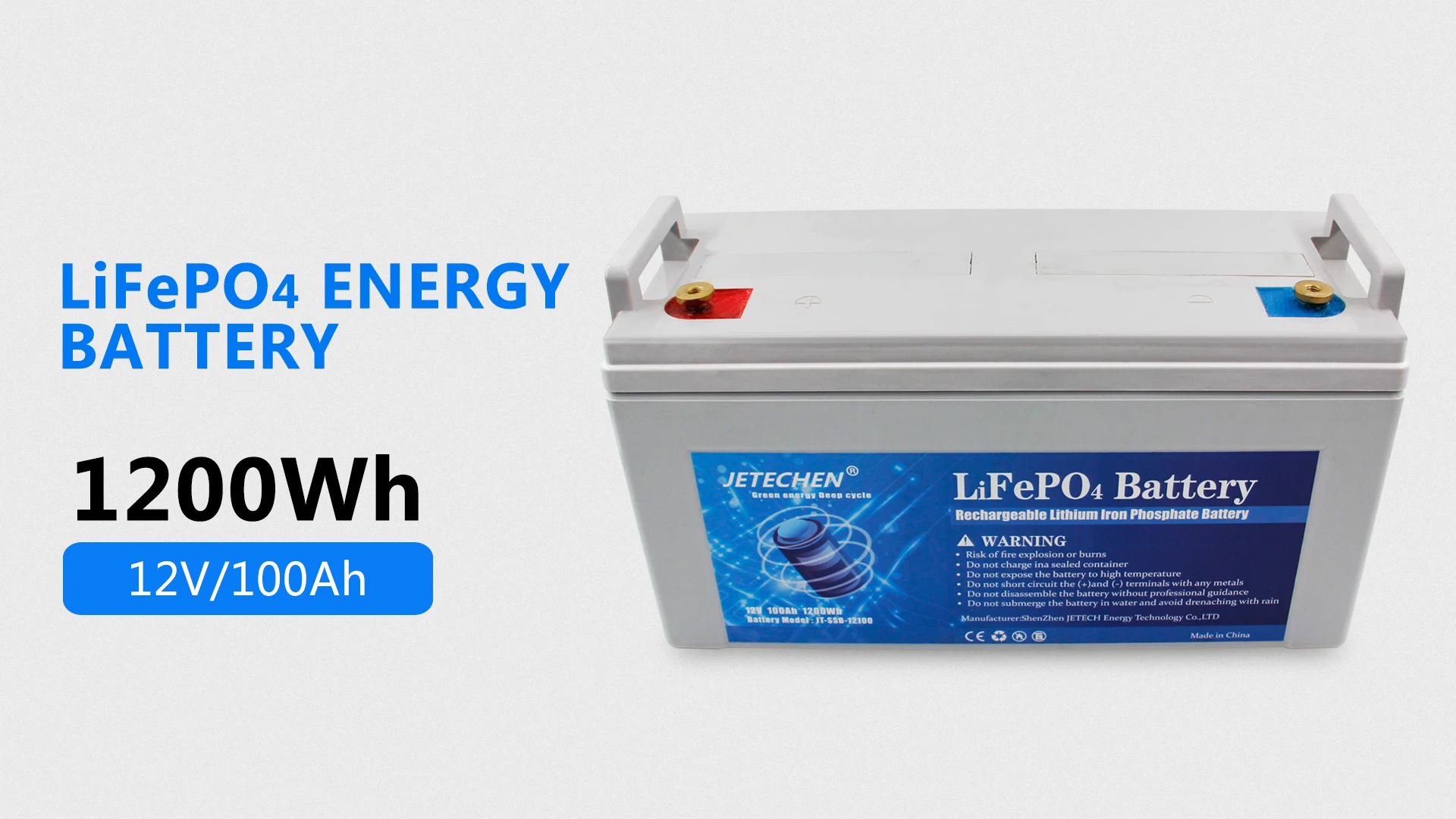

| JT-ESS-12100 | 12V | 100Ah | 315*175*233mm | 14.5kg |
| JT-ESS-12120 | 12V | 120Ah | 330*173*216mm | 18kg |

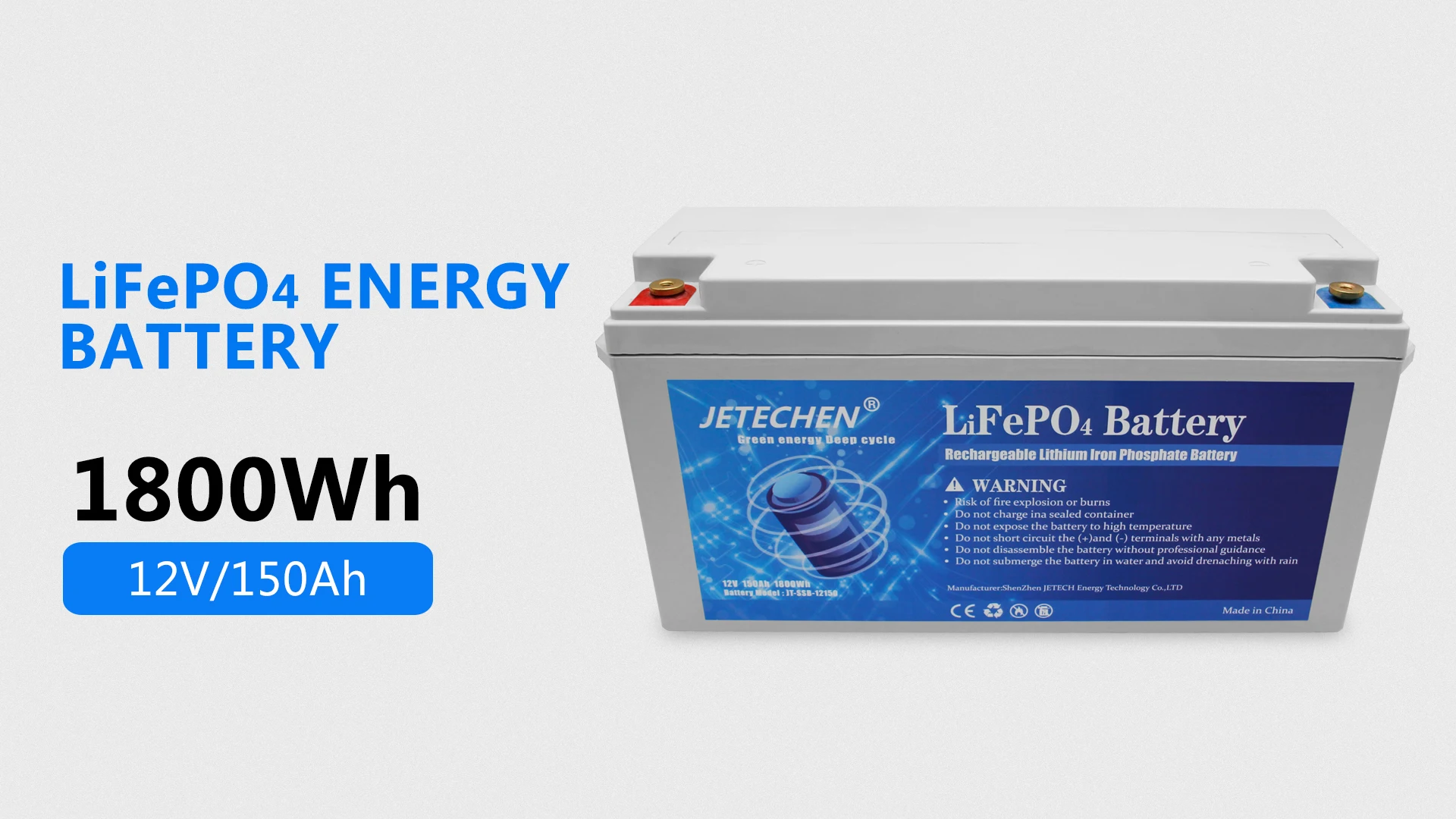

| JT-ESS-12150 | 12V | 150Ah | 482*170*240mm | 22.5kg |
| JT-ESS-12200 | 12V | 200Ah | 525*238*220mm | 28kg |
| JT-ESS-2450 | 24V | 50Ah | 315*175*233mm | 15kg |
| JT-ESS-24100 | 24V | 100Ah | 410*230*232mm | 28.6kg |
| JT-ESS-24200 | 24V | 200Ah | 550*443*200mm | 57.2kg |
| JT-ESS-4850 | 48V | 50Ah | 440*420*132mm | 28kg |
| JT-ESS-48100 | 48V | 100Ah | 550*443*200mm | 57.2kg |
| JT-ESS-48200 | 48V | 200Ah | 650*480* 190mm | 95kg |
Company Information
For more information, Please contact us now

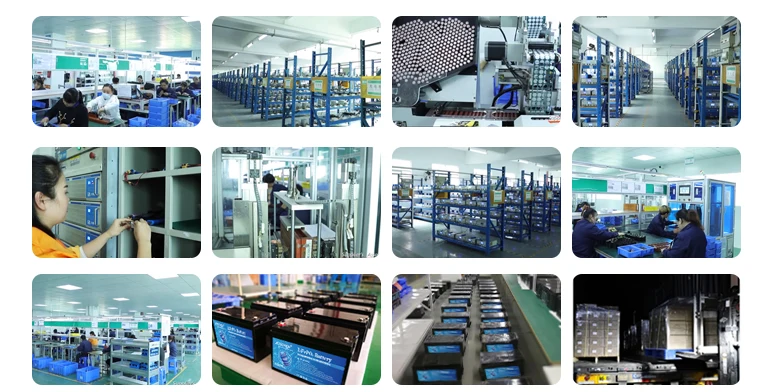

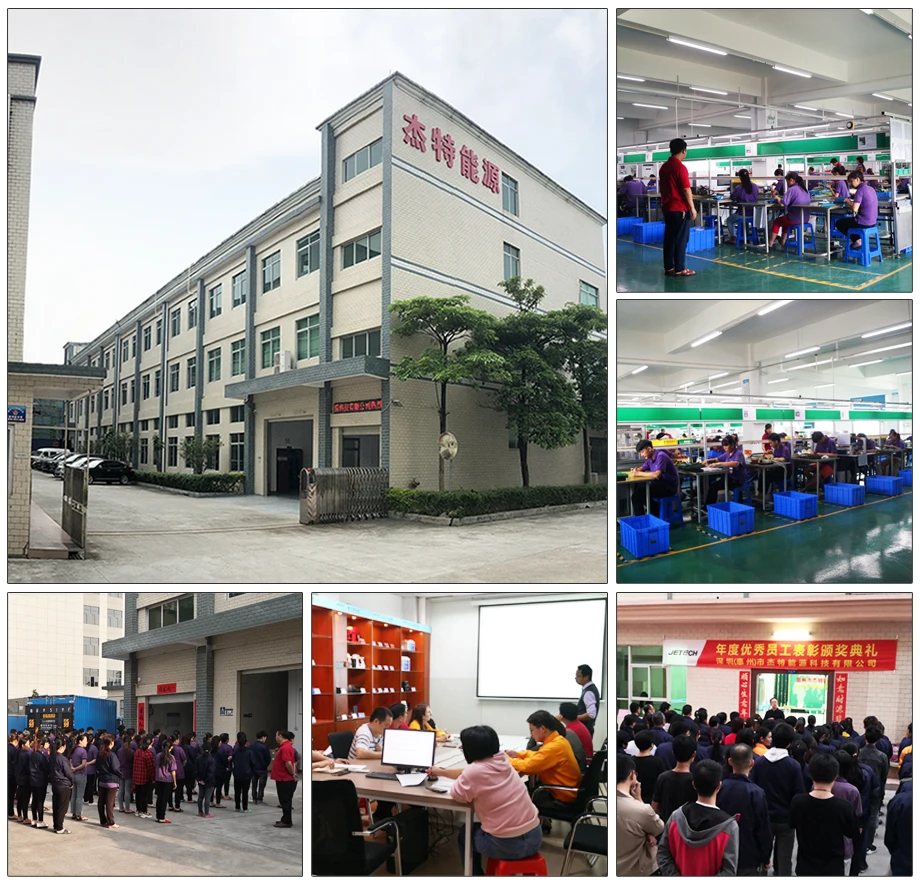

Shenzhen Jiatai Energy Technology Co.,Ltd. was founded in 2010, Which is mainly engaged in research and developing, manufacturing and marketing lithium ion batteriesThe total area of Huizhou manufacturing base is about 7500 square meters.

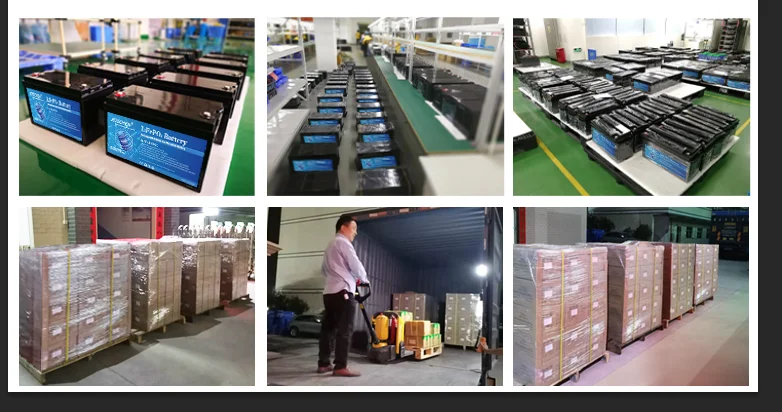

Packaging & Shipping
Packaging
The Packaging with regard to LiFePO4 Lithium Deep Cycle Battery 12V 100Ah 150Ah 200Ah 300Ah Lithium Battery for RV/Yacht/Marine/Solar/Golf cart/UPS
FAQ
Q1:What's the minimum quantity?
A1:10 pieces
Q2:How do we make the payment?
A2:T/T, Western Union, Paypal, L/C all is acceptable.
Q3:how it is transported?
A3:The batteries will be delivered via fedex, UPS, TNT, DHL, Postal parcel, etc.
Q4:How long is the warranty?
A4:One year
Q5:How long cycle life of the battery?
A5:>2000 cycles @1C 80%DOD.
