CE 1000 30000 bph complete automatic small bottled water production machine
- Category: >>>
- Supplier: Zhangjiagang Just Machinery Co. Ltd.
Share on (62559964963):
Product Overview
Description
Product Description
Complet Automatic Drinking Water Filling Machinery Line:

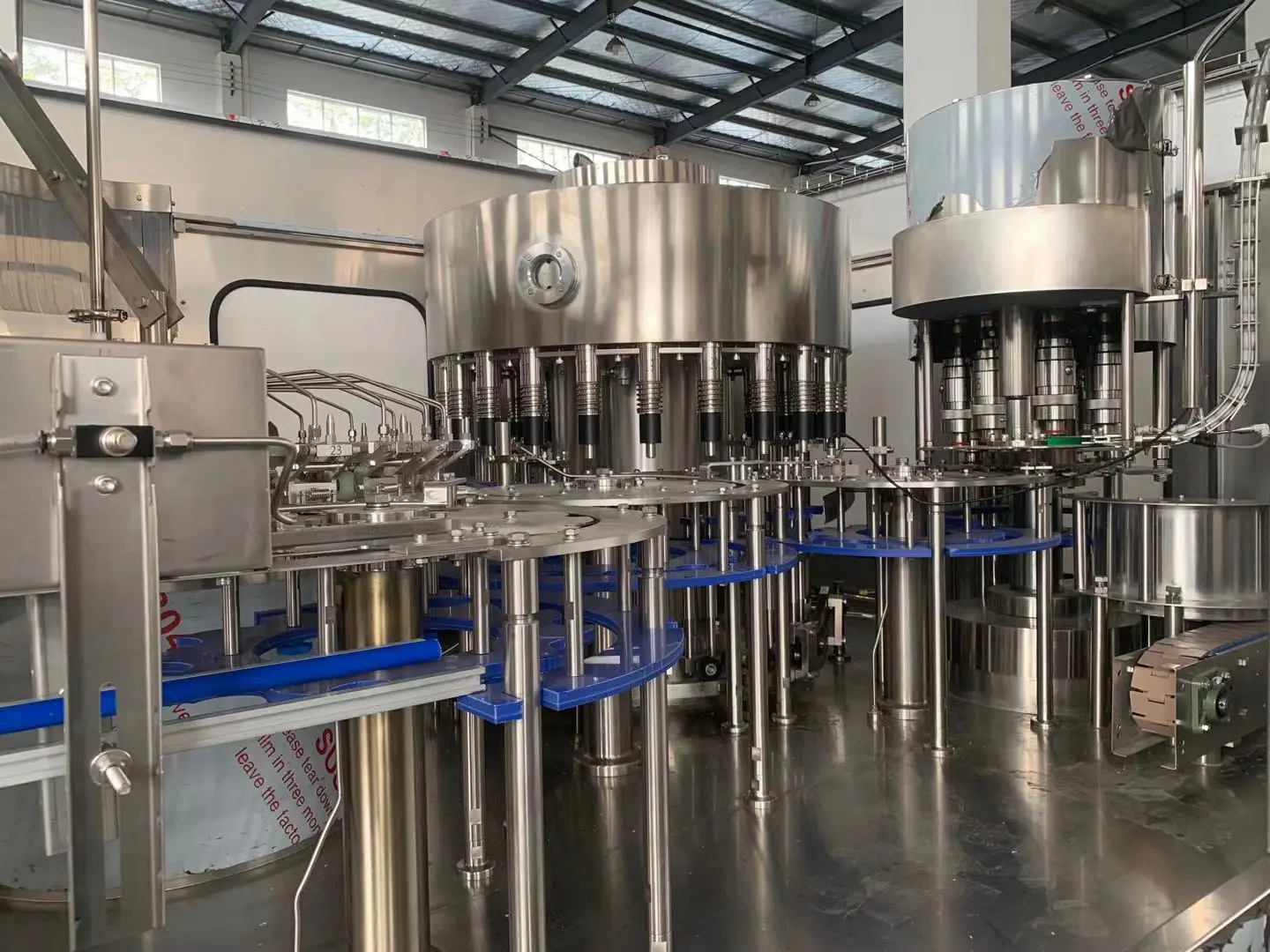

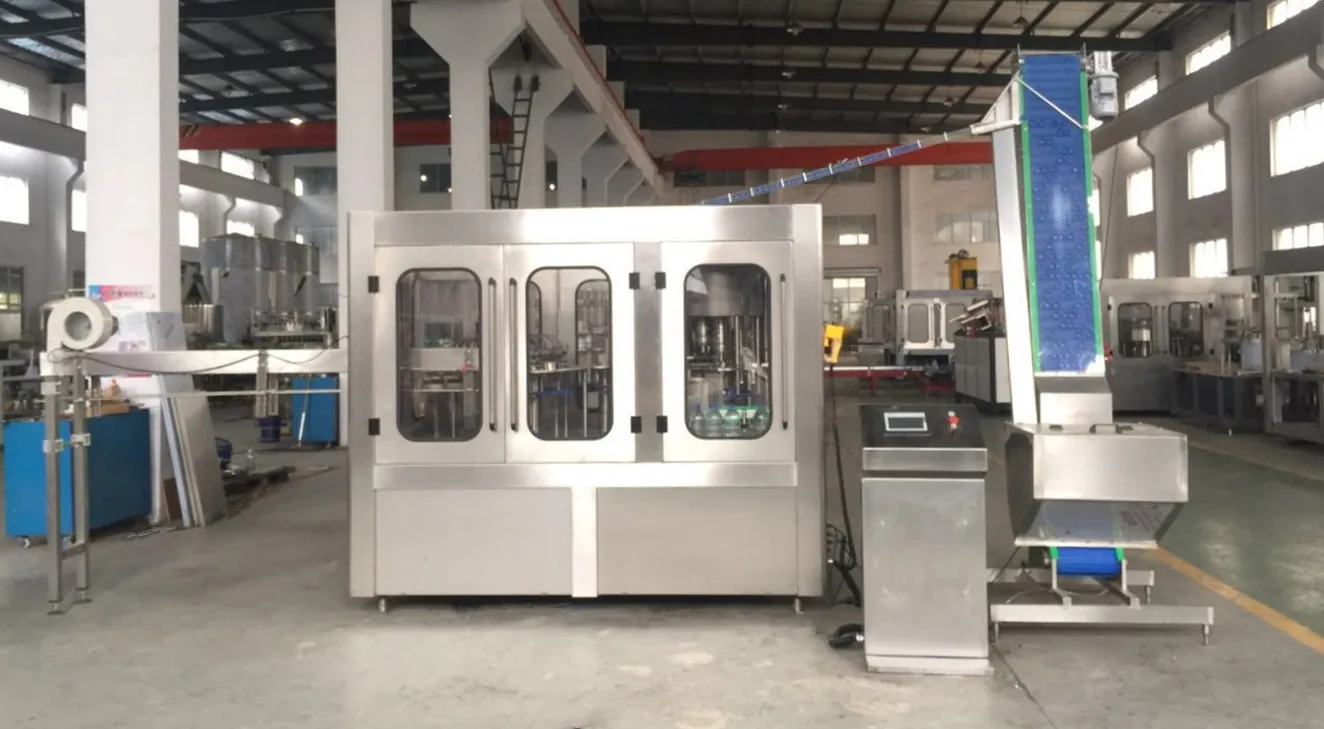

XGF Bottle Washing Filling Capping 3 IN 1 machine:
Washing Part :
<1>360 degree cleaning inside and outside of the bottle,no dead Angle.
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .<3>The flushing pressure can be adjusted.
<4> 304/316 stainless steel pump.
Filling heads :
<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank,same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
<4> 304/316 stainless steel filling pump.
Capping heads :
<1> with putting capping system and electromagnetic capping heads.
<2> All 304/316 stainless steel construction.
<3> No bottle no capping. automatic stop when lack of bottle.
<4> Italy ROAL capping head,capping effect is stable and reliable,Defective rate ≤0.1%

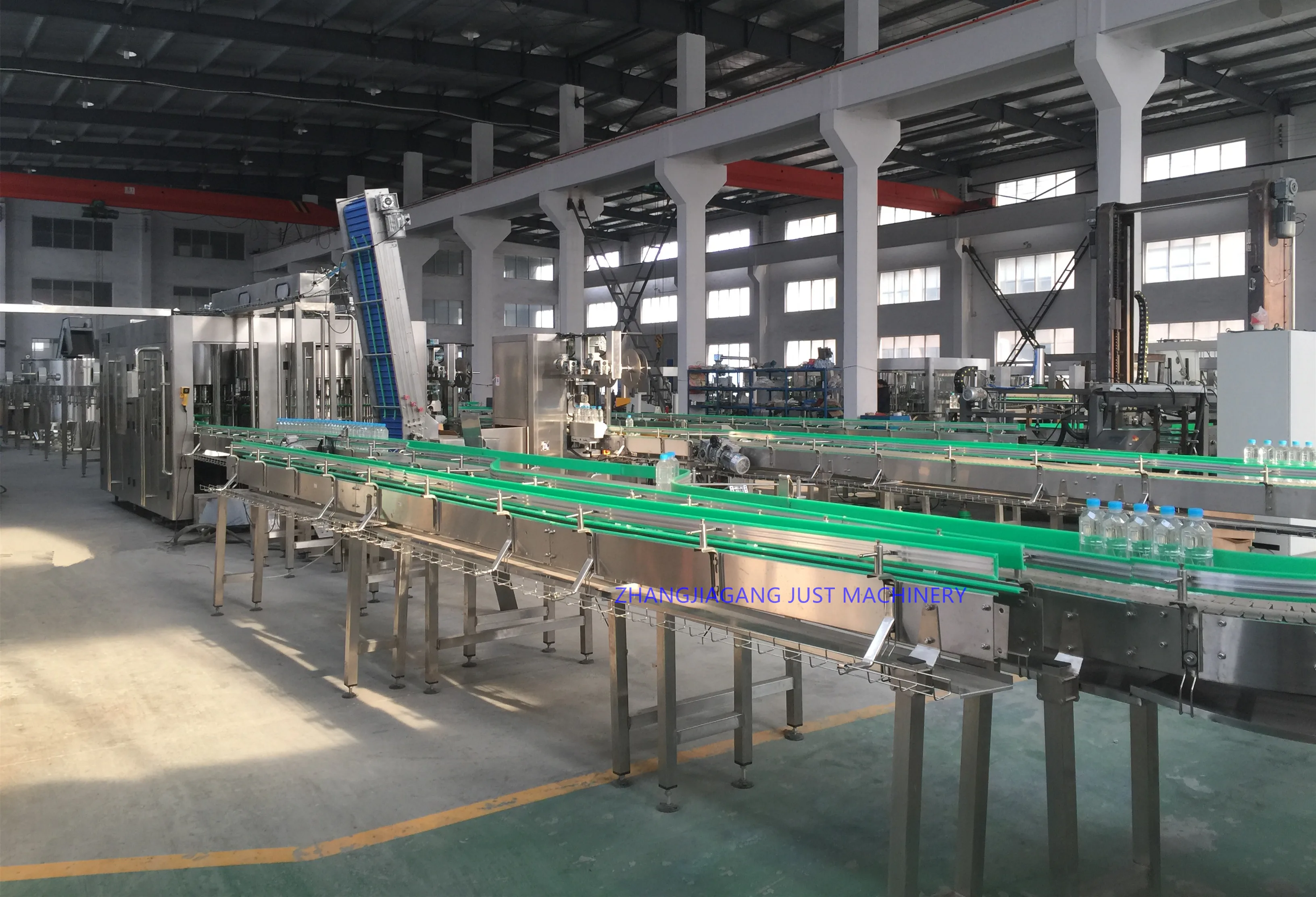

Flat conveyor :
<1> Adapt to customer factory layout.
<2> Special lubrication system, keep products clean, health, safety,extended service life.
<3> Overload protection mechanism to effectively ensure the safe of the machine.
<4> All Stainless steel 304 support, hygienic/firm.
Air conveyor :
<1> Air conveyor is fixed on the floor, with fan installed on the top.
<2> Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
<3> All are made of stainless steel SUS 304 /316.
Automatic water filling machine line packaging specifications: | Material:SS304/316 | ||||||
Bottle material | Shape | Filling volume | Filling level(mm) | Neck type | |||
Pet/Glass Bottle | Square/Round /Falt Bottle | 100-2000ml | According request ±1mm | As request | |||
Adjustable specifications of the bottle type | Bottle Size:Bottle diameter ≤120mm Bottle Height≤350mm | ||||||
If using square bottles, then bottle separating system will be added. | |||||||
Filling temperature | 2℃–50℃. Level control:Float ball and pneumatic butterfly valve. | ||||||
Bottle labeling type | Packing system Min, Spec. | Palletizing system | |||||
Manual / Automatic Hot Melt Roll-FedPVC Shrink Label Full Label/ Half Lable | Film shrinker Robert Packing Carton packing | 2*3 2*4 3*4 3*5 4*4 4*5 4*6 6–30Bag/Min | Low position gantry palletizer Robot Palletizer High position | ||||
User Ambient Conditions | Temperature:2~40℃;Humidity:No dew | ||||||
bottle feed-in | conveyor with screw for glass bottles | adopt air-conveyor for PET bottle. | |||||
Auxiliary Equipments

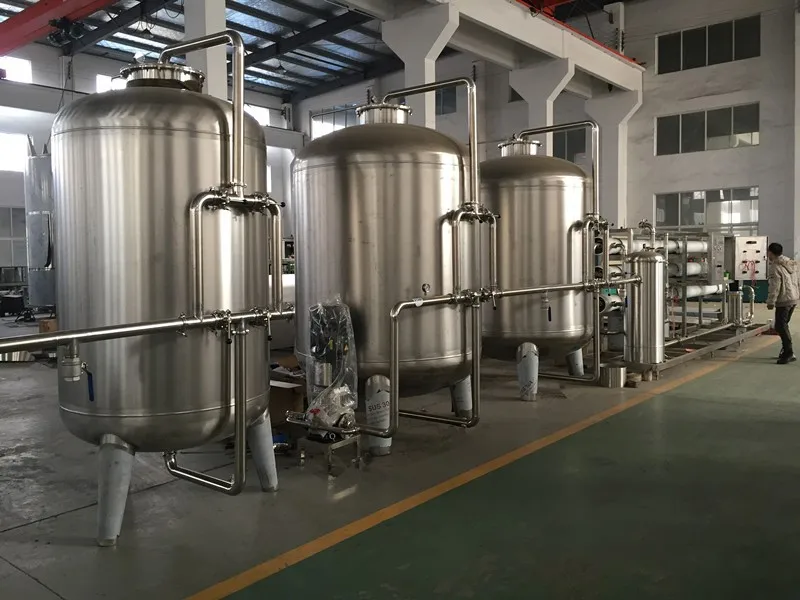

Water Treatment Production line: | Material:SS304/316 | ||||||
Source of Water | Capacity | Water pump | Filter media | RO Membrane | |||
river,/well/spring/lake/ sea/tap water | 2-50 T/H | Nanfang, Grundfos | Quartz sand/Active carbon/Sodium ion /Hollow fiber filter | Filmtec Dow/USA Hydranautics/USA | |||
Naturally oxygen-rich water | Pure water | RO water | Mineral water | Spring water | |||
ultrafiltration | Reverse osmosis | Reverse osmosis | ultrafiltration | ultrafiltration | |||
Automatic control system | Float ball/solenoid valve/pneumatic butterfly valve | ||||||
Filling Water | We can make water purification system as per different water quality. | ||||||
Types of water | Mineral water pure water spring water RO water Oxygen-enriched water | ||||||
Blow molding system :
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Bottle Unscrambler :
<1> Don't change the mould can arrange similar size different shape bottles.
<2> High speed and lower rate of waste.
<3> small occupied area. machine is arranged flexibly placement saving the area of factory.
<4> automatic intelligent design,The function of preventing bottle.photoelectric detection to run more smoothly.
Automatic labeling machine
<1> Heat shrink sleeve labeling machine
<2> OPP Hot melt labeling machine
<3> PVC label stick labeling machine
It adopts double driving structure ,that is four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
<2> OPP Hot melt labeling machine
<3> PVC label stick labeling machine
It adopts double driving structure ,that is four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Bottle packaging machine
<1> PE film shrink wrapping machine.
<2> Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Carton palletizer :
The high level palletizer is suitable for cartons, plastic crates,shrink wrapped packs and five gallon bottles etc palletizing.With inspection device to check the storage of cartons on conveyor and regulate the speed according to inspection data. With safety device to stop machine and alarm in emergency.
