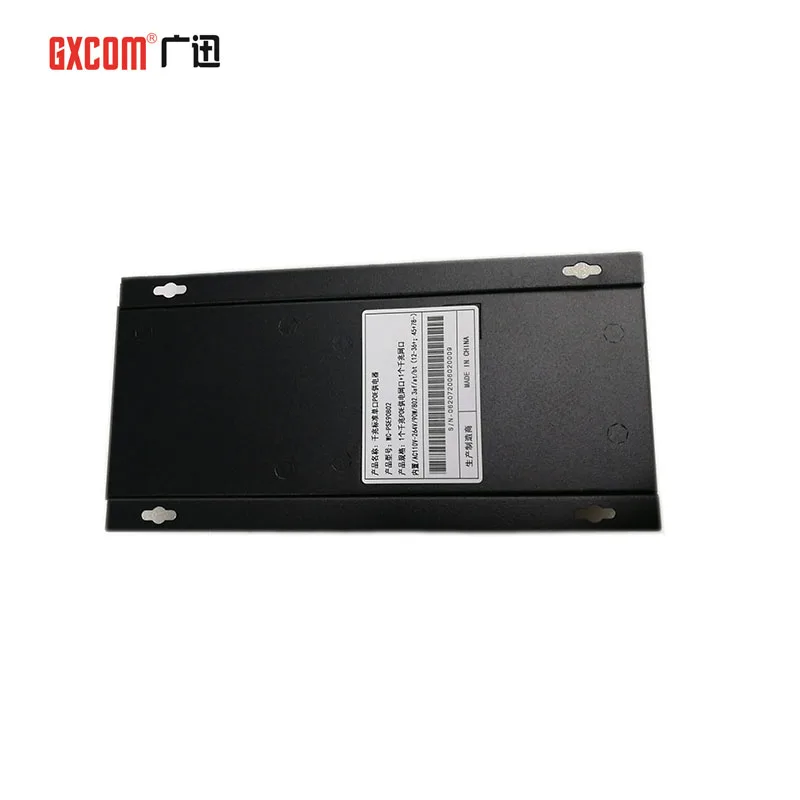

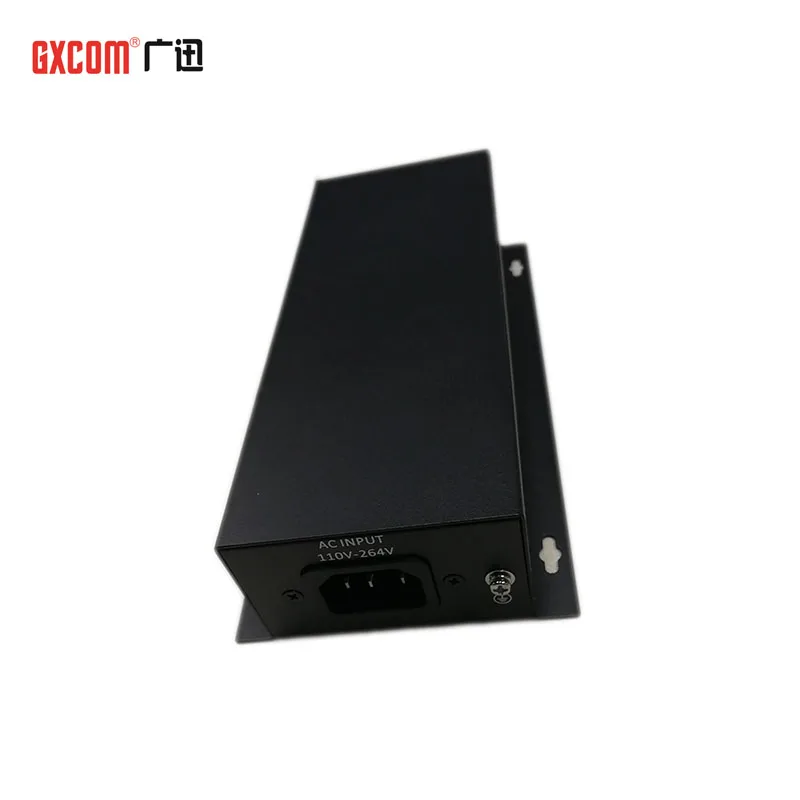

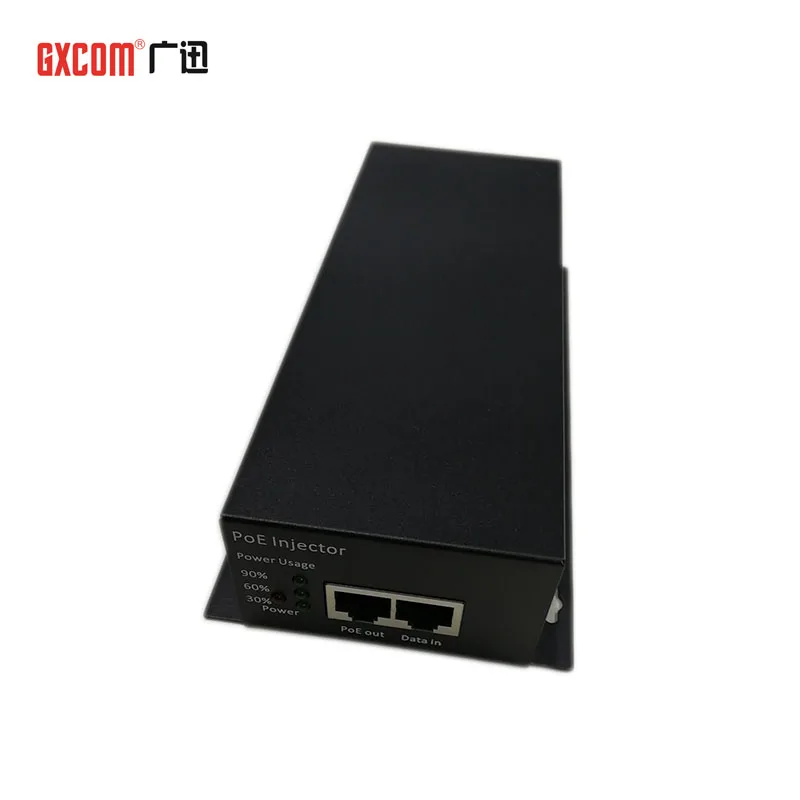

High Power gigabit IEEE802.3 af at BT 60w 90w 10/100/1000Mbps PoE injector


Description:
PJ101G-BT gigabit Ethernet PoE injector, its max output power of the PoE port is Up to 90W, the data access port supports 10/100/1000 self-adaption, support power supply input AC 100-240 V , working temperature -20 ° C ~ + 50 ° C, and the industrialgrade chip is used to enhance the design. Support port Surge and static protection, and comply with FCC, CE, CCC, RoHS standards. Reliable hardware design can ensure your uninterrupted and stable operation of the automation system. The products are widely used in PTZ high-speed dome, compact computer, integrated machine, digital signage display system, etc.

Main Features:
* Support 1*gigabit PoE port+1*gigabit Ethernet port
* Compatible with IEEE802.3af(15.4W), IEEE802.3at(30w) and IEEE802.3bt(90w)
* Support power monitoring, 30%, 60%, 90% three states
* Support power supply input AC 100-240 V
* Metal shell,IP20 protect grade,working temperature -20 ° C ~ + 50 ° C
* Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV, Air 15KV


Specifications:
Product
Gigabit 90W high power PoE injector
Port
1* gigabit PoE port + 1* gigabit Ethernet port
Standard
PoE Standard: IEEE802.3af /IEEE802.3at/IEEE802.3bt
Transmission Medium
Cat5 or better utp
Network Media
10BASE-T: Cat5 UTP(≤250 m)
100BASE-TX: Cat5 or more UTP(≤100 m)
1000BASE-TX: Cat5 or more UTP(≤100 m)
Power Supply
Power input: AC 100-240 V working frequency: 50/60 Hz Working power:52V/1.85A
LED Lights
PWR Lighting：Powered Un-Light：No Power
Operating Environment
Working temperature: -20℃~50℃
Storage temperature: -40℃~85℃
Working humidity: 5%-95%RH Non-condensable
Storage humidity: 5%-90%RH Non-condensable
Warranty
1 Year
