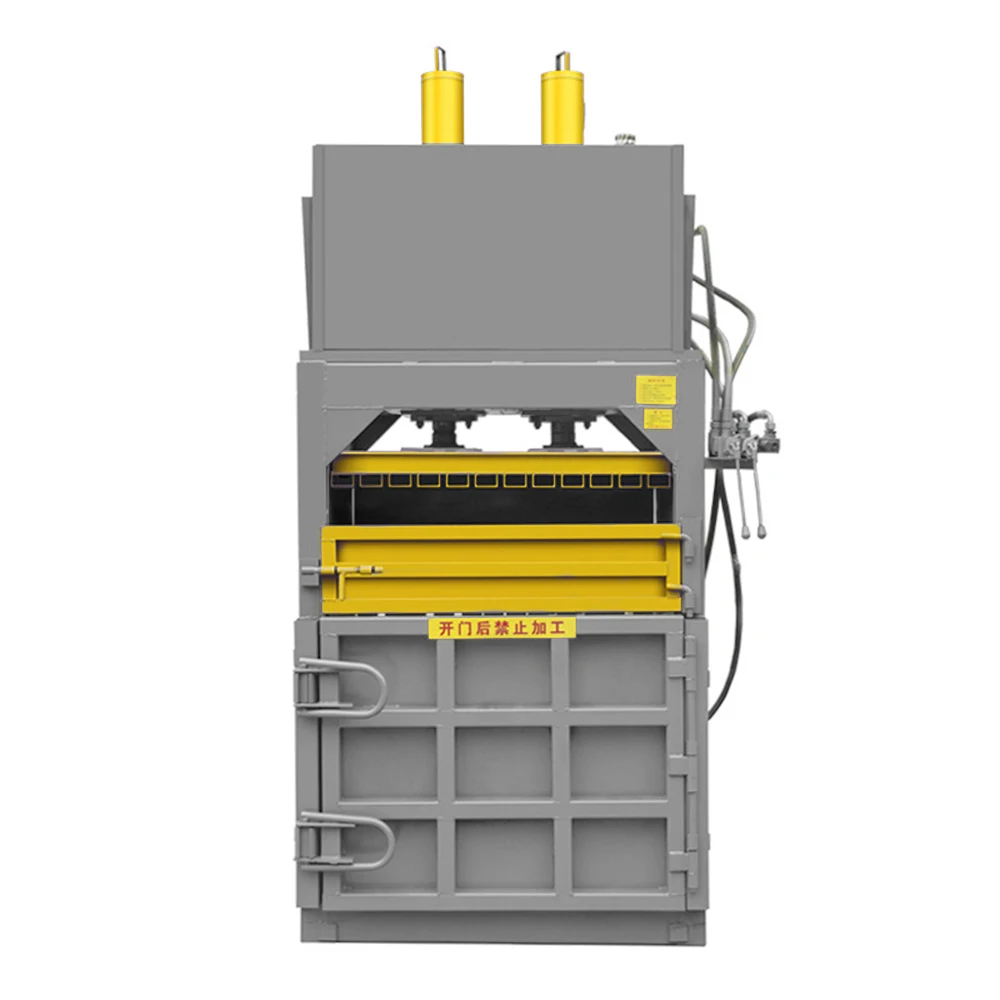

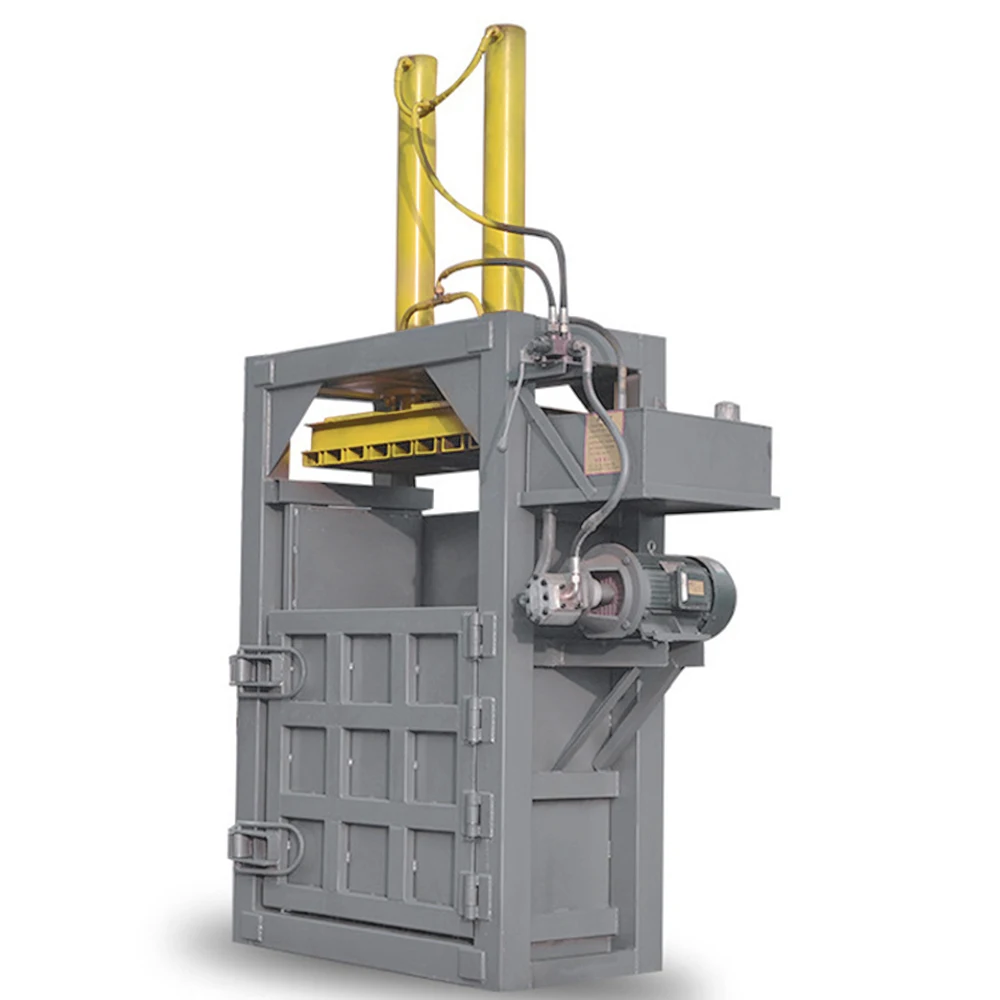

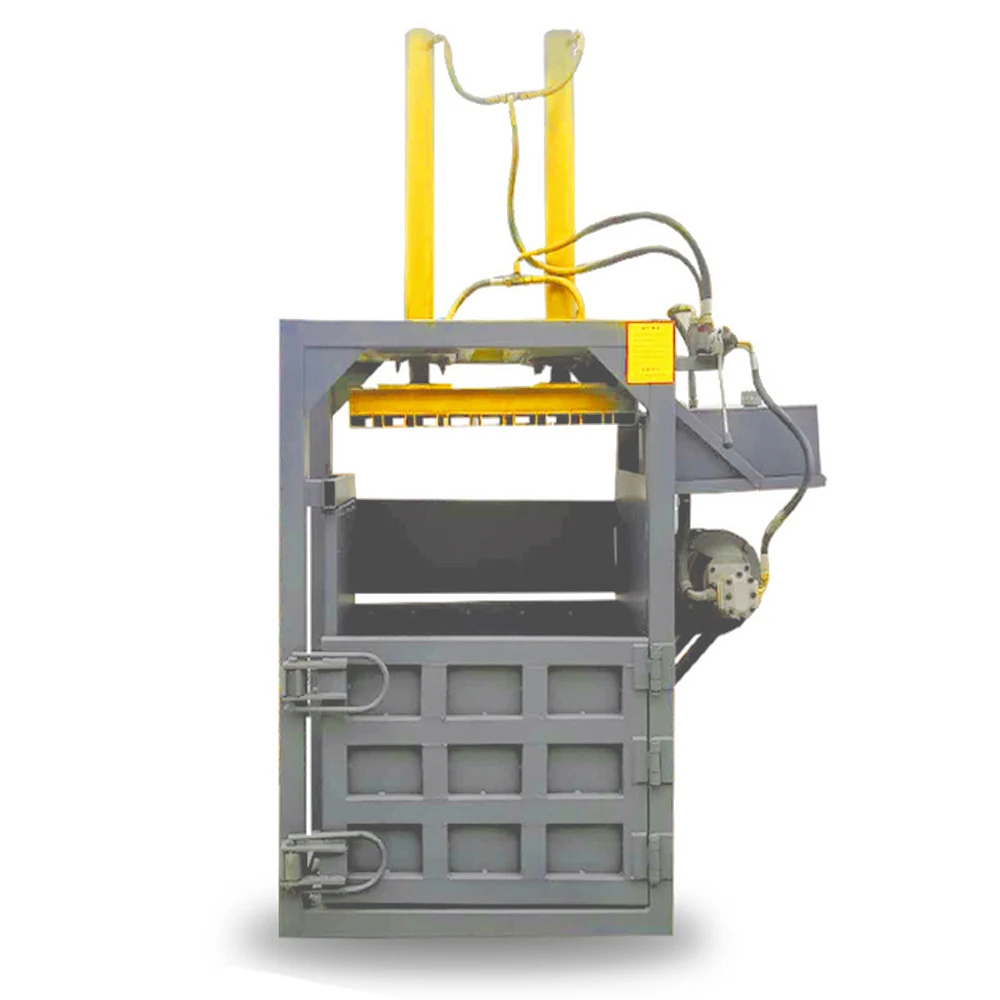

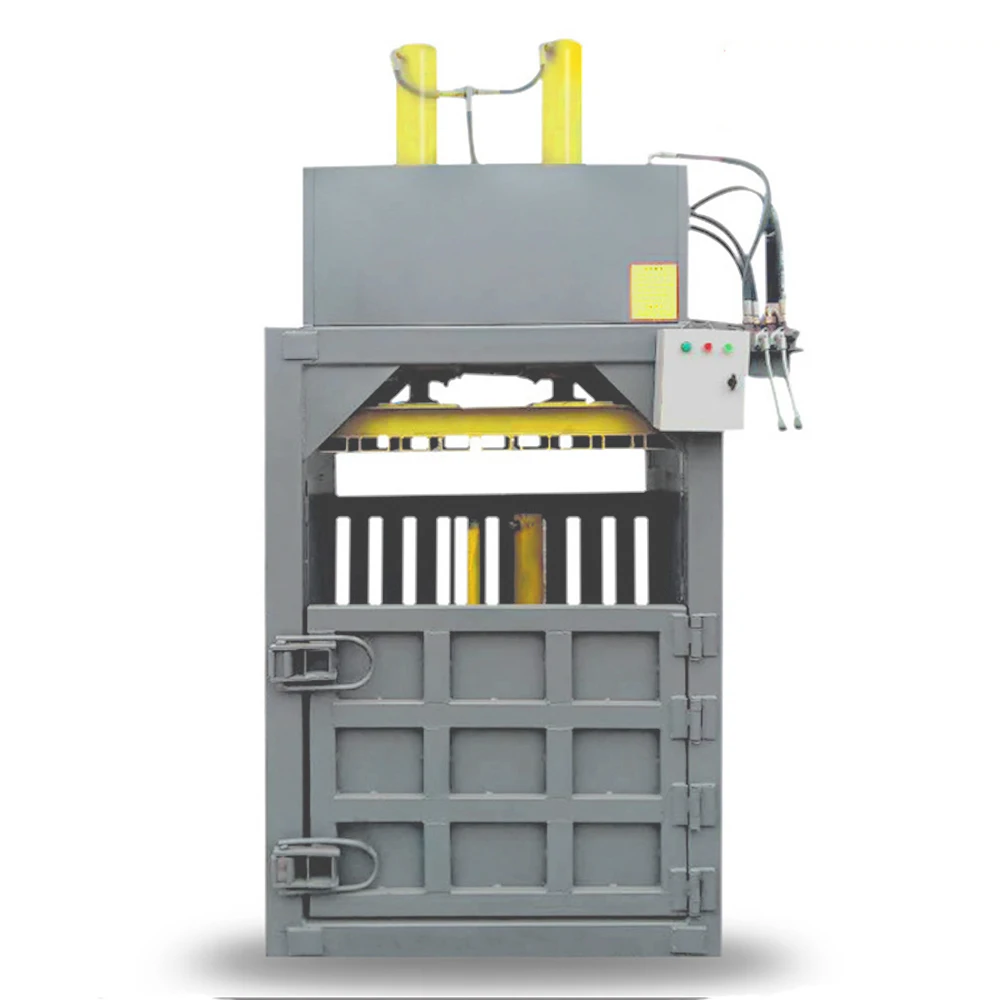

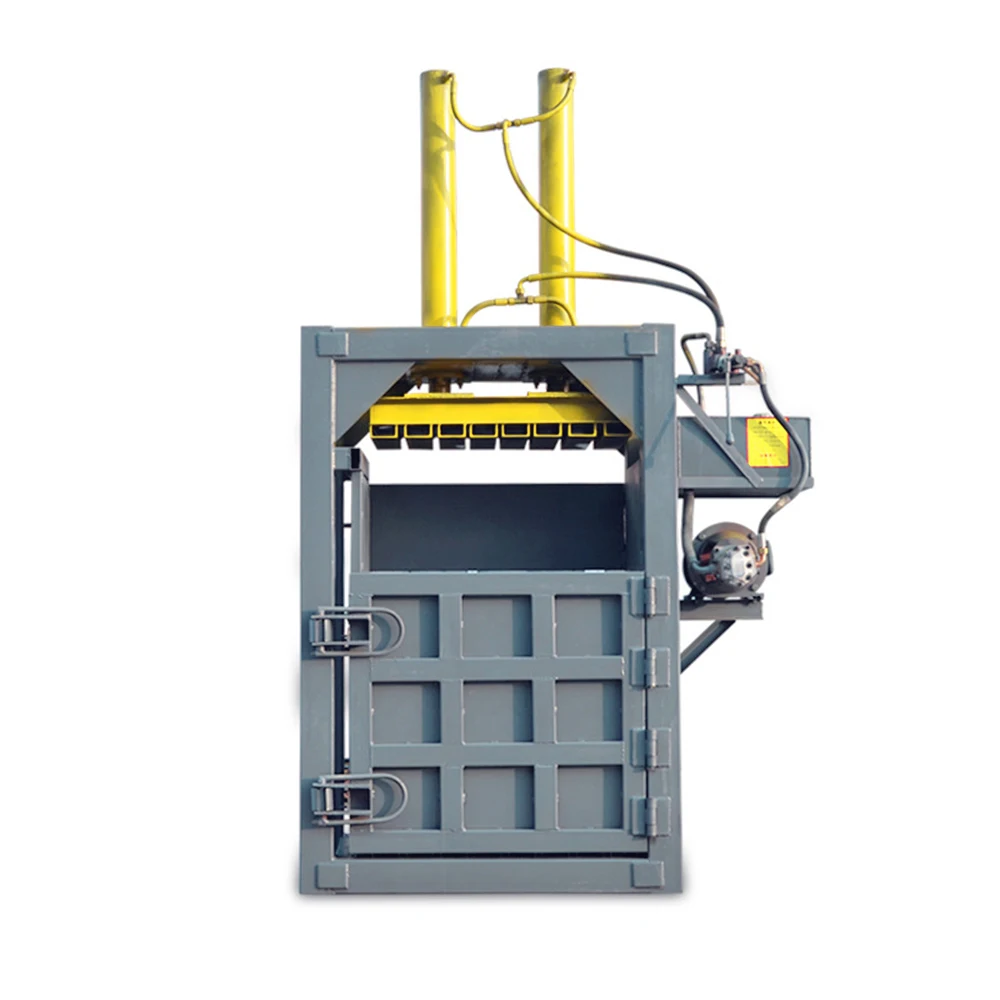

Hydraulic Baler Machine (1)This series mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding. (2)Usually the pressure force of this series is from 10 ton KN to 100 ton KN, the efficiency is 6 ~ 12 bales per hour. The weight of each piece is from 40 Kg to 600 Kg according to the material. (3)Also, we can produce the machine according to the requirement from customer.

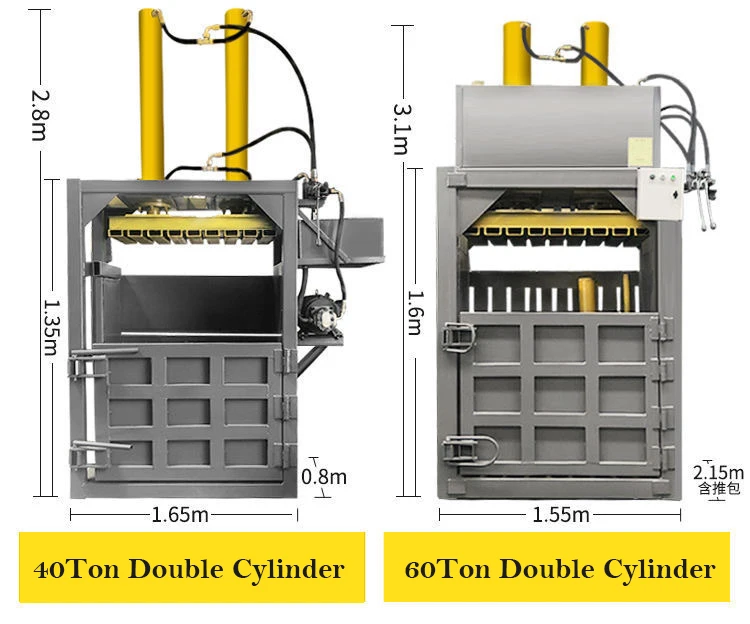

Model
Force
(T)
Bale size
(mm)
Bale weight (kg)
Efficiency
(bale/h)
Power (KW)
M.weight (kg)
Size (mm)
FA10-6040
10
600*400
30-50
4-6
2.2
1000
900*650*2100
FA20-8060
20
800*600
80-100
4-6
4
1100
1000*750*2750
FA30-8060
30
800*600
100-130
4-6
5.5
1300
1000*750*2750
FA30-11070
30
1100*700
130-150
4-6
5.5
1700
1350*850*3200
FA40-11070
40
1100*700
180-200
4-6
7.5
1800
1350*850*3200
FA40-12080
40
1200*780
200-240
4-6
7.5
2050
1600*1050*3300
FA50-12080
50
1200*800
320-350
4-6
7.5 or 11
2600
1600*1050*3300
FA60-12080
60
1200*800
380-420
4-6 r
11 or 15
2900
1600*1050*3300
FA80-12080
80
1200*800
450-480
4-6
15
3300
1600*1050*3300
FA100-12080
100
1200*800
500-550
4-6
15
3700
1600*1050*3300
FA120-150100
120
1500*1000
650-700
4-6
15 or 18.5
4300
2100*1550*3300
FA150-150100
150
1500*1000
850-900
4-6
18.5
5100
2100*1550*3300

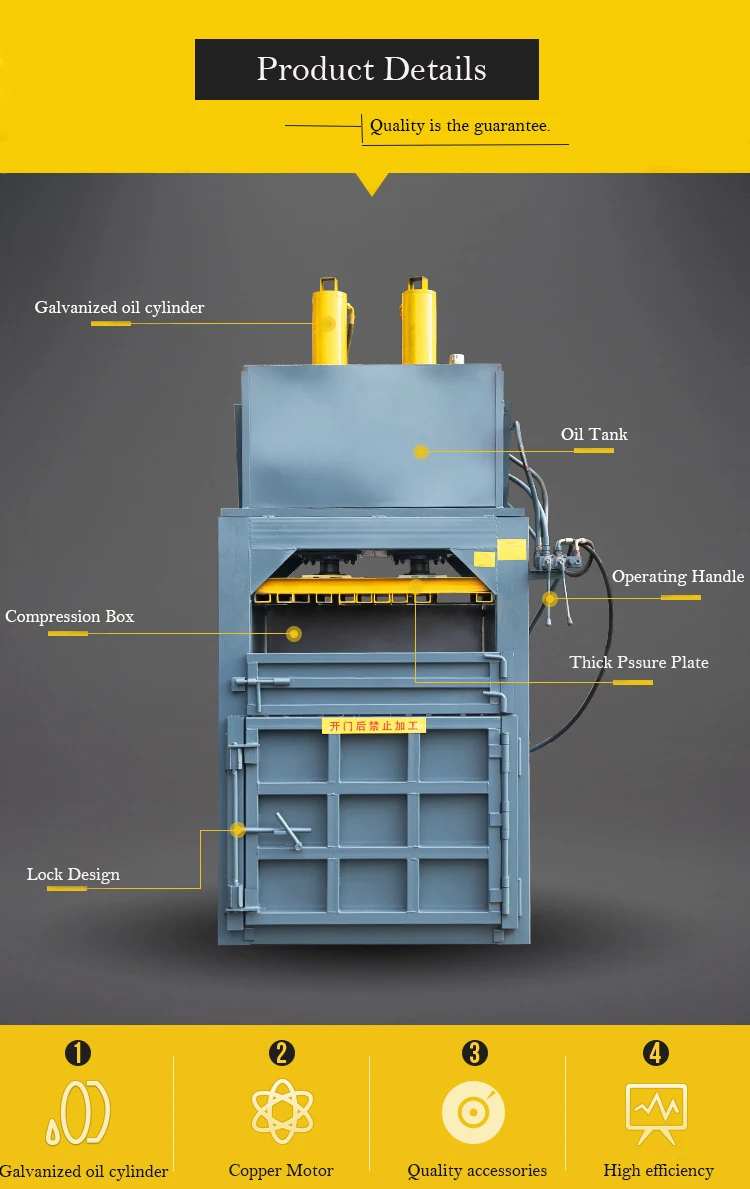

Main Features
1.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
2.Electric button control, it can reaches manual adjusting and semi automatic control
3. Independent feeding opening with automatic pulling out installation, to reduce labor force.
4.It can be made according to the demands of customers.
