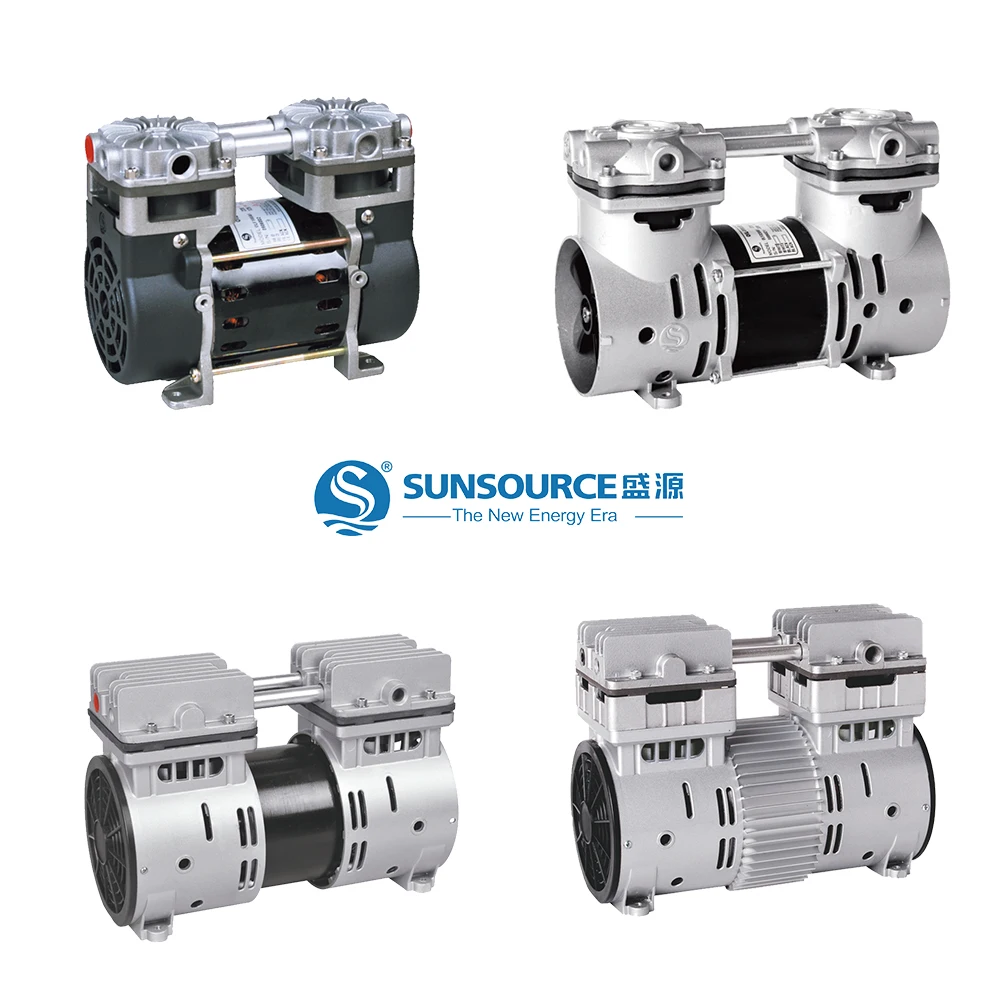

98kpa oxygen concentra Medical Piston Oilless Dry Vacuum Pump Air Compressor Head OLF100 D Mini compressor High Vacuum
- Category: >>>
- Supplier: Zhejiang Shengyuan Compressor Manufacturing Co. Ltd.
Share on (62560046808):
Product Overview
Description
Product Display
Product Parameter
Model# | VCM-100AFV | VCM-100AFT | ||
Type | Oil Free Vacuum Pump | Oil Free Vacuum Pump | ||
Rated voltage (V/Hz) | AC-220V/50HZ | AC-220V/50HZ | ||
Rated current (A) | 0.75A | 0.75A | ||
input power(W) | 95W | 95W | ||
Rated speed (RPM) | 1450RPM | 1450RPM | ||
Noise Level dB(A) | 48dB | 48dB | ||
Use ambient temperature (℃) | MIN.-5°C~ MAX.40°C | MIN.-5°C ~ MAX. 40°C | ||
Vacuum (MBAFR) | Rated Pressure | -800 mBar | -950 mBar | |
Restart | 0 | 0 | ||
Compressor Pump Performance (Ltr/m @ Bar) | *0mBAR | 40 Ltr/min | 20 Ltr/min | |
*-200 mBAR | 25 Ltr/min | 12.5 Ltr/min | ||
*-400 mBAR | 14.2 Ltr/min | 7.1 Ltr/min | ||
*-600 mBAR | 7.0 Ltr/min | 3.5 Ltr/min | ||
*-800 mBAR | 2.0 Ltr/min | 1.0 Ltr/min | ||
Motor performance | Wire material | Copper | Copper | |
Stator Size | 76 sheets | 76 sheets | ||
Stator Sheets Material | Silicon Steel | Silicon Steel | ||
Standard Equipment | Thermal Protector | Yes | Yes | |
Inlet & Exhaust Specifications | M12*1.25 | M12*1.25 | ||
Size& Weight | Net Weight (Kg) | 3.5Kg | 3.5Kg | |
Machine Size (mm) | 174x90x143mm | 184x90x149mm | ||
Packaging | HONEYCOMB CARTON | HONEYCOMB CARTON | ||
Gross Weight(Kg) | 4.5KG | 4.5KG | ||
Packaging Dimensions( mm) | 240x200x172mm | 240x200x172mm | ||
Model# | VCM-100ASV | VCM-100AST | ||
Type | Oil Free Vaccum Pump | Oil Free Vaccum Pump | ||
Rated voltage (V/Hz) | AC-220V/60HZ | AC-220V/60HZ | ||
Rated current (A) | 0.75A | 0.75A | ||
input power(W) | 100W | 100W | ||
Rated speed (RPM) | 1750RPM | 1750RPM | ||
Noise Level dB(A) | 48dB | 48dB | ||
Use ambient temperature (℃) | MIN.-5°C ~ MAX. 40°C | MIN.-5°C ~ MAX. 40°C | ||
Vacuum (MBAFR) | Rated Pressure | -880 mBar | -880 mBar | |
Restart | 0 | 0 | ||
Compressor Pump Performance (Ltr/m @ Bar) | *0mBAR | 48.3 Ltr/min | 24.2 Ltr/min | |
*-200 mBAR | 31.7 Ltr/min | 15.9 Ltr/min | ||
*-400 mBAR | 14.7 Ltr/min | 7.40 Ltr/min | ||
*-600 mBAR | 7.50 Ltr/min | 3.80 Ltr/min | ||
*-800 mBAR | 2.20 Ltr/min | 1.10 Ltr/min | ||
Motor performance | Wire material | Copper | Copper | |
Stator Size | 76 sheets | 76 sheets | ||
Stator Sheets Material | Silicon Steel | Silicon Steel | ||
Standard Equipment | Thermal Protector | Yes | Yes | |
Inlet & Exhaust Specifications | M12*1.25 | M12*1.25 | ||
Size& Weight | Net Weight (Kg) | 3.5Kg | 3.5Kg | |
Machine Size (mm) | 184x90x149mm | 184x90x149mm | ||
Packaging | HONEYCOMB CARTON | HONEYCOMB CARTON | ||
Gross Weight(Kg) | 4.5KG | 4.5KG | ||
Packaging Dimensions( mm) | 240x200x172mm | 240x200x172mm | ||
