Boiler Parts
$6.50-7.00

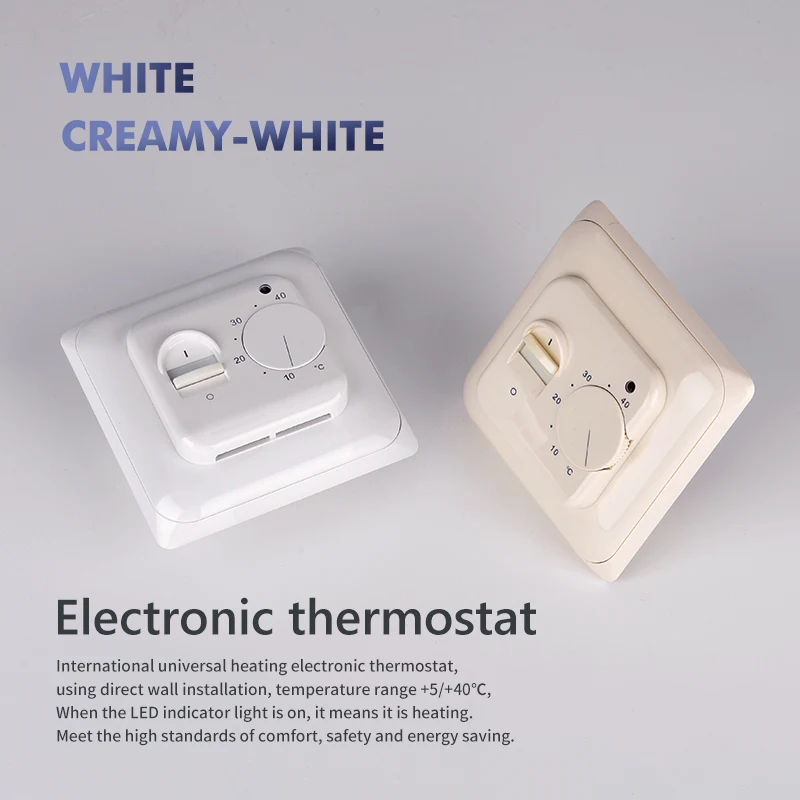

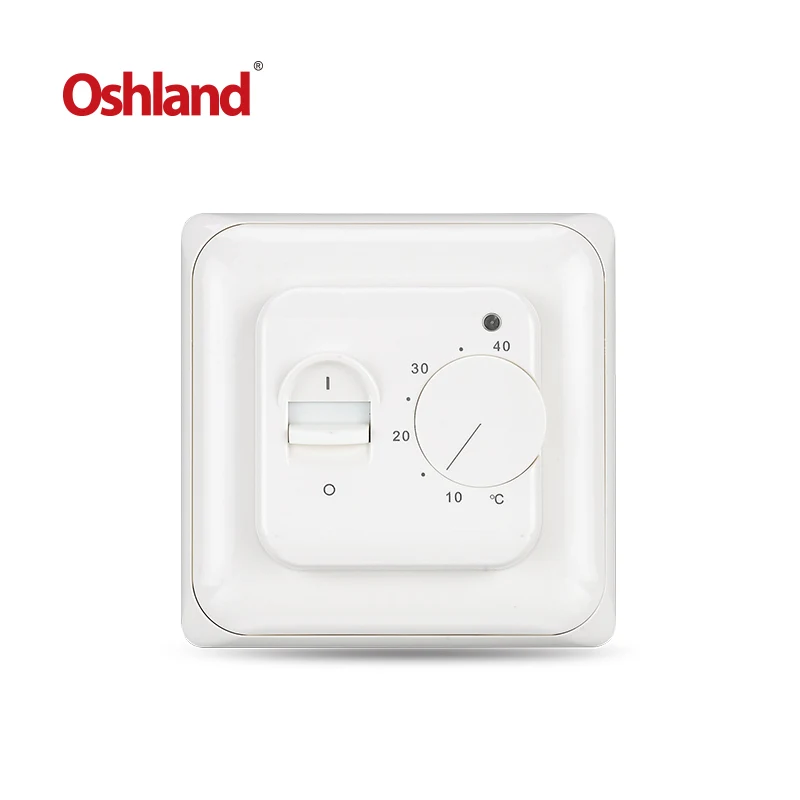

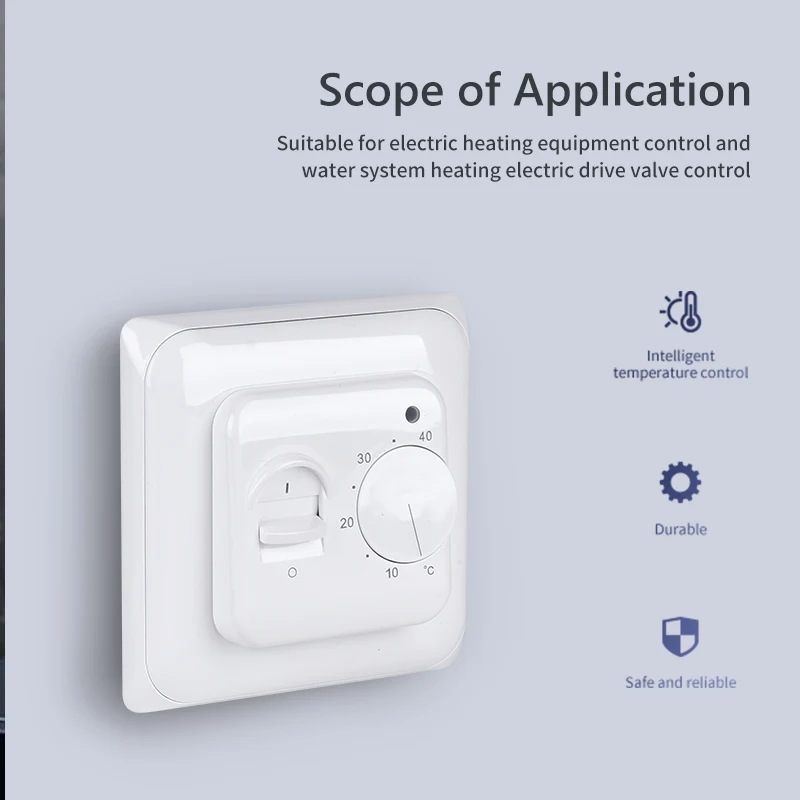

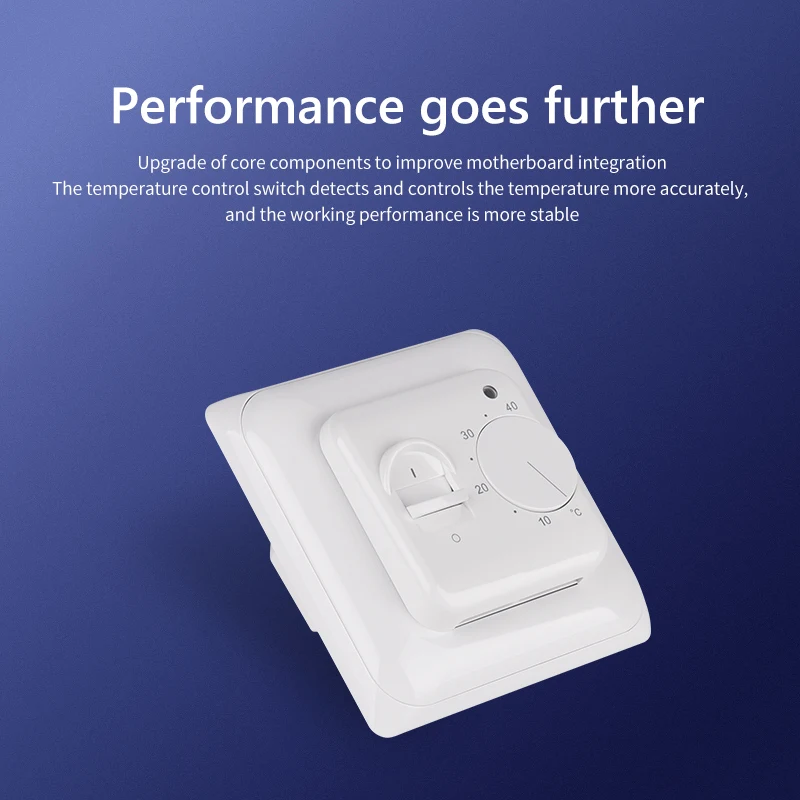

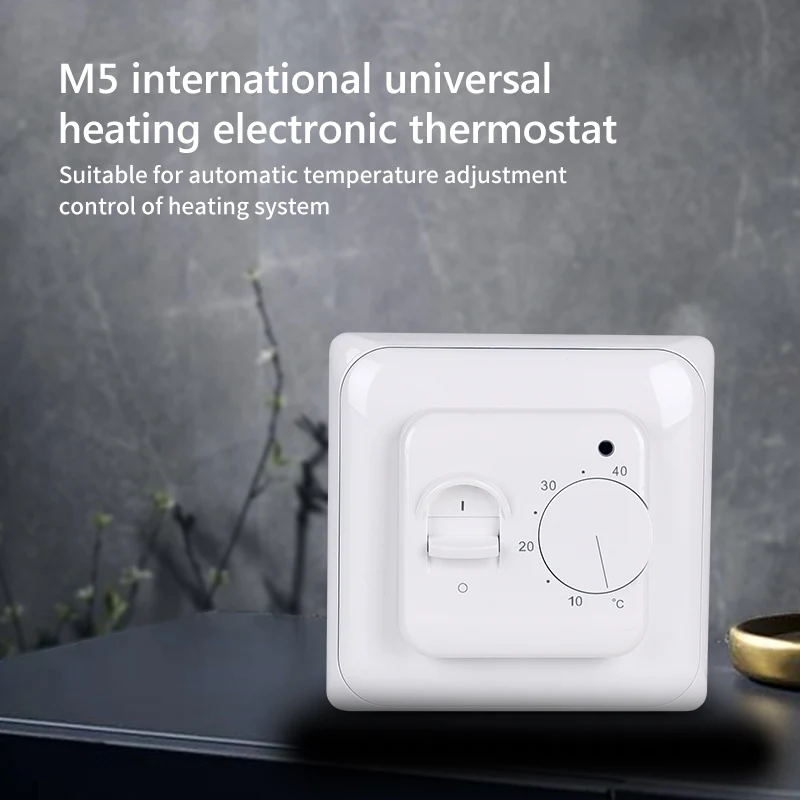

Oshland M5 RTC70.26 room thermostat mechanical floor heating Temperature Controller regulator
- Category: >>>
- Supplier: Wenzhou Chima Automatic Technology Co. Ltd.
Share on (62560101923):
Product Overview
Description
Product Description
Product Name | Room Floor Heating Temperature Control Thermostat |
Material | Electronic products |
Function | For the control of warm-water(floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings... |
Package |
Radiant Floor Heating Products:
Thermostats, Electro-thermal Actuators, Thermostatic head and valve,Manifolds &fittings, Water-mixing Center,Wiring Boxes,Energy Meters
Introduction
The M5.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
The M5.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Features
LED indicator is light when heating is on With manual switch and knob for easy operation On/off control output for heating device Setback function when connecting with a programmable timer Temperature limitation function for protecting the floor
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃
Setback temperature: 5℃
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
LED indicator is light when heating is on With manual switch and knob for easy operation On/off control output for heating device Setback function when connecting with a programmable timer Temperature limitation function for protecting the floor
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃
Setback temperature: 5℃
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
Packing&Shipping
Company Introduction

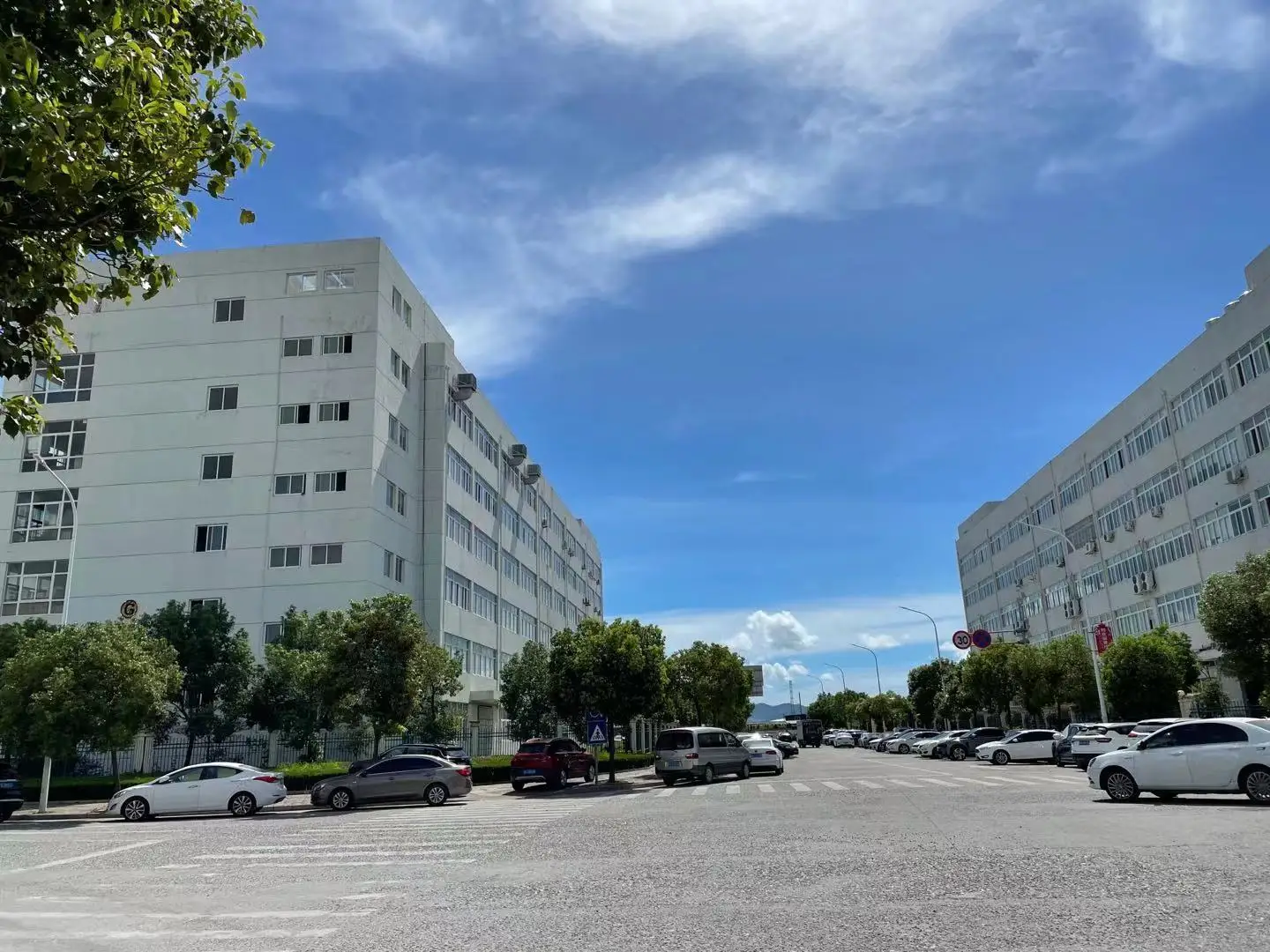

WENZHOU CHIMA AUTOMATIC TECHNOLOGY CO.,LTD was founded in 2011,located in the city of yueqing which is famous for the production of “Low voltage application” in Zhejiang province.Relying on the strong research and development capabilities of automatic control products, CHIMA created more accurate intelligent heating and fresh air system product solutions, and furthermore, dedicated to the research of modern comfortable homes and low-energy green buildings, has built a complete set of intelligent manufacturing industry chain. Products include: HVAC automatic control, heating metering, sub-collectors, heating pipes and other key products.
Our Services & Strength
We are able to customize products individually for each of our customers to meet their diverse requirements. Besides that, CHIMA is a popular brand in HVAC industrial in China, for the overseas market, we are professional and experienced for the OEM and ODM service, our products have exported to UK, Germany, Russia, Japan, Finland, Poland, Australia, Brazil etc

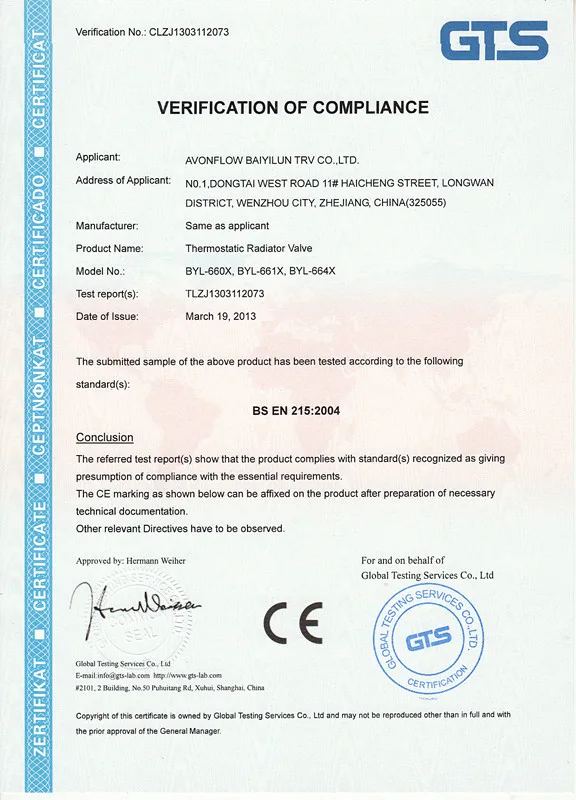

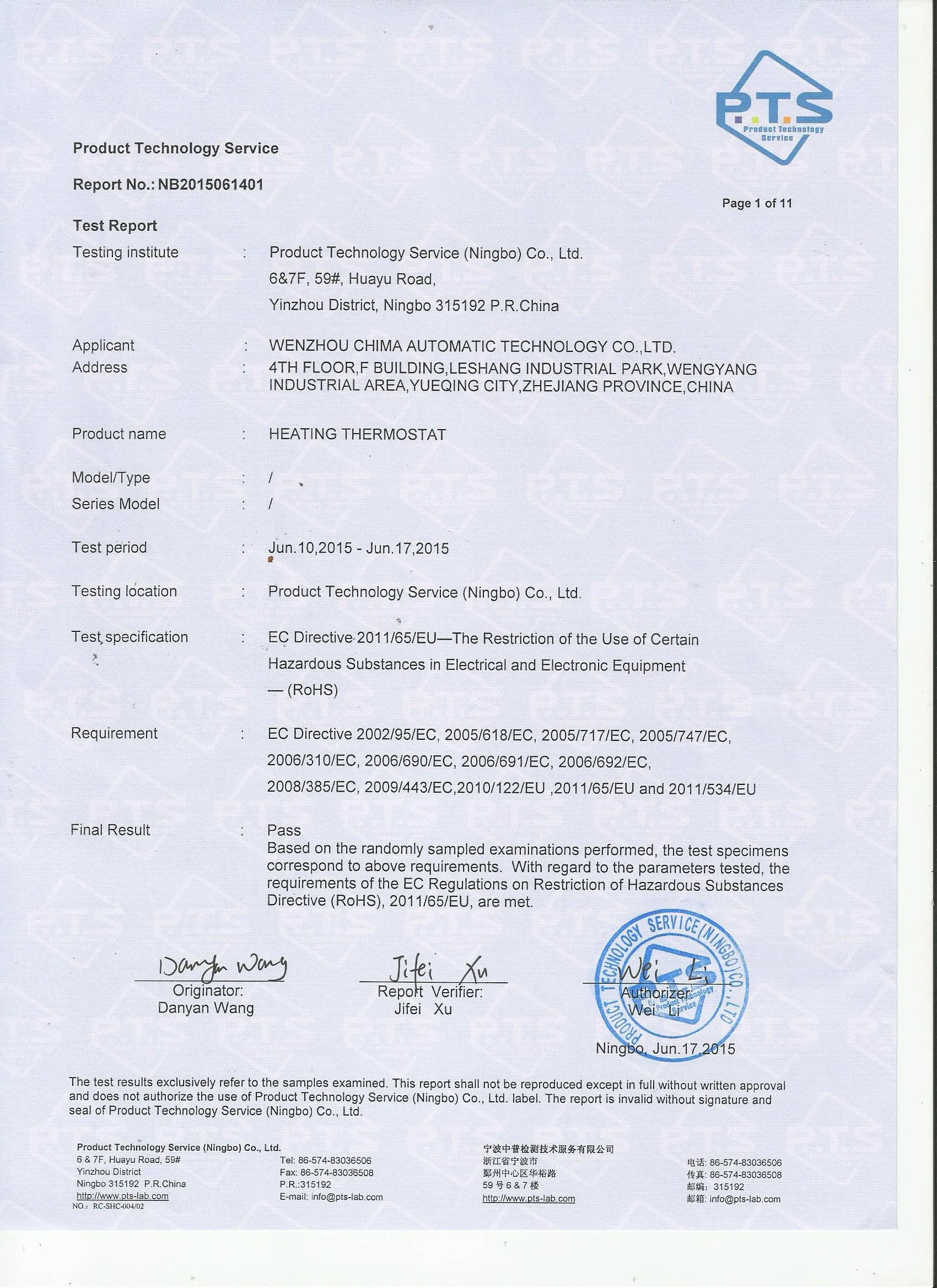

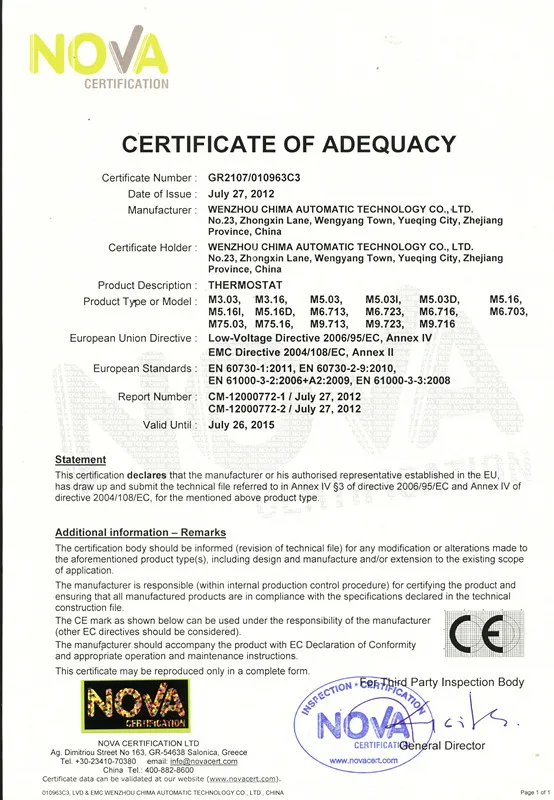

Certifications

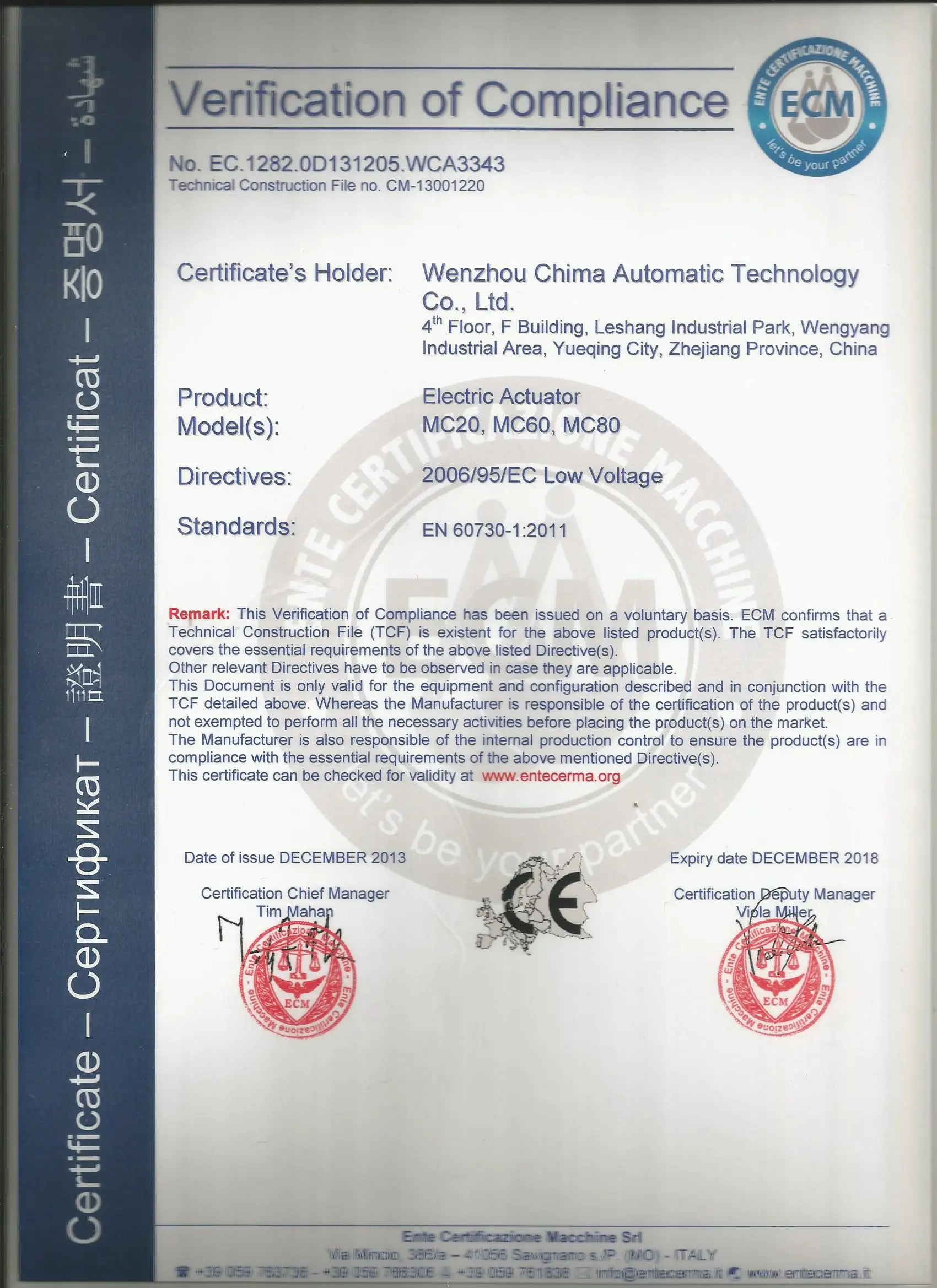

After years of development, CHIMA has passed the ISO9001:2008 international quality system certification, the European Union CE, ROHS certification, the product has passed the national authority part of the third productquality inspection and obtained a number of patents.
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if
possible.
3. Q: Do you provide free sample?
A: Yes,you just need pay the transport fee.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.If you have a big quantity,we also can print color boxes,your own manual.
5. Q: Do you accept custom design on size?
A: No.
6. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
7. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if
possible.
3. Q: Do you provide free sample?
A: Yes,you just need pay the transport fee.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.If you have a big quantity,we also can print color boxes,your own manual.
5. Q: Do you accept custom design on size?
A: No.
6. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
7. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
