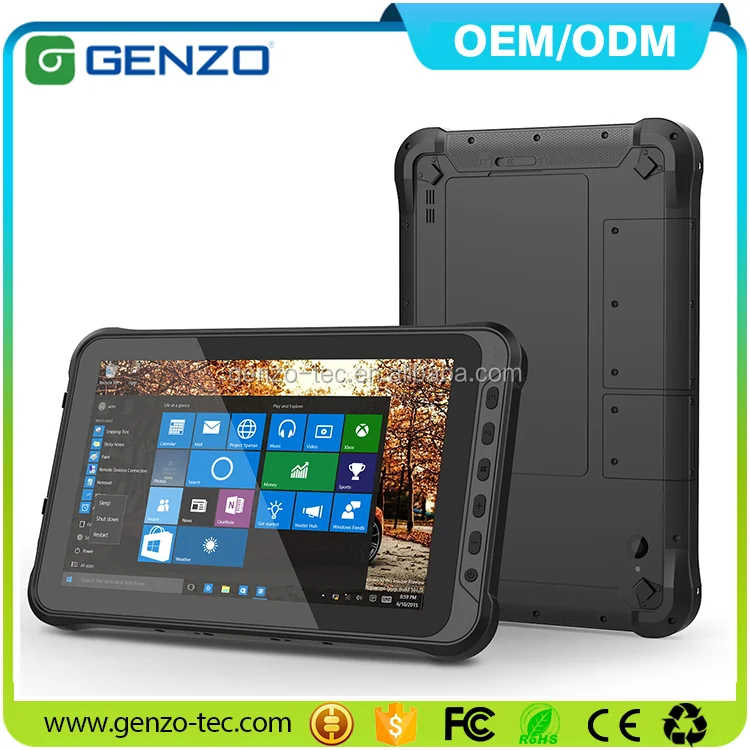

GENZO High brightness 1000 nits Rugged Tablet for Windows with RJ45 Ethernet port and UHF Industrial Tablet PC
- Category: >>>
- Supplier: Shenzhen Genzo Technology Co. Ltd.
Share on (62560188616):
Product Overview
Description
Genzo High brightness 1000 nits Rugged Tablet for Windows with RJ45 Ethernet port and UHF Industrial Tablet PC
Product Description
R&D,MANUFACTURE,INDUSTRY RUGGED TABLET & TERMINAL PRODUCTS SOLUTIONS PROVIDER
Features:
1.Support Windows 10 Home/ Pro/ IOT system;
2.Support Standard USB 2.0*1,TypeC x1(data&charing);
4.Support NXP NFC(13.56M);
5.Support GPS navigation;
6.Rugged IP65 protection level;
7.Support high strength Glass Touch Panel;

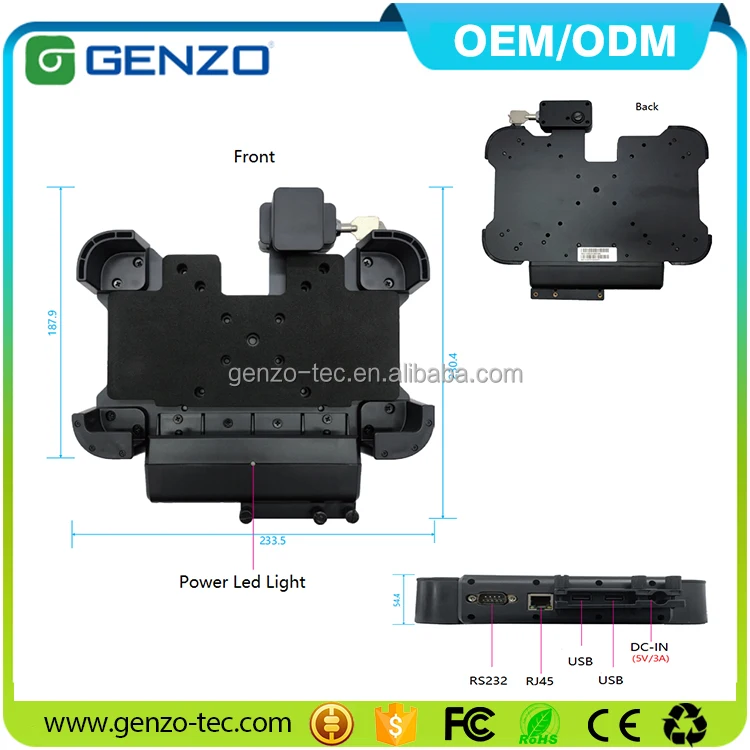

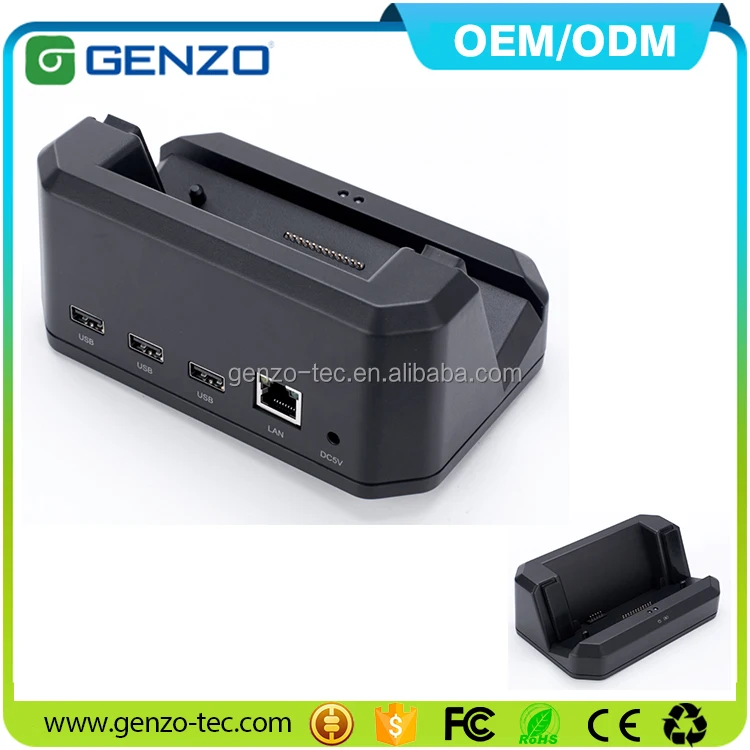

8.Support Wrist Strap and Docking charging;

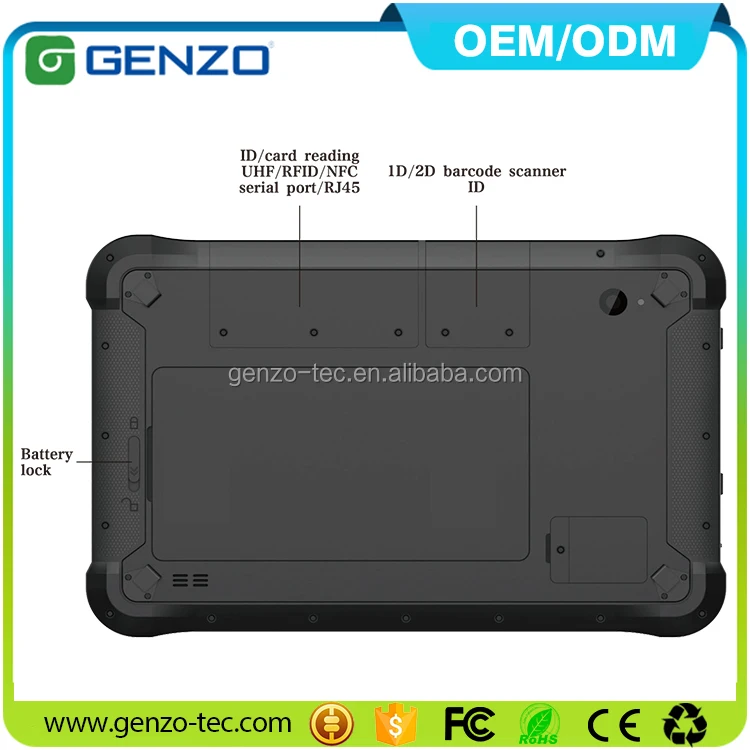

9.UHF/1D/2D optional
10.1000 Nits Brightness
| Specification | |
| CPU | Intel Cherrytrail Z8350,1.44Ghz-1.92GHz |
| Size/Weight | 280*187*22mm , Device Unit: 1068g |
| OS | Windows 10 home/Pro/IOT |
| LCD | 10.1" (16:10 1280x800 IPS),Nit :1000 cd/m2 |
| TP | G+G,10 point touch screen,Support spray/ salt mist/capacitance pen/touch gloves |
| RAM | 4GB DDR3L |
| Flash | 64GB, Support SDHC/SDXC x1 Max:128G |
| Wi-Fi | 802.11 a/b/g/n (2.4G/5.0G dual band wifi) |
| Camera | Front 5.0MP +Rear: 13MP auto-facus with flashlight |
| BT | BT4.0 (BLE) class1.5 transmission distance:10m |
| Battery | 3.7V/10000mAH, Removeable Battery 9hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video) |
| Speaker | Embedded 8Ω/0.8W BOX waterproof speaker x 1 |
| Sensor | G-sensor,Light sensor,range sensor,gyroscope,Electronic compass |
| 4G LTE | LTE FDD: B1/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz |
| GPS | support:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50 Seconds,Hot start time:<5 seconds,GPS frequency:1575.42MHz,Glonass frequency:1602MHZ |
| NFC | Support 13.56 mhz Optional |
| 1D/2D | 1D/2D Scanner Optional Honeywell N3680 |
| ID Module | Optional |
| UHF | Optional UFH,Working spectrum range |

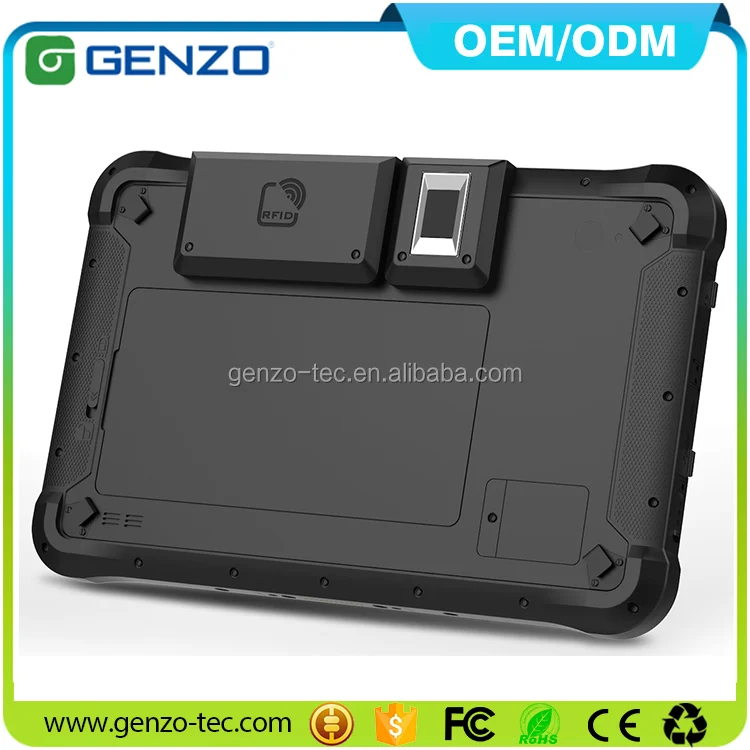

| Fingerprint | Fingerprint collection module for Resident identity card:standard UART/ USB port,Baud rate 115200bps(by default), |
| Extensive Slot | 12pin Pogo Pin x1 |
| Straps | Extensible belt on the back case, convenient to hold |
| Writing pen | Support capacitive hand writing pen |
| GPS | U-BLOX M8 GNSS module. support GPS, beidou,glonass |

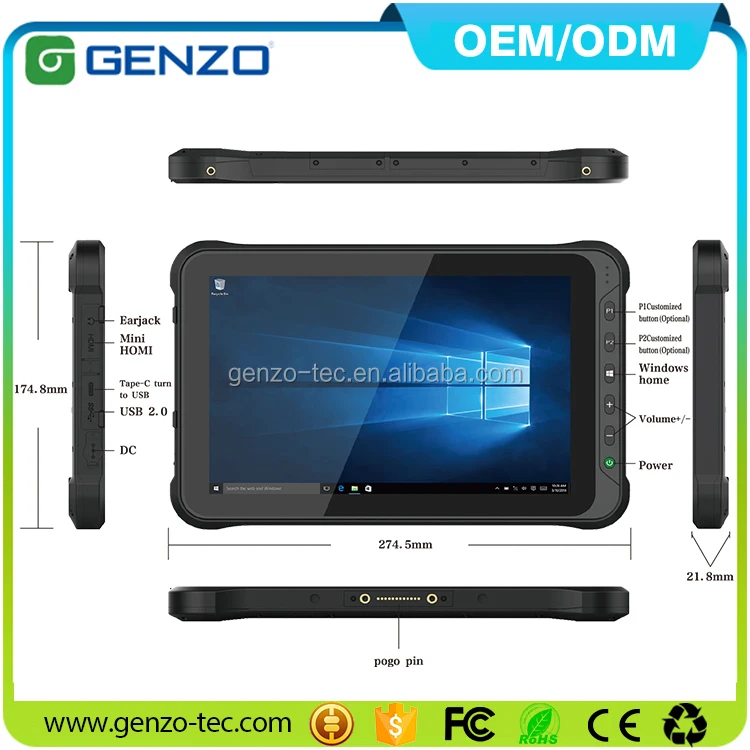

| Port | SIM card*1,3.5mm standard earphone jackx1, DC 5.5V 4A ,3.5mm Power connector x1, HDMI x1, 1x POGO 12PIN , |
| Key | Power key x1,power key x1,Volume + - x2 |
| Windows home | Windows home x1 |
| P1/p2 | P1:user-defined,Barcode scanning x1,P2:wearing gloves/ wet finger mode switching x1 |
| USB connector | Standard USB 2.0*1 ,TypeC x1(data&charing) |
| Standard Accessories | USB OTG to MICRO USB cable length:45mm,USB to micro 5P L=1.2M 4core aluminum foil shield cable,AC100V ~ 240V,50Hz/60Hz output DC 5.5V/4A USA Standard CE approval |
| Drop Height | 1.2m floors, in operation status, Sample work well. |
| Operate Temperature | -10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | -30 °C to 70 °C, |
| Humidity | 95% Non-Condensing |
| IP65 | IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X b.Water speed:12.5±0.625L/min; f. Test time:at least 3min; |

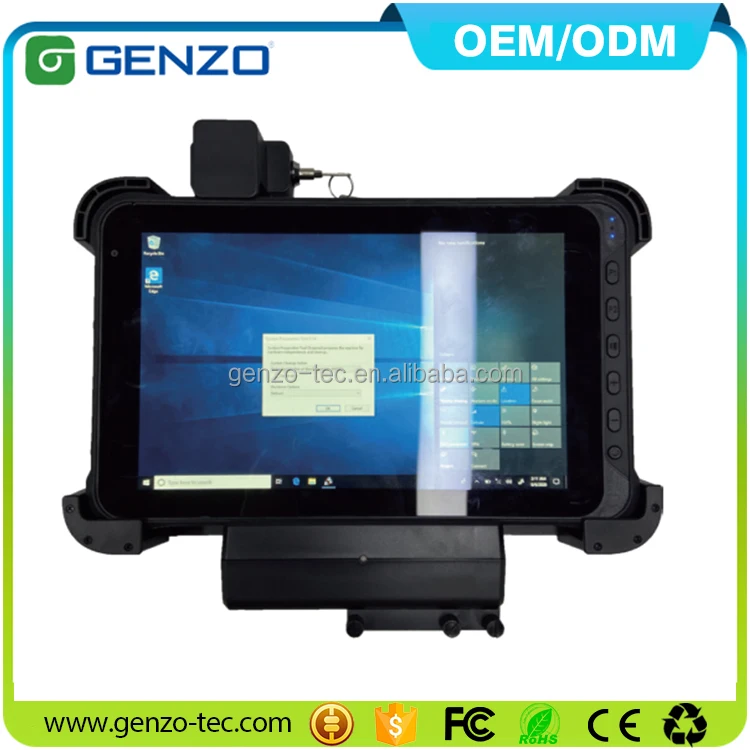

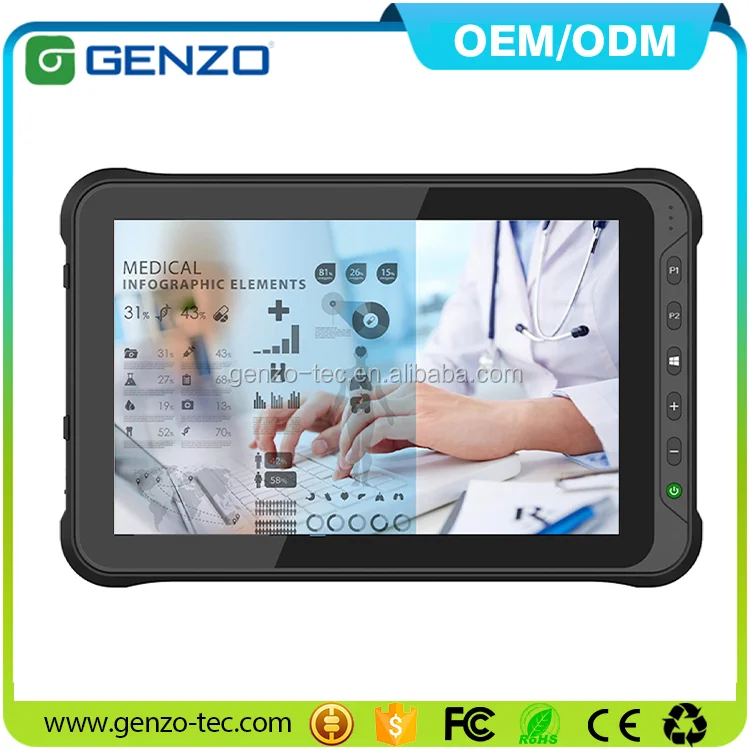

Product Pictures
Packaging Shipping
Company Pntroduction

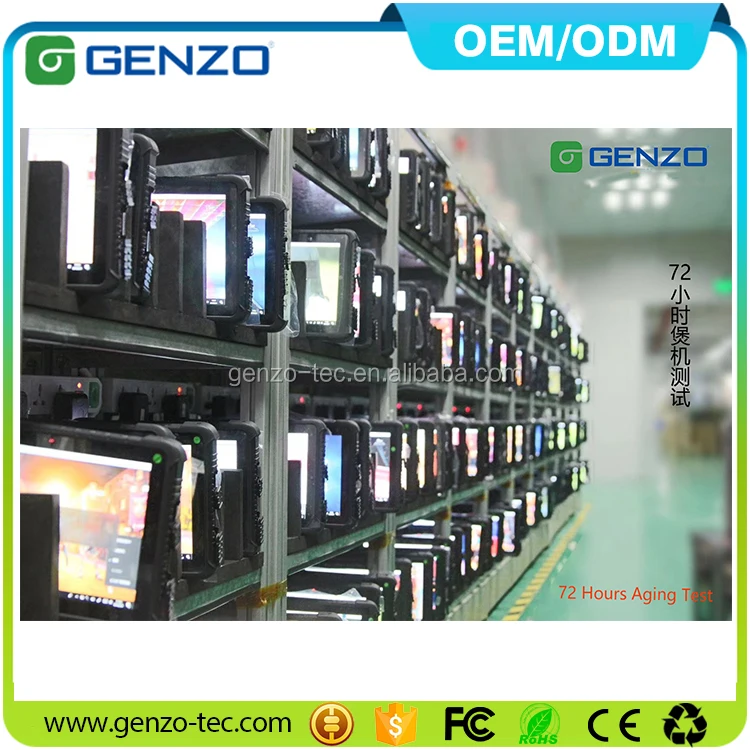

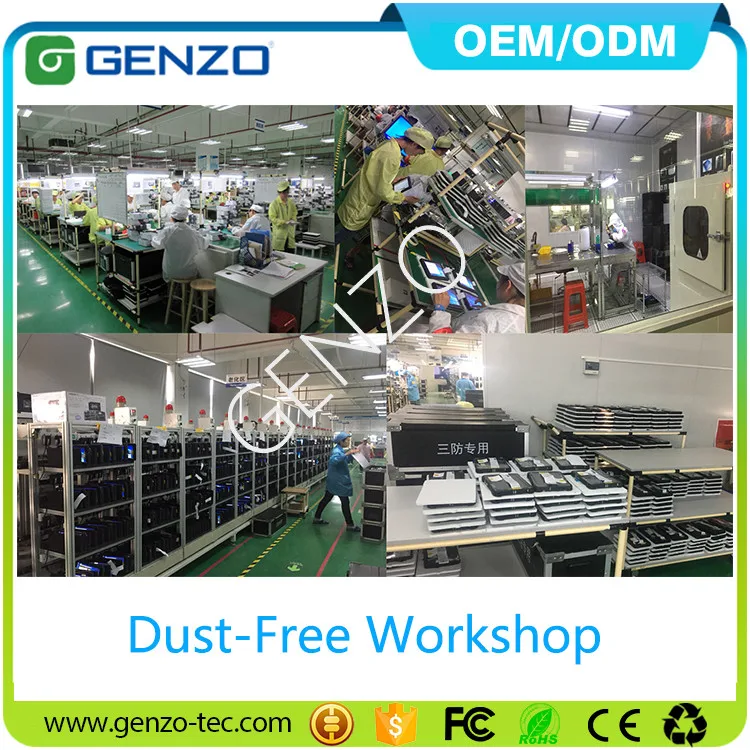

Factory Pictures
Certificate
Our Service
OEM&ODM:
We accept OEM&ODM for customer's request. It includes:
1. Burn customer's logo name as Boot Animation name.
2. Print customer's logo on shell or do customer's logo sticker.
3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR file for customer's own design.
4. Usuer Manual,customer can choice different languages and put them together.
5. Customer's Master Carton design are acceptable.
6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.
Warranty:
For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.
Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.
So,there are almost no defective.if really have,you can send back us for repair or replacement.
You send back to us, you pay the shipping cost.
We send back to you,we pay the shipping cost.
But, all this warranty does not include accident, human fault or improper use.
Why choose us?
1. We are China leading Rugged Tablet & PDA manufacturer.
2. Alibaba Gold Supplier.
3. Inspected by the inspection of Bureau Veritas Certification.
4. 100% QC inspection before shippment.
5. Best quality & service with competitive price.
FAQ
1.Q: Are you a factory or trading company?
A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet (7"/8"/10"), Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").
2.Q: Where is your factory located? How can I wisit there?
A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and we will pick you up. Welcome to visit our factory.
3.Q: How can I get some samples?
A: We are honored to offer you samples.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS certification.
