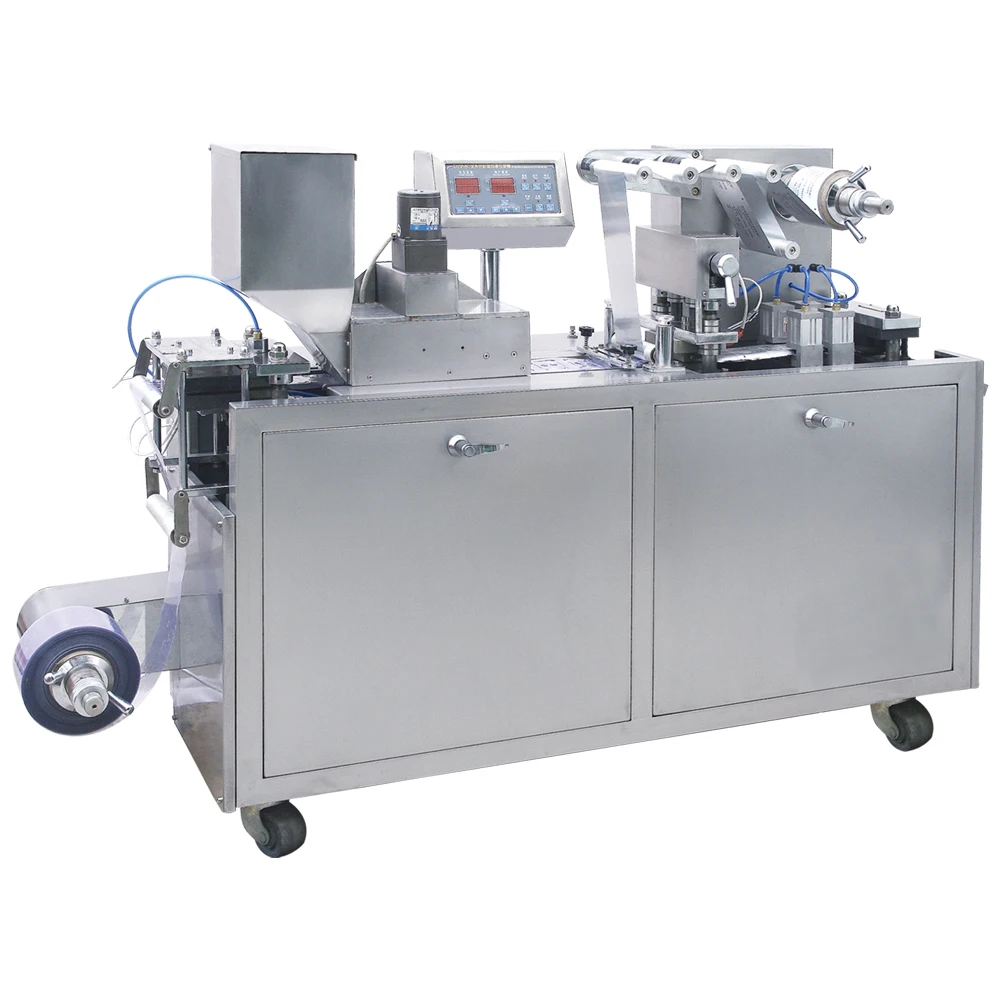

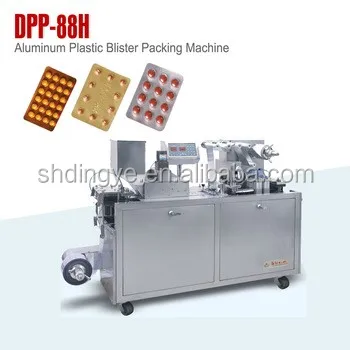

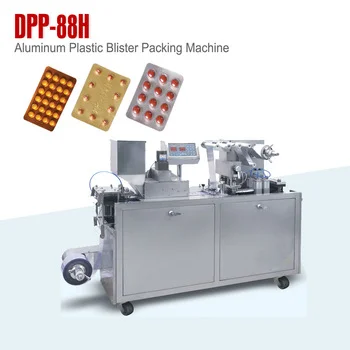

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.
Technical parameters:
Model
DPP-88H
Cutting Frequency(ideal sizes:80*57mm)
10-30 cutting/min
Max. Forming Area and Depth
100×90×15mm
Adjustable Scope of Travel(mm)
40-100mm
Packaging material(I.D.Φ75)
PVC(mm)
(0.15-0.4)×110×(Φ300)
PTP(mm)
(0.02-0.15)×110×(Φ250)
Paper(mm)
(50-100)gsm×110×(Φ300)
Power
220V 50Hz 5.5k
Air compression(self-prepared)
0.6-0.8Mpa≥0.3m³/min
Recycle water or circulating water consumption
30-50L/h
Overall Dimension(L*W*H)(including foundation)
2400×650×1450
Dimension
1700*450*1100mm
Weight
About 300kg

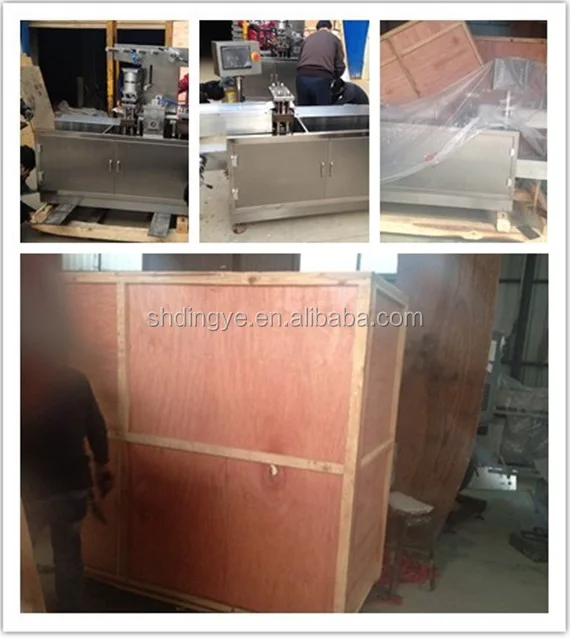

Package:
n The machine will not be shaking in transport with wooden fixed.
n The machine will not be affected with damp in transport with packed with PE plastic bags.
