HJ 520Y 2 rotary die cut station adhesive foam tape label die cutter with slitting function

Product Overview

Description



HJ--520Y 2 rotary die cut station adhesive foam tape label die cutter with slitting function

1. Description:

This machine is insistent of platen pressing structre,servo system control the material feeding and forwarding, the photocell track material, unwind- die cutting-wasting discharging-sheetng cutting/rewinding all is completed in one machine, all are control by PLC system.



2. Technical parameters:

Model	520 model
cut speed	120m/min
Max unwinding diameter	550mm
Max web width	520mm
Max die-cut width	500mm
Max die-cut Length	300mm
Position accuracy	±0.1mm
Total power	4kw
Power voltage	380V/220v±10%
Machine weight	About 1500kg
Overall dimension	2.0(L)×1.3(W)×1.6(H)(m)

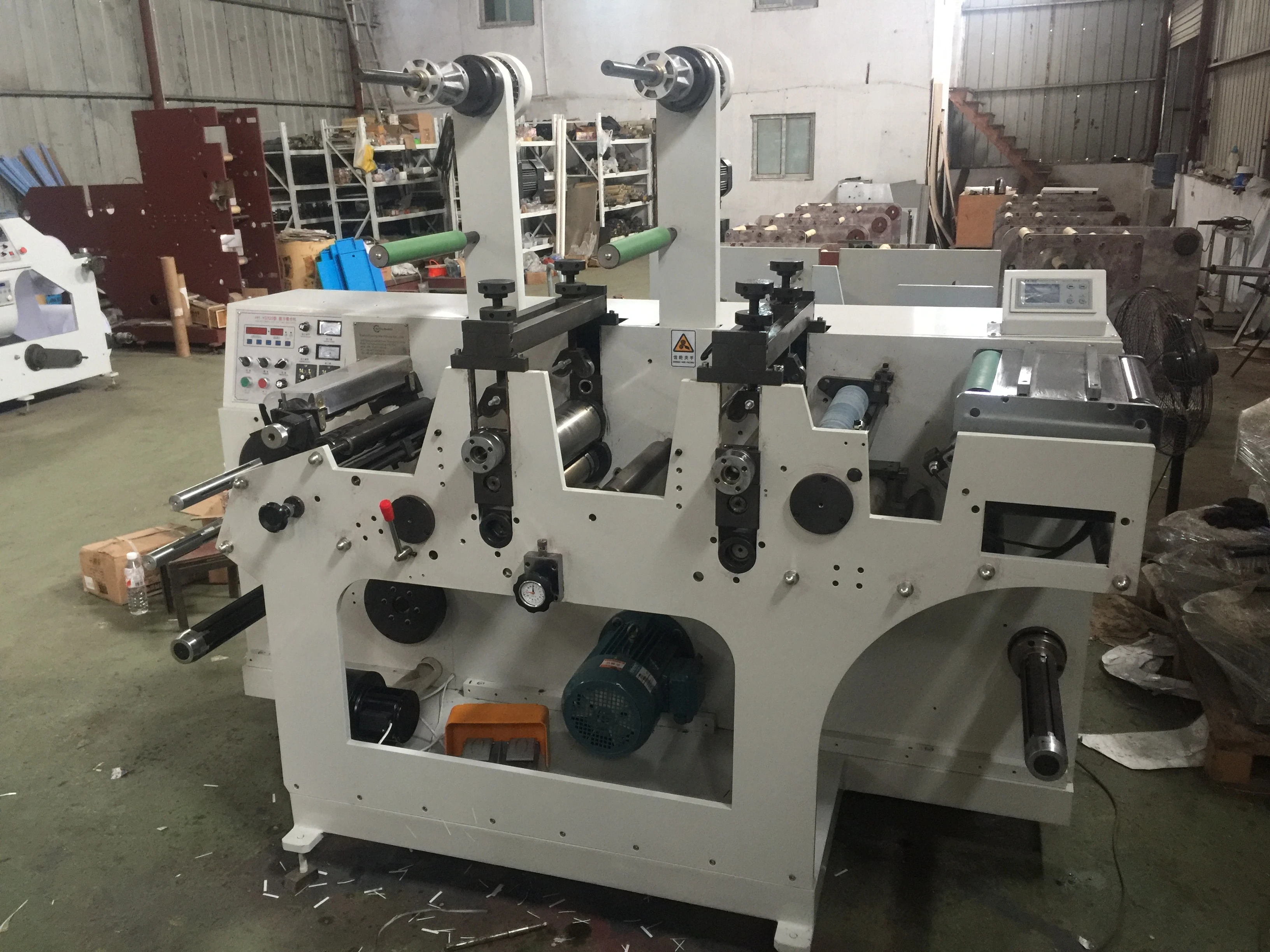

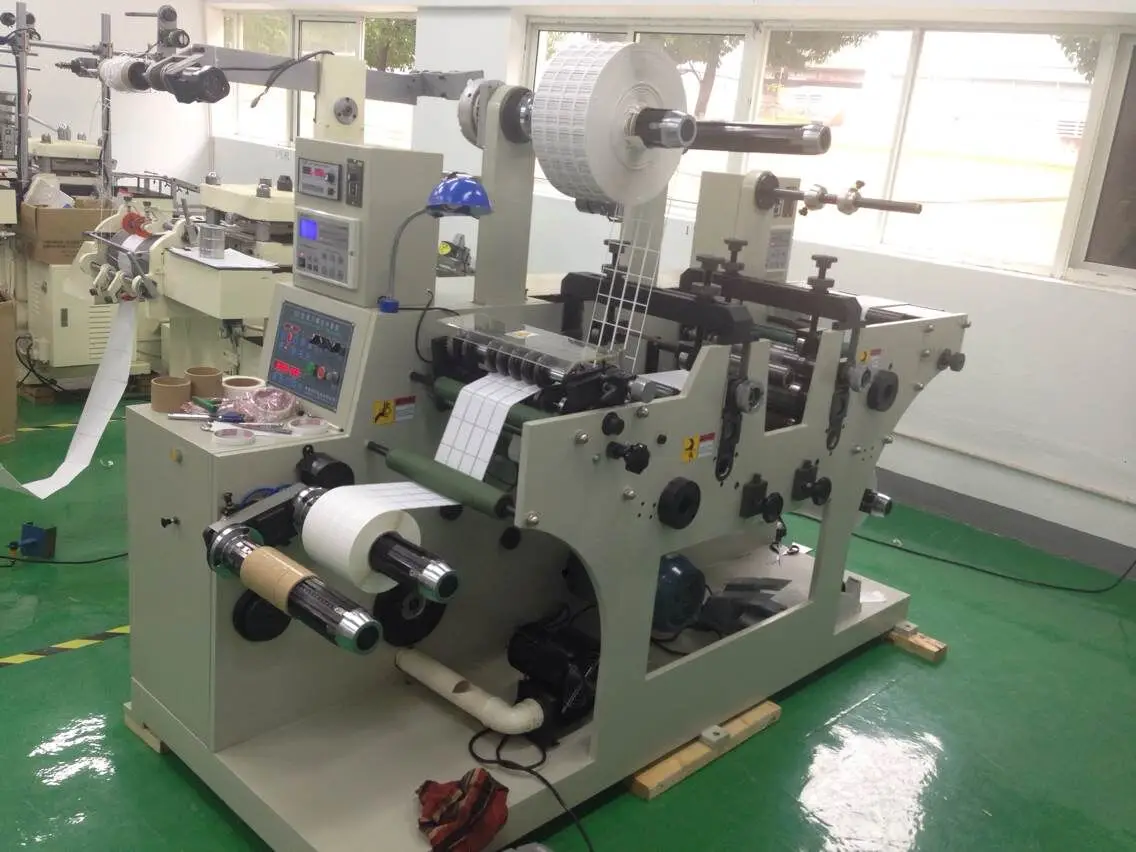

3. Machine details
