New Arrival 90 Degree 100W Led Flood Light Module
- Category: >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (62560720852):
Product Overview
Description
Specification
Product Information | ||

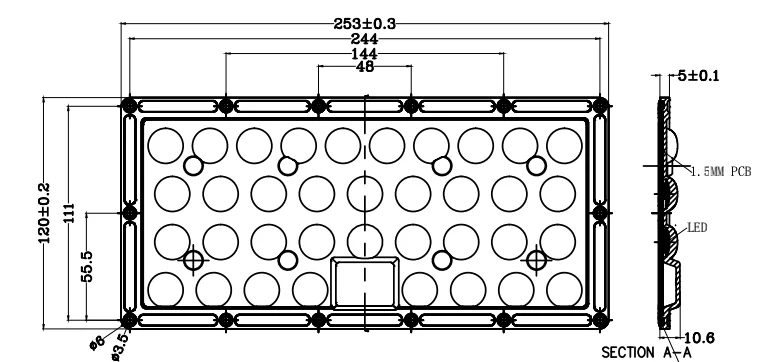

Module No | SUN-LD253X120-90 | |
Lens Angle | 90 degree | |
Lens Size | 253X120 mm | |
PCB Size | 223X93mm | |
PCB Circuit | 8 series 18 parallel | |
Heat Sink | 273*120mm, T 42mm | |

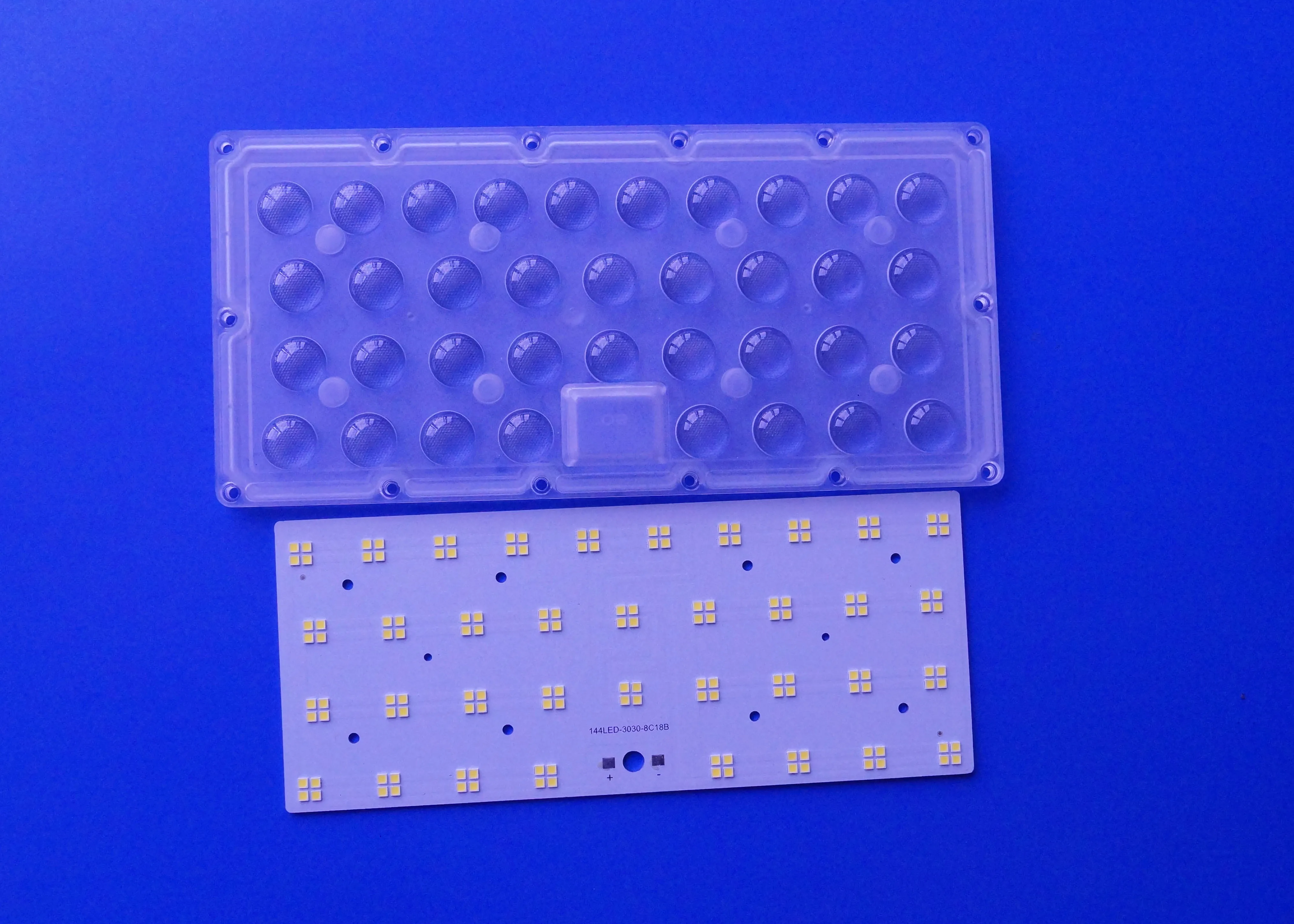

Kits | led lens+silicon gasket+pcb welding leds+heat sink | |
Product Description

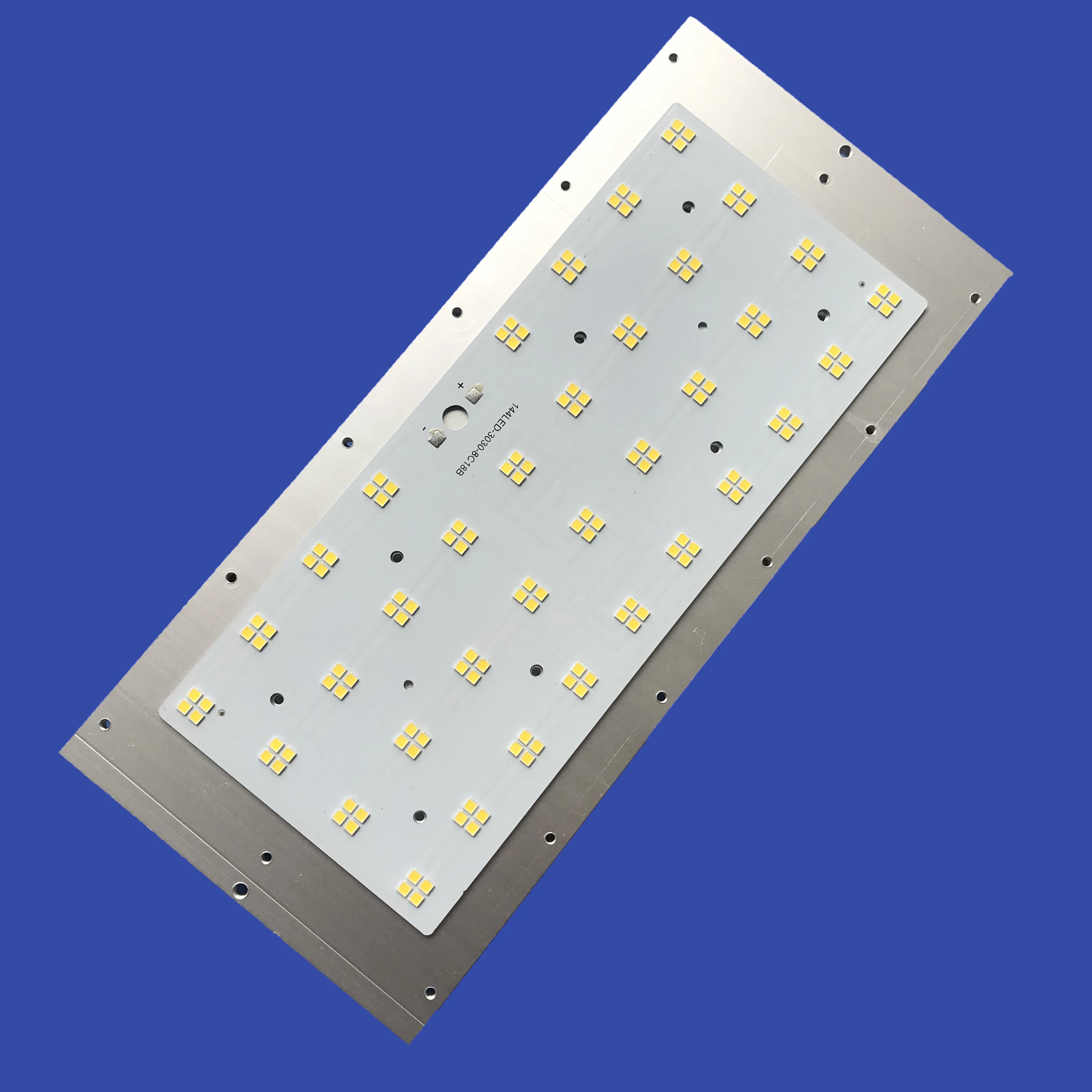

PCB Board Details
PCB Size :223X93 mm
PCB Circuit :8 series 18 parallel for smd 3030 leds
Led Lens Details
Lens Size :253X120mm
Lens Angle : 90 degree
Lens material :optical grade PC
SMD Led Module
Applications
Shipping&Package
Certifications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
