Sunpower Mono Solar Cell High Efficiency 22.6% 23.7% 24.8% Tabbed Maxeon C60 Solar Cell in stock

Product Overview

Description

Sunpower Mono Solar Cell High Efficiency 22.6% 23.7% 24.8% Tabbed Maxeon C60 Solar Cell in stock



 Sunpower Mono Solar Cell High Efficiency 22.6% 23.7% 24.8% Tabbed Maxeon C60 Solar Cell in stock

Product name	sun power solar cell for sale
size	125*125mm
material	monocrystalline silicon
color	dark blue
busbar	none busbar
power watt	3.63w
efficiency	23.7%
Vmpp	0.55V
Impp	6.6A





datasheet Sunpower Mono Solar Cell High Efficiency 22.6% 23.7% 24.8% Tabbed Maxeon C60 Solar Cell in stock

Efficiency Code	1950	2240	2260	2370	2480
Efficiency(%)	19.5	22.4	22.6	23.7	24.8
Pmax(W)	3.0	3.44	3.46	3.63	3.8
Vmp(V)	0.55	0.55	0.55	0.55	0.55
Imp(A)	5.45	6.25	6.29	6.6	6.9
Voc(V)	0.649	0.649	0.649	0.649	0.649
Isc(A)	5.78	6.63	6.67	6.996	7.32

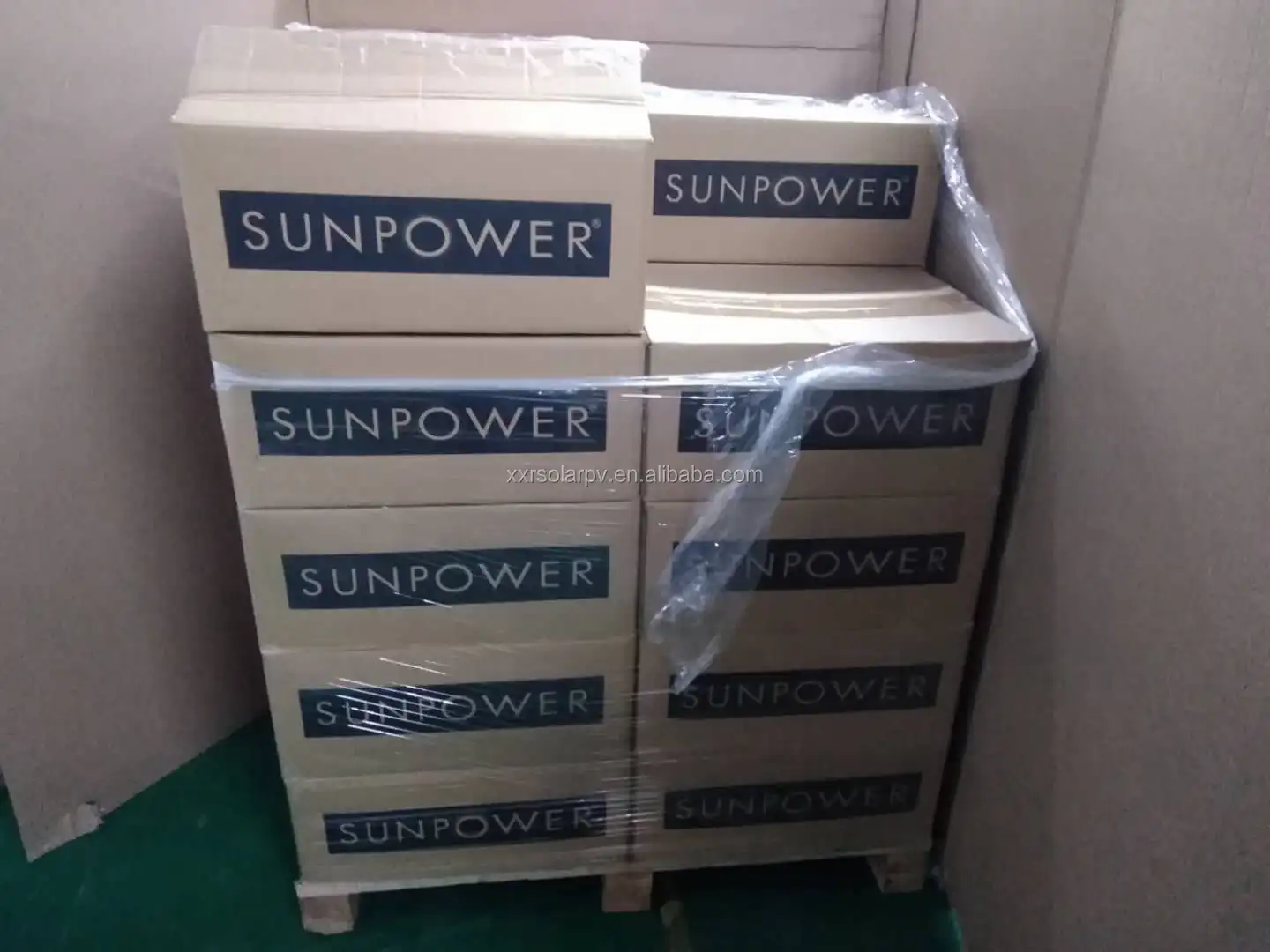

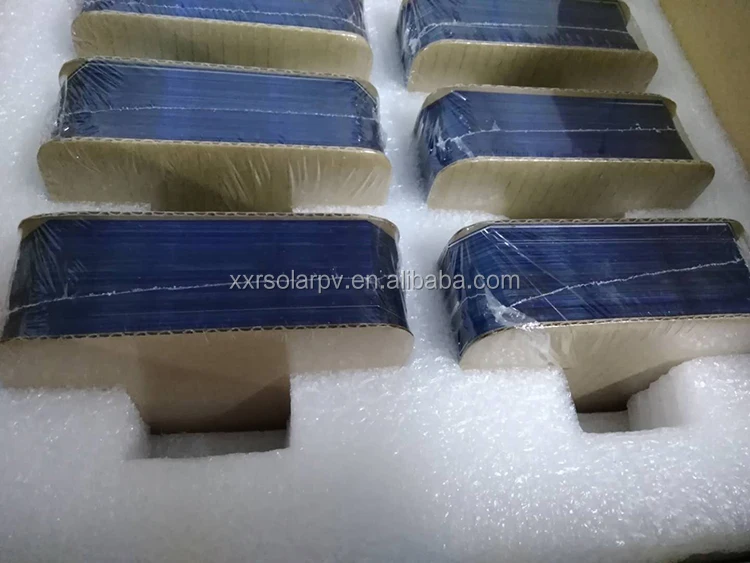

	150 pcs	600pcs	36000pcs	108000pcs
Box Size	22*20*8CM	23*24*25CM	120*100*120CM* 1PALLET	120*100*122CM* 3PALLETS
GW	1.5KG	8KG	435KG	1296KG

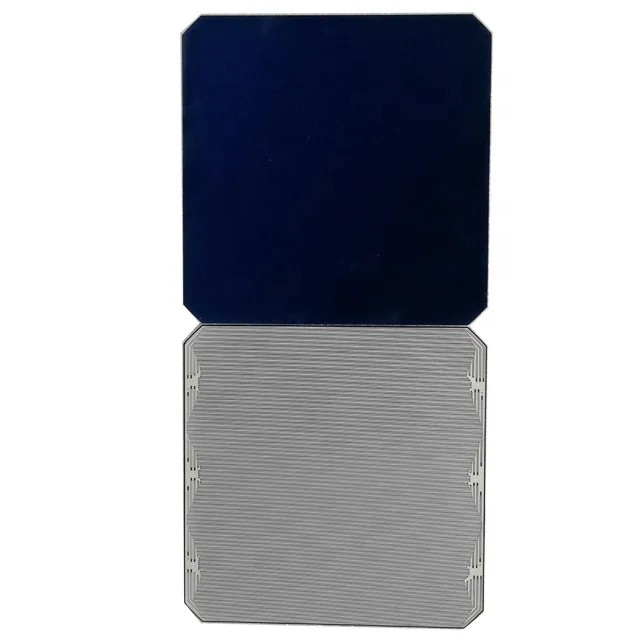

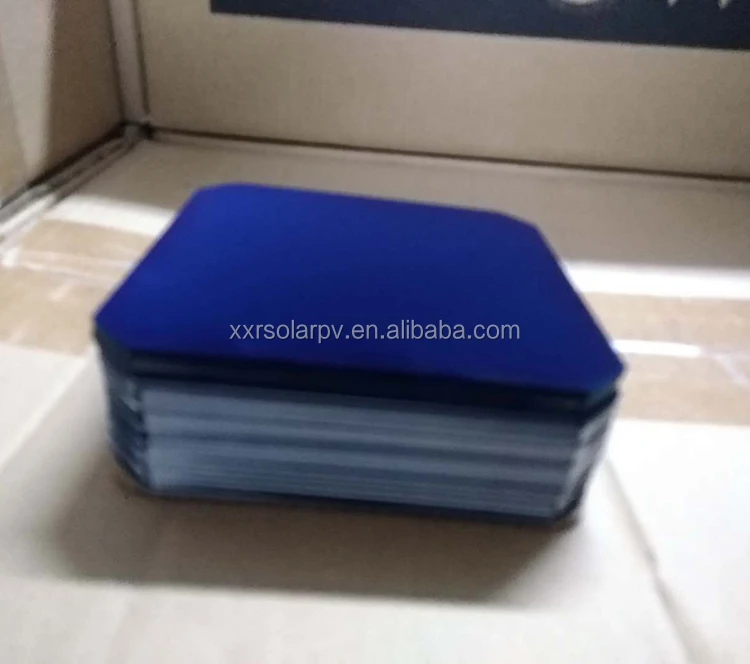

DETAILED IMAGES

---------§---------

PYSICAL
CHARACTERISTIC

Dimension

125mm X125mm

Solar Cell  Thickness

200µm ± 20µm

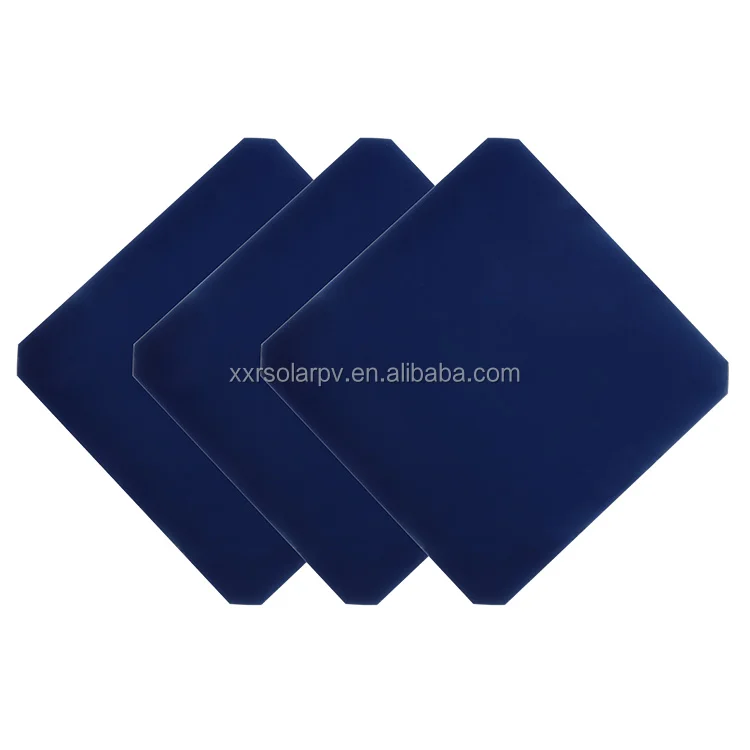

Front(-)

Blue silicon nitride anti-reflection coatings,none busbar

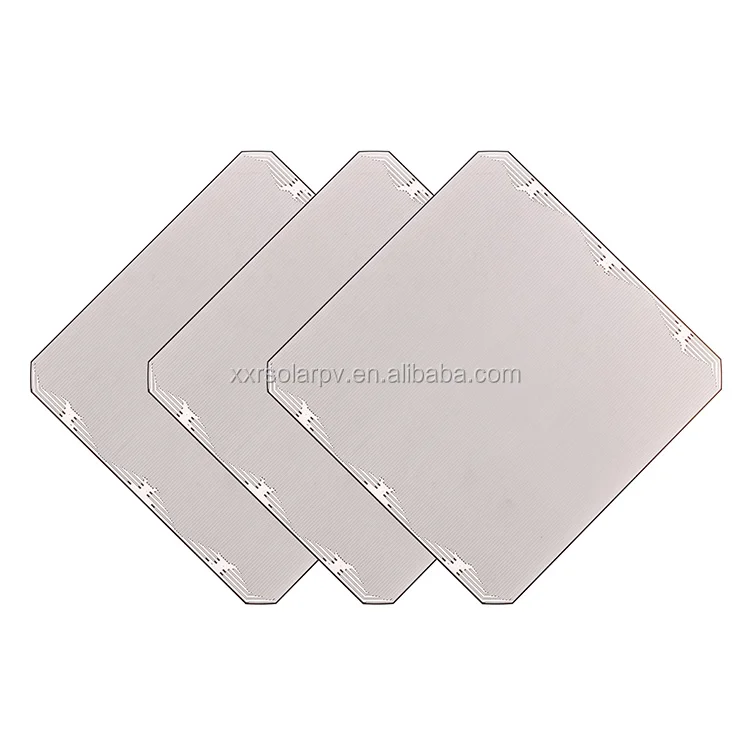

Back(+)

Full-surface aluminum back-surface field, none busbar



TYPICAL TEMPERATURE
COEFFICIENTS

Voltage

- 0.3324%/K

Current

+3.50 mA/K

Power

-0.342%/K

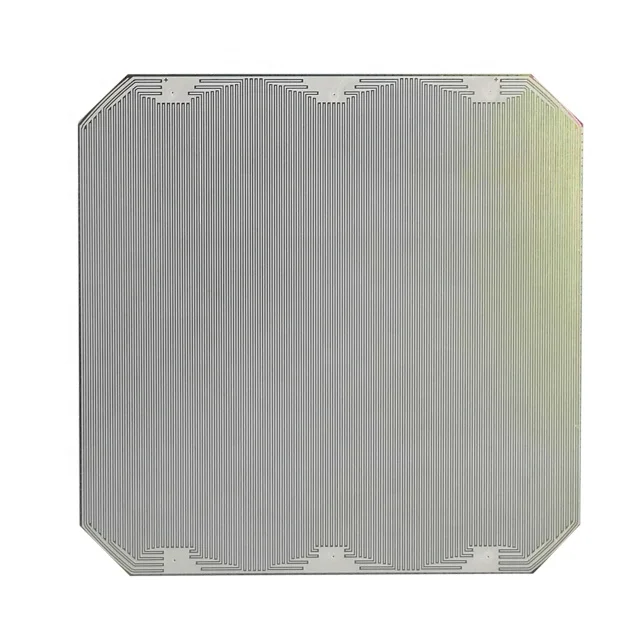

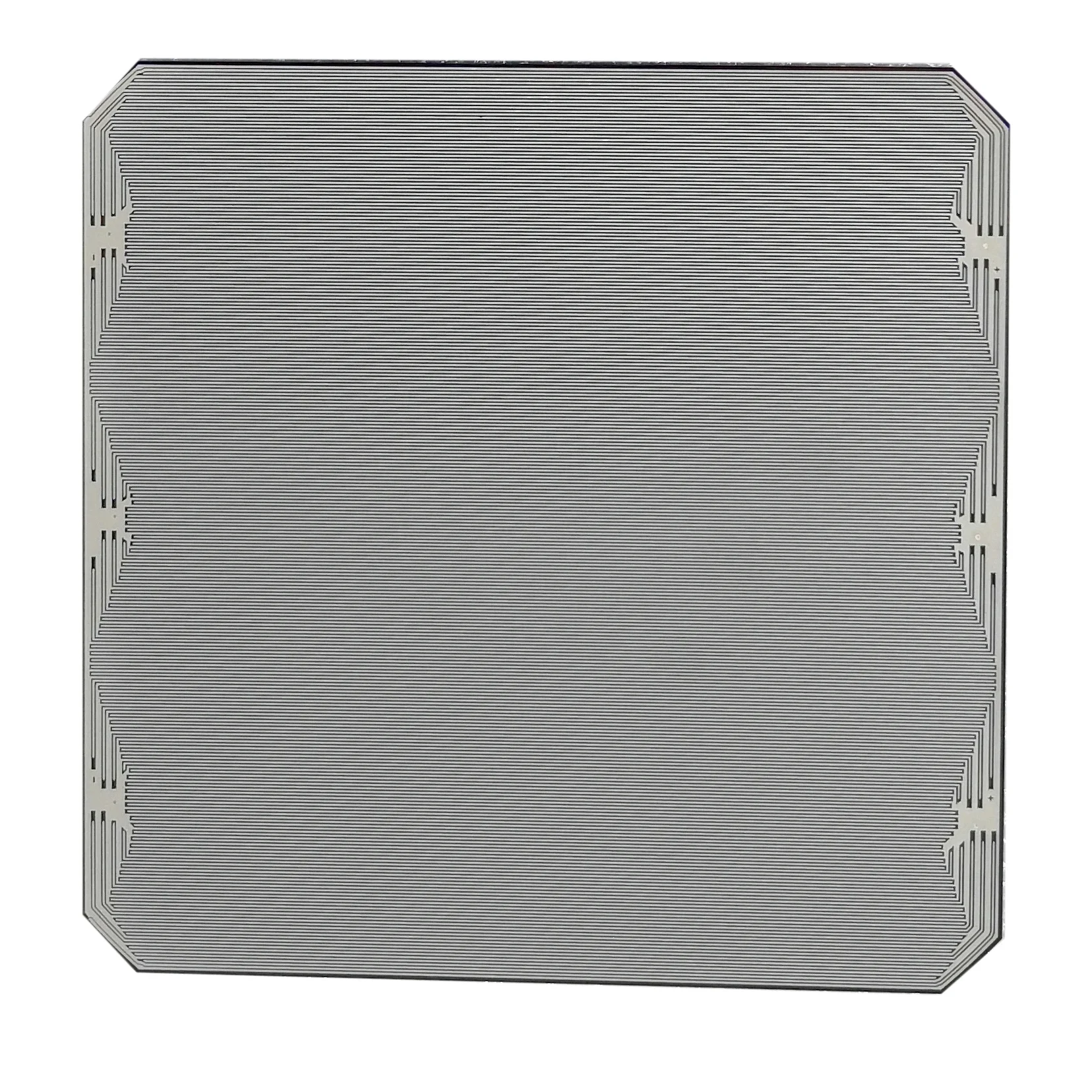

CONDUCTOR
PATTERNS







Product instructions

solar module one of material, different model make different kind of solar panel. according to your choice to choose the related solar cell model.
