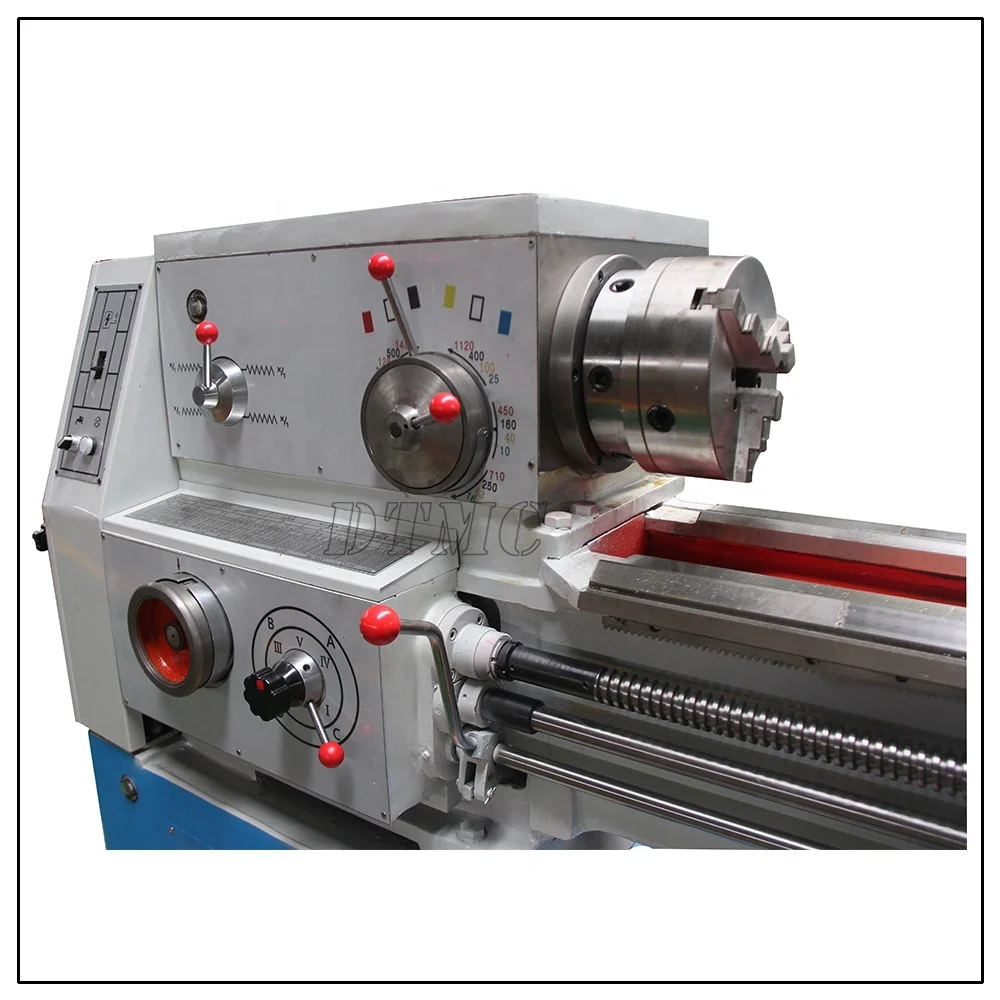

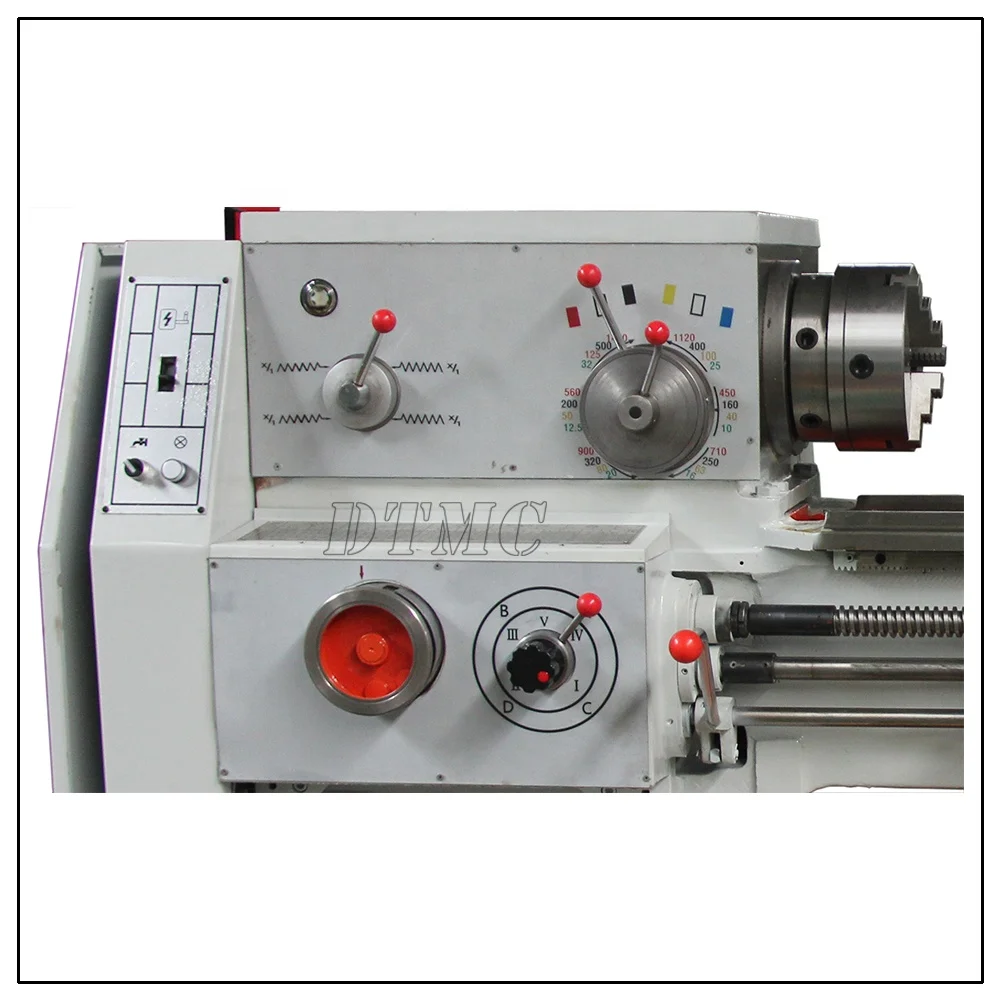

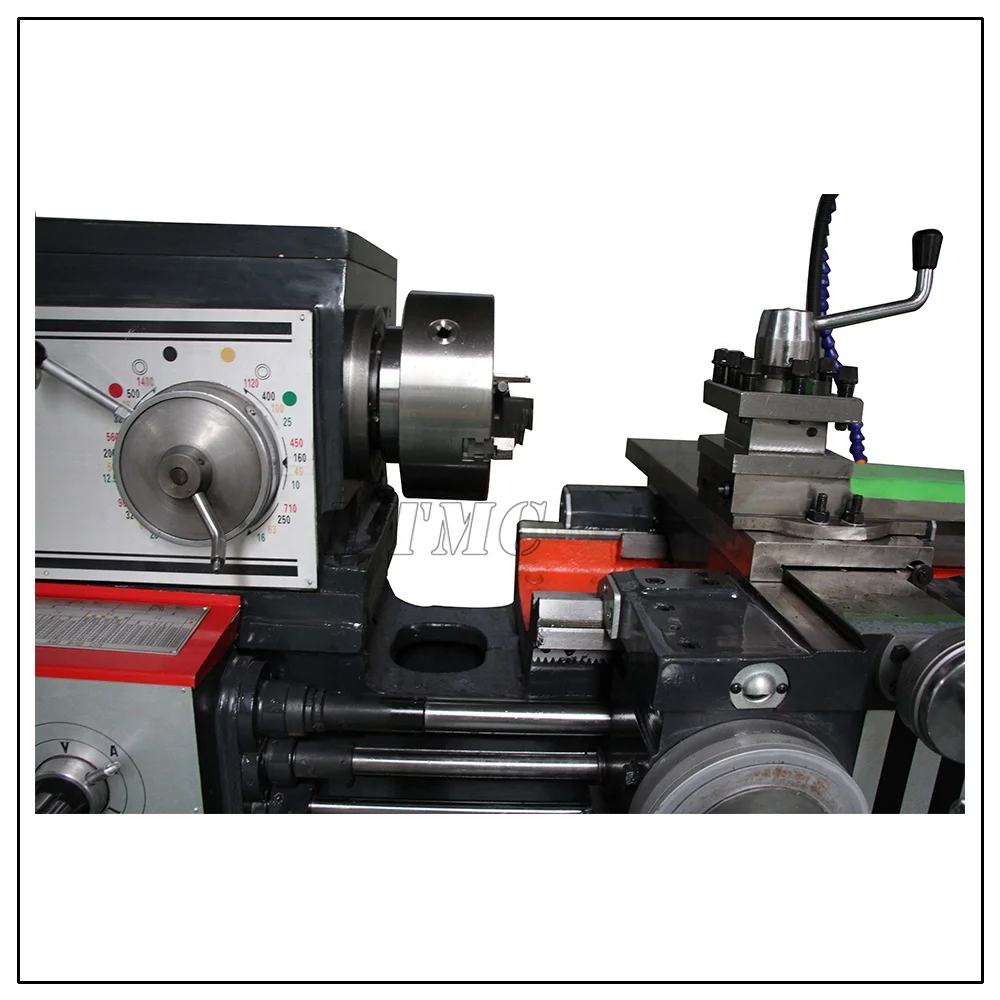

CA6150B Conventional manual lathe machine tool price china universal lathe
- Category: >>>
- Supplier: Tengzhou City Datong Machine Tool Co. Ltd.
Share on (62560944666):
Product Overview
Description
DTMC
Product Description
Main Feature
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Product main technical parameters:
Specifications | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | |
Max. Swing over bed | 500mm | ||
Max. Swing over carriage | 300mm | ||
Max. swing in gap | -- | 720mm | |
Effective gap length | -- | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
Width of bed | 400mm | ||
Section of turning tool | 25x25mm | ||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
Hole through spindle | 52mm. (80mm). [105mm] | ||
Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||
Feed | Number of feeds | 64(kinds)(for each) | |
Range of metric threads(kinds) | (1-192mm)44kinds | ||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||
Range of module threads(kinds) | 0.25-48(Moduie39kinds) | ||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
| Cross slide travel | 320mm | |
| Top slide travel | 140mm | |
Tailstock | Max. tail stock spindle travel | 150mm | |
Tail stock spindle diameter | 75mm | ||
Taper of tail stock spindle center hole | NO.5(MT5) | ||
Main motor | 7.5KW(10HP) | ||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
Overall dimensions for1000mm | 2700x1140x1750 | ||
Overall dimensions for1500mm | 3200x1140x1750 | ||
Overall dimensions for2000mm | 3700x1140x1750 | ||
Overall dimensions for2200mm | 4030x1140x1750 | ||
Overall dimensions for3000mm | 4850x1140x1750 | ||
Overall dimensions for4000mm | 5800x1140x1750 | ||
Weight (kg) | Length | G.W N.W. | |
Weight for 750mm | 2100 1990 | ||
Weight for 1000mm | 2190 2070 | ||
Weight for 1500mm | 2350 2220 | ||
Weight for 2000mm | 2720 2570 | ||
Weight for 2200mm | 2800 2600 | ||
Weight for 3000mm | 3300 3200 | ||
Weight for 4000mm | 3500 3400 | ||
Standard configuration:
1. 3-jaw chuck (Φ250mm).
2. Steady rest & follow rest.
3. Longitudinal touch stop.
4. Work lamp.
5. Coolant system.
6. Full-length splash guard.
7. Foot brake and brake ribbon.
8. Change gears.
9. Dead centre and centre sleeve.
10. Face plate.
11. Oil gun.
12. Paddings.
13. One whole set spanner and tool box.
14. Operation manual.
Optional Configurations:
1. Live centre(MT4).
2. 2axis Digital readouts (SINO).
3. 3axis Digital readouts (SINO).
4. Rapid travel.
5. CE-conformity (Chuck guard,Toolpost guard and leadscrew guard).
6. USA type Quick change tool post.
7. Europe or Italy type Quick change tool post.
8. Thread-cutting dial.
9. Drive plate.
10. Thread-cutting dial.
11. Magnetoelectrical brake.
12. Drill chuck set.
13. Taper cutting function.
14. Cutting tool holders set(7pcs or 9pcs)

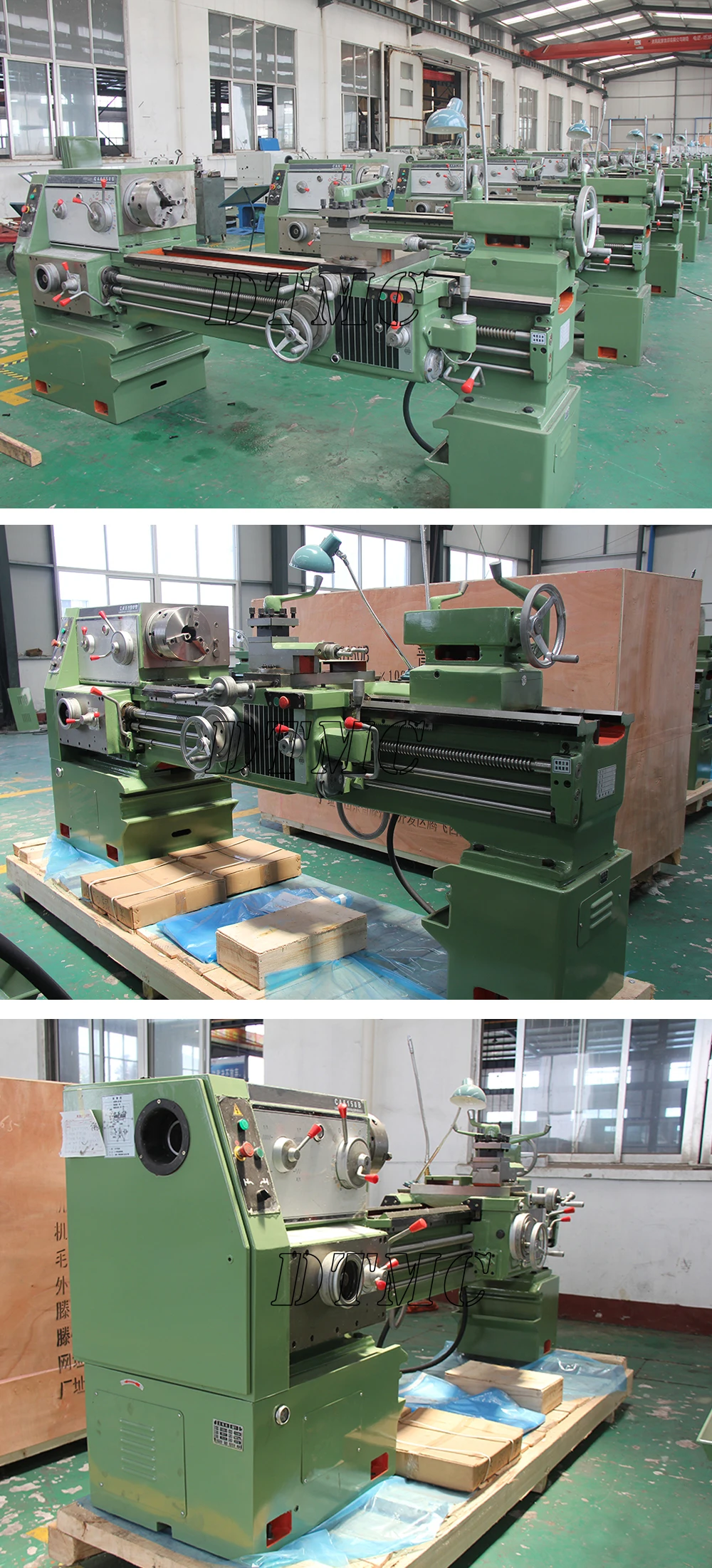

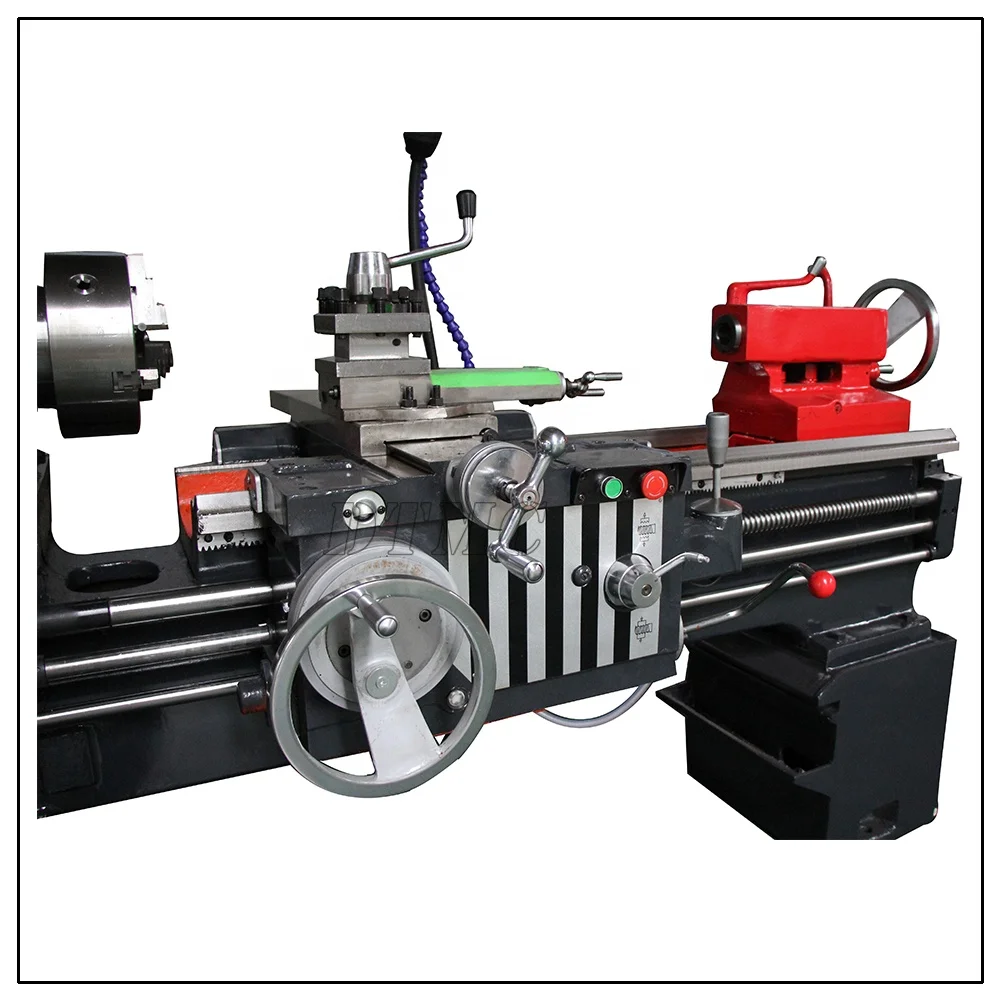

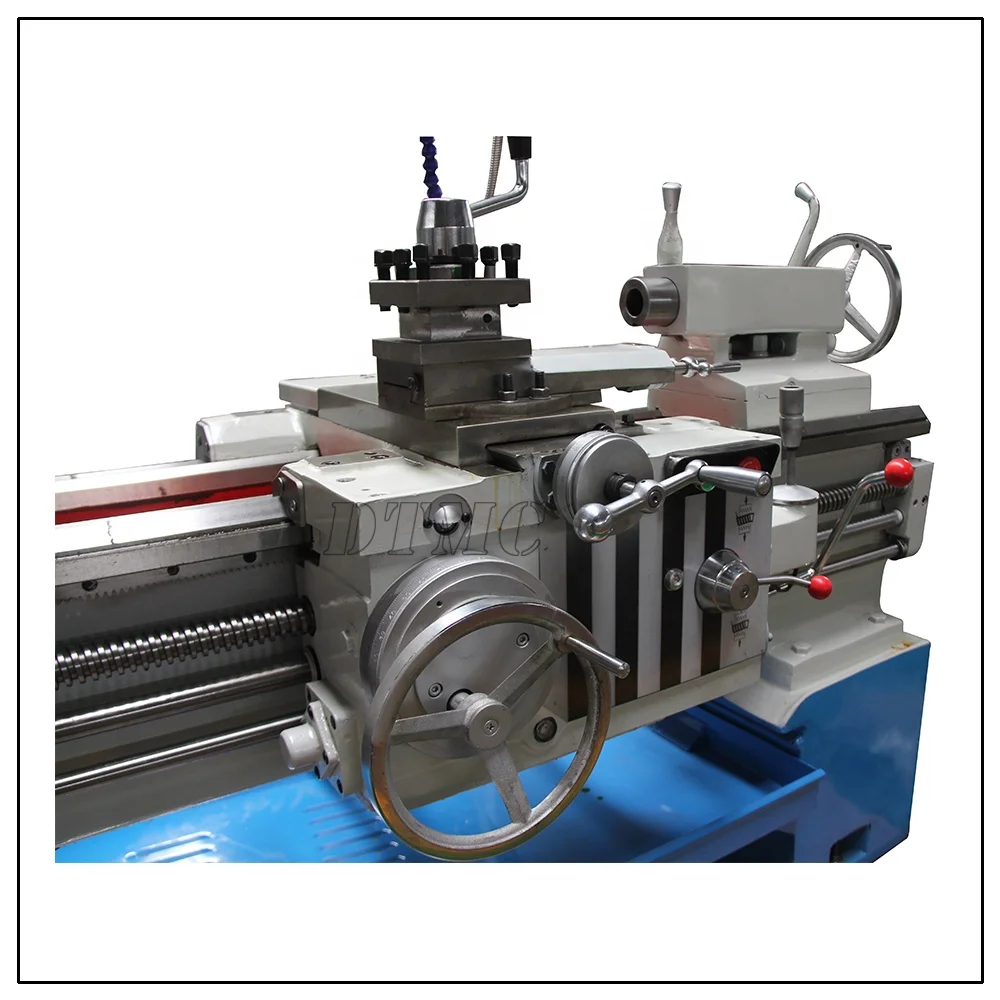

Product show
